INDUSTRIAL POE SWITCH GTX-P1-5-41GSFP 4-PORT SFP

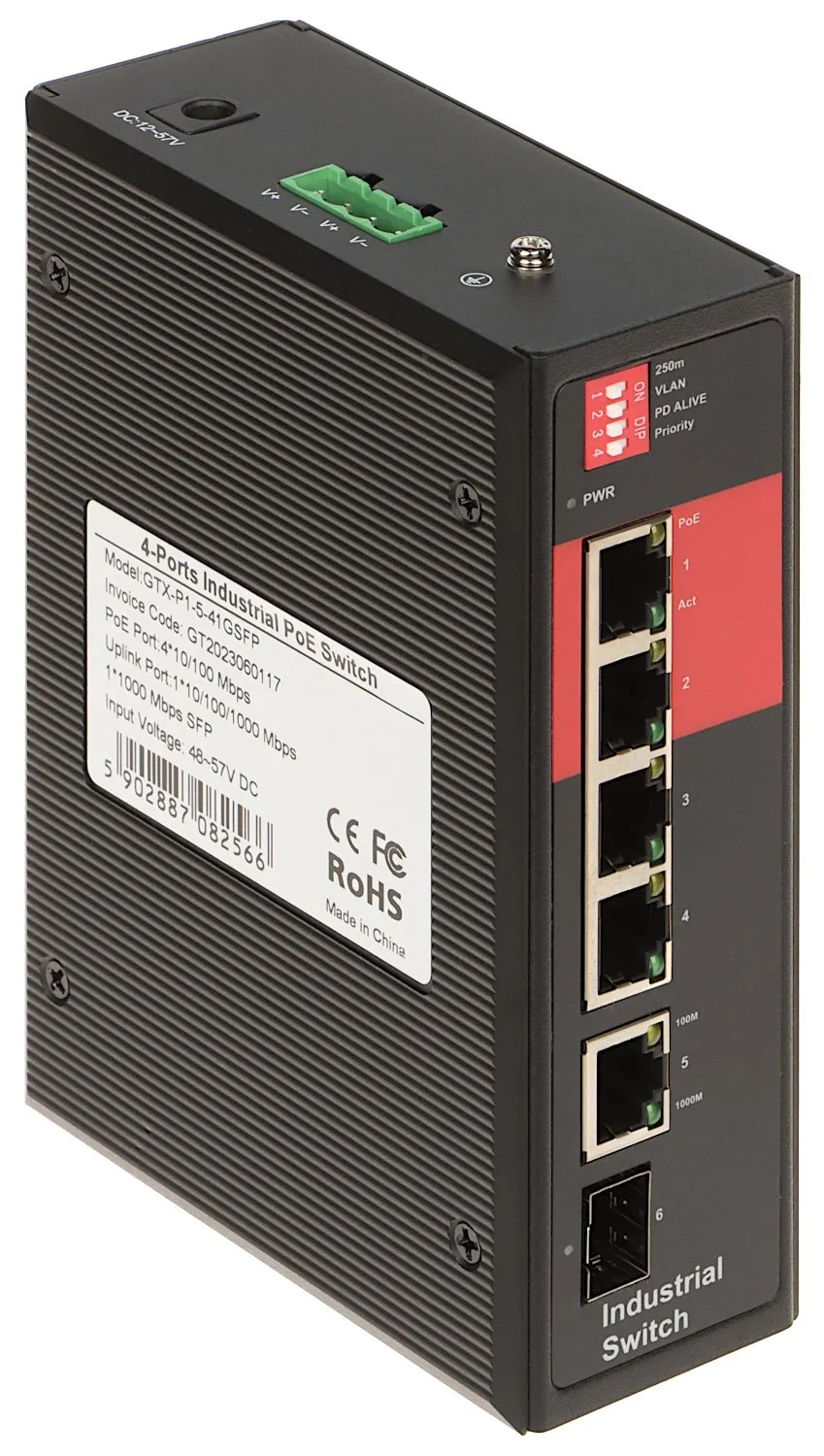

The image shows a 4-port industrial PoE switch with a robust metal casing and multiple Ethernet ports on the side. It features LED indicators for power and connectivity status, designed for efficient network management in industrial settings.

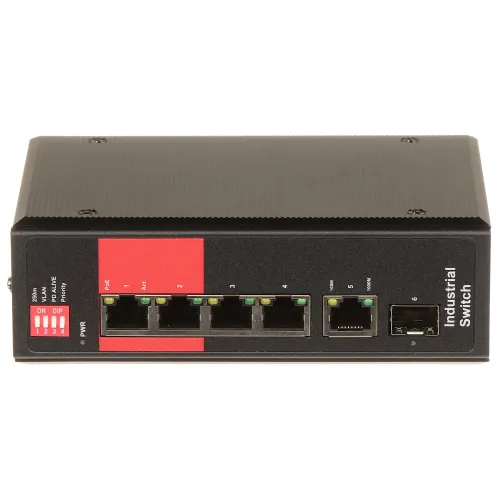

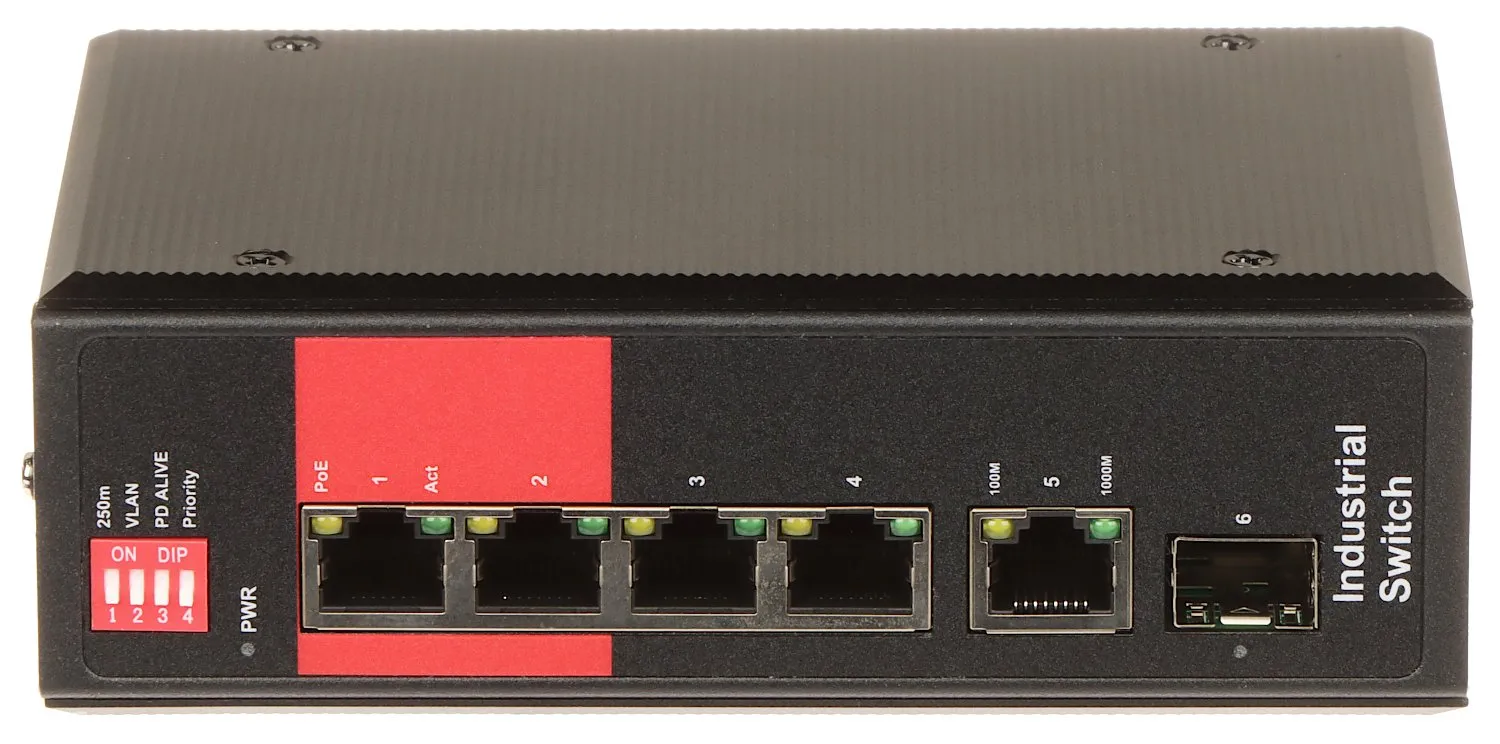

The image shows a black industrial network switch with five Ethernet ports and one fiber optic port on the front panel. It features a red section indicating power and priority settings, designed for robust connectivity in demanding environments.

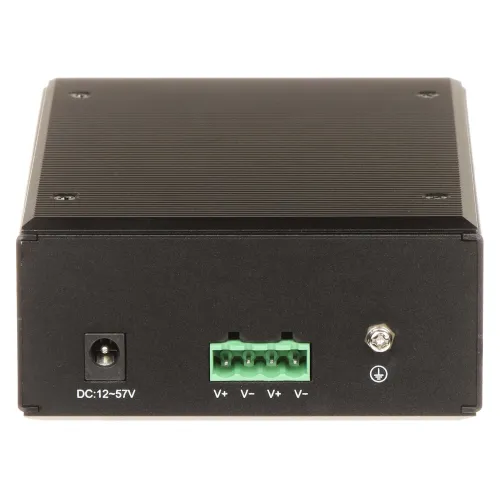

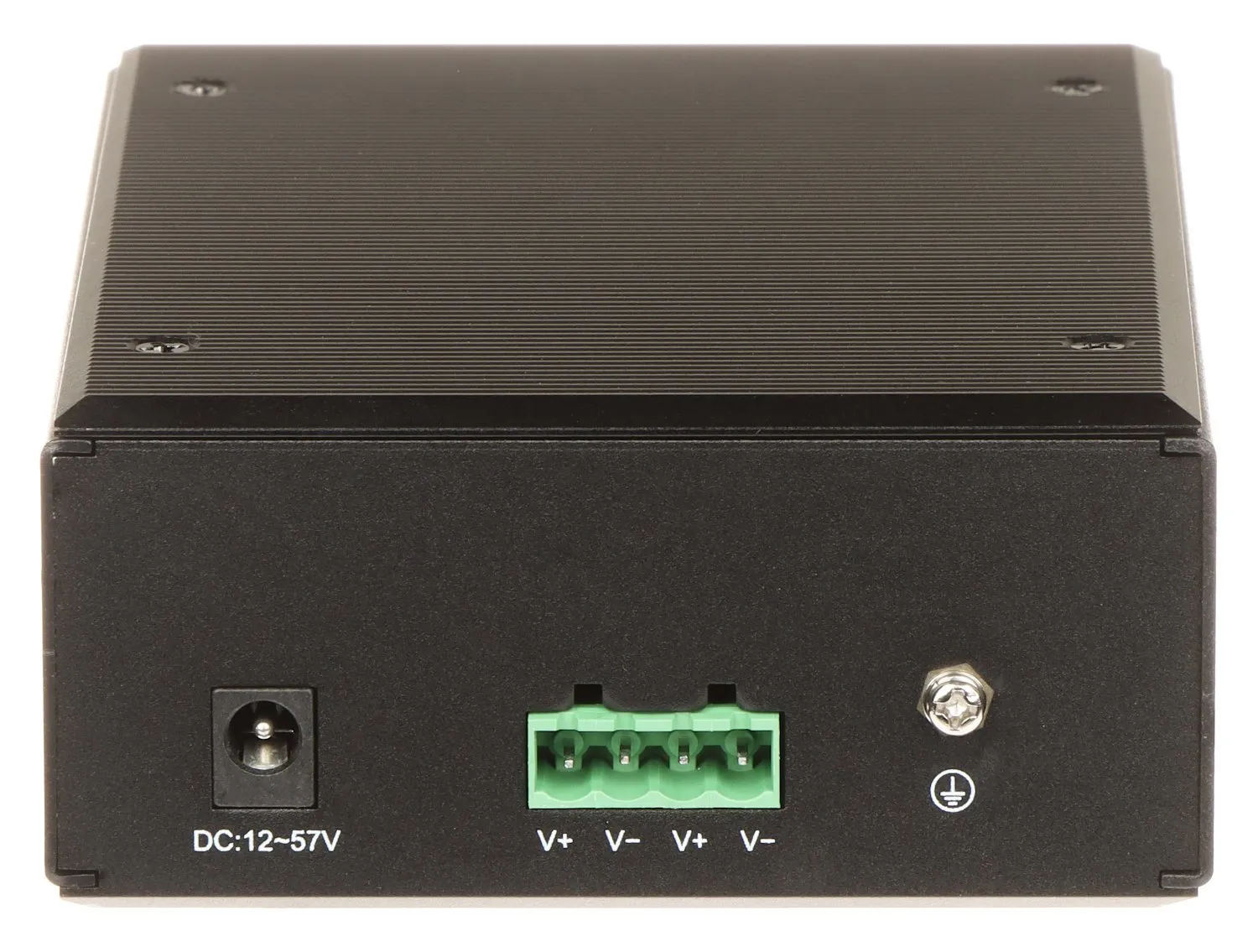

A black, rectangular electronic device with a ribbed top surface features a power input on the left and a green terminal block with four connection points in the center. The device also includes a grounding screw on the right side, designed for secure electrical installations.
A black, rectangular electronic enclosure with a ribbed top surface for heat dissipation. The box features multiple screw holes on the side for mounting and a small label on one corner.

  • Product Code

    GTX-P1-5-41GSFP

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

106,36 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 20,68 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

PoE Switch GTX-P1-5-41GSFP is an industrial type device that provides smooth network transmission at 10 / 100 Mbps The device is ideal for building a network of PoE 802.3af / 802.3at powered IP cameras. Note: Enabling the 250m Extend function increases the PoE range to 250m and reduces the transmission speed to 10 Mbps. Note: No power supply included

LAN ports:
  • 4 x RJ45 10/100 Base-T ( 2 x Hi-PoE + 2 x PoE (802.3af/at) ),
  • 1 x RJ45 10/100/1000 Base-T - Uplink,
  • 1 x SFP port 1000 Base-X - Uplink
Management:No
LEDs:Power, PoE, Link/Act
Transmission speed:
  • 10 / 100 Mbps : 4 x LAN & PoE Port,
  • 10 / 100 / 1000 Mbps : 1 x RJ45 Port (Uplink),
  • 1000 Mbps : 1 x SFP Port (Uplink)
Modes of operation:
  • 250 m ( Extend ) - Range : 250 m @ 10 Mbps
  • VLAN - Ports 1 ... 4 are isolated from each other and work separately with ports 5, 6
  • PD Alive
  • Port PoE Priority
Maximum output power:
  • 60 W / port Hi-PoE - Ports 1, 2
  • 30 W / port PoE 802.3af/at - Ports 3, 4
Selected features:
  • PD Alive mode - monitors ports that are powering PoE devices and automatically restarts by cutting off power when an unresponsive device is detected
  • Ports 1 ... 4 support transmission priority
  • Can connect two power supplies - redundant power supply
  • Designed for industrial applications in a wide temperature range.
  • Protection class: IP40
  • DIN rail mounting devices, TS-35
Certifications:CE, FCC, RoHS
Protections:
  • Surge : 6 kV
  • Contact/Air (ESD/EMP) : 6/8 kV
Power supply:48 ... 57 V DC - 2.1/5.5 mm socket or screw terminals (no power supply included)
Operating temperature:-40 °C ... 75 °C
Weight:0.5 kg
Dimensions:145 x 103 x 45 mm
