ASI1212D-D Dahua ACCESS CONTROLLER

The image shows a sleek, modern access control device with a touchscreen keypad and a fingerprint scanner. The device features a silver and black design, suitable for secure entry systems.
A sleek, black electronic door lock with a digital keypad and fingerprint scanner, designed for secure access control. The device features a modern, rectangular shape with a small display screen at the top.

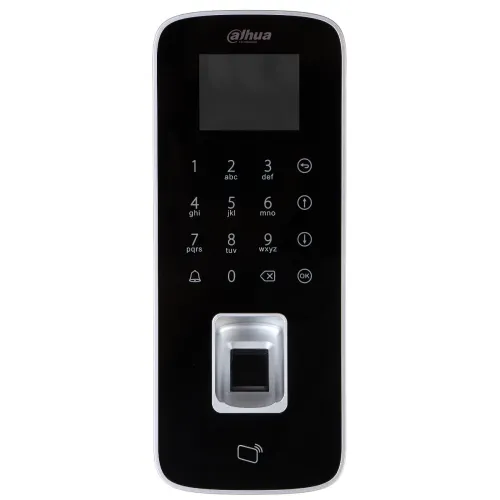

The image shows a sleek, black electronic door lock panel with a numeric keypad and a fingerprint scanner. The panel features a digital display and touch-sensitive buttons for secure access control.

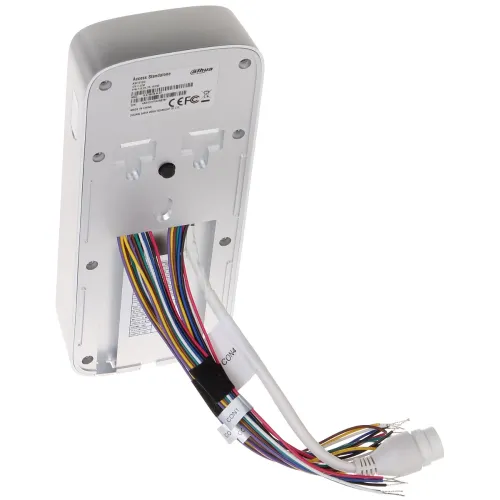

The image shows the back view of a white electronic access control device with multiple colored wires extending from the bottom. The device features mounting slots and a label with technical specifications.

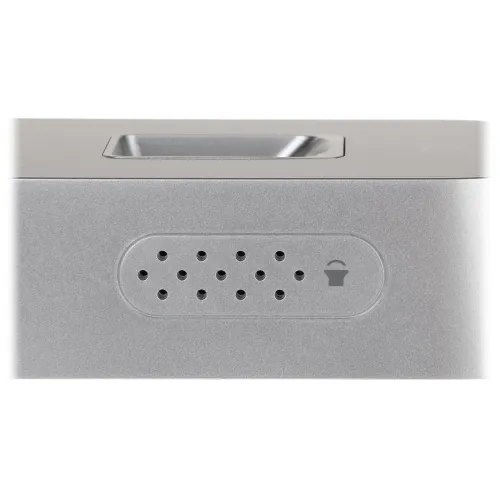

A close-up of a sleek, metallic speaker with a perforated grille design and a small icon resembling a speaker. The minimalist design emphasizes modern aesthetics and functionality.

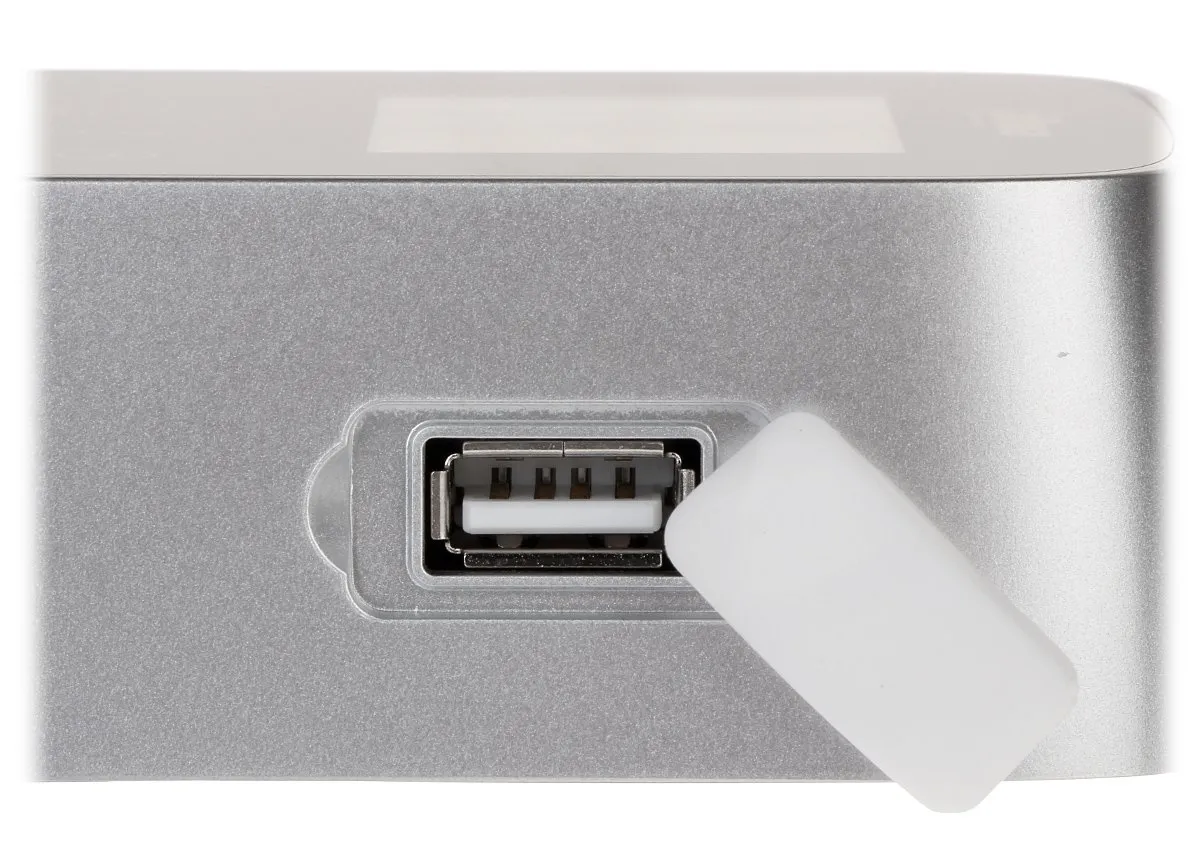

A close-up view of a silver electronic device featuring a USB port with a protective white cover partially open. The sleek design highlights the device's modern and functional aesthetic.
A close-up of a sleek, silver electronic device with multiple colored wires extending from its side, indicating connectivity options. The device also features a network cable, suggesting integration with network systems.

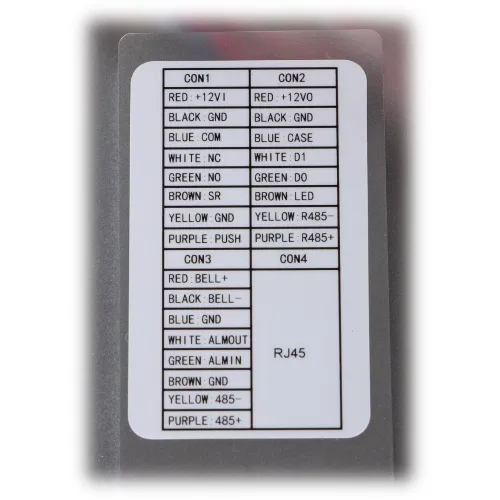

The image shows a detailed label with connection specifications for various connectors, including color-coded wiring instructions for CON1, CON2, CON3, and CON4. The label also includes an RJ45 designation, indicating compatibility with network cabling.

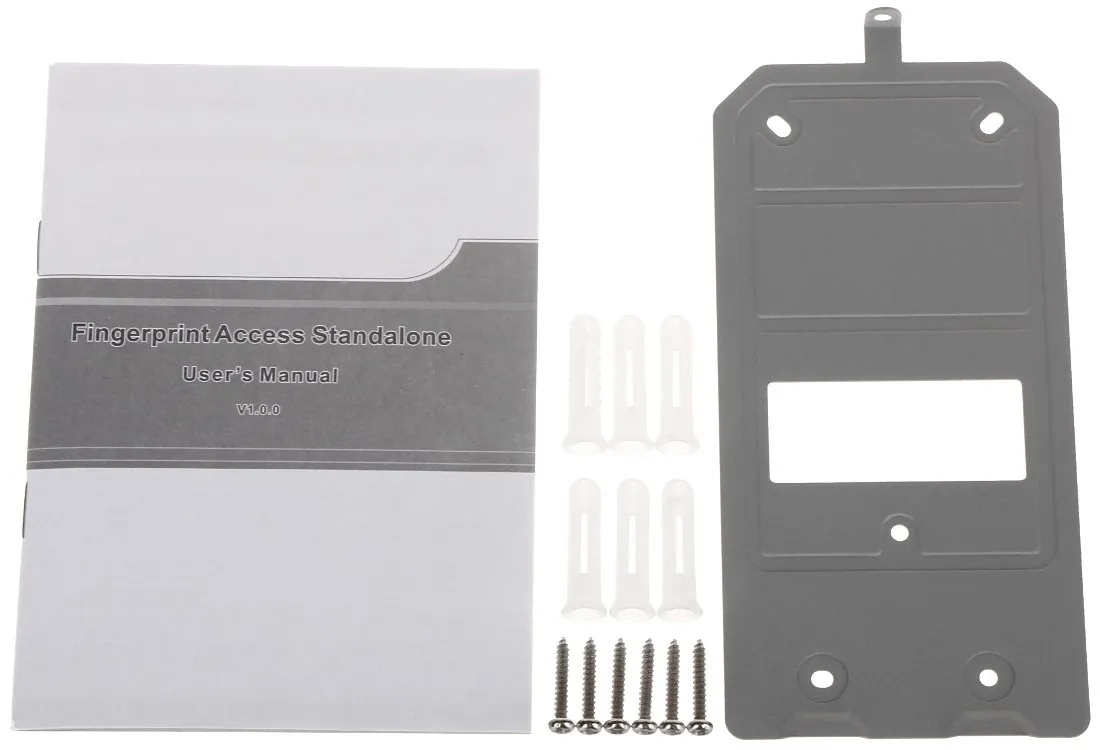

The image shows a fingerprint access standalone user's manual alongside a mounting plate and installation accessories, including screws and wall anchors. The components are neatly arranged on a white background, highlighting the product's installation kit.
  • Manufacturer

    Dahua
  • Product Code

    ASI1212D-D


Ask about this product show form

  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

442,25 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The ASI1212D-D controller can operate in standalone mode or network mode The device allows one-sided or two-sided passage control. For two-way control, an external ASR series access reader or a reader equipped with Wiegand interface must be connected to the controller.

Card support:Unique EM 125kHz
Card reading range:max. 8 cm
Built-in keypad:Touch control buttons
Standalone operation:Yes
Battery cooperation:No
Input lines:3
Output lines:3
Identification time:< 1.5 s
FAR (false acceptance rate):< 0.00004 %
FRR (false rejection rate):< 0.15 %
Communication:
  • RS-485
  • Wiegand
  • LAN
Network interface:10/100 Base-T
Default administrator login/password.:- / 88888888
Power supply:9 ... 15 V DC
Selected features:
  • Built-in Unique EM 125kHz proximity reader,
  • Built-in fingerprint reader
  • Memory for 3000 fingerprint patterns
  • Possibility to connect an additional ASR series reader (two-way passage control)
  • Identification modes : Unique EM 125kHz proximity badge, Fingerprint, Any combination of the above
  • Tamper detection - detachment from the ground
  • Cooperation with opening sensor and exit button
  • Signaling of forcible entry and failure to close the door
  • 30000 indexed users
  • 6 access groups
  • 128 time schedules
  • 128 time zones inside the schedule
  • Holiday settings
  • Anti-passback
  • History of 150000 events
  • Integration with alarm system via I/O lines
  • Remote programming from a computer
  • Built-in watchdog
Waterproof class:IP65
Operating temperature:-30 °C ... 60 °C
Permissible relative humidity of the environment:max. 95 % (non-condensing)
Dimensions:205 x 83 x 33 mm
Weight:0.29 kg
Supported languages:English
Manufacturer / Brand:Dahua
