VTH5421HB-W Wi-Fi/IP Dahua Indoor Panel

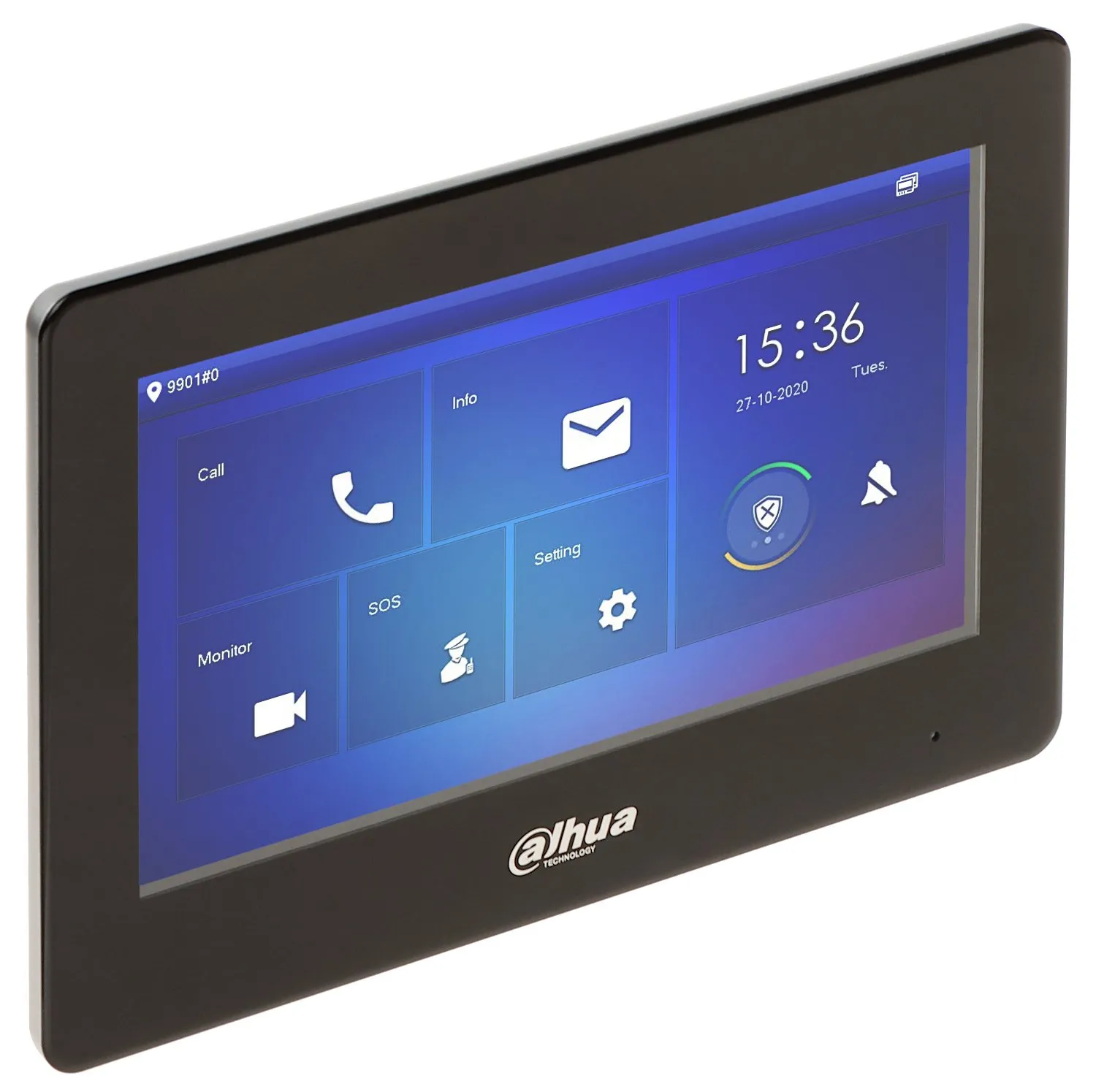

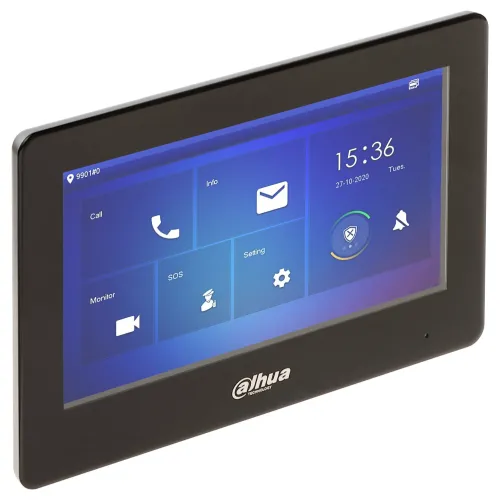

The image shows a sleek, black Dahua IP video intercom panel with a touchscreen display featuring various control icons. The panel is designed for indoor use and includes Wi-Fi connectivity for enhanced communication and security management.
The image shows the back view of a sleek, rectangular electronic device with a black casing and multiple connection ports. It features a detailed diagram and labels for easy installation and connectivity.

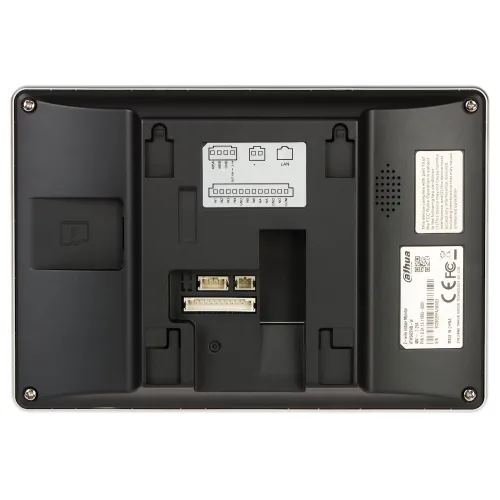

The image shows the back view of a black electronic device featuring multiple connection ports and a speaker grille. It includes labeled sections for LAN and other connectivity options, designed for easy installation and integration.

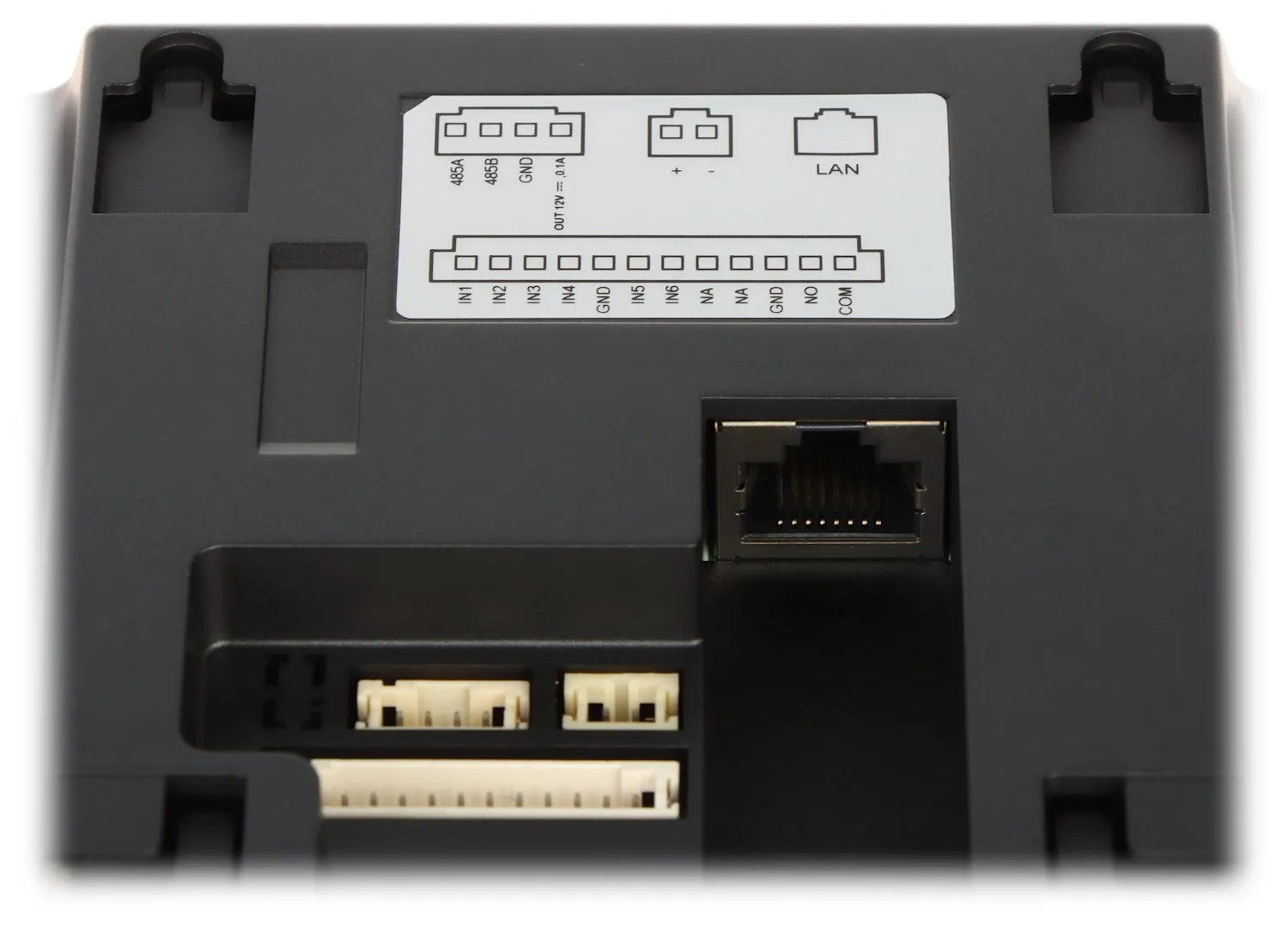

The image shows a black electronic device featuring multiple connection ports, including a LAN port and several pin connectors. The layout is designed for easy integration into a larger system, with clear labeling for each connection type.

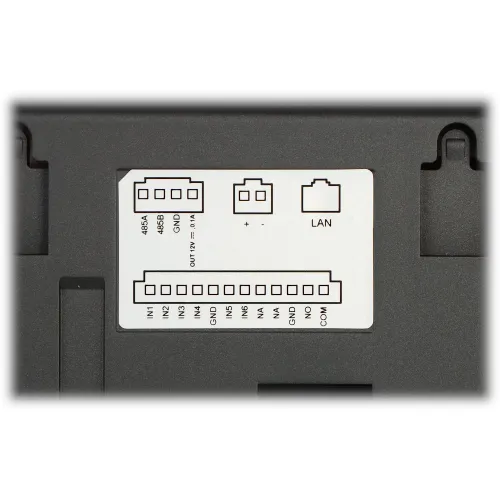

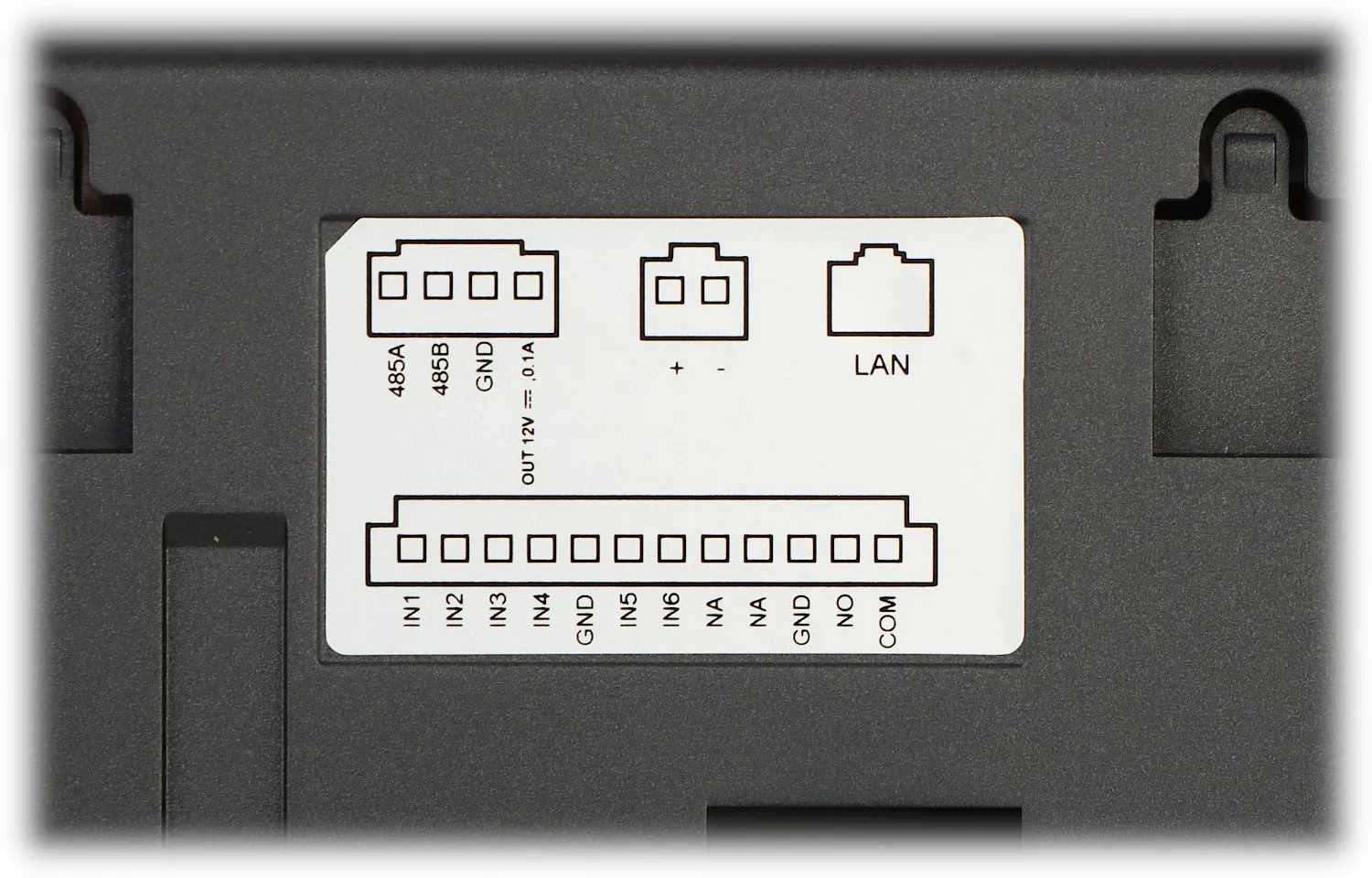

The image shows a close-up of a device panel featuring various connection ports, including a LAN port and multiple input/output terminals. A diagram on the panel provides labels for each connection, indicating their specific functions and configurations.
The image shows a sleek, black memory card slot integrated into a modern electronic device, with a partially inserted green memory card. The design features a minimalist aesthetic with a smooth surface and visible screws at the corners.
The image shows a black mounting bracket accompanied by a set of flat ribbon cables and a small connector cable. These components are likely used for electronic or hardware installations, providing connectivity and support.
  • Manufacturer

    Dahua
  • Product Code

    VTH5421HB-W


Ask about this product show form

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

372,63 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

The VTH5421HB-W panel is designed to create a simple and effective local communication system. The device works with video intercoms, and other Dahua panels It can also act as a simplified control panel, or notification module by supporting 6 alarm inputs. NOTE: The device does not work with Dahua analog system

Compatibility:Dahua
Screen:7 " capacitive touch screen
Resolution:1024 x 600
Internal memory:No
Memory card slot:Micro SD card support up to 64GB (local recording possible)
Wi-Fi interface:2.4 GHz IEEE 802.11 b/g/n
Selected features:
  • Built-in microphone,
  • Built-in speakers,
  • Two-way communication,
  • Infinitely adjustable monitor parameters: image brightness, ringer and call volume,
  • Ability to automatically take and save pictures in case of a missed call,
  • Ability to record a short video message in case of no answer to the call button,
  • Cooperation with Dahua IP cameras ,
Controls:capacitive touch screen
Alarm inputs:6 ( 1 - as a bell)
Alarm outputs:1
Power supply:
  • PoE (802.3af),
  • 12 V DC / 1 A
Power consumption:≤ 6 W (operation)
≤ 2 W (standby)
Operating temperature:-10 °C ... 55 °C
Color:Black
Weight:0.36 kg
Dimensions:189 x 130 x 27 mm
Supported languages:Polish, English
Manufacturer / Brand:Dahua

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt
