Dahua CS4228-24GT-375 24-Port PoE Switch

A sleek, black network switch featuring 24 Ethernet ports and additional SFP slots for enhanced connectivity. The device is designed for efficient power over Ethernet (PoE) distribution in professional networking environments.

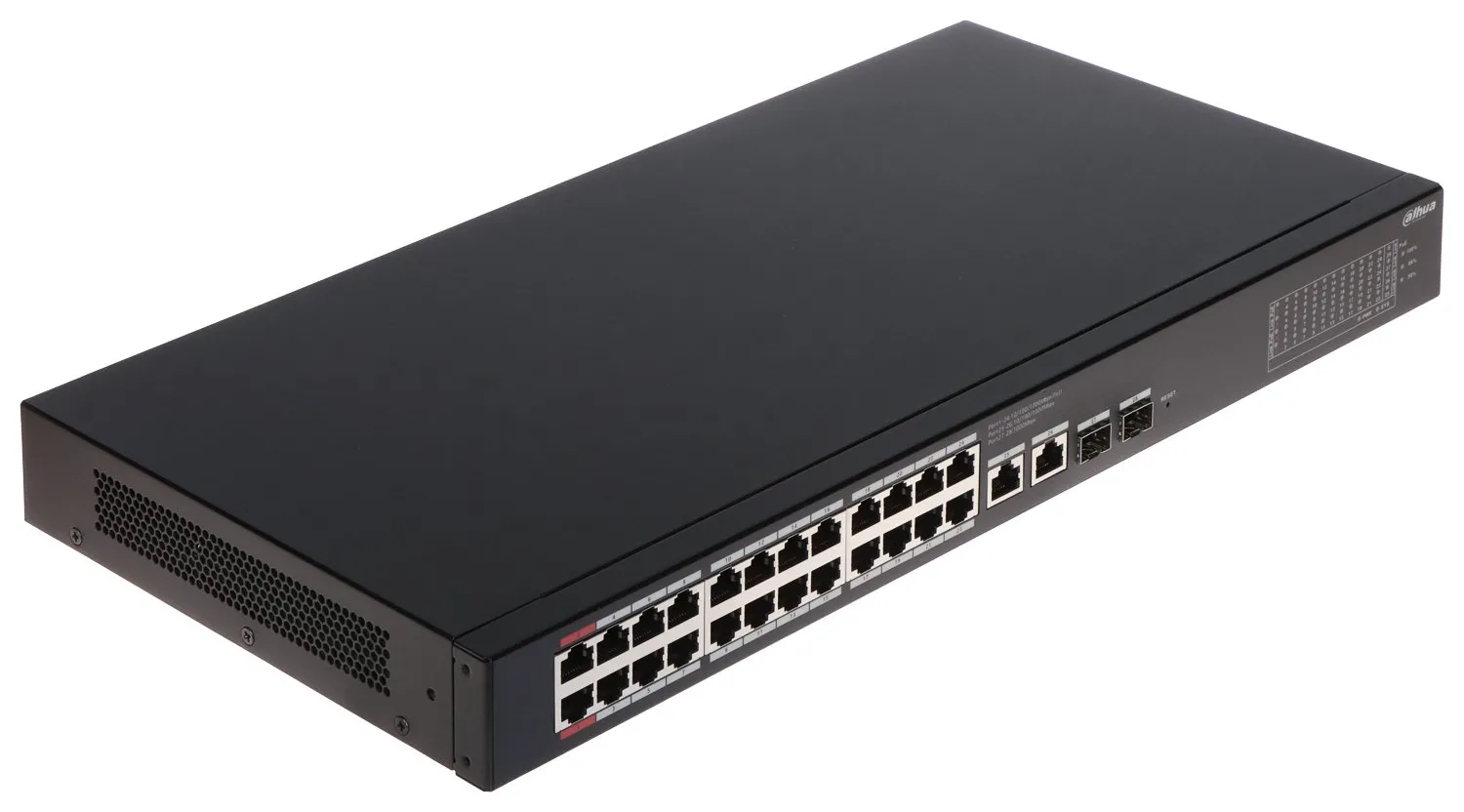

The image shows a Dahua network switch with 24 Ethernet ports and 2 SFP ports, designed for efficient data management and connectivity. The front panel features LED indicators for easy monitoring of network activity.
The image shows the rear view of a black electronic device featuring a power input on the left side and a small label with technical specifications in the center. The sleek design is complemented by a metallic finish and a secure locking mechanism on the right side.

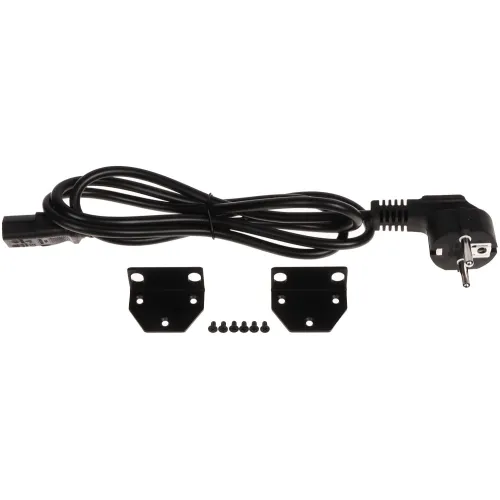

A black power cable with a right-angle plug is accompanied by two metal mounting brackets and six small screws. The set is designed for secure and efficient installation of electronic devices.
  • Manufacturer

    Dahua
  • Product Code

    CS4228-24GT-375


Ask about this product show form

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

1 057,96 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Product Description

Thanks to its reliability and provision of high-quality transmission, the CS4228-24GT-375 24-port 10/100/1000 Mbps desktop PoE switch is an ideal solution for expanding a home or office network The 24 ports support Power over Ethernet (PoE). The switch is manageable via the web and via the cloud (DoLynk Care application). Note: SFP port requires the purchase of an SFP module, which is available in our offer

LAN ports:
  • 24 x RJ45 10/100/1000 Base-T ( 2 x Hi-PoE (802.3bt) + 22 x PoE (802.3af/at) ),
  • 2 x RJ45 10/100/1000 Base-T - Uplink,
  • 2 x SFP 1000 Base-X - Uplink
Management:Yes
Default IP address:192.168.1.110
Default admin login/password.:admin / -
Administrator password should be set at first startup
LEDs:Link, PoE, Power, System, 50% PoE, 80% PoE, 100% PoE
Transmission speed:
  • 10 / 100 / 1000 Mbps : 24 LAN & PoE Ports,
  • 10 / 100 / 1000 Mbps : 2 RJ45 (Uplink) Ports,
  • 1000 Mbps : 2 SFP Ports (Uplink)
Maximum output power:
  • 90 W / port Hi-PoE / PoE 802.3bt - Ports 1, 2
  • 30 W / port PoE 802.3af/at - Ports 3 ... 24
Maximum total power:375 W
MAC address table:8k
Operation modes:
  • Long Distance PoE On : 250m, 10 Mbps @ UTP cat. 5e, 6
Selected features:
  • The switch is manageable via the web and via the cloud (DoLynk Care app)
  • PoE power mode : The device supports 8-pin power supply - wires : 1-2(+), 3-6(-), 4-5(+), 7-8(-)
  • Intelligent power supply output stage management
  • Protection against lightning and potential differences between devices
  • PoE watchdog
  • Loop Protection
  • Compatibility with LLDP protocol
  • Spanning Tree STP/RSTP
  • Port Based VLAN : 32
  • Data flow control (802.3x)
  • DHCP Client
  • RESET button
  • 19" rack mountable
Certifications:CE
Protections:
  • Lightning protection (common/differential) : 4 / 2 kV
  • Protection against electrostatic discharge - Contact/Air (ESD/EMP) : 6 / 8 kV
Enclosure:Metal
Power supply:100 ... 240 V AC @ 47 ... 63 Hz
Power consumption:max. 400 W
Operating temperature:-10 °C ... 55 °C
Weight:2.67 kg
Dimensions:440 x 220 x 44 mm, RACK 19", 1U
Manufacturer / Brand:Dahua
