BCS-B-SP08G-2SFP PoE Switch for 8 IP cameras

A black network switch featuring eight Ethernet ports with PoE capability and two SFP ports for fiber connectivity. The front panel includes LED indicators for power and activity, along with a reset button.
A black power supply adapter with a detailed label on top, featuring various certification symbols and specifications. It includes a detachable power cord with a European plug.
A black network switch with a sleek, rectangular design features a DC power input and a grounding screw on the front panel. The minimalist appearance is ideal for professional networking environments.
The image shows a black network switch with eight Ethernet ports and two SFP ports, designed for efficient data management and connectivity. The front panel features LED indicators for each port, along with a reset button and configuration switches.
A black network switch featuring eight Ethernet ports with LED indicators and two SFP ports for fiber connections. The front panel includes a power indicator and a reset button for easy management.
A black network switch featuring eight Ethernet ports and two SFP ports on the front panel, designed for efficient data management and connectivity. The device includes LED indicators for power and network activity, housed in a compact, durable casing.

  • Manufacturer

    BCS Basic

  • Product Code

    BCS-B-SP08G-2SFP

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

193,04 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

BCS-B-SP08G-2SFP PoE Switch for 8 IP cameras


Main features:

  • 8 port PoE switch
  • 4 operation modes: AI VLAN, AI EXTEND, AI PoE, AI QoS
  • IEEE802.3 af/at standard
  • Maximum power up to 30W for a single port
  • PoE
  • 8 1000Mbps PoE ports
  • 2 Gigabit SFP fiber optic ports
  • 2 RJ45 uplink ports
  • MDI/MDIX function
  • Transmission up to 250m
  • VLAN function
  • Reset button
  • Metal housing
  • Power supply 52V DC 1.85A included in the set

Technical specifications:

Model: BCS-B-SP08G-2SFP
Ports 8 × RJ45 PoE 1000Mbps + 2 × SFP Gigabit
Transfer 10/100/1000Mbps half-duplex, full duplex, auto-negotiation
Standard IEEE802.3 af/at
Packet transmission 14.8Mpps
Throughput 20Gbps
Maximum power 30W for a single PoE port (total power 96W)
AI VLAN mode Ports 1, 2, 3, 4, 5, 6, 7, 8 are isolated from ports 9, 10
AI EXTEND mode Ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250m (cat5e, cat6)
AI QOS mode Quality Of Service - prioritization of video packets
AI PoE mode Monitoring of ports that power PoE devices and automatic restart by cutting off power when a non-responding device is detected
LED status PWR(solid yellow): switch power connectedLINK/ACT(green): connected device
PoE pin1,2(+); 3,6(-)
Power supply Power supply input: 100~240V AC 50/60Hz output: 52V DC 1.85A
Dimensions 225×120×35mm
Weight 0.8kg
Operating conditions 0°~40°C, 10%~90%RH

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

BCS Sp.z o.o.

ul. Modularna 11 (Hala IV)

02-238 Warszawa

info@bcs.pl

Zamknij

Similar products in this category

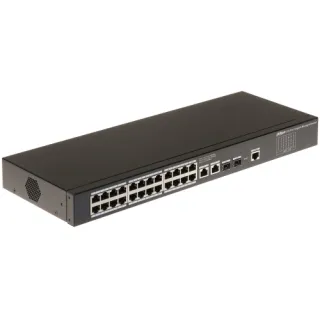

The image shows a sleek, black industrial PoE switch with 24 Ethernet ports and additional SFP slots for enhanced connectivity. The front panel features clearly labeled ports and indicator lights for easy network management.
