Switch PoE DS-3E0318P-E/M(C) Hikvision

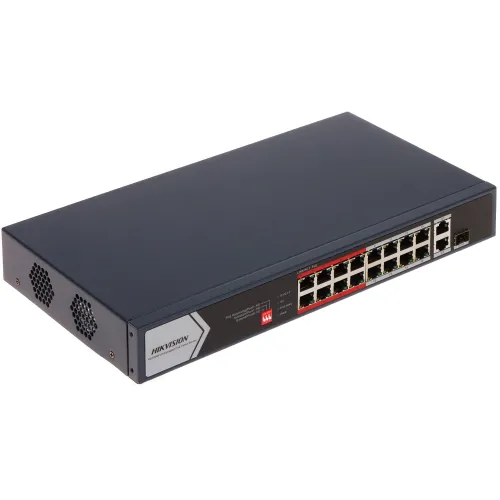

The image shows a Hikvision 16-port PoE switch with a sleek black design and multiple Ethernet ports for network connectivity. It features a durable metal casing with ventilation on the sides for efficient cooling.
The image shows a Hikvision network switch with 16 Ethernet ports, designed for efficient data management and connectivity. The front panel features clear labeling for each port, along with LED indicators for power and network status.
Rear view of a sleek, rectangular electronic device with a dark gray finish, featuring a power input on the right side. The unit has a simple design with minimal connectors, suitable for professional or industrial use.
A black power cable with a plug is accompanied by two metal mounting brackets and four screws. The set is designed for secure installation and connection of electronic devices.

  • Manufacturer

    HIKVISION

  • Product Code

    DS-3E0318P-E/M(C)

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

164,96 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

DS-3E0318P-E/M(C) switch is designed for large video data streams in IP CCTV surveillance networks. Note that the SFP port requires the purchase of an SFP module, which is available from us

LAN ports:
  • 16 x RJ45 10/100 Base-T ( 16 x PoE (802.3af/at) ),
  • 1 x Combo port: SFP (1000 Base-X) / RJ45 (10/100/1000 Base-T) - Uplink,
  • 1 x RJ45 10/100/1000 Base-T - Uplink
Transmission speed:
  • 10 / 100 Mbps - 16 LAN & PoE Ports,
  • 1000 Mbps - Combo: RJ45/SFP - Uplink Speed,
  • 10 / 100 / 1000 Mbps - RJ45 (Uplink)
Maximum output power:30 W / PoE port
Maximum total power:130 W
MAC address table:8k
Management:No
Modes of operation:
  • Extend - Ports 9 ... 16 : 300 m, 10 Mbps @ UTP cat. 5e, 6
  • Port Isolation - Ports 1 ... 16
  • Watchdog PoE - Ports 1 ... 16
LEDs:Power, Link/Act, PoE, PoE Max, G1/G1-F, G2
Selected features:
  • High-priority ports : Ports 1 ... 8 - Dedicated to video transmission
  • Intelligent PoE power management - the device controls power consumption on individual ports
  • PoE power mode : The device supports 8-pin power supply - wires 1-2(-), 3-6(+), 4-5(+), 7-8(-)
  • Port isolation
  • Watchdog function
  • Wall mountable
  • Can be mounted in a 19" rack
Certifications:CE, RoHS, FCC, WEEE, REACH
Protections:6 kV surge protection
Enclosure:Metal, Desktop
Power supply:100 ... 240 V AC, 50 / 60 Hz
Power consumption:max. 150 W
Operating temperature:0 °C ... 45 °C
Weight:1.864 kg
Dimensions:335 x 176 x 45 mm
Manufacturer/Brand:Hikvision
SAP Code:301802543
