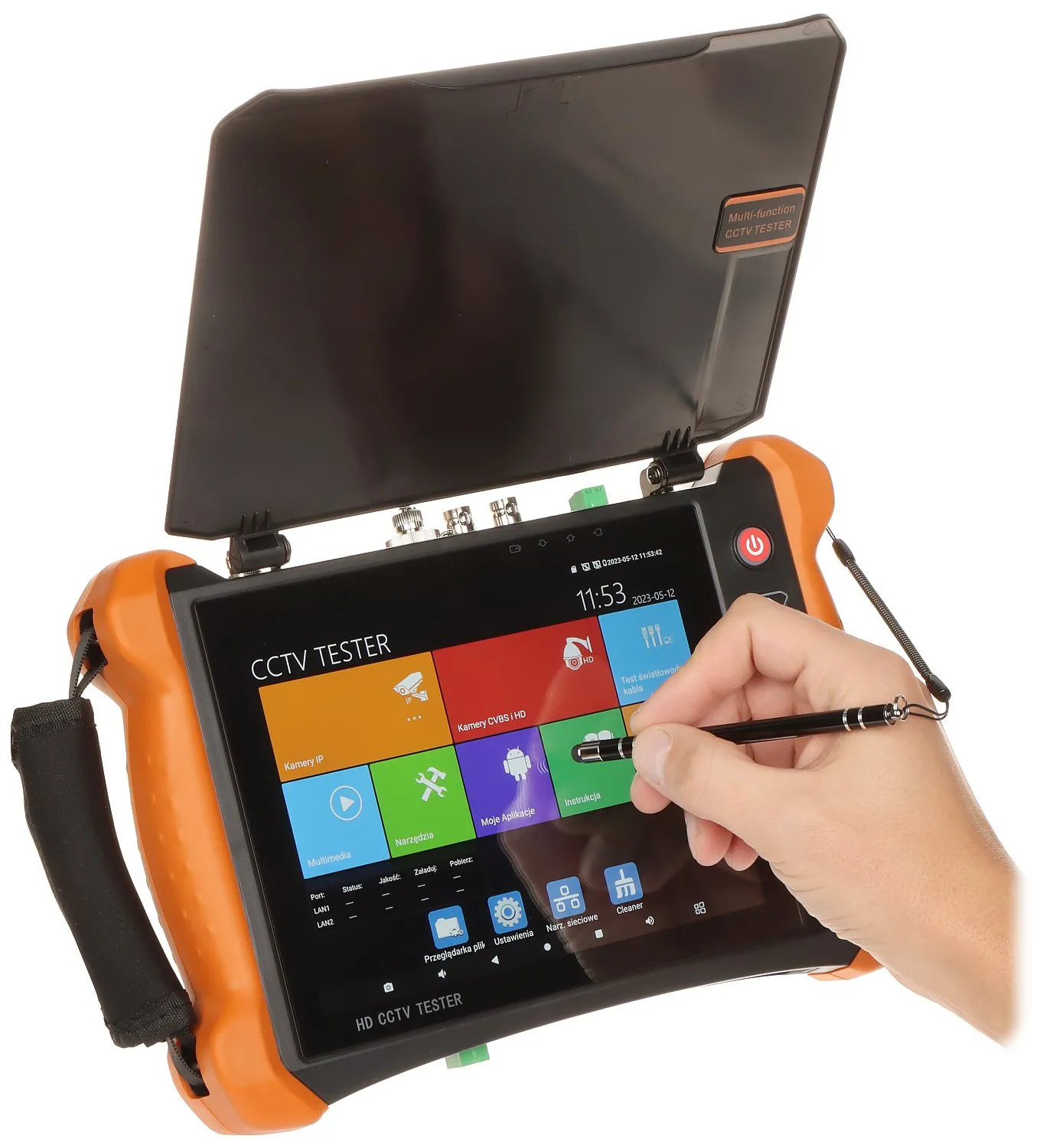

The image shows a multifunctional CCTV tester with an orange protective casing and a touchscreen interface, being operated with a stylus. The device features various icons for testing and configuration, and includes a foldable sunshade for outdoor use.
The image shows a multifunction HD CCTV tester with a large touchscreen display, featuring various testing and configuration options for security cameras. The device has an orange and black design with multiple ports and buttons for connectivity and control.

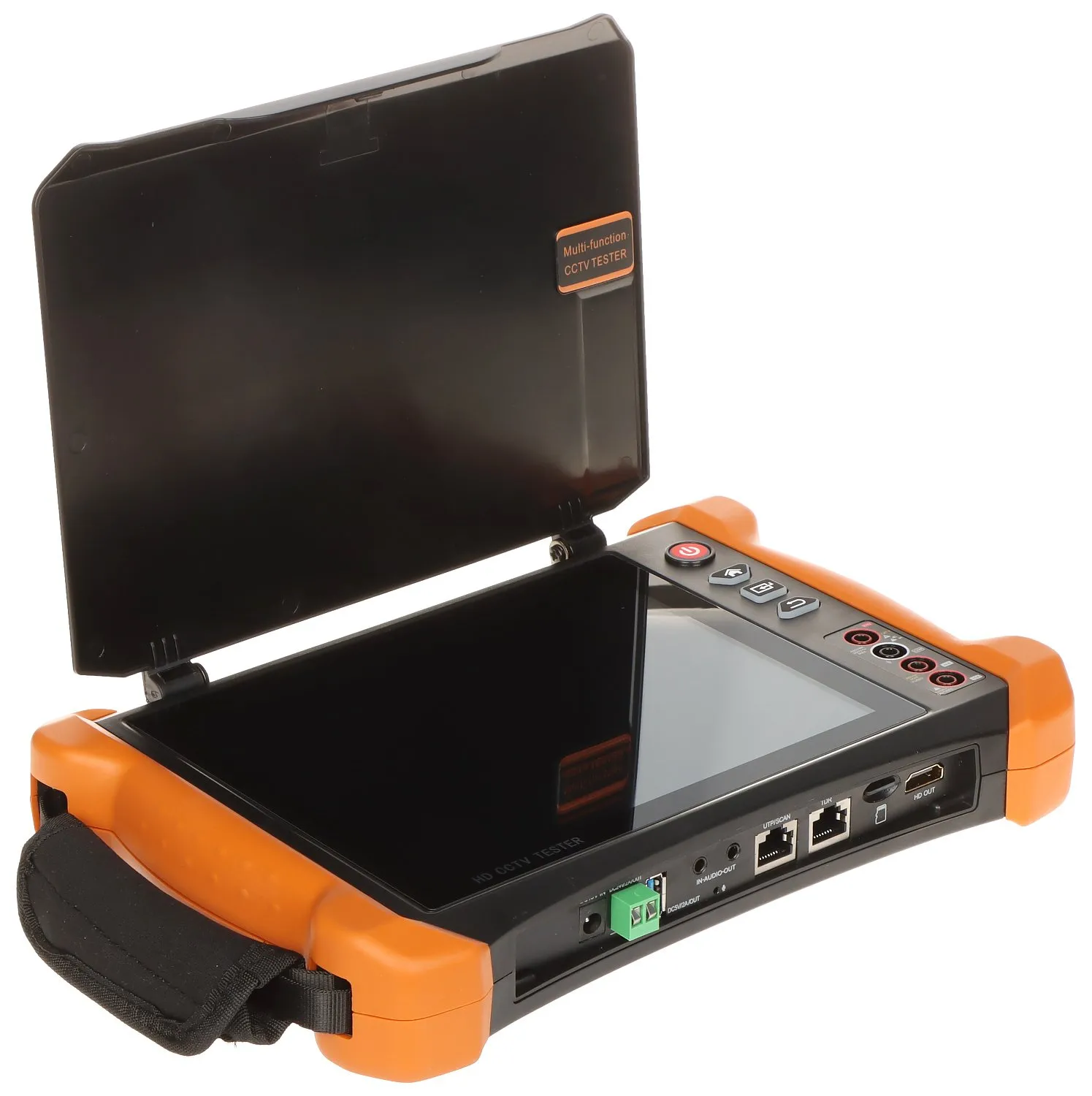

The image shows a portable electronic device with a tiltable screen cover, featuring multiple connectivity ports including Ethernet and HDMI. The device has an orange and black design with a sturdy handle for easy transport.

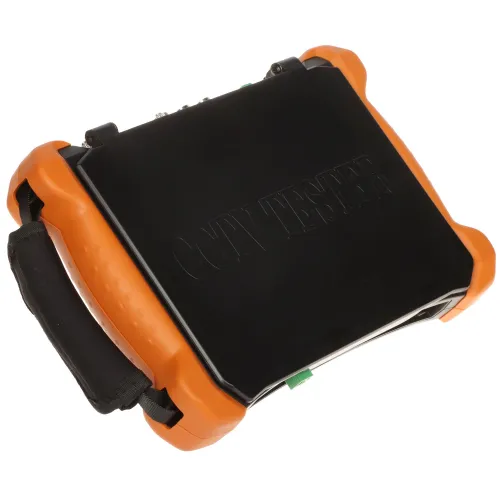

A portable CCTV tester with a robust black screen and protective orange casing, featuring a sturdy handle for easy transport. The device is designed for testing and troubleshooting surveillance camera systems.
The image shows a rugged, portable device with a screen and multiple connectivity ports, including HDMI, USB, and Ethernet. The device is designed for field use, featuring a durable orange and black casing with protective corners.

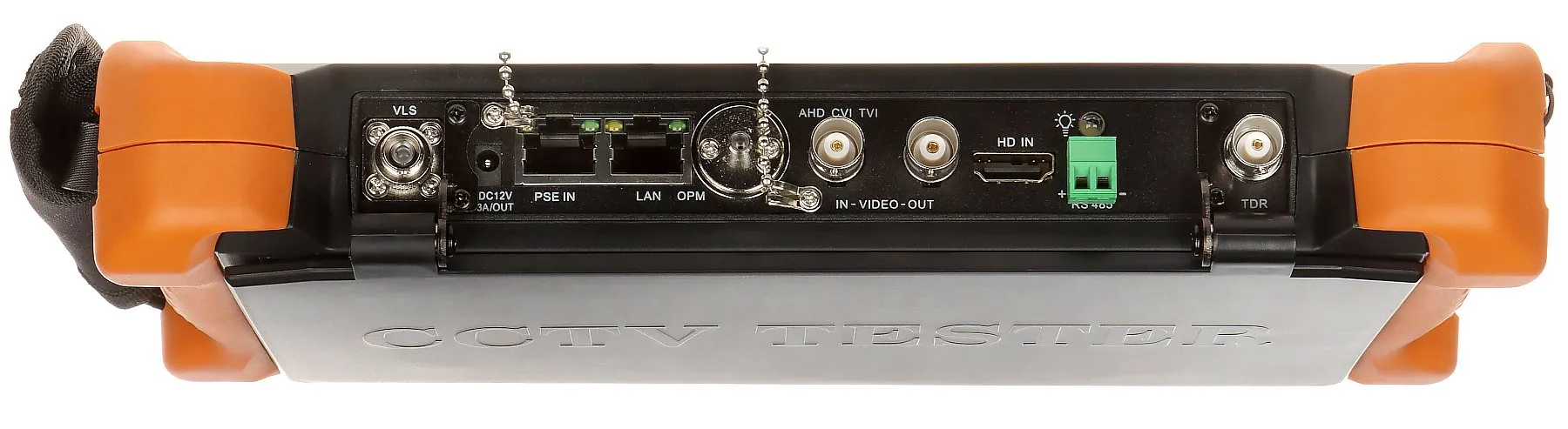

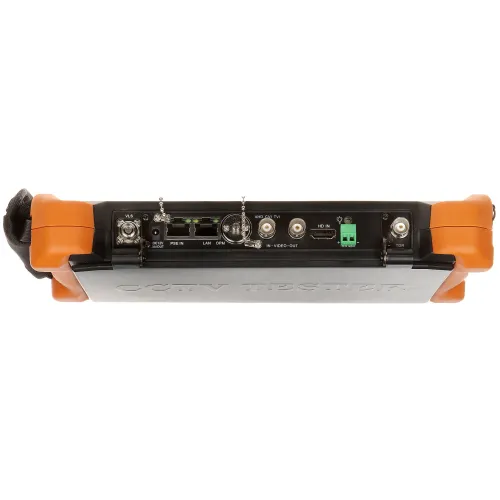

The image shows a CCTV tester device with multiple input and output ports, including LAN, HDMI, and BNC connections. The device features a rugged design with orange protective corners and a strap for easy handling.
The image shows the back view of a handheld electronic device with an orange protective casing, featuring multiple input and output ports. It includes a foldable stand and a wrist strap for easy handling and portability.

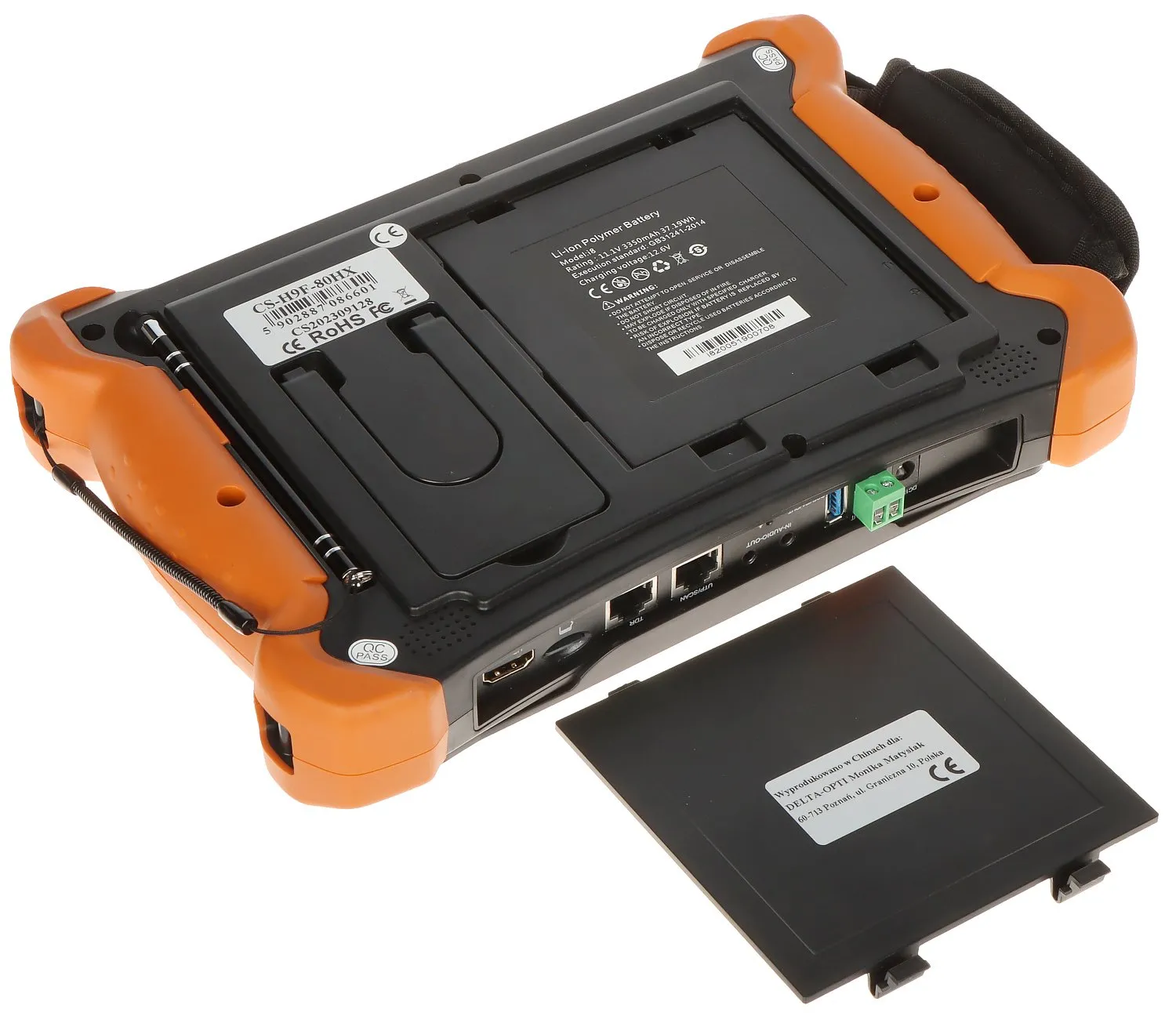

The image shows a rugged, handheld electronic device with an open battery compartment, featuring multiple ports including Ethernet and HDMI. The device has an orange and black protective casing, designed for durability and functionality in various environments.

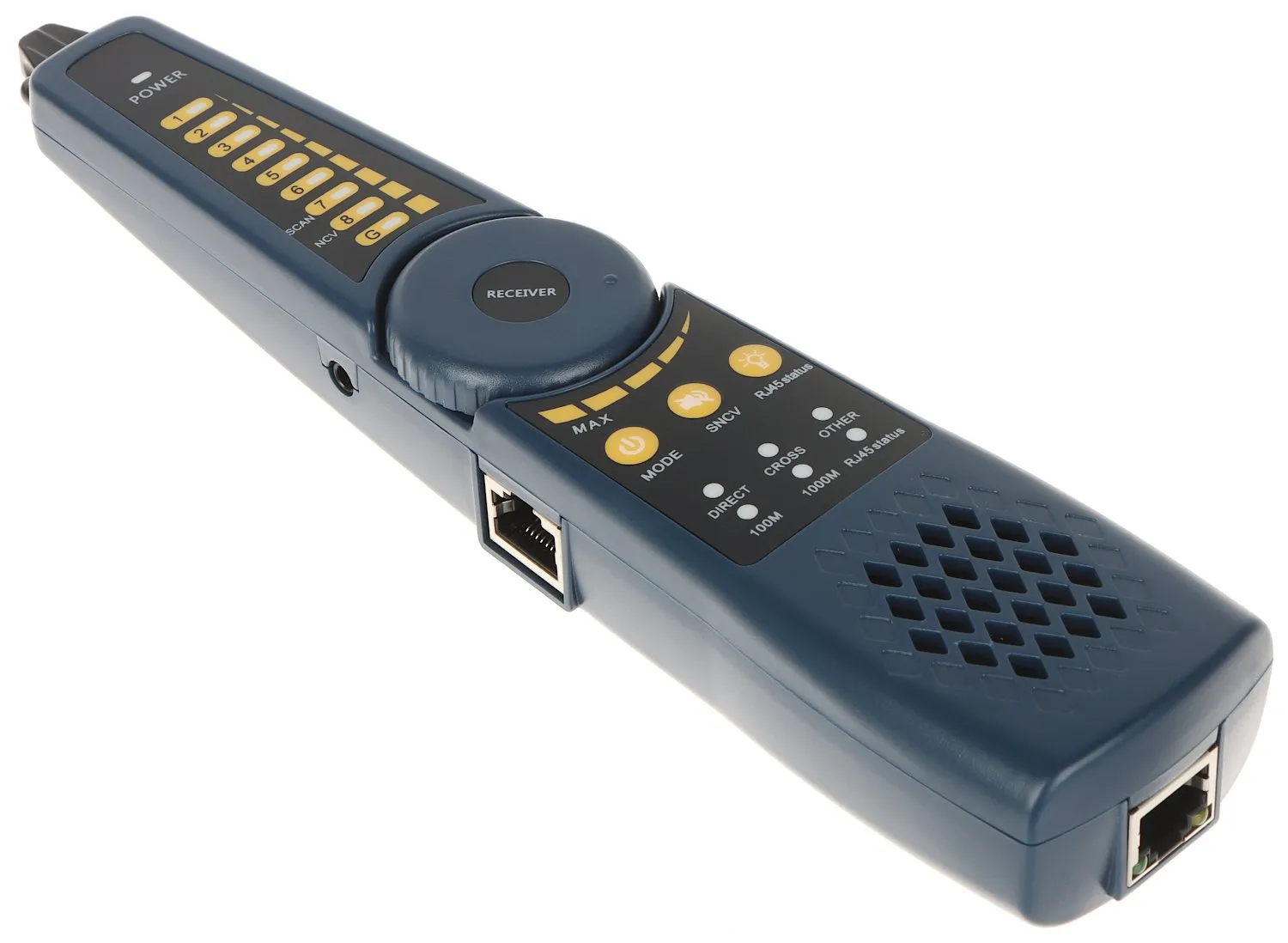

A blue cable detector with a sleek design features multiple buttons and indicators for various modes and functions. It includes ports for connectivity and a speaker grille for audio signals.
A handheld network cable tester with a dark blue body features a power button, LED indicators, and various mode buttons for testing and scanning. The device is designed for checking RJ45 connections and includes a speaker grille at the bottom.
A handheld network cable tester with a blue casing features multiple LED indicators for testing connectivity and signal strength. The device includes a standard RJ45 port at the bottom for easy cable insertion and testing.
The image shows a blue network cable tester with a rotary dial and LED indicators for testing connectivity and signal strength. It features a built-in speaker and an RJ45 port for easy connection to network cables.

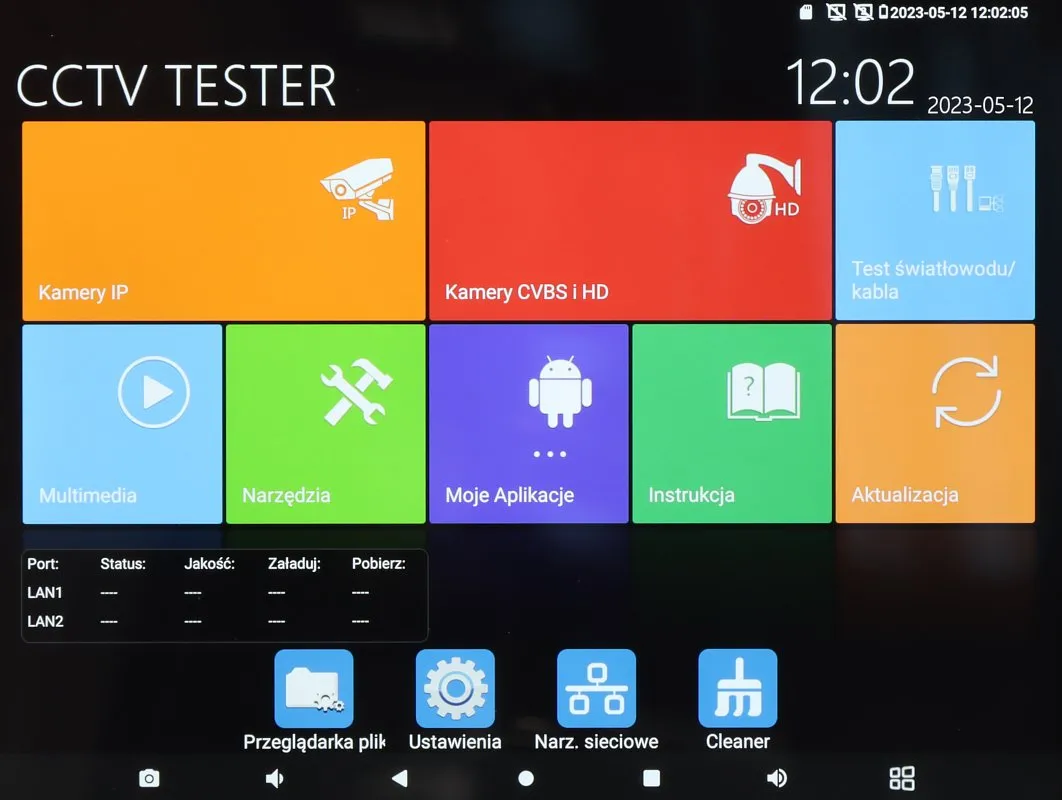

The image shows the interface of a CCTV tester device with a colorful touchscreen display featuring various application icons, including IP cameras, CVBS cameras, multimedia, tools, and settings. The screen also displays the current date and time in the upper right corner.
The image displays a digital interface with various icons related to IP camera management, including options for testing, power management, and device discovery. Each icon is labeled with specific functions such as "PoE Detection" and "IP Discovery," indicating a comprehensive tool for network camera configuration and diagnostics.

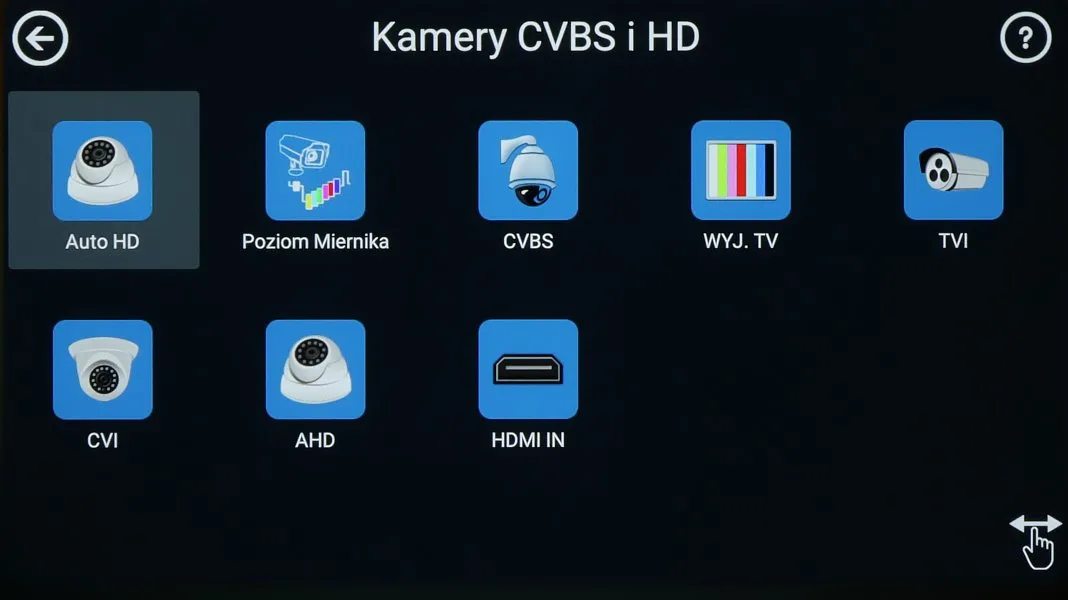

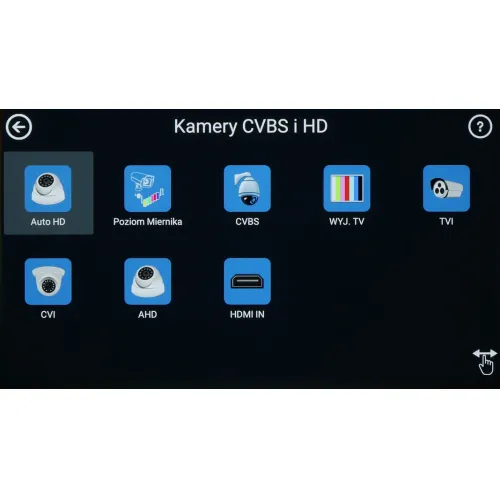

The image displays a digital interface for selecting camera modes, featuring options such as Auto HD, CVBS, and HDMI IN. Each mode is represented by a distinct icon on a black background, indicating various video input types for surveillance systems.
The image displays a digital interface with various icons representing cable testing tools, including options for optical power measurement, visual fault location, and RJ45 testing. Additional features include a cable length tester, BNC attenuation, and WiFi network analysis.

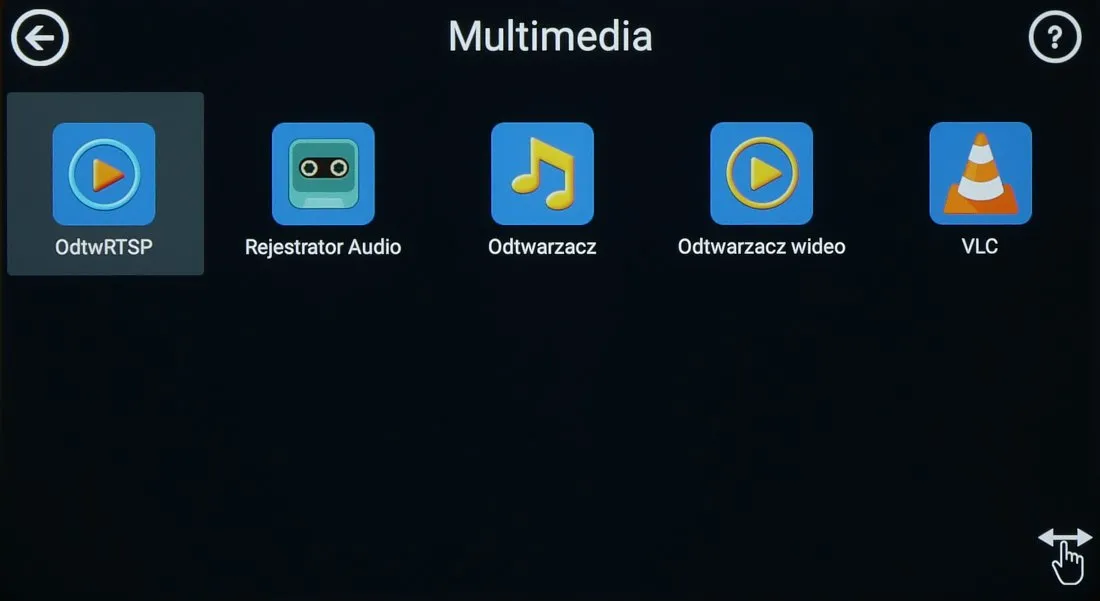

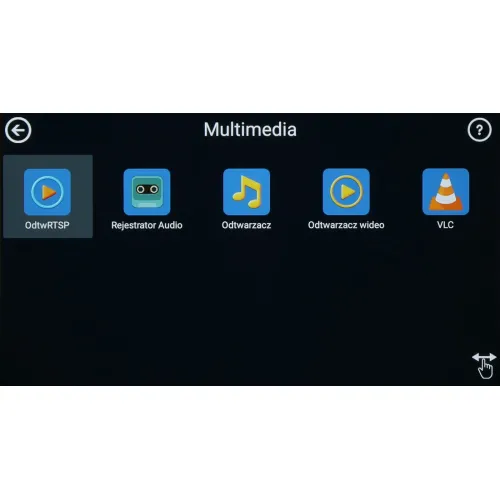

The image displays a multimedia interface with five application icons, including OdtwRTSP, Rejestrator Audio, Odtwarzacz, Odtwarzacz wideo, and VLC. Each icon is visually distinct, featuring symbols representing their respective functions on a dark background.
The image displays a digital interface featuring various security and surveillance application icons on a black background. Prominent apps include iVMS-4500 HD, gDMSS HD Lite, and Safire Connect, each represented by distinct colorful icons.

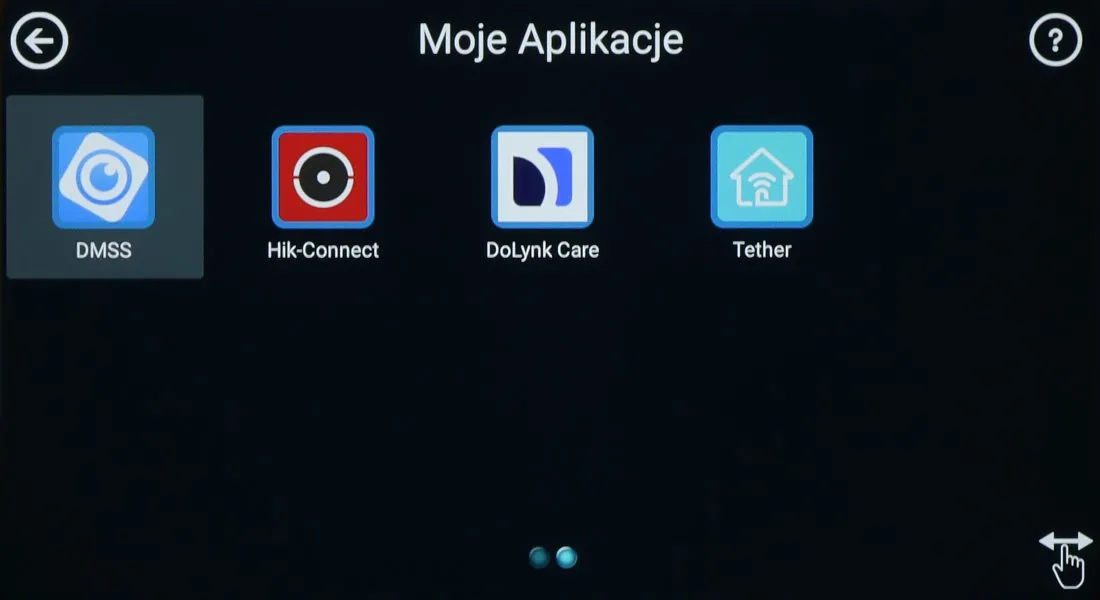

The image displays a digital interface featuring four application icons: DMSS, Hik-Connect, DoLink Care, and Tether, each with distinct logos. The background is black, and a cursor is visible in the bottom right corner, indicating a selection option.

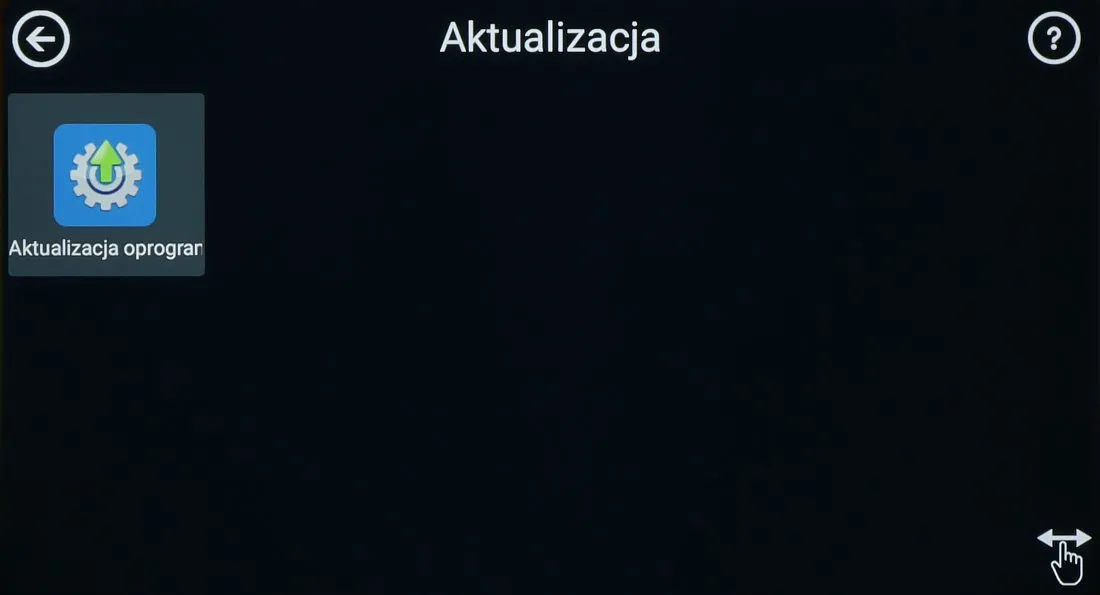

The image shows a software update screen with a dark background and a highlighted icon featuring a gear and a green arrow. The text next to the icon reads "Aktualizacja oprogramowania," indicating a software update option.
The image shows a digital interface displaying a settings menu with language options, including English, Polish, and Italian, among others. The menu is set against a dark background, with a sidebar on the left featuring various settings categories like network and personal options.

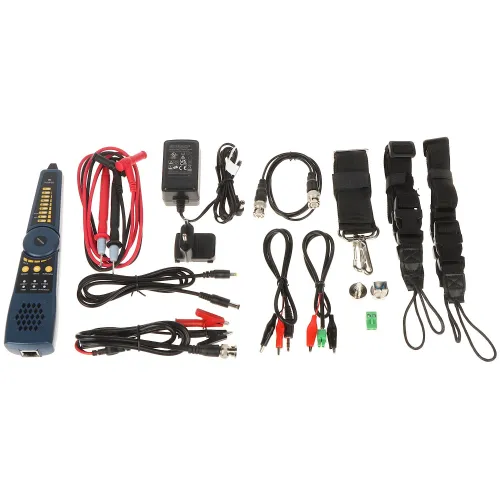

The image displays a comprehensive cable testing kit, including a tone generator, probe, various connectors, and cables. Additional accessories such as a power adapter, straps, and clips are also included for versatile connectivity and testing solutions.

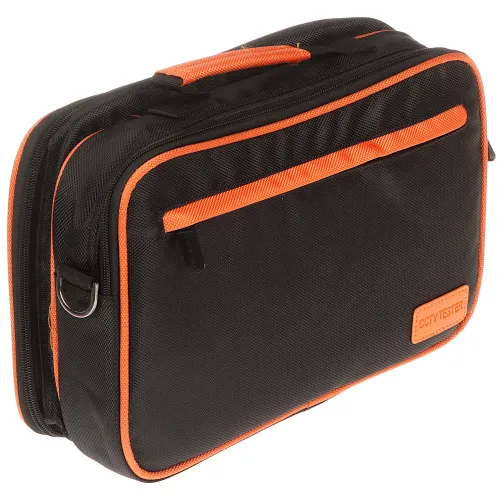

A compact black carrying case with orange accents designed to hold a device and its accessories. The case features a sturdy handle and a front zippered pocket for additional storage.

  • Product Code

    CS-H9F-80HX

  • Warranty

    24 miesiące

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Save -36%
  • Availability: Product temporarily unavaliable

Price (Incl. VAT):

943,74 € 1 486,05 €

Add to Watchlist

Powiadom o dostępności pokaż formularz

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Product Description

Multifunctional tester for AHD, HD-CVI, HD-TVI, IP, analog cameras, Speed Dome (PTZ) cameras, equipped with many additional functions, necessary when starting CCTV installations

Video standard:
  • AHD - 8 Mpx,
  • HD-CVI - 8 Mpx,
  • HD-TVI - 8 Mpx,
  • TCP/IP - 8K,
  • CVBS - PAL / NTSC
Display:8 " Retina - capacitive touchscreen, 2048 x 1536 px
Video input:
  • 1 pcs. AHD / HD-CVI / HD-TVI / CVBS - BNC socket
  • 1 pcs. HDMI
Video output:
  • 1 pcs. CVBS - BNC socket
  • 1 pcs. HDMI
LAN port:2 pcs. - Cooperation with PoE cameras and switches
Audio input:1 pcs. Mini Jack
Audio output:1 pcs. Mini Jack
Video signal level meter:AHD, HD-CVI, HD-TVI, CVBS: Peak level, Sync level, Burst
Video signal generator:
  • Control signal generator
  • Generation of eight color bars in PAL / NTSC standards
  • Blue or black screen generation possible
Serial ports:RS-485
Protocols:Supports more than 30 RS485 protocols : Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC
Transmission speed:150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s
Twisted-pair or telephone line test:Test connection of UTP or telephone cables, terminated with RJ-45 plug.
RS-485, RS-232 line test:Testing data from a control device (commands are displayed hexadecimally)
Wi-Fi module:Yes
Identification of the cable in the bundle:Yes
Audio test:Yes
Digital Multimeter:Measurement : voltage, current, resistance, continuity test, diode test, electrical capacitance
Optical power measurement:Measurement of optical power in fiber optic networks (ST and SC adapters)
Optical wavelength: 850, 1300, 1310, 1490, 1550, 1625 nm
Range : -70 ... +10 dBm
VLS (VFL) - Visual Fiber Fault Locator:LD laser, 650 nm, 10 mW
TDR Reflectometer:Detection and localization of cable break location (UTP only)
Operation as power source:
  • 5 V DC / 2 A from USB port
  • 12 V DC / 3 A
  • 24 V DC / 2 A
  • 48 V (PoE, LAN), 90 W (max)
Battery power supply:
  • Li-Ion battery : 11.1 V, 3350 mAh, 37.19 Wh
  • 15 V DC / 2.4 A (power adapter included)
Estimated battery operating time:10 hours (max)
Operation:Graphical menu - touch and button control
Selected functions:
  • Test of AHD cameras
  • Test of HD-CVI cameras
  • Test of HD-TVI cameras
  • Test of PAL/NTSC cameras
  • Test of IP cameras - Supported image compression methods : H.265, H.264, MJPEG
  • Search and preview of Onvif-compliant IP cameras
  • Control of PTZ and PTZ (speed dome) cameras
  • Preview from IP cameras using built-in applications - gDMSS HD Lite, gDMSS Lite, Safire Connect, Network State, XMEye, CloudSEE Tiandy tool, Fseye, EZView, FreeIP PRO, iVMS-4500 HD Safire EasyView, MEye
  • Built-in web browser - Google Chrome
  • Control signal generator
  • LAN connection monitoring
  • IP address scanner
  • PING - link testing using ICMP packets
  • Detection of connected port in switch
  • Twisted-pair cable tester
  • Cooperation with PoE cameras and switches
  • PoE power meter
  • DC 5V / 12V / 48V power source
  • Identification of the cable in the bundle
  • TDR reflectometer
  • Optical power meter
  • VLS (VFL) - visual fiber fault locator
  • Digital Multimeter - digital multimeter
  • Data monitor - RS-485 serial port monitor
  • Cable tracer application - easy localization of a cable in a disordered bundle
  • Audio test
  • Hotspot - Wi-Fi
  • Video recording to micro SD card with playback - 8 GB included
  • Playback of recordings
  • Installed VLC Media Player application - ability to play multimedia files in many popular formats (.mp3, .mp4, .avi, .mpeg and others)
  • Calculator
  • Installed Quickoffice package - creating and reading .docx text documents, .xlsx spreadsheets and .pptx multimedia presentations
  • Built-in flashlight
  • Ability to change the displayed theme and background
  • Android 7.1
  • Backlit buttons
Operating temperature:-10 °C ... 50 °C
Permissible relative humidity:30 % ... 90 %
Weight:1.22 kg
Dimensions:263 x 182 x 42 mm
Supported languages:Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian.
