BATTERY VOLTAGE BALANCER IPS-BB-24-LED

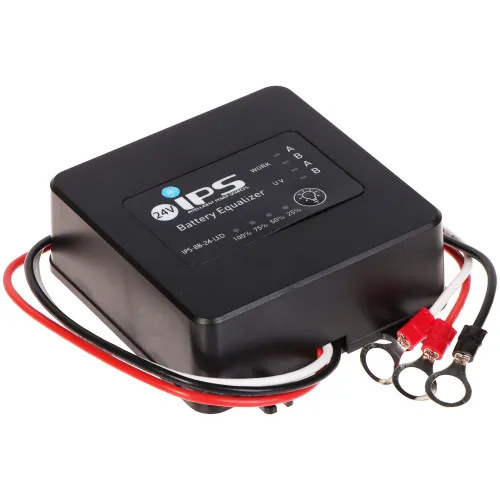

A black battery equalizer with a compact design features labeled connections and indicator lights on its surface. It includes red and black cables with ring terminals for easy installation.
The image shows a black IPS battery equalizer designed for 24V systems, featuring LED indicators for monitoring battery status. It has a compact, rectangular shape with labeled connections and a sleek finish.

  • Manufacturer

  • Product Code

    IPS-BB-24-LED

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Availability: in stock Shipping 24/48h

Price (Incl. VAT):

27,61 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

IPS-BB-24-LED is a voltage equalizer for AGM, GEL, VRLA batteries of 12V, which are connected in series, for example, in 24V, 36V, 48V configuration. Equalizing the voltage on batteries during operation prolongs their life The balancer starts equalizing the voltage already at a difference of 20mV. LED charge indicators allow you to monitor the energy in the batteries

Operating voltage:24 V DC ( 2 x 12 V DC )
Trigger threshold:20mV
Rated current:0 ... 5 A
Current consumption:< 3 mA
Battery type:AGM, GEL, VRLA
Nominal operating system:24 V DC - 1 pc.
Auxiliary operation system:36 V DC - 2 pcs, 48 V DC - 3 pcs.
Operation status signaling:LEDs
Battery charge level:LED : 25 %, 50 %, 75 %, 100 %
Protections:
  • Protection against reverse polarity connection
  • Protection against deep discharge of the battery : 10 V
Selected features:
  • Equalization of battery voltage during operation (e.g., in campers, yachts, photovoltaics)
  • Extension of battery life
  • LED signaling
Wire description:
  • Red : 24 V positive terminal
  • White : 24 V intermediate terminal of the two-battery system ( positive terminal / negative terminal )
  • Black : 24 V negative terminal
  • Cable length : 30 cm
  • Connectors : M10
Weight:0.18 kg
Dimensions:78 x 78 x 28 mm
Manufacturer / Brand:IPS
