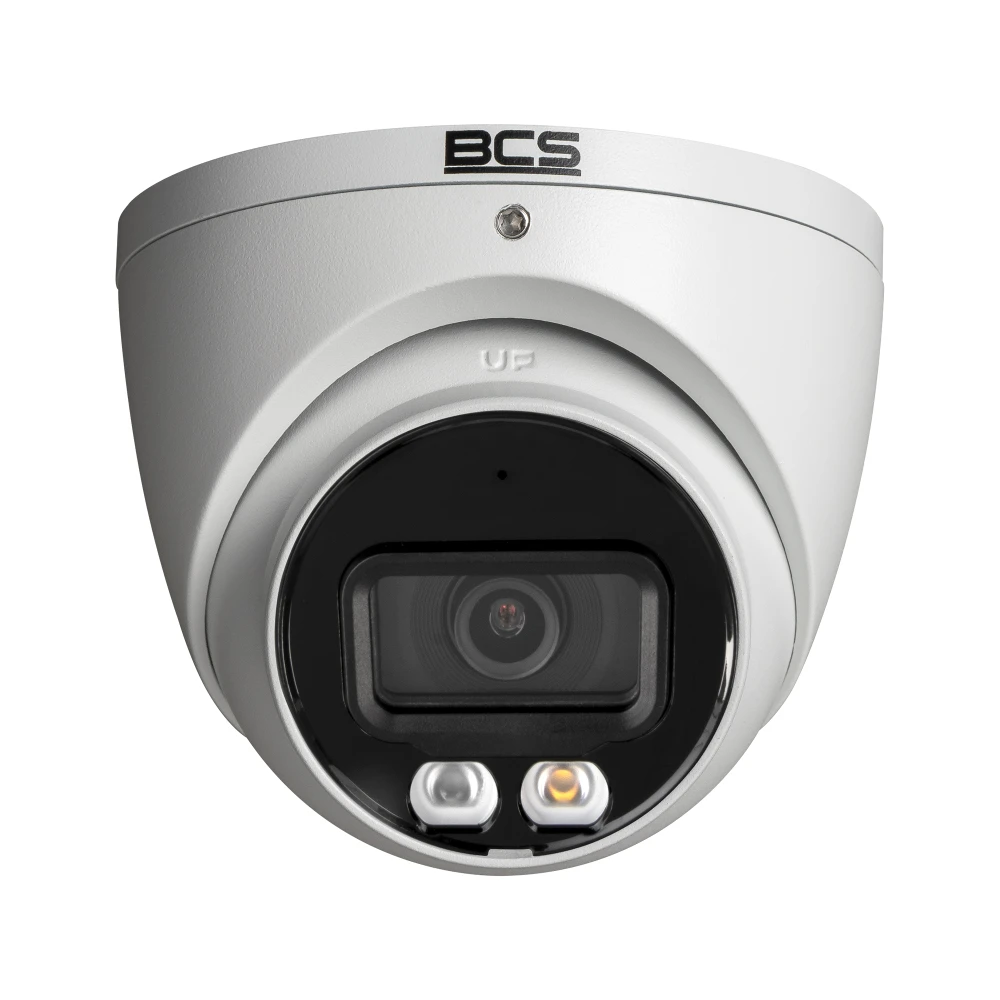

IP Dome Camera BCS-L-EIP15FCR3L3-Ai1 5Mpx, IR 30m, WhiteLight 30m, BCS

Product contents:

The BCS-L-EIP15FCR3L3-AI1 camera also comes with useful instructions and mounting accessories to speed up the entire camera installation process.

Kit contents:

• 1x 5Mpx dome camera - BCS-L-EIP15FCR3L3-AI1
• Documentation - User manual, warranty card, adjustments
• Template - Small size template with camera mounting holes
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera's connectors from moisture

BCS products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.

Main features:

• Resolution: 5 Mpx
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2960(H)×1688(V)
• Lens: fixed
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus: fixed
• Iris: fixed
• Digital zoom: 16×
• Viewing angle: H :111° V: 58° D: 132°
• S/N ratio: 56dB
• White balance (AWB): Auto / manual
• WDR: 120dB
• DORI: Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m
• Background Compensation: BLC / HLC / WDR (120dB)
• Shutter: Auto / manual 1/3~1/100000s
• Day/night: ICR mechanical infrared filter
• Illuminator type: IR LED + White Light
• Illuminator: 30m
• NightColor: Yes
• Microphone: Yes
• Ai - Built-in intelligent functions: Built-in intelligent algorithms
  image recognition and analysis
• Ai - Perimeter protection: Intrusion into the area, crossing the line
• Ai - Object recognition: Person/vehicle recognition for
  area intrusion, line crossing reduces false alarm calls.
• Ai - SMD: SMD Plus

P2P function

The BCS-L-EIP15FCR3L3-AI1 is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in the BCS-L-EIP15FCR3L3-AI1 are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption for surveillance equipment.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) feature of the BCS-L-EIP15FCR3L3-AI1 is a technology that allows data and electrical power to be transmitted to a network device over a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to a PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-EIP15FCR3L3-AI1 records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

People and vehicle detection Motion detection with silhouette recognition of people and vehicles in BCS-L-EIP15FCR3L3-AI1 isan advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

IP67 weatherproof design This housing protects the BCS-L-EIP15FCR3L3-AI1 from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Remote access from phone and desktop computer BCS systems allow you to configure, control and view using the BCS-L-EIP15FCR3L3-AI1 camera apps, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access the video preview and play back the recorded footage Save portions of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

Wide Dynamic Range - That is, high quality in challenging conditions

The WDR (Wide Dynamic Range) function of the BCS-L-EIP15FCR3L3-AI1 is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:

• Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
• Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
• Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
• Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.

Video and audio recording The audio recording function of the BCS-L-EIP15FCR3L3-AI1 allows you to record audio along with video, which greatly enhances the capabilities and efficiency of surveillance systems. The main advantages of such a solution are: Comprehensive surveillance: Audio recording enables the collection of more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation analysis: Audio can provide additional information that is not visible on video, such as conversations, background noises, or other sounds, which can be important for understanding the context of an event. Increased monitoring effectiveness: Integrating audio into a visual surveillance system increases the overall effectiveness of the system, enabling faster and more accurate responses to incidents.

Automatic day/night mode Adapted to work in all lighting conditions, the BCS-L-EIP15FCR3L3-AI1 with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Audiovisual recording on a memory card The microSD card in the BCS-L-EIP15FCR3L3-AI1 allows local storage of recorded data without the need for a continuous connection to an external storage system, ensuring independence and reliability in the event of loss of internet connection. In addition, it allows easy access to stored recordings, making it easier to analyze events and archive key footage. Maximum supported capacity - 256GB

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as those in the BCS-L-EIP15FCR3L3-AI1 cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

• Detection (64m): The system is able to detect the presence of an object or person at a distance of up to 64 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
• Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
• Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
• Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

LED illumination and color image after dark

The white light illumination function of the BCS-L-EIP15FCR3L3-AI1 is used to improve image quality in low-light conditions. Here are some key aspects of this technology:

• Improving nighttime visibility: When natural light levels are low, white light illumination produces a colorful and clear image that is typically of better quality than images obtained using infrared (IR).
• Preventive effect: Bright light can act as a deterrent to potential intruders or criminals, as it signals that the area is being monitored and well lit.

Technical specifications:

Camera	BCS-L-EIP15FCR3L3-AI1
Product line	BCS Line
Camera type	Dome
Resolution	5 Mpx
Sensor	1/2.7'' CMOS
Scanning system	Progressive Scan
Pixels	2960(H)×1688(V)
RAM	256MB
ROM	128MB
Lens	fixed
Focal length	2.8mm
Aperture	F1.6
Focus	Fixed
Iris	Fixed
Digital zoom	16×
Viewing angle	H: 111° V: 58° D: 132°
DORI	Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m
Sensitivity of camera	0.007Lux(Color,F1.6,30IRE) 0.0007Lux(F1.6,B/W,30IRE) 0Lux(IR)
S/N ratio	56dB
White balance	(AWB) Auto / manual
WDR	120dB
Backlight compensation	BLC / HLC / WDR(120dB)
Shutter	Auto / manual 1/3~1/100000s
Gain control	(AGC) Auto / manual
Noise reduction	3D DNR
Image rotation	Mirror, Flip 0°/90°/180°/270°
Number of streams	2
Resolutions	5M(2960×1668) / 4M(2880×1620)(2688×1520)(2560×1440) / 3M(2304×1296)(2048×1536) / 2M(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)
Bitrate	H.264: 32 Kbps~8192 Kbps H.265: 12 Kbps~8192 Kbps
Video compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Day/Night	ICR mechanical infrared filter
Illuminator type	IR LED + White Light
Illuminator	30m
NightColor	Yes
Microphone	Yes
Compatibility	ONVIF(S/G/T)
Support	Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Memory card slot	microSD 256GB
Audio compression	G.711A / G.711Mu / G.723 / G.726 / PCM
Networking	RJ-45 10/100 Mbps
Motion detection	4
Privacy masks	4
IP rating	IP67
Ai - Built-in intelligent functions	Built-in intelligent image recognition and analysis algorithms
Ai - Perimeter protection	Intrusion into the area, crossing the line
Ai - Object recognition	Person/mechanical vehicle recognition for area intrusion, line crossing reduces false alarm triggering.
Ai - SMD	SMD Plus
