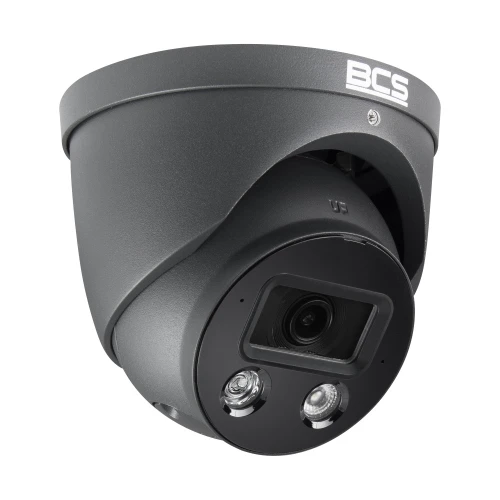

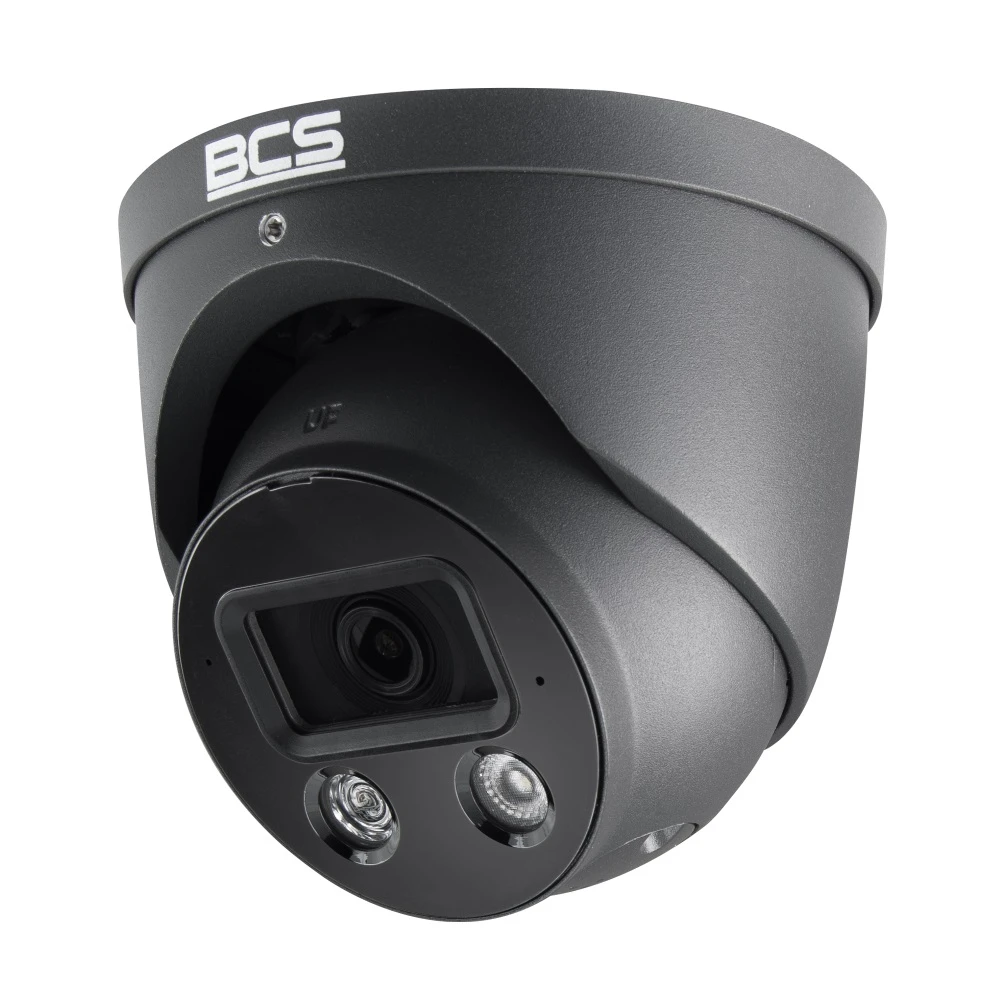

IP Dome Camera BCS-L-EIP55FCR3L3-Ai1-G(2), WDR 120dB, IR 30m
Photo gallery
-
Manufacturer
-
Product Code
BCS-L-EIP55FCR3L3-Ai1-G(2)
-
Warranty
36 miesięcy
- Technology: IP
- Resolution: 5Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: Black
- Streaming: Yes
Ask about this product show form
Product Description
Main features:
|
|
The device is a 5 Mpx dome camera with a 1/2.7'' sensor. It uses Progressive Scan system, and its pixels are 2960 (H) x 1688 (V). In terms of motion detection, the camera can detect motion in 4 areas and has 8 privacy masks. In addition, the camera is equipped with built-in AI smart functions, such as object recognition (person/vehicle) for area intrusion or line crossing, and offers perimeter protection and image recognition and analysis algorithms. It is a versatile device that can be used in a variety of applications, providing advanced features and high image quality.
Technical specifications:
| Device Name | BCS-L-EIP55FCR3L3-Ai1(2) |
| Product Line | BCS Line |
| Camera type | Dome |
| Resolution | 5 Mpx |
| Sensor | 1/2.7'' |
| Scanning system | Progressive Scan |
| Pixels | 2960(H)×1688(V) |
| RAM | 512MB |
| ROM | 128MB |
| Lens | fixed |
| Focal length | 2.8mm |
| Aperture | F1.0 |
| Focus | Fixed |
| Iris | Fixed |
| Digital zoom | 16× |
| Viewing angle | H: 97° V: 70° D: 128° |
| DORI | Detect 66m/ Observe 26m/ Recognize 13m/ Identify 7m |
| Sensitivity of the camera | 0.003Lux(F1.0,30IRE) 0.0003Lux(F1.0,B/W,30IRE) 0Lux(IR) |
| S/N ratio | 56dB |
| White balance | (AWB) Auto / manual |
| WDR | 120dB |
| Backlight compensation | BLC / HLC / WDR(120dB) |
| Shutter | Auto / manual 1/3~1/100000s |
| Gain control | (AGC) Auto / manual |
| Noise reduction | 3D DNR |
| Image rotation | Mirror, Flip 0°/90°/180°/270° |
| Number of streams | 3 |
| Resolutions | 5M(2960×1668)(2880×1620) / 4M(2688×1520)(2560×1440) / 3M(2048×1536)(2304×1296) / 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240) |
| Main stream | 2960×1668(1~20fps) 2880×1620(1~20fps) 2688×1520(1~30fps) |
| Second stream | 704×576/704×480(1~25/30fps) |
| Third stream | 1920×1080(1~25/30fps) |
| Bitrate | H.264: 32 Kbps~8192 Kbps H.265: 12 Kbps~8192 Kbps |
| Video compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding |
| Day/Night | ICR |
| Illuminator type | IR + White Light |
| Illuminator | 30m |
| NightColor | Yes |
| Microphone | Yes |
| Speaker | Yes |
| Audio input | 1 |
| Audio output | 1 |
| Audio compression | G.711A / G.711Mu / G.723 / G.726 / PCM |
| Alarm input | 1 |
| Alarm output | 1 |
| Memory card slot | microSD 256GB |
| Support | Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android) |
| Motion detection | 4 |
| Privacy masks | 8 |
| Networking | RJ-45 10/100 Mbps |
| Compatibility | ONVIF(S/G/T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Power supply type | 12VDC / PoE(802.3af) |
| Power consumption | max 8.8W |
| Housing color | White |
| IP protection class | IP67 |
| Operating conditions | -40°C~+60°C max 95% RH |
| Dimensions | Ø122×110.9mm |
| Weight | 0.75 kg |
| Ai - Built-in intelligent functions | Built-in intelligent image recognition and analysis algorithms |
| Ai - Perimeter protection | Intrusion into the area, crossing the line |
| Ai - Object recognition | Person/vehicle recognition for area intrusion, line crossing reduces false alarm triggering. |
| Ai - SMD | SMD 4.0 |
