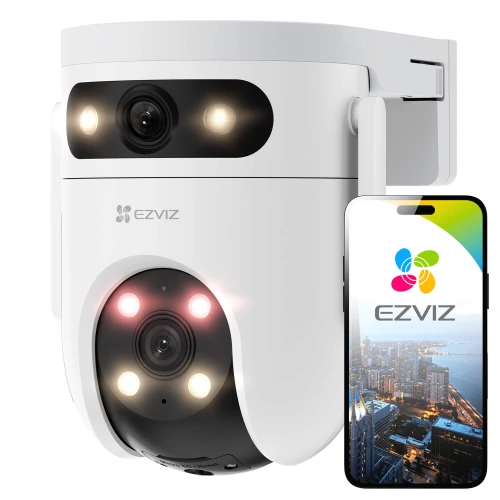

EZVIZ H9c 2-in-1 Wi-Fi Camera (5MP + 5MP) 3K, AI Motion Detection, Auto Tracking, Active Protection

H9c ( CS-H9c 5MP+5MP ) package contents:

• 1x Rotating 2-in-1 3K camera - EZVIZ H9c ( CS-H9c 5MP+5MP ).
• Documentation - User manual, warranty card, adjustments
• Template - Small size template with camera mounting holes
• Screws and mounting studs - Everything you need to mount the camera
• Waterproof kit - A set of accessories to protect the camera's connectors from moisture

H9c ( CS-H9c 5MP+5MP ) Camera Features:

Top camera: 3K resolution 2.8m lens Viewing angles: Horizontal 108°, Vertical 56°

Lower camera: 3K resolution 6mm lens Viewing angles: Horizontal 55°, Vertical 28°

Common features:

• White illumination range: 40m
• DWDR
• Recording at 15 fps
• 2.4GHz Wi-Fi support
• Intelligent detection of people and vehicles
• Two-way conversation
• Auto-Tracking
• Active protection function
• Co-Detection (Rotating camera starts tracking an object detected by the fixed camera)
• Recording to a memory card with a maximum capacity of 512GB (card not included)
• Weather-resistant design

Remote access from phone and desktop computer The EZVIZ H9c ( CS-H9c 5MP+5MP ) allows you to configure, control and view via the EZVIZ App, which will provide you with constant access to monitoring from anywhere on earth with internet access. The EZVIZ App allows you to: Access video preview and play back recorded footage Save parts of the video to your smartphone memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees EZVIZ App - Free app for iOS and Android smartphones EZVIZ Studio - Free desktop app

P2P function

In the EZVIZ H9c 3K is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Dual Camera. Double security

With its unique dual-lens technology, the EZVIZ H9c provides unparalleled protection that goes beyond professionalism. It uses a wide-angle lens on top of a pan-and-tilt telephoto lens - the duo works independently or together in a way that is much smarter than a regular camera.

Superior detection, unparalleled protection

The H9c camera is equipped with dual-lens detection technology to protect even the most complex environments in a way that is tailored to your needs. You can use these advanced features at any time without a subscription.

Turn in two directions, but perform the same activity The H9c camera is equipped with dual-lens detection technology to protect even the most complex environments in a manner tailored to your needs. You can use these advanced features at any time without a subscription.

See much more than you can imagine A larger space requires a wider view. That's where the H9c 3K camera comes in handy. It can pan and tilt to cover a 360-degree field of view and render details in 3K resolution to clearly capture key moments.

Click to check, in both wide and close-up views

The EZVIZ app allows you to make sense of the whole big picture while paying attention to important details. You can touch the area of interest on the wide-angle view to simultaneously display a close-up view from the side.

You can also let the H9c 3K do intelligent patrolling, so you don't have to.

At set intervals, the lower lens can perform a rotating check to eliminate blind spots. Patrol routes can be customized or you can simply ask it to perform a full rotation.

High-quality audio for response and alerting Easily respond to any visitor by simply using your phone to talk remotely. The camera can also automatically play a recorded voice message when motion is detected.

Active defense for deterrence and protection When intruders are detected, the camera will activate a loud siren and flash blinding headlights2 to inform invited strangers that they have been detected.

Powerful antennas, stable connection Extends Wi-Fi range up to 220m with high-performance dual antennas6. Also offers wired options for added convenience.

Sleek all-weather design The H9c 3K has a compact design and is weatherproof for long-lasting performance, even in harsh weather conditions.

Smart integration for hands-free control The camera supports easy integration with existing voice assistants. The video feed can be displayed by simply saying "Alexa" or "Hey Google."

H.265 for a better video experience H.265 provides a smoother viewing experience while using only about 50% of the storage space required by cameras with H.264.

Technical specifications:

Model	1/2.7" Progressive Scan CMOS
Shutter speed	Self-adjusting shutter
Lens	Top lens: 2.8mm@ F1.6, Viewing angle: Diagonal 132°, Horizontal 110°, Vertical 58°
	Lower Lens: [email protected], Viewing angle: Diagonal 64°, Horizontal 56°, Vertical 29°
PT angle	Pan: 350°, Tilt: 80°
Minimum illumination	0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (* data is from EZVIZ labs)
Lens mount	M12
Day and night	IR-cut filter with automatic switch
DNR	3D DNR
WDR	Digital WDR
Black and white night mode	30m/98ft
Video and audio
Maximum resolution	2880*1620
Frame rate	Max: 15fps; Self-adjusting during network transmission
Video compression	H.265 / H.264
H.265 type	Master profile
Video flow rate	Ultra-HD; Hi-Def; Standard. Adaptive flow rate.
Audio flow rate indicator	Self-adjusting
Network
Wi-Fi standard	IEEE802.11b, 802.11g, 802.11n
Frequency range	2.4 GHz ~ 2.4835 GHz
Channel width	20MHz support
Security	WPA-PSK/WPA2-PSK
Transmission speed	11b: 11Mbps,11g :54Mbps,11n :150Mbps
Wi-Fi pairing	AP pairing
Protocol	EZVIZ proprietary cloud protocol
Interface protocol	EZVIZ proprietary cloud protocol
Wired network	RJ45 × 1(10M/100M Adaptive Ethernet port)
Function
Intelligent alarm	Human shape/vehicle detection powered by artificial intelligence / Motion detection
Automatic tracking	Support
Custom alert area	Support
Two-way conversation	Support
Pre-set locations	Support
General function	Antimigration, Dual stream, Heartbeats, Password protection, Watermark
Storage
Local storage	Micro SD card slot (up to 512GB)
Cloud storage	EZVIZ cloud storage
General
Operating conditions	-30°C to 50°C (-22°F to 122°F), humidity 95% or less (non-condensing)
IP rating	Weather-resistant design
Power supply	DC 12V/1.5A
Power consumption	MAX. 12W
Dimensions	145*116*142mm (5.71×4.57× 5.59 inches)
Packaging dimensions	150*150*194mm(5.90×5.90× 7.64 inches)
Weight	Net weight: 668g With packaging: 960g
