KEEYO IP Monitoring Kit 4x LV-V-IP4M25DF-B 4MP, PoE, IR 25m, Audio, AI

KEEYO IP Monitoring Kit 4x LV-V-IP4M25DF-B 4MP, PoE, IR 25m, Audio, AI
  • Manufacturer

    KEEYO
  • Product Code

    ZM32604

  • Warranty

    24 miesiące

  • Technology: IP
  • Resolution: 4Mpx
  • Enclosure: Dome
  • Number of cameras: 4
  • Connectivity: Wired
  • Color: White

Ask about this product show form

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

282,96 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Related products

Product Description

Choosing a complete monitoring kit ensures easy and quick installation, as all components are already compatible with each other. Our kits offer full technical support and upgrades to ensure long-lasting and reliable protection.

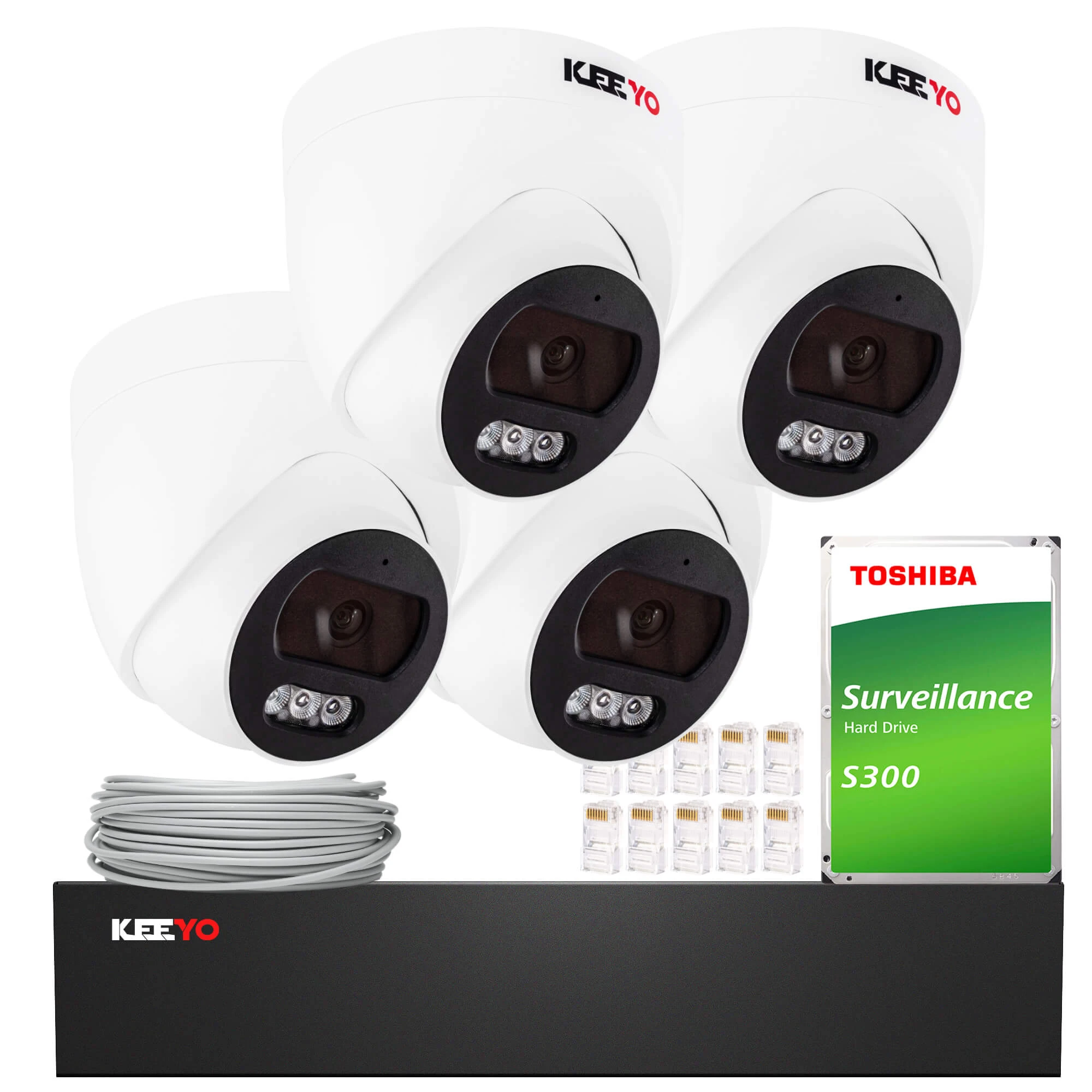

Kit contents:

  • 4x LV-V-IP4M25DF-B Indoor Dome Camera.
  • 1x Digital Network Recorder LV-V-NVR-9CH-4P-E
  • 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
  • 20m UTP cat.5e cable
  • Set of RJ45 plugs

Main features of the set:

  • Wide diagonal viewing angle - 114°
  • 4 high resolution 2K+ cameras
  • DVR with built-in 4-port PoE switcher
  • Intelligent search of recordings
  • Silhouette detection of people and vehicles
  • Infrared with a range of 25 meters
  • Ai functions: Intruder detection
  • Cameras with built-in microphone
  • Indoor use
  • Support through popular browsers - Google Chrome, Mozilla Firefox, Safari
  • Free Bitvision mobile app, available for Android and iOS smartphones
  • Possibility to connect another 5 cameras (via local network)

Remote access from desktops and smartphones

Bitvision is a simple and fast way to operate your property monitoring system, with it you will be able to:

✅Access video previews and playback stored footage


✅Save snippets of video to your smartphone's memory
✅Configure timeframes for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees.



Power Over Ethernet (PoE)


The LV-V-NVR-9CH-4P-E's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.



Support for popular browsers


The WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.




Accurate notifications without false alarms


The LV-V-IP4M25DF-B's human and car silhouette detection feature offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and performance of surveillance systems.



Wide Viewing Angle That Won't Miss a Detail

The LV-V-IP4M25DF-B's 114° diagonal field of view offers significant advantages, such as wide coverage of the monitored area, which reduces the number of cameras needed for surveillance of large spaces. This makes it possible to monitor wide-area locations such as parking lots, production halls and stores more effectively, minimizing blind spots and reducing installation and maintenance costs of the surveillance system.



Built-in microphone


The LV-V-IP4M25DF-B's built-in microphone enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording feature, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces from not only visual but also acoustic angles, supporting a more comprehensive approach to security and real-time intervention.


High-quality image


The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records at 4Mpx resolution ensuring that even the smallest detail is captured in the footage.


Bring out the full potential of your camera

The 3D DNR (Digital Noise Reduction) function in surveillance cameras reduces image noise that can appear in low-light conditions, improving the quality of recordings. It works by analyzing several video frames to eliminate random noise, leading to clearer, more detailed images and less motion blur, making it easier to identify people and objects.


Automatic Day/Night Mode


Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.


Wide Dynamic Range: DWDR


The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.


Technical specifications:


Camera:

Camera LV-V-IP4M25DF-B
Camera
Image sensor 1/2.9" CMOS sensor with back illumination
Resolution 4MP
Image resolution 2560x1440
Compression H.264/H.264+/H.265/H.265+
Audio compression G711A/U,AAC
TV System PAL/NTSC
Electronic shutter Auto: 1/3-1/100000
Minimum illumination Color: 0.04 Lux @ (F2.0, AGC ON), Black/White: 0 Lux with IR
S/N Ratio 60dB
Lens
Focal length and field of view 2.8mm / 95° (horizontal), 53° (vertical), 114° (diagonal)
Lens type Fixed focal length
Focus Fixed
Aperture F2.0
Night vision
Assist light 42µ x 3PCS
Range of assist light 25 meters
Control of the booster light Intelligent, Manual, By schedule
Networking
Ethernet RJ-45 (10/100Base-T)
Protocols TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x
ONVIF S/T/G profile version 19.12
P2P Yes
POE IEEE 802.3af
Main stream 2560x1440 at 25fps
Sub stream 720x480 at 25fps
Browser support Google Chrome, Mozilla Firefox, Safari
Mobile application Android, iOS
Ai features
Intelligent analysis Human and vehicle detection
Intrusion detection (based on human and vehicle detection),
Camera Features
Day/Night Color/Black & White
Image configuration Saturation/Brightness/Contrast/Focus, Reflection, 3DNR, White balance, Anti-flicker, Strong light compensation
Backlight compensation Yes
Wide dynamic range Yes
Motion detection Yes (silhouette recognition of people and cars)
Privacy masks 3 rectangular masks
Language Polish
Interfaces
Audio Built-in microphone
General
Housing Plastic
Environmental temperature -30° to +60° Humidity 95%.
Power supply DC12V, 700mA / PoE
Dimensions φ109.43 x 88.5 (mm)
Weight 242g


Recorder:

DVR LV-V-NVR-9CH-4P-E
System
Main processor ARM Cortex A7
Operating system LINUX
Video
Input 9CH(8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF)
Output 1* HD
Audio
Bitrate 64kbps
Compression G711U, G711A
Alarm
Motion detection 9 channels
Event handling Recording, Email, FTP, Photo
Display
HD output 1920*1080/1280*1024/1280*720/1024*768
Channel division 9/8/6/4/1
Digital zoom Yes
OSD Camera name, Time, Recording, Motion detection, Event
Recording
Video compression H265/H264/H265+/H264+
Resolution 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Recording speed PAL: 4K at 8CHx25fps,5MP at 9CH×25fps,4MP at 9CHx25fps,3MP at 9CH×25fps,1080P at 9CH×25fps, 960P at 9CH×25fps720P at 9CH×25fps, D1 at 9CH×25fps
NTSC: 4K in 8CH×30fps,5MP in 9CH×30fps,4MP in 9CH×30fps,3MP in 9CH×30fps,1080P in 9CH×30fps, 960P in 9CH×30fps, 720P in 9CH×30fps, D1 in 9CH×30fps
Recording modes ManualTimerMotion detectionSmart event
Playback and backup
Local playback 1CH 4K in 30fps, 1CH 5MP in 30fps,2CH 4MP in 30fps, 2CH 3M in 30fps, 4CH 1080P in 30fps,9CH 720P in 30fps
Decoding 1080P(1920x1080)@120fps
Remote playback Yes
Sweep mode All, Time frame, Motion detection, Tag search, Smart event, Photo, Log
Playback functions Playback, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, sound
Backup USB, Local network
Network
Interfaces 1xRJ45 10M/100M (self-adaptive Ethernet interface)
Incoming bitrate 72Mbps
Outgoing bitrate 48Mbps
Network functions IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif S, T profile
Support for web browsers Edge, Google Chrome, Firefox, Safari
Support for mobile platforms Android, iOS
PoE 4 independent 100 Mbps POE network interfaces (AT mode output power 30W per port), total output power ≤ 45W, Plug and Play support, support extended network cable mode max. 200M
Storage
HDD connector 1x Sata 3
Disk support 8TB maximum
General
Language Polish
USB interface 2x USB 2.0
Power consumption <6W (Without disk and PoE power supply)
Ambient conditions -10°C to 50°C
Dimensions 200 x 175 x 40 [mm]
Net weight 1.5kg
