KEEYO IP Monitoring Kit 6x LV-V-IP5M25DF-G-II 5Mpx, IR 25m, Audio, AI, Sony Starvis

The image shows a comprehensive IP surveillance system featuring six dome cameras, a digital video recorder, and a Toshiba surveillance hard drive. The set also includes a bundle of cables and connectors for easy installation.
A sleek black security camera with a modern design is shown alongside a smartphone displaying its interface. The camera features a prominent lens and infrared lights, emphasizing its advanced surveillance capabilities.
A sleek black network video recorder with a textured front panel and LED indicators for cloud, HDD, network, and power status. The device is shown alongside a smartphone displaying a surveillance app interface.
  • Manufacturer

    KEEYO
  • Product Code

    ZM32611

  • Warranty

    24 miesiące

  • Technology: IP
  • Resolution: 5Mpx
  • Enclosure: Dome
  • Number of cameras: 6
  • Connectivity: Wired
  • Color: Black

Ask about this product show form

Files attached to the product show files

  • Availability: in stock Shipping 24h

Price (Incl. VAT):

551,11 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

i-Raty - raty online
i-Leasing - leasing online

Related products

Product Description

Choosing a complete monitoring kit ensures easy and quick installation, as all components are already compatible with each other. Our kits offer full technical support and upgrades to ensure long-lasting and reliable protection.

Kit contents:

  • 6x LV-V-IP5M25DF-G-II Outdoor Dome Camera.
  • 1x KEEYO LV-V-NVR-16CH-8P DVR with built-in 8-port PoE switcher
  • 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
  • 30m UTP cat.5e cable
  • Set of RJ45 plugs

Main features of the set:

  • IMX335 image sensor from SONY guaranteeing richly detailed images
  • 5Mpx resolution
  • 1TB drive for storing recordings
  • Live viewing, recording and playback of footage from cameras up to 8 Mpx
  • Support for up to 9 IP cameras
  • Intelligent search of recordings
  • Infrared illumination range: 25m
  • Cameras with PoE power supply capability
  • Ai features:
    • intruder detection
    • line crossing
    • straying
    • detection of gatherings
    • detection of vehicles
    • trespassing
  • Wide diagonal viewing angle: 128°
  • Cameras with built-in microphone
  • Corridor mode
  • Support by popular web browsers: Google Chrome, Mozilla Firefox, Safari
  • Support in mobile app on Android and iOS smartphones

Remote access from desktops and smartphones


Bitvision is a simple and fast way to operate your property monitoring system, with it you will be able to:

✅Access video previews and playback stored footage
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees



Power Over Ethernet (PoE)


The LV-V-IP5M25DF-G-II's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.



Support for popular browsers


The WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.




Accurate notifications without false alarms


The LV-V-IP5M25DF-G-II's human and car silhouette detection feature offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and efficiency of surveillance systems.

With such detection, the camera has the ability to perform additional detection tasks. The LV-V-IP5M25DF-G-II additionally detects:

  • Line crossing
  • Wandering
  • Assembly
  • Intrusion into the area



Built-in microphone


The built-in microphone on the LV-V-IP5M25DF-G-II enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording function, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces for not only visual, but also acoustic, supporting a more comprehensive approach to security and real-time intervention.


High-quality image


The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records at 5Mpx resolution ensuring that even the smallest detail is captured on the footage.


SONY sensor

The Sony IMX335 sensor is a 1/2.8-inch CMOS image sensor with a resolution of 5 megapixels, which provides high image quality in low-light conditions thanks to STARVIS technology for excellent light sensitivity. The matrix also features high resolution and dynamic range, making it ideal for surveillance and security camera applications.


Automatic Day/Night mode


Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.


Wide Dynamic Range: DWDR


The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture the details of a contrasting image.



Region of Interest

The ROI (Region of Interest) function of the LV-IP5M25DF-G-II allows you to select and prioritize a specific area in the camera's field of view, providing higher image quality in this area while reducing the quality in other parts. This makes more efficient use of camera resources and bandwidth, focusing on key areas such as entrances or checkouts.


Weatherproof


With an IP67 rating, the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials used for its housing.



Technical specifications:

Camera:

Camera LV-V-IP5M25DF-G-II
Camera
Image sensor 1/2.8" SONY Starvis CMOS sensor with back illumination
Resolution 5MP
Image resolution 2616x1964
Compression H.264/H.264+/H.265/H.265+
Audio compression G711A/U,AAC
TV System PAL/NTSC
Electronic shutter Auto: 1/3-1/100000
Minimum illumination Color: 0.006 Lux @ (F1.6, AGC ON), Black & White: 0 Lux with IR
S/N Ratio 60dB
Lens
Focal length and field of view 2.8mm / 106° (horizontal), 56° (vertical), 127° (diagonal)
Lens type Fixed focal length
Focus Fixed
Aperture F1.6
Night vision
Assist light 42µ x 2PCS
Range of assist light 25 meters
Control of the booster light Intelligent, Manual, By schedule
Networking
Ethernet RJ-45 (10/100Base-T)
Protocols TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x
ONVIF S/T/G profile version 19.12
P2P Yes
POE IEEE 802.3af
Main stream 2592x1944 at 30fps
Sub stream 1280x720 at 30fps
Browser support Google Chrome, Mozilla Firefox, Safari
Mobile application Android, iOS
Ai features
Intelligent analysis Intrusion detection (based on human and vehicle detection),
line crossing detection (based on human and vehicle detection),
presence detection (based on human detection),
gathering detection (based on human detection),
motion detection based on human detection,
entering the area (based on human and vehicle detection),
leaving the area (based on human and vehicle detection).
Camera functions
Day/Night Color/Black/White
Image configuration Saturation/Brightness/Contrast/Focus, Reflection, 3DNR, White balance, Anti-flicker, Strong light compensation
Corridor mode Yes
Region of interest Yes
Backlight compensation Yes
Wide dynamic range Yes
Motion detection Yes (silhouette recognition of people and cars)
Privacy masks 3 rectangular masks
Language Polish
Interfaces
Audio Built-in microphone
MicroSD card slot Yes (supports up to 1TB cards)
General
Housing Metal, IP67
Environmental temperature -30° to +60° Humidity 95%.
Power supply DC12V, 700mA / PoE
Dimensions ¢96 x 91 (mm)
Weight 600g

Recorder:

DVR LV-V-NVR-16CH-8P
Processor ARM Cortex A7 Processor
Operating System Embedded LINUX
Video
Input 16CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc.).
Output 1 VGA, 1 HD
Audio
Input 1 RCA port, support 16CH IPC audio
Output 1 RCA port (line-level, 1kΩ), HD output
Audio bit rate 64kbps
Audio compression standard G711u, G711a, ADPCM_DVI4
Intercom support (two-way)
Alarm
Sensor input N/A
Sensor output N/A
Motion detection 16 channels, MD zones: 396 (22 × 18)
Trigger events Recording, E-mail, FTP, Snapshot, Buzzer and on-screen guidance
Display
HD Output1 4K(38402160), 19201080, 12801024, 1280720, 1024*768
HD Output2 N/A
VGA Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display division 16CH/13CH/10CH/9CH/8CH/6CH/4CH/1CH
Digital zoom YES
OSD Camera title, time, recording, motion detection, event alarm
Recording
Video compression H265/H264/H265+/H264+
Resolution 4K(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Recording speed "PAL: 4K@10CHx25fps,5MP@16CH×25fp,4MP@16CHx25fp,3MP@16CH×25fp,1080P@16CH×25fp, 960P@16CH×25fp,720P@16CH×25fp, D1@16CH×25fp NTSC: 4K@10CHx30fps,5MP@16CH×30fp,4MP@16CH×30fp,3MP@16CH×30fp,1080P@16CH×30fp, 960P@16CH×30fp, 720P@16CH×30fp, D1@16CH×30fp"
Recording mode Manual/Timer/Motion Detection/Intelligent Events
Playback and backup
Local synchronous playback 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps
Decoding capability 4CH 1080P(1920x1080)@30fps
Remote synchronous playback YES
Search mode ALL, Video by time, Motion detection, Alarm, Search by tag, Smart events, Image, Log
Playback functions Playback, pause, fast forward, fast reverse, previous frame, next frame, electronic zoom, trim, audio
Copy creation mode Copy creation mode
Network
Interface 1xRJ45 10M/100/1000MInterface Ethernet (Adaptive)
Incoming bandwidth 120Mb
Network functions IPv6/TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif onvif S, onvif T
Web browser Edge, IE8-11, Google Chrome, Firefox, Safari
CMS software Windows 7/Windows 8/Windows 10/MAC OS support
Cloud support Yes
Smartphone iPhone, iPad, Android, Android Pad
POE Built-in 8-port PoE switch
WIFI N/A
Storage
Interface type 1 SATA hard drive interface (3.5" SATA)
Capacity Maximum 8 TB
eSATA N/A
General
Interface language Simplified Chinese, Traditional Chinese, English, Polish, Russian, German, French, Portuguese, Spanish, Italian, Korean, Japanese, Ukrainian
USB interface 2 USB 2.0 interfaces
RS485 N/A
Power consumption DC12V∕2000mA ≤10W (without hard drive)
Operating environment -10℃~50℃, 10%~90% (humidity)
Dimensions (S × G × W) 260 × 230 × 43 mm
Weight 2 kg (without hard disk)

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Similar products in this category

Monitoring set 4x BCS-L-EIP16FCR3L3-Ai1, 6MP, IR 30m, NightColor, WDR 120dB

in stock Shipping 24h

Monitoring set 4x BCS-L-EIP16FCR3L3-Ai1, 6MP, IR 30m, NightColor, WDR 120dB

  • Technology: IP
  • Resolution: 6 MP
  • Night vision: up to 30m
  • Lens: 2.8mm
  • Number of cameras: 4

643 € 781,07 €

pcs.

Add to Watchlist

  • Save -18%
The image shows a surveillance system set featuring six HiLook security cameras, a recording device, and essential accessories like cables and connectors. The cameras are designed for wall mounting, providing comprehensive monitoring capabilities for enhanced security.

in stock Shipping 24h

6x IPCAM-B4-P 2K+ Monitoring Kit, PoE, IR 20m, H.265+ HiLook Hikvision

  • Number of cameras: 6
  • Technology: IP
  • Resolution: 4Mpx
  • Night range: up to 20m
  • Supported platforms: Android, iOS, Windows

343,44 € 372,16 €

pcs.

Add to Watchlist

  • Save -8%
The image shows a surveillance system set featuring two white and black PTZ cameras, a HiLook recording unit, and essential accessories. The setup includes a power adapter, network cables, and a Toshiba hard drive for storage.

Product temporarily unavaliable

2x PTZ-N2MP-P Rotating Camera Monitoring Set, Full HD, PoE, H.265+ HiLook Hikvision

  • Number of cameras: 2
  • Technology: IP
  • Resolution: 2Mpx
  • Night range: up to 30m
  • Compatibility: Android, iOS, Windows

275,44 €

pcs.

No product

Add to Watchlist

The image shows a comprehensive surveillance system, including a high-resolution security camera, a digital video recorder, and essential accessories like cables and a mouse. The setup is designed for efficient monitoring and recording, suitable for both residential and commercial use.

in stock Shipping 24h

Monitoring set with a 5 Mpx BCS-B-TIP15FR3(2.0) tube camera and accessories

  • Number of cameras: 1
  • Technology: IP
  • Resolution: 5Mpx
  • Night range: up to 30m
  • Support: Android, iOS, Windows

222,61 €

pcs.

Add to Watchlist

The image shows a comprehensive IP surveillance system, including ten black security cameras, a network video recorder, a Toshiba surveillance hard drive, and necessary cables. This setup is designed for robust and reliable monitoring, suitable for both residential and commercial use.

Product temporarily unavaliable

KEEYO Monitoring Kit 10x LV-V-IP8M25TF-DL-G 8Mpx, Hybrid IR/LED Illumination

  • Number of cameras: 10
  • Resolution: 4K
  • Night visibility: up to 25m
  • Lens: 2.8mm
  • Connectivity: wired

1 261,20 €

pcs.

No product

Add to Watchlist

HiLook Hikvision Monitoring Set 4x IPCAM-T8-30DL 4K Smart Hybrid Light 30m, Detection

in stock Shipping 24h

HiLook Hikvision Monitoring Set 4x IPCAM-T8-30DL 4K Smart Hybrid Light 30m, Detection

  • Number of cameras: 4
  • Technology: IP
  • Resolution: 8Mpx
  • Night range: up to 30m
  • Supported platforms: Android, iOS, Windows

482,43 €

pcs.

Add to Watchlist

The image shows a comprehensive IP surveillance system, including ten white and black security cameras, a network video recorder, a hard drive, a smartphone with a monitoring app, a network switch, cables, and connectors. This setup is designed for extensive security coverage and remote monitoring capabilities.

in stock Shipping 24h

KEEYO IP Monitoring Kit 12x LV-V-IP5M6TF-AI-B 5Mpx, IR 60m

  • Technology: IP
  • Resolution: 5MP
  • Housing: Tube
  • Number of cameras: 12
  • Connectivity: Wired

1 260,51 €

pcs.

Add to Watchlist

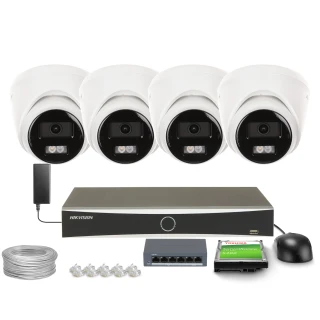

The image shows a Hikvision surveillance system, including four dome cameras, a network video recorder, and various accessories such as cables and connectors. The setup is designed for comprehensive security monitoring, offering high-quality video capture and storage.

in stock Shipping 24h

Hikvision Monitoring Kit 4x DS-2CD1383G2-LIUF Smart Hybrid Light 4K

  • Technology: IP
  • Resolution: 8MP
  • Night visibility: up to 30m
  • Number of cameras: 4
  • Connection: wired

675,17 € 1 125,43 €

szt.

Add to Watchlist

  • Save -40%
The image shows a complete surveillance system package, including six white dome security cameras, a recording device, a network switch, cables, connectors, and a memory card. This setup is designed for comprehensive monitoring and recording, suitable for both residential and commercial use.

in stock Shipping 24h

6x DS-2CD2383G2-LI2U Monitoring Kit, DS-7608NXI-K1(D) Smart Hybrid Light AcuSense 8MP 4K UHD IR 40 m Audio Hikvision

  • Number of cameras: 6
  • Technology: IP
  • Resolution: 8 MP
  • Night range: up to 30m
  • Compatibility: Android, iOS, Windows

1 341,37 € 1 676,77 €

pcs.

Add to Watchlist

  • Save -20%

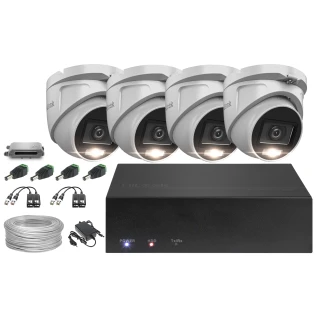

The image shows a complete surveillance system featuring four dome security cameras and a central recording unit. Included are various connectors, cables, and a power adapter for easy installation and setup.

in stock Shipping 24h

4x TVICAM-T2M-20DL Monitoring Kit, SSD-DVR-2MP Full HD HiLook by Hikvision

  • Number of cameras: 4
  • Technology: AHD/HD-CVI/HD-TVI
  • Resolution: 2MP
  • Night range: up to 20m
  • Supported platforms: Android, iOS, Windows

172,07 € 229,50 €

pcs.

Add to Watchlist

  • Save -25%

Quick online quote

Use our calculators for a quote. Fill in the form - Our consultants will prepare a dedicated offer


Our recommendations
