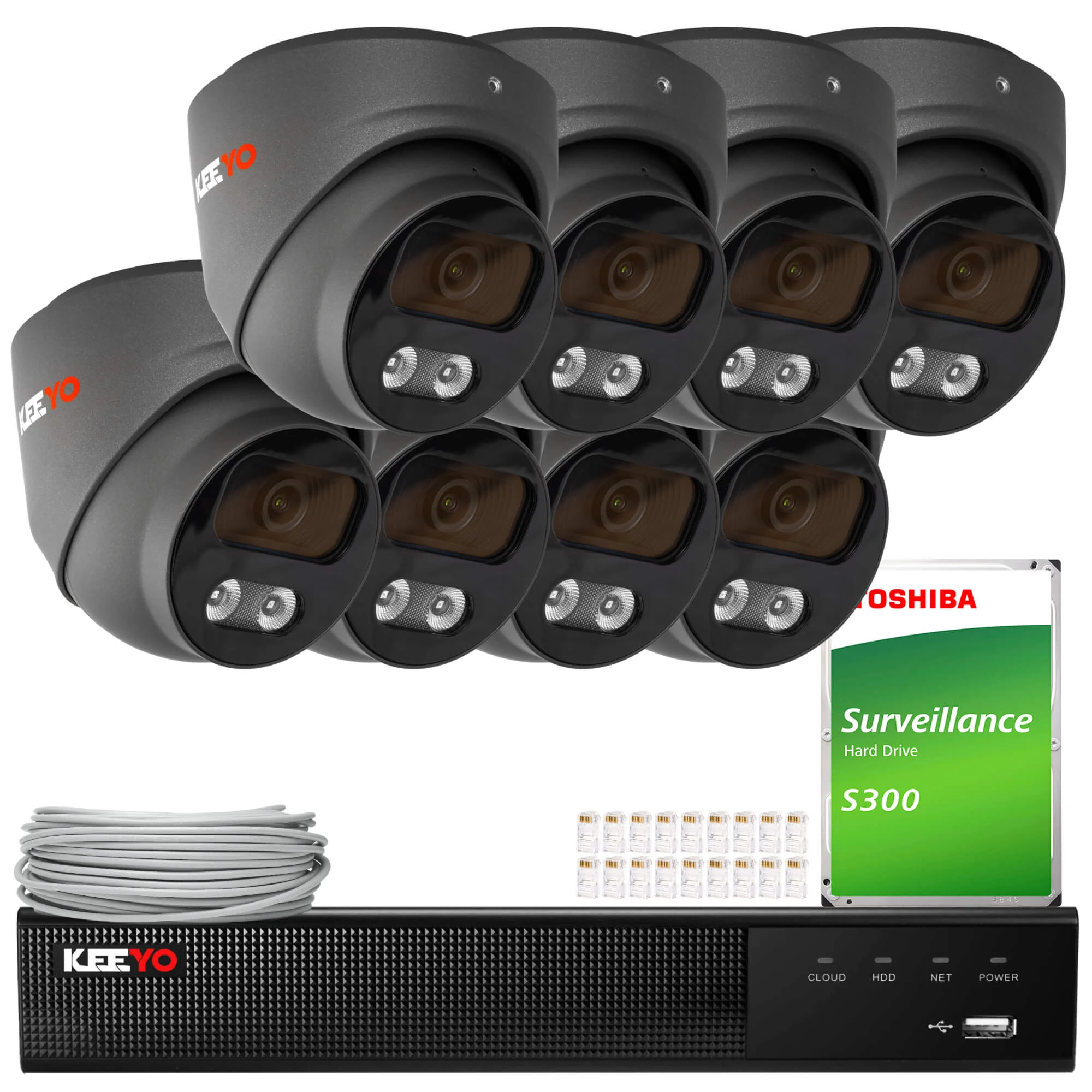

KEEYO IP Monitoring Kit 8x LV-V-IP5M25DF-G-II 5Mpx, IR 25m, Audio, AI, Sony Starvis

Bitvision is a simple and fast way to operate your property monitoring system, with it you will be able to:

✅Access video previews and playback stored footage
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees

Power Over Ethernet (PoE)

The LV-V-IP5M25DF-G-II's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.

Support for popular browsers

The WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.

Accurate notifications without false alarms

The LV-V-IP5M25DF-G-II's human and car silhouette detection feature offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and efficiency of surveillance systems.

With such detection, the camera has the ability to perform additional detection tasks. The LV-V-IP5M25DF-G-II additionally detects:

• Line crossing
• Wandering
• Assembly
• Intrusion into the area

Built-in microphone

The built-in microphone on the LV-V-IP5M25DF-G-II enables audio recording, which greatly enhances surveillance and situation analysis capabilities. With the audio recording function, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces for not only visual, but also acoustic, supporting a more comprehensive approach to security and real-time intervention.

High-quality image

The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records at 5Mpx resolution ensuring that even the smallest detail is captured on the footage.

SONY sensor The Sony IMX335 sensor is a 1/2.8-inch CMOS image sensor with a resolution of 5 megapixels, which provides high image quality in low-light conditions thanks to STARVIS technology for excellent light sensitivity. The matrix also features high resolution and dynamic range, making it ideal for surveillance and security camera applications.

Automatic Day/Night mode

Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Wide Dynamic Range: DWDR

The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture the details of a contrasting image.



Region of Interest

The ROI (Region of Interest) function of the LV-IP5M25DF-G-II allows you to select and prioritize a specific area in the camera's field of view, providing higher image quality in this area while reducing the quality in other parts. This makes more efficient use of camera resources and bandwidth, focusing on key areas such as entrances or checkouts.

Weatherproof

With an IP67 rating, the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials used for its housing.

Technical specifications:

Camera:

Camera	LV-V-IP5M25DF-G-II
Camera
Image sensor	1/2.8" SONY Starvis CMOS sensor with back illumination
Resolution	5MP
Image resolution	2616x1964
Compression	H.264/H.264+/H.265/H.265+
Audio compression	G711A/U,AAC
TV System	PAL/NTSC
Electronic shutter	Auto: 1/3-1/100000
Minimum illumination	Color: 0.006 Lux @ (F1.6, AGC ON), Black & White: 0 Lux with IR
S/N Ratio	60dB
Lens
Focal length and field of view	2.8mm / 106° (horizontal), 56° (vertical), 127° (diagonal)
Lens type	Fixed focal length
Focus	Fixed
Aperture	F1.6
Night vision
Assist light	42µ x 2PCS
Range of assist light	25 meters
Control of the booster light	Intelligent, Manual, By schedule
Networking
Ethernet	RJ-45 (10/100Base-T)
Protocols	TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x
ONVIF	S/T/G profile version 19.12
P2P	Yes
POE	IEEE 802.3af
Main stream	2592x1944 at 30fps
Sub stream	1280x720 at 30fps
Browser support	Google Chrome, Mozilla Firefox, Safari
Mobile application	Android, iOS
Ai features
Intelligent analysis	Intrusion detection (based on human and vehicle detection), line crossing detection (based on human and vehicle detection), presence detection (based on human detection), gathering detection (based on human detection), motion detection based on human detection, entering the area (based on human and vehicle detection), leaving the area (based on human and vehicle detection).
Camera functions
Day/Night	Color/Black/White
Image configuration	Saturation/Brightness/Contrast/Focus, Reflection, 3DNR, White balance, Anti-flicker, Strong light compensation
Corridor mode	Yes
Region of interest	Yes
Backlight compensation	Yes
Wide dynamic range	Yes
Motion detection	Yes (silhouette recognition of people and cars)
Privacy masks	3 rectangular masks
Language	Polish
Interfaces
Audio	Built-in microphone
MicroSD card slot	Yes (supports up to 1TB cards)
General
Housing	Metal, IP67
Environmental temperature	-30° to +60° Humidity 95%.
Power supply	DC12V, 700mA / PoE
Dimensions	￠96 x 91 (mm)
Weight	600g

Recorder:
