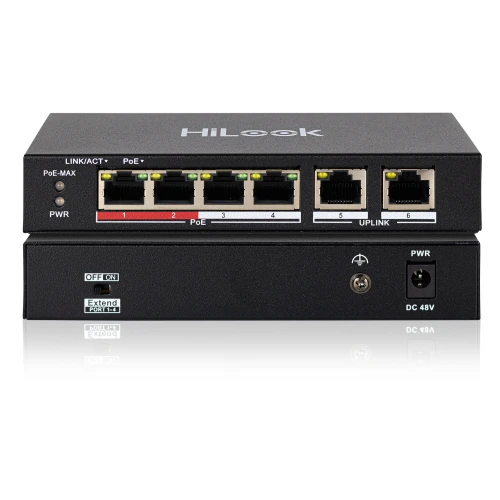

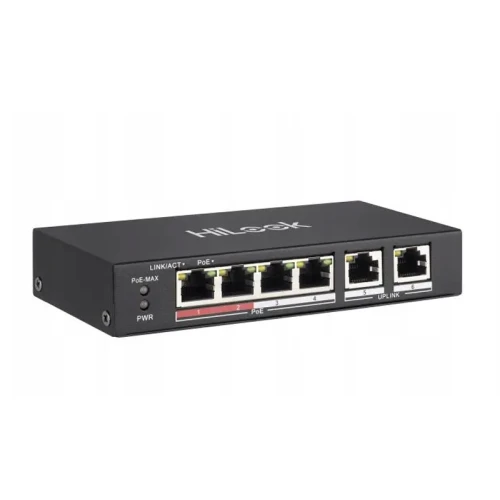

Switch SW-06-POE, 4+2 10/100Mbps, 35W HiLook by Hikvision

Key Features:

SW-06-POE by HiLook by Hikvision is a versatile and powerful network switch that offers advanced PoE functions, ease of use and reliability. With high throughput and a large PoE power budget, it is an excellent choice for any network requiring power and connectivity for multiple devices simultaneously.

• Switch type: PoE, unmanaged
• Number of ports: 6
• Number of PoE ports: 4
• Number of Uplink ports: 2
• Transmission speed: 10/100 Mbps
• Data transmission range: up to 250 m
• PoE power budget: 35W, up to 30W per port
• Throughput: 1.6 Gbps
• Packet forwarding speed: 0.8928 Mpps
• Cache memory: 768 Kbits
• MAC table: 4K
• Additional features: Extend
• Operating temperature range: -10°C to +40°C

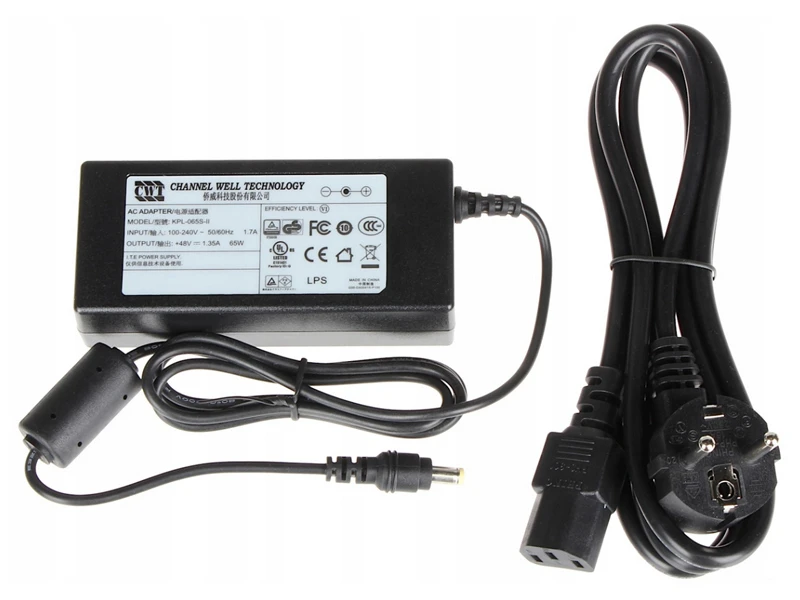

• Power supply: 48 VDC, 0.8 A
• Dimensions: 145 mm × 68.45 mm × 25.6 mm

PoE type and unmanageability

SW-06-POE has PoE (Power over Ethernet) function, which means it can power connected devices such as IP cameras, VoIP phones and Wi-Fi access points without the need for additional power cables. Thanks to its unmanaged design, it is extremely easy to set up and use.

Ports and Bandwidth

It has 6 ports, including 4 PoE ports and 2 Uplink ports. The PoE ports offer a transmission rate of 10/100 Mbps and can power devices up to 250 meters, which is useful in larger installations. The switch's total throughput is 1.6 Gbps, ensuring smooth data transmission even with heavy network traffic.

High PoE Power Budget

The PoE power budget is 35W, with a maximum load of up to 30W per port. This makes the switch ideal for powering devices with high power requirements, such as PTZ cameras.

Performance and Reliability

The switch can forward packets at a speed of 0.8928 Mpps, ensuring fast and efficient network communication. A 768 Kbits cache memory and a MAC table with the ability to store 4,000 addresses make the device very efficient.
