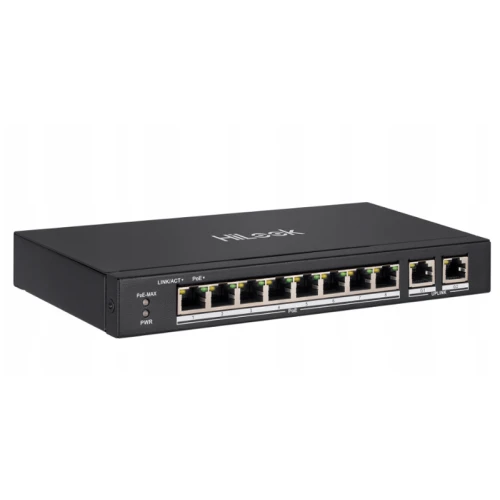

Switch SW-10-POE, 8+2, 8x 10/100 Mb/s, 60W HiLook by Hikvision

Main Features:

PoE Switch SW-10-POE HiLook by Hikvision is a versatile and powerful device that combines simple operation with advanced technical features. With a large PoE power budget, high bandwidth and Extend function, it is ideal for any network requiring reliable power and connectivity for multiple devices simultaneously.

• Switch type: PoE, unmanaged
• Number of ports: 10
• Number of PoE ports: 8
• Number of Uplink ports: 2
• Transmission speed: 8x 10/100 Mbps and 2x 10/100/1000 Mbps
• Data transmission range: up to 250 m
• PoE power budget: 60W, up to 30W per port
• Throughput: 5.6 Gbps
• Packet forwarding speed: 4.1664 Mpps
• Cache memory: 4 Mbits
• MAC table: 16K
• Additional features: Extend
• Operating temperature range: -10°C to +40°C
• Power supply: 48 VDC, 1.35 A
• Dimensions: 217.6 mm × 103.35 mm × 27.8 mm

Multifunctionality and PoE

Switch offers 10 ports, of which 8 PoE (Power over Ethernet) ports allow you to power network devices such as IP cameras, VoIP phones and Wi-Fi access points without the need for additional power cables. Two 10/100/1000 Mbps Uplink ports provide fast and stable connections to the main network.

High bandwidth

With a bandwidth of 5.6 Gbps and a packet forwarding rate of 4.1664 Mpps, this switch guarantees fast and reliable data transfer, which is crucial in environments requiring high network bandwidth.

Large PoE power budget

The total PoE power budget is 60W, allowing it to power even the most demanding devices. Each of the 8 PoE ports can provide up to 30W of power, making the switch ideal for powering PTZ cameras or other devices with high power consumption.

High memory capacity

The switch is equipped with a 4 Mbits cache and a MAC table that can store up to 16,000 addresses, ensuring smooth and efficient network traffic management.
