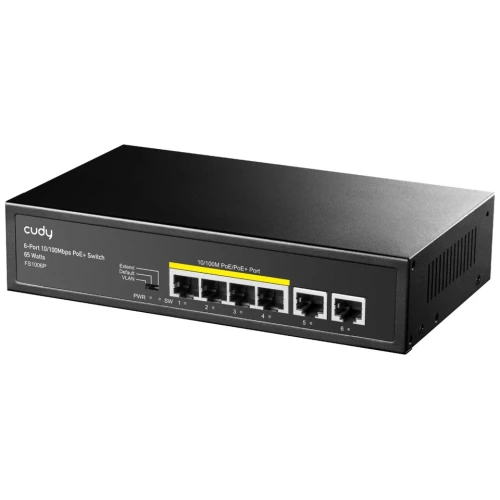

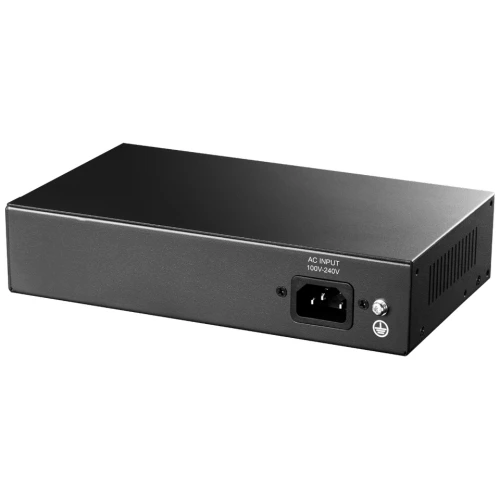

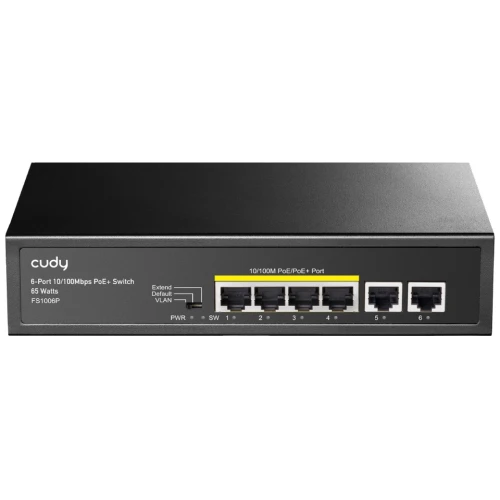

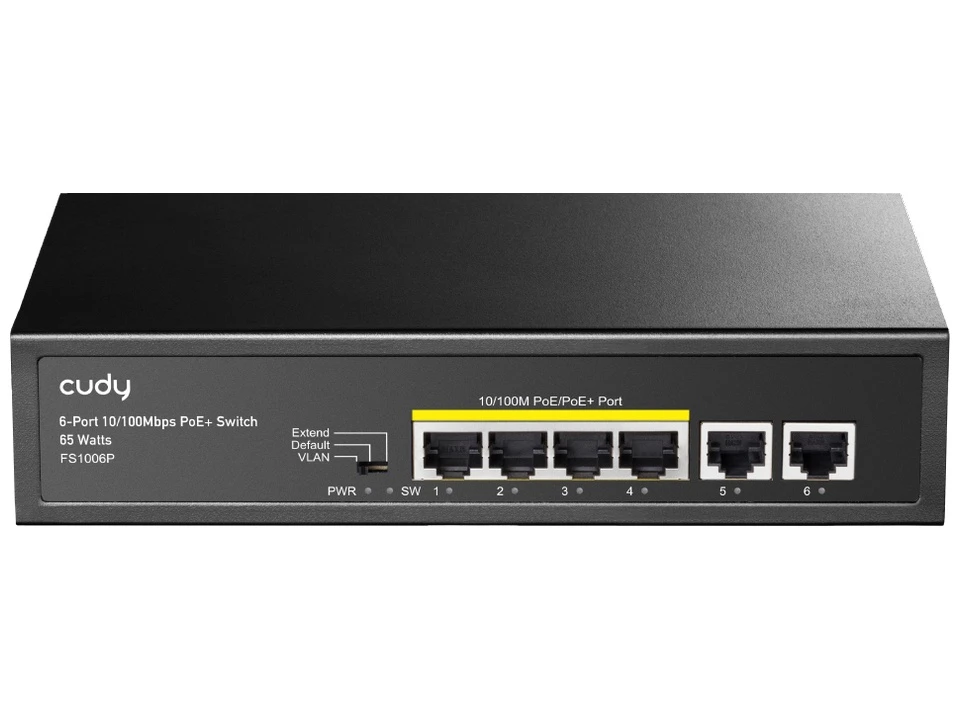

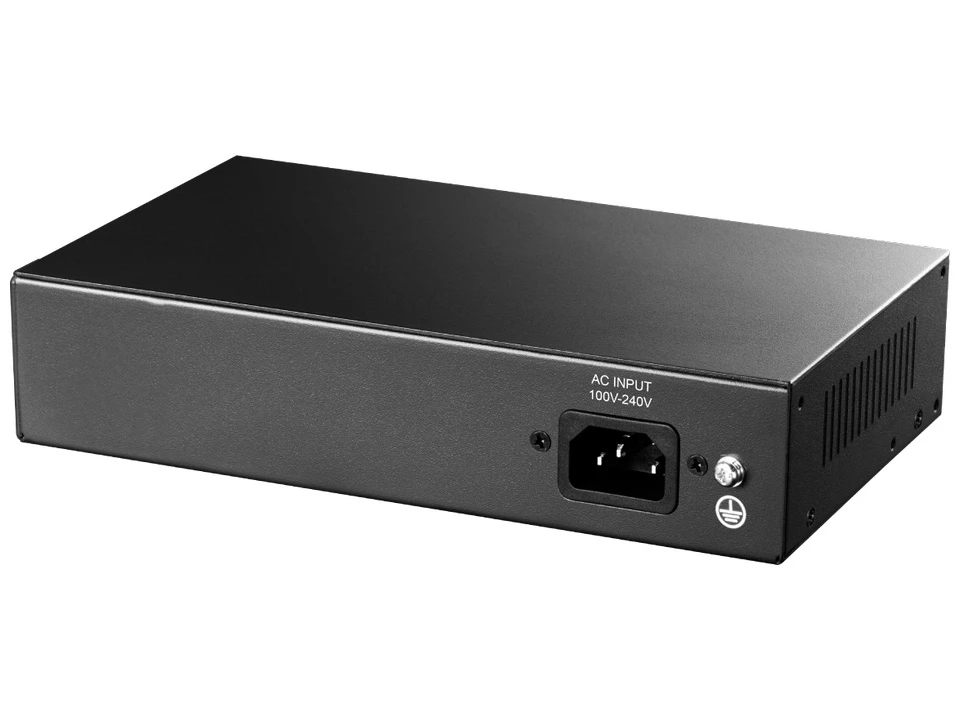

Switch PoE FS1006P 4+2 10/100Mbps, 4x PoE+, 60W CUDY

Main Features:

PoE Switch FS1006P is a versatile and powerful device that combines simple operation with advanced technical features. This device is a PoE (Power over Ethernet) switch, which means it can supply power to connected network devices via Ethernet cables. This eliminates the need for additional power supplies for devices such as IP cameras, VoIP phones and access points.

• Switch type: PoE
• Number of ports: 6
• Number of PoE+ ports: 4
• Number of Uplink ports: 2
• Transmission speed: 10/100 Mbps
• Data transmission range: up to 250 meters
• PoE power budget: 60W, with the ability to provide up to 30W per port
• Throughput: 1.2 Gbps
• Packet processing speed: 0.9 Mpps
• Cache memory: 448K
• MAC table: 1K entries
• Additional features: VLAN, CCTV, Plug & Play
• Operating temperature range: -20°C to +50°C
• Power supply: 100 - 240V AC, 50/60Hz
• Dimensions: 200 × 120 mm × 45 mm

Multifunctionality and PoE

Switch is equipped with 6 ports, of which 4 ports support PoE+. PoE+ allows up to 30W of power to each of these ports, which is sufficient to power more demanding network devices. An additional 2 uplink ports are used to connect the switch to
the main router or other network devices, providing flexibility in network configuration.

High bandwidth

The device supports data rates of 10/100 Mbps. It is a standard solution for medium-bandwidth networks, suitable for most office and monitoring applications. The switch offers a throughput of 1.2 Gbps and a packet processing speed of 0.9 Mpps (millions of packets per second), ensuring smooth network operation even under heavy load.

Large PoE power budget

The total PoE power budget is 60W, allowing several devices to be powered simultaneously. Each PoE+ port can provide up to 30W, which is enough to power more demanding devices such as PTZ cameras.

Operation range

The switch is designed to operate in harsh environments, with a temperature range of -20°C to +50°C, allowing it to be used in places with extreme climatic conditions. The device can be powered by a voltage range of 100 - 240V AC, providing flexibility in different geographic regions.

Technical specifications:

Router	FS1006P
Number of PoE+ ports	4
Number of Uplink ports	2
Transmission speed	10 / 100 Mbps - 4 x PoE+ ports 10 / 100 Mbps - 2 x Uplink ports
Data transmission	up to 250m
Throughput	1.2 Gbps
Packet transmission speed	0.9 Gbps
Cache	448K
MAC address table	1K
PoE power budget	60W, up to 30W per 1 port
Selected features and security	VLAN, CCTV, Plug & Play
Power supply	100 - 240V AC, 50/60Hz
Operating temperature	-20°C - 50°C
Humidity	10 ~ 90%
Dimensions	200 × 120 mm × 45 mm
