Monitoring Kit 8x IPC-HFW3541E-AS-0360B-S2 5Mpx IR 50m Dahua

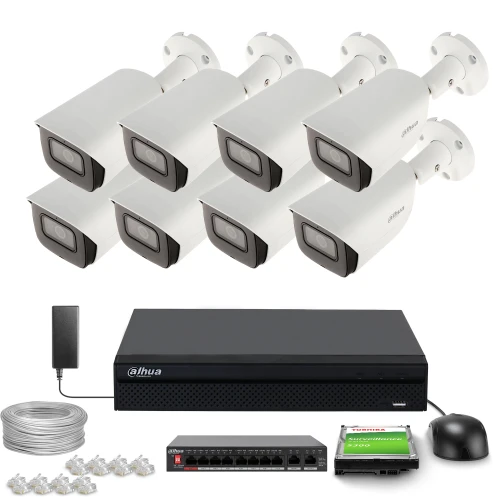

The image shows a complete surveillance system package, including eight white security cameras, a recording device, cables, connectors, and a mouse. The cameras are designed for outdoor use, providing high-definition video monitoring for enhanced security.

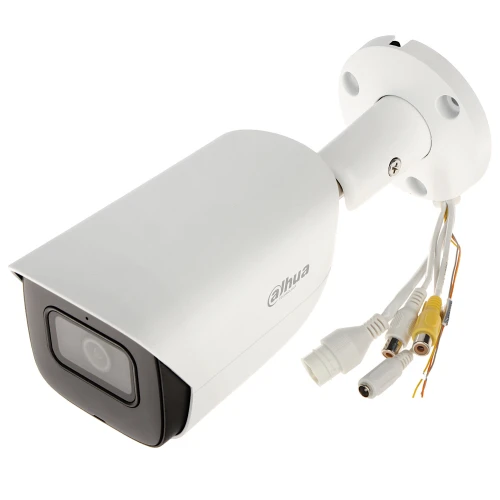

A sleek, white security camera with a cylindrical design and multiple connection cables is shown. The camera features a sturdy mounting bracket for easy installation on walls or ceilings.

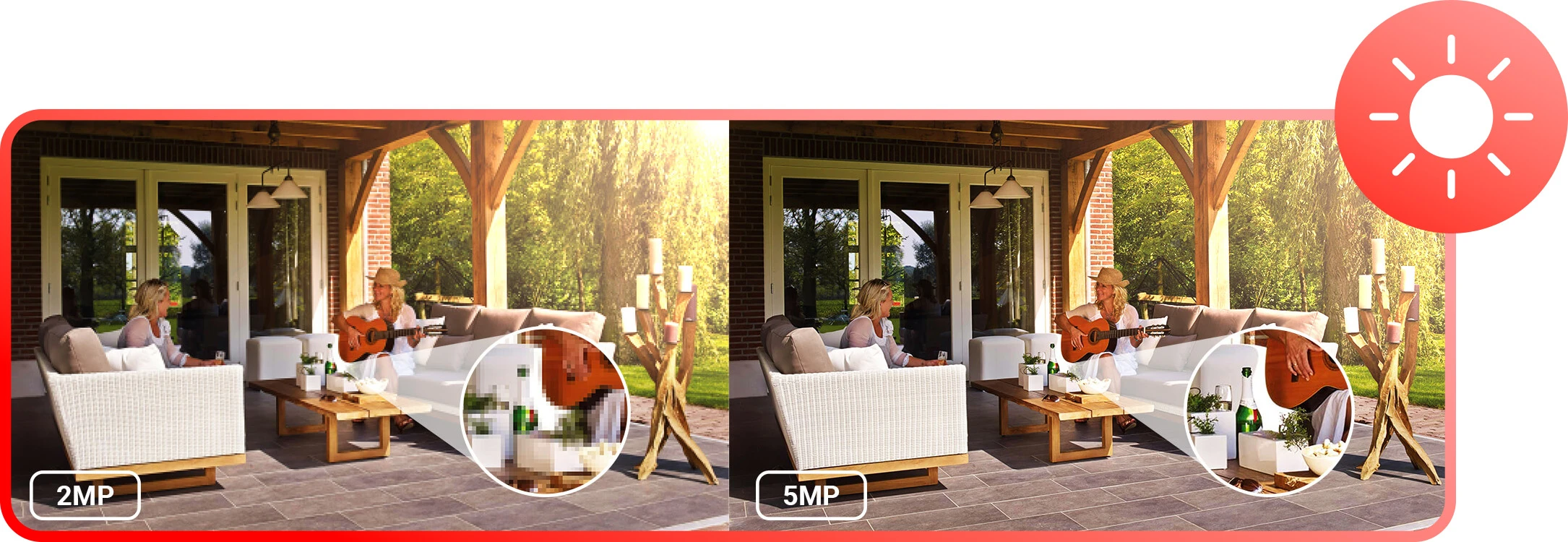

Comparison of two surveillance camera images showing different resolutions, with the left image at 2MP and the right image at 5MP. The scene depicts a cozy outdoor patio with a person playing guitar, highlighting the clarity difference between the two resolutions.

Manufacturer
Dahua
Product Code

ZM32968
Warranty

24 miesiące

Technology: IP
Resolution: 5Mpx
Enclosure: Tube
Number of cameras: 8
Connectivity: Wired
Color: White

see description

Price (Incl. VAT):

Archival product

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

The kit includes:

8x Camera IPC-HFW3541E-AS-0360B-S2
1x NVR2108HS-4KS3 DVR
1x POE Switch PFS3010-8ET-96 8-port Dahua.
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
UTP cable ( 40m )
Sticker "Attention Object Monitored" ( 1pc ).
Set of signal and power connectors

Main features of the set:

✅ Sensor: 1/2.7" 5MP image sensor, low luminance, HD CMOS
✅ Resolution: 2960x1668 (5Mpx) @ 20fps
✅ Interface: Ethernet 10/100 Base-T poe 802.3af
✅ Compression: AI H.265/AI H.264/ H.265+/ H.265/ H.264+/ MJPEG
✅ Sensitivity: 0.005lux/F1.4 (color, 30IRE), 0lux (IR on)
✅ Lens: 3.6mm
✅ Illuminator: 1 IR LED (range 50m)
✅ AWB, AGC, AFSA, BLC, HLC, 3D NR, WDR 120db, SSA, roi, Defog
✅ AI functions: perimeter protection, AI SSA, Quick Pick, object classification (human/vehicle)
✅ SMD 4.0- classification with false alarm filtering
✅ Starlight- low light operation technology
✅ Built-in microphone
✅ Audio inputs/outputs: 1/1
✅ Alarm inputs/outputs: 1/1
✅ Support for microsd / microsdhc / microsdxc cards up to 256GB
✅ Support: ONVIF, CGI, Milestone, Genetec, RTSP, RTMP, P2P
✅ Housing: waterproof class (IP67)

Key features:

AWB Automatic White Balance, a white balance mode that adjusts the colors in the camera's image to match light of different color temperatures.
WDR 120db Wide Dynamic Range - wide dynamic range, a camera function that makes it possible to record a wide range of light intensity. The use of an appropriate sensor in the camera increases the effectiveness of observation of overexposed and underexposed objects - dark elements are simultaneously brightened and overly bright ones darkened.
BLC Black Light Compensation - backlight compensation, a camera function that allows to obtain properly exposed (not overexposed and not underexposed) part of the image through exposure compensation.
HLC High Light Compensation - strong light compensation, a function that allows you to block (darken) strongly lit objects to increase their clarity.
AGC Automatic Gain Control - automatic gain control, the camera amplifies the output signal when lighting conditions deteriorate and keeps it constant.
DNR 2D/3D Digital Noise Reduction - digital noise reduction, an algorithm to remove noise from the image at high signal gain values.
ICR Infrared Cutfilter Removal - mechanical infrared filter, optical element equipped with a coating that blocks infrared rays from penetrating the sensor
Smart functions: perimeter protection, object recognition, face detection, people counting

High-quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HFW3541E-AS-0360B-S2 records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

Remote access from your phone and desktop computer

Dahua systems allow you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:

Access video preview and playback of stored footage
Save portions of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

MicroSD card slot

The IPC-HFW3541E-AS-0360B-S2 camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required.

Automatic day/night mode

The camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down.
The infrared range is 50 meters.

Built-in microphone - a more complete picture of the situation

The IPC-HFW3541E-AS-0360B-S2 camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Hide what shouldn't be seen

Privacy masks are a feature that allows you to tailor the operation of your surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Starlight is what you need at night

Starlight technology is top-of-the-line when it comes to image quality at night, but there's more to it than that. A special sensor with a minimum sensitivity of 0.003X lux is able to capture images along with color. Even when most ordinary surveillance cameras switch to black and white mode. Moreover, if one were to compare a camera with Starlight technology and a standard daylight surveillance camera. The former will also capture a sharper and more detailed image, as the high light sensitivity will still make a difference during the daytime, and the WDR wide dynamic range function will pull out even the smallest details from the video footage.

Capture the largest possible area

The 3.6mm lens provides a wide field of view, ideal for monitoring large areas. The IPC-HFW3541E-AS-0360B-S2 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the IPC-HFW3541E-AS-0360B-S2, which improves image quality in challenging lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations that require accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

Wide dynamic range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the IPC-HFW3541E-AS-0360B-S2 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera software then combines these images to produce a single, well-balanced frame in which all the details are visible.

Better image quality: With crisp detail in both dark and bright parts of the image, 120 dB WDR technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Main features of the camera:

✅ Sensor: 1/2.7" 5MP image sensor, low luminance, HD CMOS
✅ Resolution: 2960x1668 (5Mpx) @ 20fps
✅ Interface: Ethernet 10/100 Base-T poe 802.3af
✅ Compression: AI H.265/AI H.264/ H.265+/ H.265/ H.264+/ MJPEG
✅ Sensitivity: 0.005lux/F1.4 (color, 30IRE), 0lux (IR on)
✅ Lens: 3.6mm
✅ Illuminator: 1 IR LED (range 50m)
✅ AWB, AGC, AFSA, BLC, HLC, 3D NR, WDR 120db, SSA, roi, Defog
✅ AI functions: perimeter protection, AI SSA, Quick Pick, object classification (human/vehicle)
✅ SMD 4.0- classification with false alarm filtering
✅ Starlight- low light operation technology
✅ Built-in microphone
✅ Audio inputs/outputs: 1/1
✅ Alarm inputs/outputs: 1/1
✅ Support for microsd / microsdhc / microsdxc cards up to 256GB
✅ Support: ONVIF, CGI, Milestone, Genetec, RTSP, RTMP, P2P
✅ Housing: waterproof class (IP67)

Main features of the DVR:

Standard: TCP/IP
Supported resolutions: max. 12 Mpx - 4000 x 3000 px
Video outputs: 1 pcs. HDMI 4K
1 pcs. VGA
Audio support:
8 Channels - Audio from cameras
Two-way audio support
Audio inputs: 1 pcs. CINCH
Audio outputs: 1 pc. CINCH
Video compression method: Smart H.265+ / H.265 / Smart H.264+ / H.264
Bitrate: max. 80 Mbps
Supported hard drives: 1 x 20 TB SATA
Recording modes: Manual, motion detection, schedule
Archiving to external media: Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:
Search for recordings by time and type of events. Playback: forward, reverse, speed up, slow down the recording
Advanced search (every second)
Smart Playback function
Simultaneous playback of recordings from up to 8 cameras
Network interface: 1 x RJ-45 10/100 Base-TX

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features of the Toshiba S300:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

Accessories included:

IPC-HFW3541E-AS-0360B-S2 Technical Specification:

Camera	IPC-HFW3541E-AS-0360B-S2
Standard:	TCP/IP
Sensor:	1/2.7 " Progressive Scan CMOS
Sensor size:	5 Mpx
Resolution:	2960 x 1668 - 5 Mpx , 2880 x 1620 - 4.7 Mpx , 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2048 x 1536 - 3 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p
Lens:	3.6 mm
Viewing angle:	92 °
IR illuminator range:	50 m
RS-485 interface:	No
Memory card slot:	Supports Micro SD cards up to 256GB (local recording possible)
Video compression method:	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs / outputs:	1 / 1
Audio:	Built-in microphone External microphone input Audio output Two-way audio support Audio detection
Main stream bit rate:	20 fps @ 5 Mpx 25 fps @ 4 Mpx
Network interface:	10/100 Base-T(RJ-45)
Network protocols:	IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
WEB Server:	Built-in
Max. number of online users:	20
ONVIF:	21.12
Cell phone access:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app
Default IP address:	192.168.1.108
Default admin login / password:	admin / - Administrator password should be set on first startup
Web access ports:	80, 37777
Access ports via PC application:	37777
Access ports via mobile app:	37777
ONVIF port:	80
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream
Selected features:	WDR - 120 dB - Wide Dynamic Range of illumination 3D-DNR - Digital noise reduction in the image ROI - Improving the quality of selected parts of the image F-DNR (Defog) - Reduction of precipitation noise AFSA - Anti-flicker Self-adaption - Technology that eliminates the eye-straining effect of image flicker AI SSA - AI Smart Scene Adaptive - Scene self-adaptation using deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light and flicker to set optimal image parameters SMD 4.0 - search for object classified as: human, motor vehicle - increased detection distance and false alarm immunity NAS support - Network Attached Storage - allows connection of memory resources directly to a computer network BLC/HLC - background light / strong light compensation Day/Night mode ICR - Mechanical infrared filter Automatic white balance AGC - Automatic adjustment of image gain Variable resolution, quality and bandwidth Mirror - Mirroring the image Motion detection Configurable privacy zones IVS analysis : line crossing, intrusion - classification of people and vehicles, scene change
Power supply:	PoE (802.3af), 12 V DC / 490 mA
Power consumption:	≤ 6.5 W @ PoE ≤ 3.7 W @ 12 V
Housing:	Compact - Metal
Color:	White
Protection class:	IP67
Vandal resistant:	No
Operating temperature :	-40 °C ... 60 °C
Weight:	0.6 kg
Dimensions:	193 x 71 x 67 mm
Supported languages:	Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Italian
Manufacturer/Brand:	Dahua

Technical specification Dahua NVR2108HS-4KS3:

DVR	NVR2108HS-4KS3
Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	8 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Bitrate:	max. 80 Mbps
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 8 cameras
Network interface:	1 x RJ-45 10/100 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Register
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / - Administrator password should be set on first startup
Access from cell phone:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC app:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs / outputs:	No
PTZ head control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Video tampering Functions implemented when the DVR cooperates with cameras supporting these functions : Advanced perimeter protection functions: intrusion, line crossing with separate rules for vehicles and pedestrians
Mouse operation:	Yes
IR remote control included:	No
PoE switch:	No
Power supply:	12 V DC / 1.5 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.81 kg
Dimensions:	260 x 233 x 48 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua
