16x Monitoring Kit IPC-HFW3842E-AS-0280B, 8MP, Starlight, PoE, 2.8 mm, IR 30 m Dahua

The image shows a comprehensive surveillance system package including sixteen white security cameras, a Dahua network video recorder, and a Toshiba surveillance hard drive. Additional components include two network switches, cables, and connectors for complete installation.

Outdoor security camera with a sleek white design and a durable mounting bracket. Features multiple connection cables for versatile installation options.

The image features a Toshiba Surveillance S300 hard drive, a bundle of Ethernet cables, a network switch, and a set of RJ45 connectors. These components are ideal for setting up a comprehensive surveillance system.

Manufacturer
Dahua
Product Code

ZM33025
Warranty

36 miesięcy

Technology: IP
Resolution: 8Mpx
Enclosure: Tube
Night visibility: up to 30m
Number of cameras: 8

see description

Ask about this product show form

Availability: in stock Shipping 24h

Price (Incl. VAT):

2 905,81 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

The kit includes:

16x IPC-HFW3842E-AS-0280B camera.
1x NVR4216-4KS3 DVR
2x Switch PFS3010-8ET-96
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
UTP cable ( 80m )
Sticker "Attention Object Monitored" ( 1pc ).
Set of signal and power connectors

Main features:

8.3 Mpx resolution (4K UHD, 3840 x 2160), which provides highly detailed images.
Efficient image compression: H.265+, H.265, H.264+, H.264, MJPEG, which saves bandwidth and storage space.
Starlight Technology: The camera features Starlight technology, which enables clear and colorful images in very low light conditions.
Remote Access and Networking:
Support for mobile apps (gDMSS for Android, iDMSS for iOS), which enables remote live viewing and management of the camera.
Compatible with IPv4, IPv6, ONVIF network protocols and access via the cloud (P2P).
Advanced AI and Video Analysis Features:
AI SSA: Automatic scene adaptation using deep learning algorithms.
SMD 4.0: Intelligent object search and classification (human, vehicle), false alarm immunity.
IVS analysis: Line crossing, intrusion, classification of people and vehicles.
Audio and Alarms:
Built-in microphone and support for two-way audio for remote communication.
Audio detection and alarm inputs and outputs (1/1).
Installation Flexibility and Power:
Can be powered by PoE (802.3af) or 12 V DC for easy installation.
IP67-rated metal housing for protection against dust and water and operation in harsh weather conditions (-40 °C ... 60 °C).
Image and Noise Reduction Features:
WDR (Wide Dynamic Range) 120 dB, providing good image quality in varying lighting conditions.
3D-DNR (digital noise reduction), BLC/HLC (backlight and strong light compensation), F-DNR (weather noise reduction).
Memory Support and Local Recording:
Supports Micro SD cards up to 256GB for local video recording.
Other Advanced Features:
Motion detection with configurable up to 4 zones, privacy zones, auto white balance, AGC (automatic video gain control), ROI (enhancement of selected parts of the image).

Key Features:

WDR 120db Wide Dynamic Range - wide dynamic range of the image, a function of the camera thanks to which it is possible to record a wide range of light intensity. The use of an appropriate sensor in the camera increases the effectiveness of observation of overexposed and underexposed objects - dark elements are simultaneously brightened and overly bright ones darkened.
BLC Black Light Compensation - backlight compensation, a camera function that allows to obtain properly exposed (not overexposed and not underexposed) part of the image through exposure compensation.
HLC High Light Compensation - strong light compensation, a function that allows you to block (darken) strongly lit objects to increase their clarity.
AGC Automatic Gain Control - automatic gain control, the camera amplifies the output signal when lighting conditions deteriorate and keeps it constant.
DNR 2D/3D Digital Noise Reduction - digital noise reduction, an algorithm to remove noise from the image at high signal gain values.
ICR Infrared Cutfilter Removal - mechanical infrared filter, an optical element equipped with a coating that blocks infrared rays from penetrating the sensor
Smart features: AI SSA, Quick Pick,
Privacy Mask - a technology that allows masking of designated zones to preserve the privacy of bystanders, e.g.: windows, backyard, neighbor's door. Such a system guarantees 100% privacy and allows the camera to be used virtually anywhere.

The gDMSS and iDMSS applications give you the ability to operate and view live via Internet-enabled devices such as PCs, laptops, smartphones, tablets.

Starlight - See more than anyone else

The Starlight technology in IPC-HFW3842E-AS-0280B cameras enables clear and colorful images even in very low-light conditions by increasing the sensitivity of the camera's sensor, using special lenses and digital image processing algorithms. As a result, cameras equipped with this technology are able to capture image details and colors in lighting conditions eight times lower than those of cameras without this technology.

High-quality image

The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The IPC-HFW3842E-AS-0280B records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.

A: 1280x720p ( 1Mpx )
B: 1920x1080p ( 2Mpx )
C: 2048x1536p ( 3Mpx )
D: 2560x1440p ( 4Mpx )
E: 2560x1960p ( 5Mpx )
F: 3840x2160p ( 8Mpx )

Automatic day/night mode

The camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down.
The infrared range is 30 meters.

People and vehicle detection

Motion detection with silhouette recognition of people and vehicles in IPC-HFW3842E-AS-0280B cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

MicroSD card slot

The IPC-HFW3842E-AS-0280B camera has a built-in microSD card slot, which allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

Built-in microphone - a fuller picture of the situation

The IPC-HFW3842E-AS-0280B camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the video. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in places requiring detailed surveillance, such as building entrances, stores or offices, where sound can provide additional information about events and improve the effectiveness of surveillance.

Capture the largest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. With a 108° horizontal, 59° vertical and 127° diagonal viewing angle, the IPC-HFW3842E-AS-0280B camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the IPC-HFW3842E-AS-0280B that improves image quality in challenging lighting conditions, especially at night or in low-light conditions. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations requiring accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Main advantages:

Enhanced image clarity: 3D DNR technology significantly improves image quality in low-light conditions, reducing grain and blur that often appears in video recordings. The result is a clearer and more readable image.
Better compression and smaller file size: Noise in video can lead to larger file sizes through compression, as more data must be saved. 3D DNR, by reducing noise, allows for better compression and smaller file sizes, which is beneficial for long-term storage.
Improved visibility of details: By reducing noise at night or in low-light conditions, 3D DNR helps identify fine details such as faces, license plates and other key elements, which is invaluable for evidence analysis.
Minimizing ghosting: Unlike simpler noise reduction methods, 3D DNR minimizes the appearance of artifacts in the image, such as "ghosting" (the ghosting effect of objects moving in the frame). By analyzing multiple frames at once, the technology does a better job of eliminating these unwanted effects.

Wide dynamic range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the IPC-HFW3842E-AS-0280B to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera software then combines these images to produce a single, well-balanced frame in which all the details are visible.

Better image quality: With crisp details in both dark and bright parts of the image, 120 dB WDR technology eliminates the problem of so-called "burn-in" and "underexposure."
Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

IPC-HFW3842E-AS-0280B horn camera.

8.3 Mpx (4K UHD, 3840 x 2160) resolution for highly detailed images.
Efficient image compression: H.265+, H.265, H.264+, H.264, MJPEG, which saves bandwidth and storage space.
Starlight Technology: The camera features Starlight technology, which enables clear and colorful images in very low light conditions.
Remote Access and Networking:
Support for mobile apps (gDMSS for Android, iDMSS for iOS), which enables remote live viewing and management of the camera.
Compatible with IPv4, IPv6, ONVIF network protocols and access via the cloud (P2P).
Advanced AI and Video Analysis Features:
AI SSA: Automatic scene adaptation using deep learning algorithms.
SMD 4.0: Intelligent object search and classification (human, vehicle), false alarm immunity.
IVS analysis: Line crossing, intrusion, human and vehicle classification.
Audio and Alarms:
Built-in microphone and support for two-way audio for remote communication.
Audio detection and alarm inputs and outputs (1/1).
Installation Flexibility and Power:
Can be powered by PoE (802.3af) or 12 V DC for easy installation.
IP67-rated metal housing for protection against dust and water and operation in harsh weather conditions (-40 °C ... 60 °C).
Image and Noise Reduction Features:
WDR (Wide Dynamic Range) 120 dB, providing good image quality in varying lighting conditions.
3D-DNR (digital noise reduction), BLC/HLC (backlight and strong light compensation), F-DNR (weather noise reduction).
Memory Support and Local Recording:
Supports Micro SD cards up to 256GB for local video recording.
Other Advanced Features:
Motion detection with configurable up to 4 zones, privacy zones, auto white balance, AGC (automatic video gain control), ROI (enhancement of selected parts of the image).

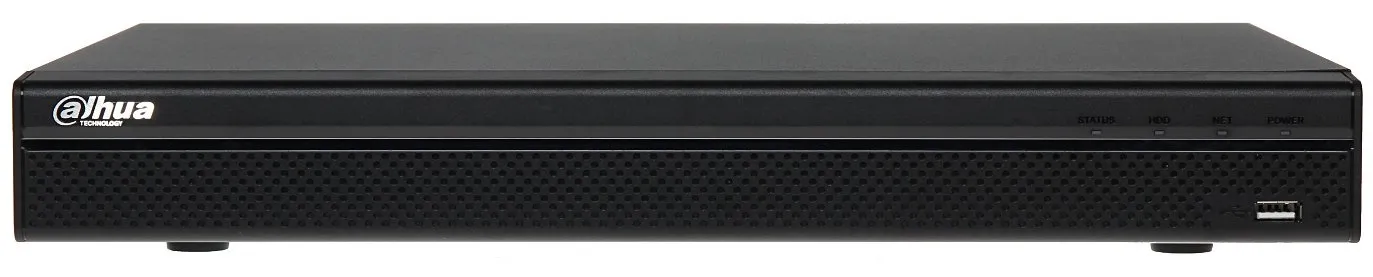

IP DVR NVR4216-4KS3

Standard and Resolution:
Standard: TCP/IP
Maximum supported resolution: 12 Mpx (4000 x 3000 px)
Video Outputs:
1 x HDMI (4K)
1 x VGA
Audio Support:
16 channels of camera audio
Two-way audio communication
Audio input: 1 x CINCH
Audio output: 1 x CINCH
Video Compression:
Supported compression methods: Smart H.265+, H.265, Smart H.264+, H.264
Bitrate:
Maximum bit rate without AI: 160 Mbps.
Maximum bitrate with AI: 80 Mbps
Hard Disk Drive Support:
2 x 20 TB SATA
Recording and Archiving Modes:
Recording modes: manual, alarm, motion detection, schedule
Archiving on external media: USB (flash drive, external drive)
Search and Playback of Recordings:
Search by time and type of events
Smart Playback function
Simultaneous playback from up to 16 cameras
Network Interface and Features:
1 x RJ-45 10/100/1000 Base-TX
Built-in web server, remote copy of recordings
Support for multiple network protocols (including HTTP, TCP/IP, P2P)
Security and Intelligent Image Analysis:
Intelligent image analysis: perimeter protection, scene change, face detection, people counting, heat map
False alarm filtering

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features of the Toshiba S300:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

Accessories included:

IPC-HFW3842E-AS-0280B Technical Specification:

Camera	IPC-HFW3842E-AS-0280B
Standard:	TCP/IP
Sensor:	1/1.8 " Progressive Scan CMOS
Sensor size:	8.3 Mpx
Resolution:	3840 x 2160 - 8.3 Mpx, 4K UHD , 3072 x 2048 - 6 Mpx , 3072 x 1728 - 5 Mpx , 2592 x 1944 - 5 Mpx , 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2048 x 1536 - 3 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p
Lens:	2.8 mm
Viewing angle:	110 ° (manufacturer's data) 106 ° (our tests)
IR illuminator range:	30 m
Memory card slot:	Supports Micro SD cards up to 256GB (local recording possible)
Image compression method:	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs / outputs:	1 / 1
Audio:	Built-in microphone External microphone input Audio output Two-way audio support Audio detection Compatibility with AAC standard
Main stream bit rate:	25 fps @ 8.3 Mpx
Network interface:	10/100 Base-T(RJ-45)
Network protocols:	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP
WEB Server:	Built-in
Max. number of online users:	20
ONVIF:	22.06
Cell phone access:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app
Default admin login / password:	admin / - Administrator password should be set on first startup
Default address	192.168.1.108
Web access ports:	80, 37777
Access ports via PC application:	37777
Access ports via mobile app:	37777
ONVIF port:	80
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream
Selected features:	WDR - 120 dB - Wide Dynamic Range of illumination 3D-DNR - Digital noise reduction in the image F-DNR (Defog) - Reduction of precipitation noise ROI - Improving the quality of selected parts of the image NAS support - Network Attached Storage BLC/HLC - Background light / strong light compensation ICR - Mechanical infrared filter Day/night mode (color/b&w/auto) Automatic white balance AGC - Automatic image gain control Image rotation and mirroring Motion detection - up to 4 configurable zones Privacy zones - max. 4 AFSA - Anti-flicker Self-adaption - Technology that eliminates the eye-straining effect of image flicker AI SSA - AI Smart Scene Adaptive - Scene self-adaptation using deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light and flicker to set optimal image parameters SMD 4.0 - search for object classified as: human, motor vehicle - increased detection distance and false alarm immunity Quick Pick - AI technology that allows with the DVR to quickly identify objects of interest (people/vehicles) based on the artificial intelligence algorithm. Allows to extract and compare colors of clothes and vehicles IVS analysis : line crossing, trespassing - classification of people and vehicles, scene change
Housing:	Compact, Metal
Color:	White
Protection class:	IP67
Vandal resistant:	No
Power supply:	PoE (802.3af), 12 V DC / 510 mA
Power consumption:	≤ 7.5 watts @ PoE ≤ 6.1 W @ 12 V DC
Operating temperature :	-40 °C ... 60 °C
Weight:	0.6 kg
Dimensions:	193 x 70 x 66 mm
Supported languages:	Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Vietnamese, Italian
Manufacturer/Brand:	Dahua

Technical specifications IP NVR4216-4KS3

DVR	NVR4216-4KS3
Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	16 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H .264
Bitrate:	max. 160 Mbps (without AI) max. 80 Mbps (AI)
Supported hard drives:	2 x 20 TB SATA
Recording modes:	Manual, alarm, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 16 cameras
Network interface:	1 x RJ-45 10/100/1000 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP Search
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / admin Administrator password should be set at the first startup
Access from cell phone:	Port : 37777 or access via cloud (P2P) Android : Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC app:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs / outputs:	4 / 2
PTZ control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Privacy Zones Functions implemented when the DVR cooperates with cameras supporting these functions : Intelligent Image Analysis : perimeter protection, scene change Face detection - supports 6 types of face attribute extraction Face recognition people counting heat map
Mouse operation:	Yes
IR remote control included:	No
PoE switch:	No
Power supply:	12 V DC / 4 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	1.5 kg
Dimensions:	375 x 283 x 53 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

What is the Dahua company?

Dahua is a global company whose products power the field of electronics industry. Dahua is a well-known manufacturer of such devices and accessories as network cameras, NVR cameras, HDCVI and HDCVI HCVRs, intercoms, alarms, motion detectors and access system components.

Why buy Dahua Tehonology products?

Dahua products are first and foremost excellent value for money - the brand offers its customers high-quality products at a satisfactory price in both IP and HDCVI video technology. Dahua devices are primarily characterized by price-quality ratio.

Dahua Technology devices are also simple and uncomplicated to use, while at the same time advanced in terms of the functionality of the device software. They include many options for configuring free remote access to a given system, making Dahua products both multifunctional and functional.

Structure of Dahua Technology

Dahua Technology is a company that was established in 2001. Its headquarters are located in China, in Hangzhou. Today, it has a number of subsidiaries around the world, and Dahua has more than 16,000 employees in 200 offices and 54 overseas subsidiaries covering Asia, America, Europe, the Middle East, Oceania, Africa, Africa and more. Dahua provides unparalleled quality, reliability and stability in the services and products it delivers. About 50% of them are constantly working on development and research. The company's products are available in more than 180 countries around the world. Solutions with the brand's logo are widely used in key areas such as public safety, traffic, energy, banking and finance, retail and many others.

Dahua Technology has a track record of large-scale international projects, including the Rio Olympics, the Hangzhou G20 summit, Recife Subway in Brazil and the China International Import Expo. The company's position can be evidenced by being ranked second in the global CCTV and video surveillance equipment market in 2014 (according to an IHS report).

Dahua Technology products

Dahua Technology manufactures and distributes state-of-the-art video surveillance systems along with the necessary accessories.

One of Dahua's core products are surveillance cameras. The modern monitoring systems manufactured by Dahua are perfect for installation both in apartments and private homes, as well as in larger facilities - such as stores, hotels and halls. Mounted in the right places, Dahua cameras effectively protect property from burglary and theft. All Dahua devices in this area are equipped, among other things, with an infrared illuminator, which allows day and night image recording.

Dahua DVRs work fully compatible with the brand's cameras and are primarily used to play back high-resolution images from the connected camera. These more technologically advanced devices can be connected simultaneously to several or even a dozen cameras.

The Dahua video intercom, on the other hand, is a very functional device, allowing easy verification of the identity of any visitor even before letting them into the house.

Ivel.pl has been one of the distributors of Dahua Technology products in Poland for years. So we warmly invite both companies and installation companies, as well as corporate clients to cooperate with us. We offer full support in the process of solution selection, sales and service.

Zamknij
