14x IPCAM-T2-30DL DS-7616NXI-K2/16P(D) FullHD Dual-Light 30m Monitoring Kit HiLook by Hikvision
Photo gallery
-
Manufacturer
-
Product Code
ZM34333
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 2Mpx
- Enclosure: Dome
- Number of cameras: 14
- Connectivity: Wired
- Color: White
Ask about this product show form
Related products
Product Description
Our kits are carefully selected devices that guarantee full compatibility and efficiency. You will find all the necessary components and accessories that will allow you to immediately start installing and configuring your equipment.

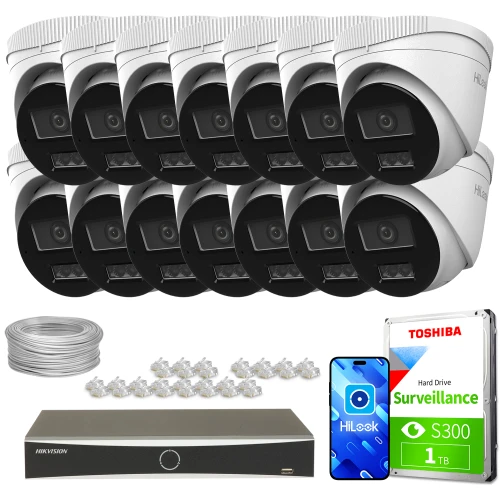

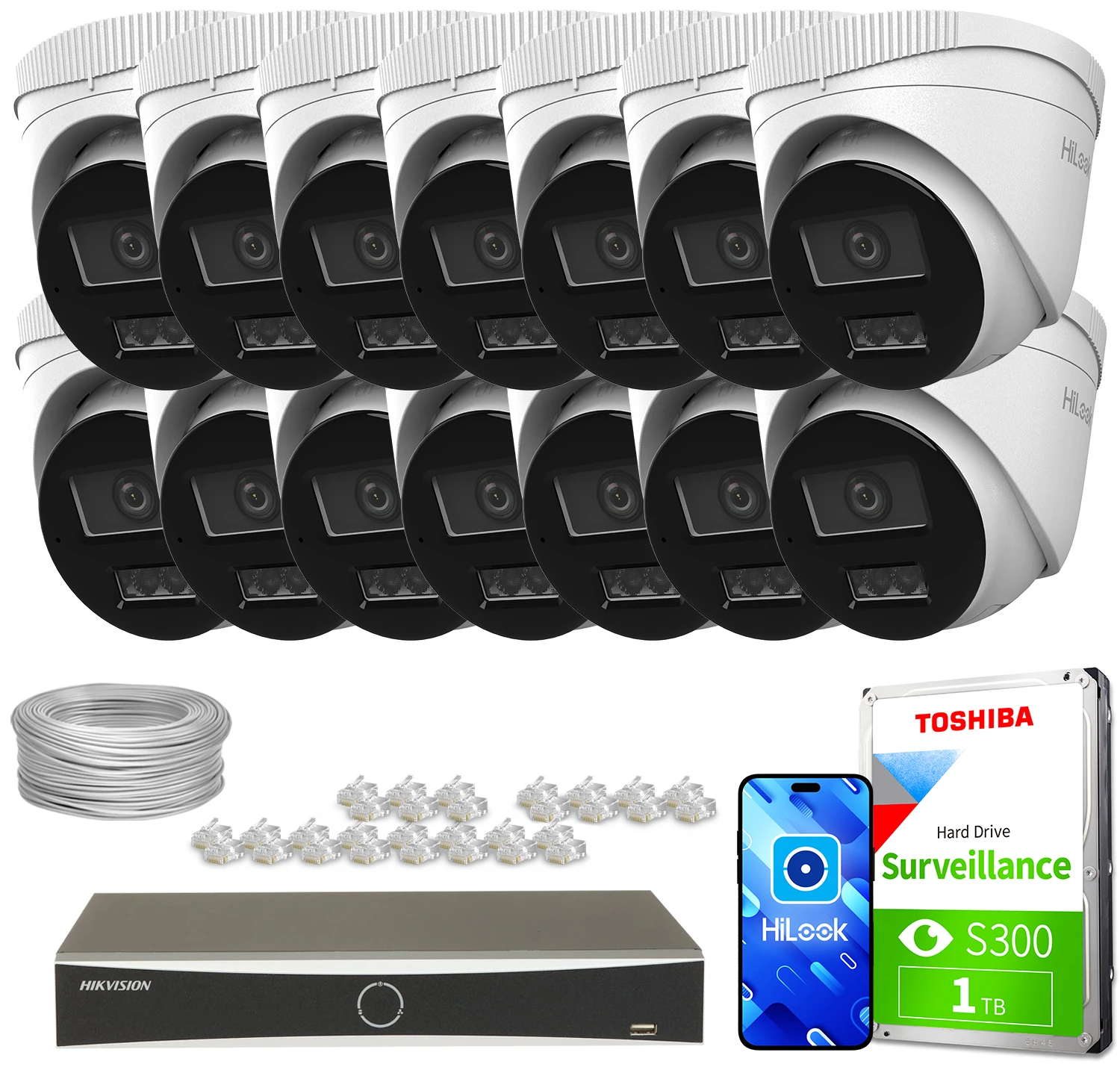

The kit includes:
- DS-7616NXI-K2/16P(D) DVR ( 1pc ).
- HiLook camera IPCAM-T2-30DL ( 14pcs ).
- Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
- UTP cat.5e cable ( 70m )
- Sticker "Attention Object Monitored" ( 1pc ).
- Set of RJ45 plugs
Main features:
- Branded by Hikvision - Leader in the market of video surveillance systems
- Complete set for monitoring with 8 cameras, DVR and all necessary accessories.
- High image quality 1920 × 1080 pixels (2Mpx)
- Viewing angle of the cameras: 103° horizontally, 121° diagonally
- Outdoor/indoor mountable camera
- Smart Dual-Light: advanced hybrid lighting technology (IR + White Light)
- Active protection - Deter intruders with light signals
- Enhanced recording performance with H.265+ codec
- Motion Detection 2.0 - Silhouette detection using artificial intelligence algorithms, detects silhouettes of people and vehicles.
- Audio recording through the cameras' built-in microphones
- Infrared light range - 30m
- White light range - 20m
- Cameras meeting IP67 protection class
- Digital WDR
- Hard drive with a capacity of 1TB, dedicated for use in video surveillance systems
- DVR with built-in 8-channel PoE switcher
- Possibility of remote monitoring via web browser, PC application and mobile device application.
- P2P (cloud) support - a feature that allows remote access without port forwarding and public IP address
Remote access from phone and desktop computerHikvision systems allow you to configure, control and view using Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:
Hik-Connect - Free app for iOS and Android smartphones |  |
P2P function
In surveillance cameras is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:
- Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
- Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
- Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.
Power Over Ethernet (PoE)
The Power over Ethernet (PoE) function in surveillance cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.
High-quality imageA light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 2Mpx resolution. It guarantees that the most important details are captured on the footage.
|  |
Active protectionActive deterrence features on surveillance cameras, such as lights that turn on or beeps, are designed to immediately deter potential intruders from committing a break-in or act of vandalism. This proactive security method not only enhances the effectiveness of monitoring through real-time deterrence, but can also help quickly notify owners or security services of a potential threat before an incident occurs. |  |
Key features of the DS-7616NXI-K2/16P(D) DVR:
- Support for 16 IP cameras
- Maximum supported resolution of 12Mpx (4000x3000)
- Efficient H.265+ video encoding
- Maximum HDD capacity - 10TB
- Network interface 1x Ethernet 10/100/1000Mbps
- AI functions: perimeter protection (1 channel), Face detection and analysis (1 channel), Motion detection 2.0 (4 channels)
- AcuSense technology - Object classification and alarm filtering
- ONVIF, RTSP, P2P
- Remote access applications: iVMS4200 and Hik-Central (Desktop PC), Hik-Connect and Hik-ProConnect (mobile devices)
Efficient storage
H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:
- Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
- Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.
IPCAM-T2-30DL dome camera
- 2.8mm fixed focal length lens
- 2Mpx resolution
- Recording speed: 20fps
- Support for two streams
- Viewing angle: 103° horizontally, 121° diagonally
- Infrared range: 30m
- White light range: 20m
- Silhouette detection of people and vehicles - Motion Detection 2.0
- Digital WDR
- 4 Programmable privacy masks
- Built-in microphone
- PoE support
- IP67 compliant housing
- Support via web browser and Hik-Connect or HiLook Vision applications
People and vehicle detection - Motion Detection 2.0Motion detection with silhouette recognition of people and vehicles in surveillance cameras is an advanced feature that allows to increase the precision and efficiency of surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes. |  |
Video and audio recordingThe audio recording function of surveillance cameras allows you to record sounds along with video, which significantly increases the capabilities and efficiency of surveillance systems. The main advantages of such a solution are:
|  |
Automatic day/night modeAdapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens. |  |
IP67-compliant housingSuch an enclosure protects the camera from external factors such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage. |  |
Wide dynamic range - That is, high quality in difficult conditions
The WDR (Wide Dynamic Range) function, or Wide Dynamic Range, in surveillance cameras is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:
- Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
- Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
- Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
- Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.
LED illumination and color images after dark - Smart Dual Light
The surveillance cameras' hybrid light feature combines infrared (IR) LED illumination for nighttime use and white LED light that can be activated in response to motion detection or remotely by the operator. This technology not only provides high image quality in total darkness through IR, but also the ability to deter intruders by automatically or manually turning on the visible white light, enhancing security and surveillance effectiveness.
D.O.R.I.
The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:
- Detection (45m): The system is able to detect the presence of an object or person at a distance of up to 45 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
- Observation (18m): At distances of up to 18 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
- Recognition (9m): Recognition at a distance of up to 9 meters enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
- Identification (4m): At a distance of up to 4 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.
Accessories:
For whom will this surveillance kit be suitable?
This is a modern solution with a wide range of applications. Reach for this universal set if you are interested, for example, in monitoring rooms, grounds or objects both indoors and outdoors. It will prove useful wherever you can run a cable installation.
With its help it is possible, among other things:
- monitoring of a store,
- monitoring of a wholesale and warehouse, as well as a production hall,
- monitoring of a school, monitoring of a kindergarten or other educational institutions,
- monitoring of a backyard, sports field or playground,
- monitoring of a private home,
- monitoring of a bar and restaurant,
- monitoring of a parking lot.
Choose this set if you need a professional monitoring system that will not let you down.
