6x IPC-HDW1439V-A-IL-0280B 3.7Mpx Dahua Monitoring Kit

The image shows a complete surveillance system package, including six white dome security cameras, a network video recorder, a hard drive, cables, connectors, and a network switch. The hard drive is a Toshiba S300 with a 1TB capacity, designed for surveillance use.

A sleek black Dahua IP NVR with a compact design, featuring ventilation on the sides and a USB port on the front. The device is designed for efficient video recording and management, suitable for security systems.

The image shows a Dahua PoE switch with eight Ethernet ports and two uplink ports, designed for efficient network connectivity. The switch features LED indicators for power and link status, enhancing user convenience.

The image features a Toshiba S300 Surveillance Hard Drive alongside a coiled gray cable and a set of connectors. This setup is ideal for enhancing security systems with reliable storage and connectivity components.

Manufacturer
Dahua
Product Code

ZM34160
Warranty

24 miesiące

Technology: IP
Resolution: 4Mpx
Enclosure: Dome
Number of cameras: 6
Connectivity: Wired
Color: White

see description

Ask about this product show form

Save -44%

Availability: in stock Shipping 24h

Price (Incl. VAT):

551,11 € 992,65 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Main features of the set:

Matrix and resolution: 4 Mpx, 1/2.9" Progressive Scan CMOS
Lens and viewing angle: 2.8mm lens; 94° viewing angle.
Illumination range: Range of white light (LED) and IR illuminator up to 30m.
Compression methods: Support for H.265+, H.265, H.264+, H.264, MJPEG.
Audio: Built-in microphone, network audio transmission, audio detection, AAC compliance.
Network interface and access: 10/100 Base-T (RJ-45) port, access via cloud (P2P), ONVIF.
Advanced features: WDR, 3D-DNR, ROI, BLC/HLC, motion detection, human detection, privacy zones.
Housing and durability: Metal-plastic dome-type housing, IP67 rating.
Power: Supports PoE (802.3af) and 12 V DC power supply.
Operating temperature range: -40°C to 60°C, weatherproof.

Remote access from your phone and desktop computer

IPC-HDW1439V-A-IL-0280B allows you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:

Access video preview and play back the recorded footage
Save portions of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

P2P function

In IPC-HDW1439V-A-IL-0280B is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) feature of IPC-HDW1439V-A-IL-0280B cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

IPC-HDW1439V-A-IL-0280B

Wide Dynamic Range - That is, high quality in difficult conditions

The WDR (Wide Dynamic Range) feature of IPC-HDW1439V-A-IL-0280B cameras is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time.

Efficient storage

H.265+ coding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Automatic day/night mode

Adapted to work in all lighting conditions IPC-HDW1439V-A-IL-0280B with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

IP67 weatherproof design

This housing protects the IPC-HDW1439V-A-IL-0280B from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housings can be installed in a wide variety of locations, from industrial to marine, without worrying about environmental damage.

Main features :

Matrix and resolution: 4 Mpx, 1/2.9" Progressive Scan CMOS
Lens and viewing angle: 2.8mm lens; 94° viewing angle.
Illumination range: Range of white light (LED) and IR illuminator up to 30m.
Compression methods: Support for H.265+, H.265, H.264+, H.264, MJPEG.
Audio: Built-in microphone, network audio transmission, audio detection, AAC compliance.
Network interface and access: 10/100 Base-T (RJ-45) port, access via cloud (P2P), ONVIF.
Advanced features: WDR, 3D-DNR, ROI, BLC/HLC, motion detection, human detection, privacy zones.
Housing and durability: Metal-plastic dome-type housing, IP67 rating.
Power: Supports PoE (802.3af) and 12 V DC power supply.
Operating temperature range: -40°C to 60°C, weatherproof.

Main features of the DVR:

Standard and resolution:
TCP/IP
Supports resolutions up to 12 Mpx (4000 x 3000 px).
Video outputs:
HDMI 4K
VGA.
Audio support:
8 channels of camera audio
Two-way audio (1 CINCH input and 1 CINCH output).
Video compression:
Smart H.265+, H.265, Smart H.264+, H.264.
Supported drives:
1 SATA drive up to 20 TB.
Recording and archiving:
Recording modes: manual, motion detection, schedule
Archiving on USB media.
Playback of recordings:
Advanced search and Smart Playback function
Simultaneous playback from up to 8 cameras.
Network functions:
Built-in web server
Full network support, remote copy of recordings
Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, NTP, DHCP, P2P, ONVIF 22.12.
Intelligent image analysis:
SMD PLUS (human and vehicle recognition)
False alarm filtering
Functions such as perimeter protection, face detection, people counting, heat map.
Control:
Support for high-speed IP cameras (Speed Dome).
Compatibility:
Free DMSS mobile app (Android/iOS).
Access via P2P, port 37777.

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write loads.

Additional accessories:

IPC-HDW1439V-A-IL-0280B Technical Specifications.

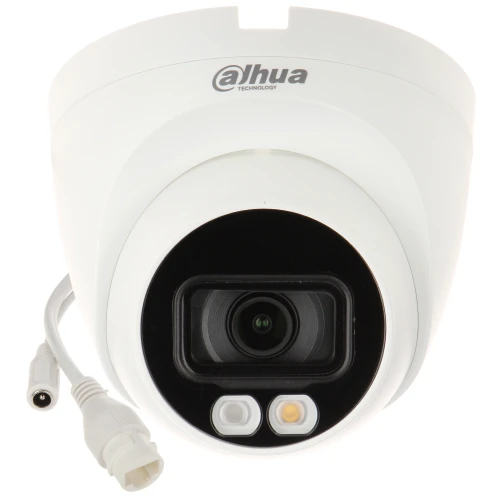

Camera	IPC-HDW1439V-A-IL-0280B
Standard	TCP/IP
Sensor	1/2.9 " Progressive Scan CMOS
Sensor size	4 Mpx
Resolution	2560 x 1440 - 3.7 Mpx
Lens	2.8 mm
Viewing angle	94 °
LED range	30m
IR range	30m
Image compression method	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Transmission speed of main stream	25 fps @ 3.7 Mpx
Memory card slot	-
Audio	Built-in microphone Network audio streaming Compatibility with AAC standard Audio detection
Network interface	10/100 Base-T (RJ-45)
Default admin login/password	Administrator password should be set at the first startup
Selected features	WDR - 120 dB - Wide Dynamic Range of illumination 3D-DNR - Digital Noise Reduction in video ROI - enhancement of selected parts of the image BLC/HLC - background light / strong light compensation Changeable resolution, quality and bandwidth Image rotation and mirroring Motion detection - up to 4 configurable zones Privacy zones - up to 4 Intelligent image analysis : Human detection
Housing	Dome - Metal + Plastic
Color	White
Protection class	IP67
Vandal resistant	-
Power supply	PoE (802.3af) 12 V DC / 380 mA
Power consumption	≤ 5.7 W @ PoE ≤ 4.6 W @ 12 V DC
Operating temperature	-40 °C ... 60 °C
Weight	0.33 kg
Dimensions	Ø 110 x 101 mm
Supported languages	English, Spanish, Russian
Warranty	3 years

Technical specifications NVR2108HS-4KS3

DVR	NVR4108HS-4KS3
Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	8 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H .264
Bitrate:	max. 80 Mbps
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 8 cameras
Network interface:	1 x RJ-45 10/100 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP Search
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / admin Administrator password should be set at the first startup
Access from cell phone:	Port : 37777 or access via cloud (P2P) Android : Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC app:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs / outputs:	No
PTZ head control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Privacy Zones Functions implemented when the DVR cooperates with cameras supporting these functions : Intelligent Image Analysis : perimeter protection, scene change Face detection - supports 6 types of face attribute extraction Face recognition people counting heat map
Mouse operation:	Yes
IR remote control included:	No
PoE switch:	No
Power supply:	12 V DC / 2 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.81 kg
Dimensions:	260 x 233 x 48 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua
