Set for Monitoring 4x BCS-L-EIP15FCR3L3-AI1 5Mpx IR 30m + White Light WDR Intelligent Functions

Our kits are carefully selected devices that guarantee full compatibility and efficiency. You will find all the necessary components and accessories that will allow you to immediately start installing and configuring your equipment.

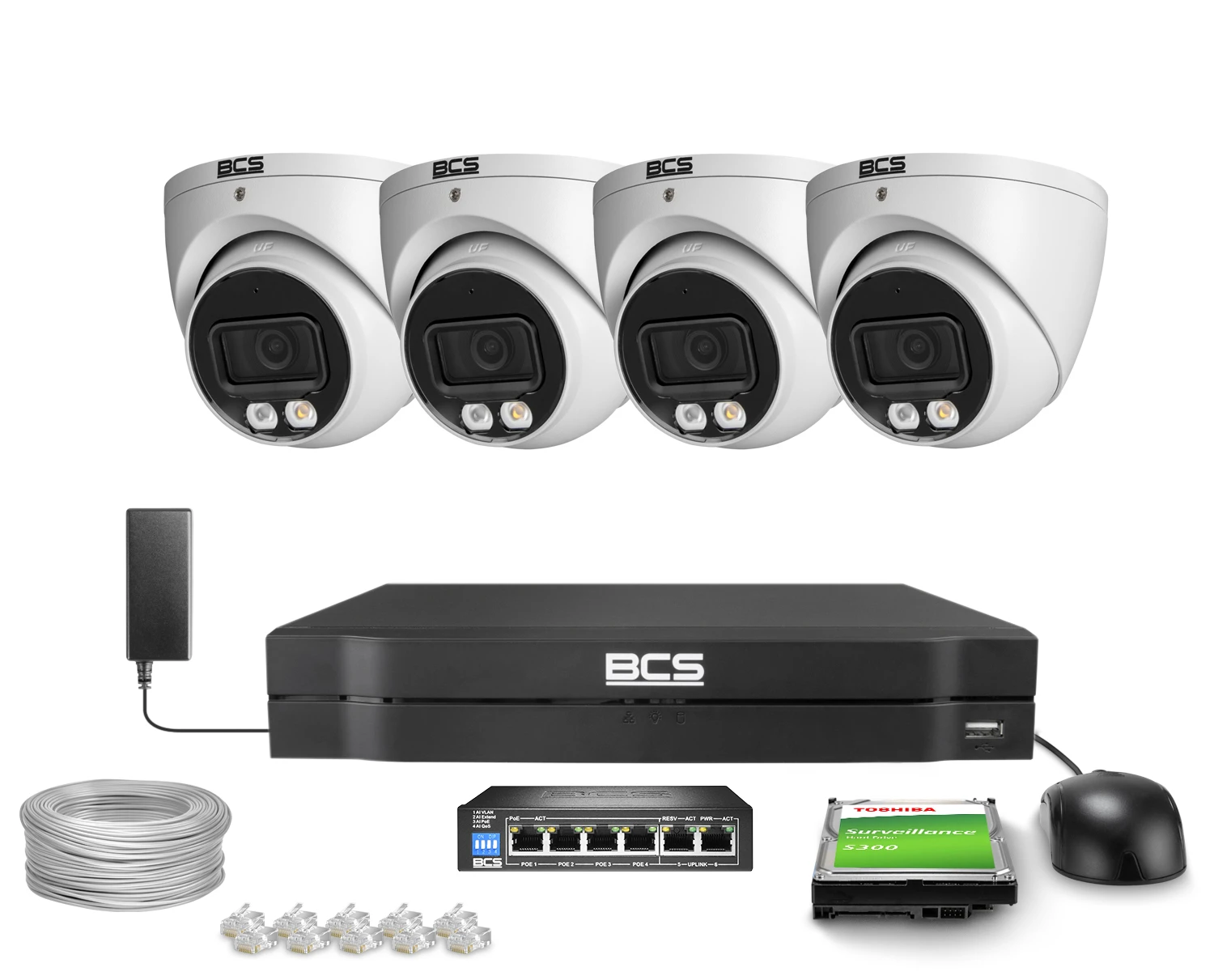

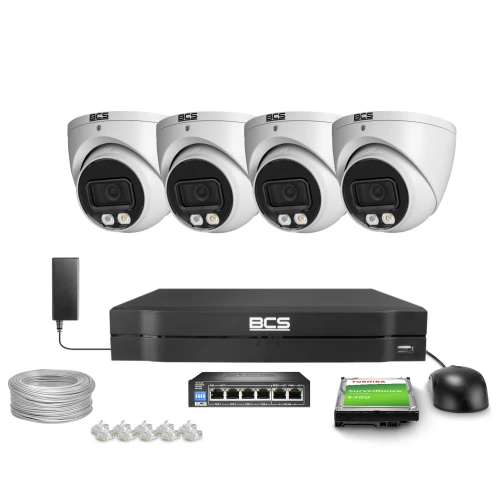

The kit includes:

• 4x BCS-L-EIP15FCR3L3-AI1 Camera.
• 1x BCS-L-NVR0401-4KE(2) DVR
• 1x Switch BCS-B-SP0402
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
• UTP cable ( 20m )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of signal and power connectors

Main features:

• Resolution: 5 Mpx
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2960(H)×1688(V)
• Lens: fixed
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus: fixed
• Iris: fixed
• Digital zoom: 16×
• Viewing angle: H :111° V: 58° D: 132°
• S/N ratio: 56dB
• White balance (AWB): Auto / manual
• WDR: 120dB
• DORI: Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m
• Background Compensation: BLC / HLC / WDR (120dB)
• Shutter: Auto / manual 1/3~1/100000s
• Day/night: ICR mechanical infrared filter
• Illuminator type: IR LED + White Light
• Illuminator: 30m
• NightColor: Yes
• Microphone: Yes
• Ai - Built-in intelligent functions: Built-in intelligent algorithms
  image recognition and analysis
• Ai - Perimeter protection: Intrusion into the area, crossing the line
• Ai - Object recognition: Person/vehicle recognition for
  area intrusion, line crossing reduces false alarm calls.
• Ai - SMD: SMD Plus

Key features:

• AWB Automatic White Balance, a white balance mode that adjusts the colors in the camera's image to match light of different color temperatures.
• WDR 120db Wide Dynamic Range, a camera function that makes it possible to record a wide range of light intensity. The use of an appropriate sensor in the camera increases the effectiveness of observation of overexposed and underexposed objects - dark elements are simultaneously brightened and overly bright ones darkened.
• BLC Black Light Compensation - backlight compensation, a camera function that allows to obtain properly exposed (not overexposed and not underexposed) part of the image through exposure compensation.
• HLC High Light Compensation - strong light compensation, a function that allows you to block (darken) strongly lit objects to increase their clarity.
• AGC Automatic Gain Control - automatic gain control, the camera amplifies the output signal when lighting conditions deteriorate and keeps it constant.
• DNR 2D/3D Digital Noise Reduction - digital noise reduction, an algorithm to remove noise from the image at high signal gain values.
• ICR Infrared Cutfilter Removal - mechanical infrared filter, optical element equipped with a coating that blocks infrared rays from penetrating the sensor
• Smart functions: perimeter protection, object recognition, face detection, people counting
• Privacy mask - technology that allows masking of designated zones to maintain privacy of outsiders, e.g.: windows, backyard, neighbor's door. Such a system guarantees 100% privacy and allows the camera to be used virtually anywhere.

High-quality image A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-EIP15FCR3L3-AI1 records at 5Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

Remote access from your phone and desktop computer BCS systems allow you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to: Access video preview and play back recorded footage Save portions of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

MicroSD card slot The BCS-L-EIP15FCR3L3-AI1 camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

Automatic day/night mode The camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down. The infrared range is 30 meters.

Built-in microphone - a more complete picture of the situation

The BCS-L-EIP15FCR3L3-AI1 camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Capture the largest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. With a 108° horizontal, 59° vertical and 127° diagonal viewing angle, the BCS-L-EIP15FCR3L3-AI1 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

Reduce unnecessary noise

Wide dynamic range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-EIP15FCR3L3-AI1 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera software then combines these images to produce a single, well-balanced frame in which all the details are visible.

• Better image quality: With crisp details in both dark and bright parts of the image, 120 dB WDR technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.



LED illumination and color images after dark

The white light illumination feature of surveillance cameras is used to improve image quality in low-light conditions. Here are some key aspects of this technology:

• Improving visibility at night: When natural light levels are low, white light illumination produces a colorful and clear image that is typically of better quality than images obtained using infrared (IR).
• Preventive effect: Bright light can act as a deterrent to potential intruders or criminals, as it signals that the area is being monitored and well lit.

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as the BCS-L-EIP15FCR3L3-AI1 cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

• Detection (63m): The system is able to detect the presence of an object or person at a distance of up to 63 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
• Observation (25m): At distances of up to 25 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
• Recognition (13m): Recognition at a distance of up to 13m enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
• Identification (6m): At a distance of up to 6 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

Main features of the camera:

• Resolution: 5 Mpx
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2960(H)×1688(V)
• Lens: fixed
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus: fixed
• Iris: fixed
• Digital zoom: 16×
• Viewing angle: H :111° V: 58° D: 132°
• S/N ratio: 56dB
• White balance (AWB): Auto / manual
• WDR: 120dB
• DORI: Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m
• Background Compensation: BLC / HLC / WDR (120dB)
• Shutter: Auto / manual 1/3~1/100000s
• Day/night: ICR mechanical infrared filter
• Illuminator type: IR LED + White Light
• Illuminator: 30m
• NightColor: Yes
• Microphone: Yes
• Ai - Built-in intelligent functions: Built-in intelligent algorithms
  image recognition and analysis
• Ai - Perimeter protection: Intrusion into the area, crossing the line
• Ai - Object recognition: Person/vehicle recognition for
  area intrusion, line crossing reduces false alarm calls.
• Ai - SMD: SMD Plus

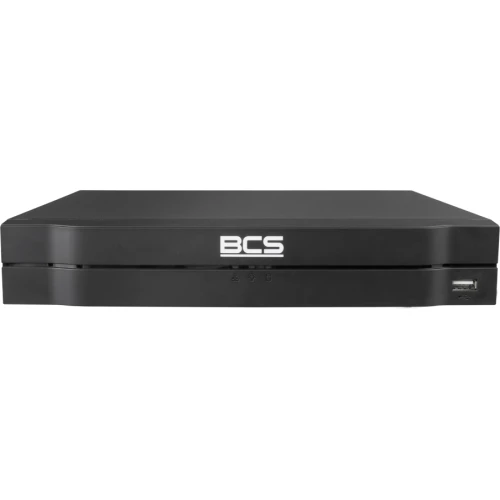

Main features of the recorder:

• Recording resolution: 16Mpx
• Video compression: H.265+
• Video outputs 1x HDMI, 1x VGA
• Simultaneous video playback from 4 cameras
• Possibility of remote monitoring via web browser, PC application and mobile device application.
• Disk support: 1x HDD (Maximum 16TB)
• 12VDC power supply



The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features of the Toshiba S300:

• Capacity: 1TB
• Drive type: HDD (hard disk drive)
• Format: 3.5 inches
• Interface: (6 Gb/s)
• Rotational speed: 5700 RPM
• Cache memory (Cache): 64 MB
• Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
• Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.



Accessories included:

Technical specifications:

Camera	BCS-L-EIP15FCR3L3-AI1
Product line	BCS Line
Camera type	Dome
Resolution	5 Mpx
Sensor	1/2.7'' CMOS
Scanning system	Progressive Scan
Pixels	2960(H)×1688(V)
RAM	256MB
ROM	128MB
Lens	fixed
Focal length	2.8mm
Aperture	F1.6
Focus	Fixed
Iris	Fixed
Digital zoom	16×
Viewing angle	H: 111° V: 58° D: 132°
DORI	Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m
Sensitivity of camera	0.007Lux(Color,F1.6,30IRE) 0.0007Lux(F1.6,B/W,30IRE) 0Lux(IR)
S/N ratio	56dB
White balance	(AWB) Auto / manual
WDR	120dB
Backlight compensation	BLC / HLC / WDR(120dB)
Shutter	Auto / manual 1/3~1/100000s
Gain control	(AGC) Auto / manual
Noise reduction	3D DNR
Image rotation	Mirror, Flip 0°/90°/180°/270°
Number of streams	2
Resolutions	5M(2960×1668) / 4M(2880×1620)(2688×1520)(2560×1440) / 3M(2304×1296)(2048×1536) / 2M(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)
Bitrate	H.264: 32 Kbps~8192 Kbps H.265: 12 Kbps~8192 Kbps
Video compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Day/Night	ICR mechanical infrared filter
Illuminator type	IR LED + White Light
Illuminator	30m
NightColor	Yes
Microphone	Yes
Compatibility	ONVIF(S/G/T)
Support	Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Memory card slot	microSD 256GB
Audio compression	G.711A / G.711Mu / G.723 / G.726 / PCM
Networking	RJ-45 10/100 Mbps
Motion detection	4
Privacy masks	4
IP rating	IP67
Ai - Built-in intelligent functions	Built-in intelligent image recognition and analysis algorithms
Ai - Perimeter protection	Intrusion into the area, crossing the line
Ai - Object recognition	Person/mechanical vehicle recognition for area intrusion, line crossing reduces false alarm triggering.
Ai - SMD	SMD Plus

Technical specifications:

DVR	BCS-L-NVR0401-4KE(2)
Product line	BCS Point
System	IP
Pentaplex function	Live viewing / recording / playback / archiving / remote access
Channels	4
Drives	1 (not included)
Disk capacity	16 TB
Max recording resolution	16 Mpx
Input bandwidth	80Mbps
Output bandwidth	80Mbps
Display capacity	2×16M(30fps) / 2×12M(30fps) / 4×8M(30fps) / 1×16M Ai(30fps) / 2×12M Ai(30fps) / 3×8M Ai(30fps) / 4×5M Ai(30fps)
Recording resolution	16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF
Video compression	H.265+ / H265 / H.264+ / H.264 / MJPEG
Video outputs	HDMI4K/VGA
HDMI display resolution	3840×2160 / 1920×1080 / 1280×1024 / 1280×720 / 1024×768
VGA display resolution	1920×1080 / 1280×1024 / 1280×720 / 1024×768
Output split	1/4
Playback	1/4
Archiving	Possibility of ripping material to external media such as USB FLASH, USB HDD
Audio input	1
Audio output	1
Audio compression	G.711A / G.711U / G.726 / PCM
Support	Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
Networking	RJ-45 10/100Mbps
Compatibility	ONVIF(S/G/T), support for third-party cameras
Protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, auto register
Power supply	12V DC
Power consumption (without drives)	max 10W
Operating conditions	-10°C~+55°C max 93% RH
Enclosure	1U
Dimensions (W×D×H)	260×232.5×50.3mm
Weight (without drives)	0.86 kg
Ai - Intelligent functions from the DVR	Face detection, face identification, perimeter protection (person/motor vehicle recognition), SMD Plus
Ai - Intelligent functions from cameras	Face detection, face identification, perimetric protection (person / motor vehicle recognition), SMD Plus, people counting, ARTR, heat map
Ai - Perimeter protection	2 channels from DVR, 10 rules per channel / 4 channels from cameras
Ai - Face detection	1 channel from DVR (12 images/s) / 4 channels from cameras / face attributes (gender, age, glasses, facial expression, mask, beard)
Ai - Face identification	4 detection channels from camera + identification from DVR (12 images/s) / 1 detection channel from DVR + identification from DVR (12 images/s) / 8 identification channels from cameras / up to 10 face databases, 20 thousand images, up to 2.5GB
Ai - SMD	4 channels from DVR / 4 channels from cameras
