6x DS-2CD1041G0-I/PL Monitoring Kit, DS-7608NXI-K1(D) 2.8mm, 4MP, IR 30m Hikvision

The kit includes:

• 6x DS-2CD1041G0-I/PL(2.8MM) Camera.
• 1x DVR DS-7608NXI-K1(D)
• 1x POE 8 channel switch + 2 x Uplink
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
• UTP cable ( 30m )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of signal and power connectors

Main features:

• Sensor: 1/3" 4MP Progressive Scan CMOS
• Resolution: 2560×1440 (4Mpx) @ 20fps
• Interface: Ethernet 10Base-T/100Base-TX PoE 802.3af
• Compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
• Sensitivity: 0.028lux @ F2.0 (AGC ON), 0 lux (IR LED ON)
• Lens: 2.8mm @ F2.0
• Illuminator: 2 Smart IR EXIR 2.0 LEDs (range 30m)
• AWB, AGC, BLC, 3D DNR, ROI
• Mechanical infrared filter ICR
• Support: ONVIF, ISAPI
• Housing: plastic body and handle, waterproof class (IP67)

Key features:

• AWB Automatic White Balance - automatic white balance, a white balance mode that adjusts the colors in the camera's image to match light of different color temperatures.
• WDR 120db Wide Dynamic Range - wide dynamic range, a camera function that makes it possible to record a wide range of light intensity. The use of an appropriate sensor in the camera increases the effectiveness of observation of overexposed and underexposed objects - dark elements are simultaneously brightened and overly bright ones darkened.
• BLC Black Light Compensation - backlight compensation, a camera function that allows to obtain properly exposed (not overexposed and not underexposed) part of the image through exposure compensation.
• HLC High Light Compensation - strong light compensation, a function that allows you to block (darken) strongly lit objects to increase their clarity.
• AGC Automatic Gain Control - automatic gain control, the camera amplifies the output signal when lighting conditions deteriorate and keeps it constant.
• DNR 2D/3D Digital Noise Reduction - digital noise reduction, an algorithm to remove noise from the image at high signal gain values.
• ICR Infrared Cutfilter Removal - mechanical infrared filter, optical element equipped with a coating that blocks infrared rays from penetrating the sensor
• Smart features: video tampering alarm, motion detection
• Privacy mask - a technology that allows masking of designated zones to preserve the privacy of outsiders, e.g.: windows, backyard, neighbor's door. Such a system guarantees 100% privacy and allows the camera to be used virtually anywhere.

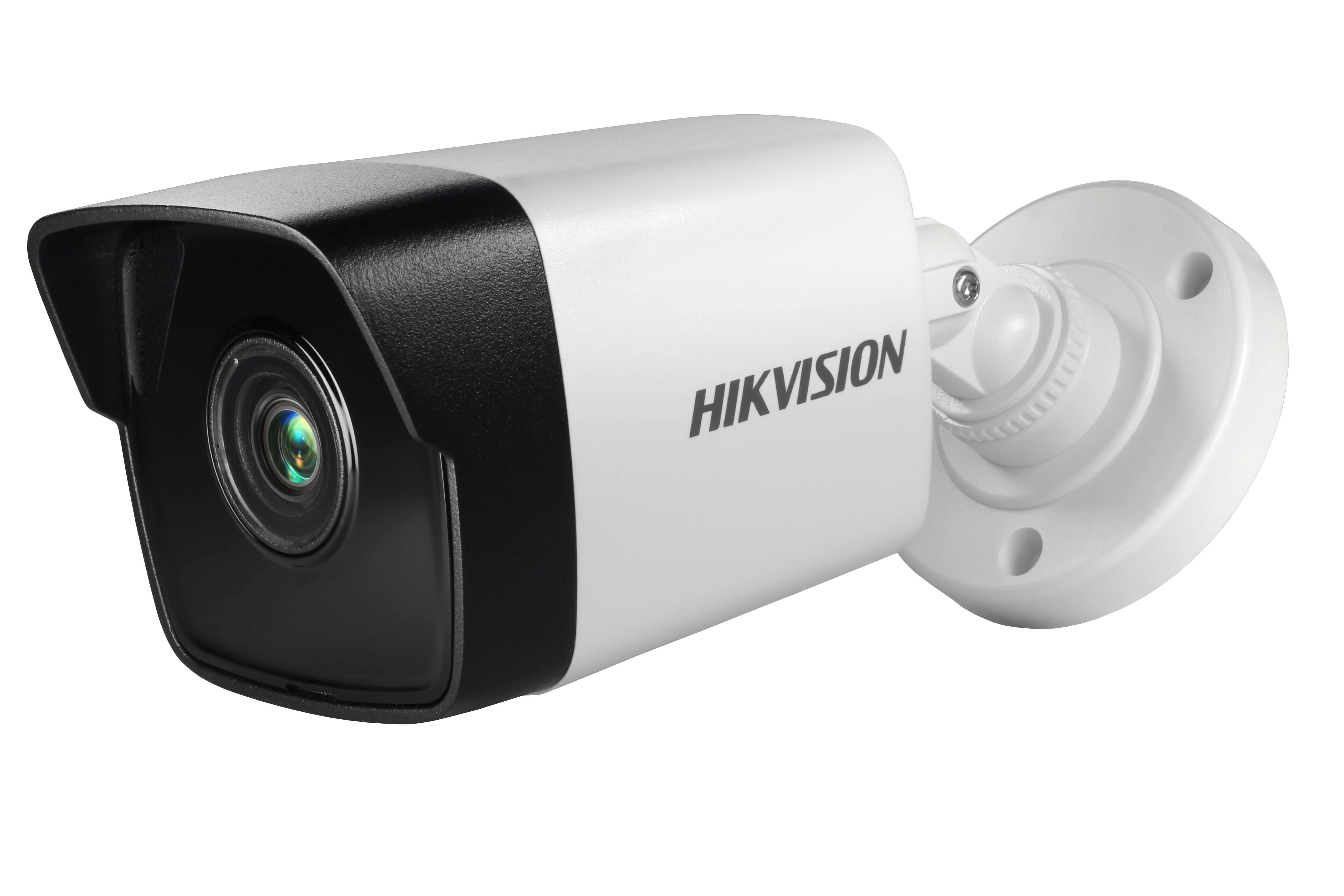

DS-2CD1041G0-I/PL(2.8MM) is an economical horn camera from Hikvision, offering simultaneous transmission of two video streams. It is equipped with a 1/3" 4Mpx PS CMOS image sensor, which allows recording in 4Mpx (2560×1440) resolution at a maximum speed of 20 frames per second. The camera has a fixed-focus lens and an advanced EXIR 2.0 IR illuminator, which ensures long diode life and even illumination of the scene, including corners, thanks to a rectangular light beam. A rugged, IP67-rated sealed housing protects the device from harsh weather conditions. The G0-I Easy IP Lite+ series is the perfect combination of high quality and affordability.

Capture the widest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. With a viewing angle of 100° horizontally, 55° vertically and 117° diagonally, the DS-2CD1041G0-I/PL(2.8MM) camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The DS-2CD1041G0-I/PL(2.8MM) records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

IP67 weatherproof design This housing protects the DS-2CD1041G0-I/PL(2.8MM) camera from the elements, such as dust, dirt and moisture, which is especially important in industrial or dusty environments. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Have continuous access to your cameras The Hik-Connect mobile app was created to allow end users to conveniently manage security devices, such as cameras and DVRs, using smartphones or tablets. Its main advantage is the ability to remotely access live view, recordings and many additional features. The process of adding devices is simple and intuitive - it can be done through a web browser or by scanning QR codes. In addition to the Hik-Connect app, you can also use other apps, listed at the bottom: Hik-ProConnect is a comprehensive cloud-based solution designed for Hikvision installers and system integrators. This tool allows you to effectively manage the services you provide to your customers and grow your business in a subscription model. (paid application) The iVMS-4200 software is designed for easy and comprehensive configuration and management of Hikvision devices such as switches, DVRs and NVRs, IP cameras, alarm systems, access control and storage devices. (Free application) The SADP (Search Active Devices Protocol) application provides a user-friendly and installation-free software tool for online device search. It searches for active online devices in your subnet and displays information about those devices. (Free application) HikCentral Professional is security integration software designed to manage a variety of security challenges on a single, intuitive platform. It enables both the management of individual systems, such as video surveillance, access control, and alarm systems, and the linking of multiple systems within an integrated architecture. (paid application)

Motion detection Motion detection in DS-2CD1043G2-LIU(2.8mm) cameras is an advanced feature that allows you to increase the precision and efficiency of your surveillance systems. They provide more detailed information, supporting the security of your home.

How does ROI work?

The ROI function allows you to define one or more areas in the field of view of the DS-2CD1041G0-I/PL(2.8MM) camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less important to the user, can be recorded at a lower resolution, saving bandwidth and disk space.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Main features of the camera:

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features of the Toshiba S300:
