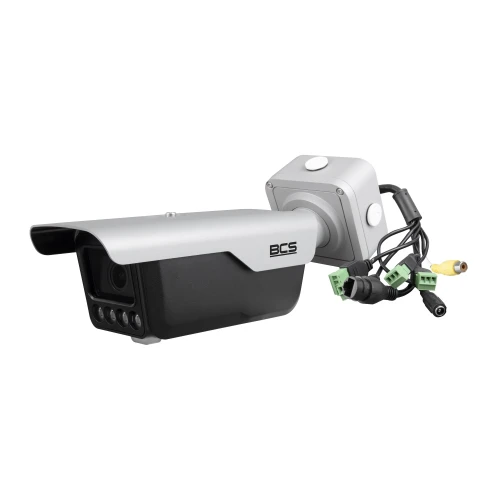

BCS-L-TIP74VSR6-ITC-Ai3 Bullet Camera, License Plate Recognition, 4MP, IR 60m, SkyLight - BCS

The BCS-L-TIP74VSR6-ITC-Ai3 camera also comes with useful instructions and mounting accessories to speed up the entire camera installation process.

• 1x 4 Mpx horn camera - BCS-L-TIP74VSR6-ITC-Ai3
• Template - Small size template with mounting holes of the camera
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera connectors from moisture

Main product features:

• 4Mpx IP dome camera
• ARTR for reading license plates
• 1/1.8" PS CMOS sensor
• SkyLight technology
• Motozoom lens 8~32mm
• WDR140dB
• IR 60m
• Alarm 2/2, audio, microphone, speaker
• IP67, IK10 housing
• Built-in smart functions

Capture the largest possible area

The 8~32mm motozoom lens on the BCS-L-TIP74VSR6-ITC-Ai3 is a feature that allows you to remotely control the focal length of the lens, allowing you to smoothly and precisely zoom in or out without losing quality. This allows you to adjust the camera's field of view to suit your surveillance needs, such as zooming in on the details of an important object or widening the frame to cover a wider area. Motozoom is particularly useful in situations where dynamic image adjustment is required, such as in video surveillance systems.

High-quality image A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-TIP74VSR6-ITC-Ai3 device records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

MicroSD card slot The BCS-L-TIP74VSR6-ITC-Ai3 camera has a built-in microSD card slot that allows local storage of video recordings on media up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design This housing protects the BCS-L-TIP74VSR6-ITC-Ai3 camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Remote access from your phone and desktop computer BCS systems allow you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access video preview and play back recorded footage Save portions of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

SkyLight technology in BCS cameras

SkyLight technology in BCS cameras is an advanced solution that provides excellent image quality in low-light conditions. Thanks to a specially designed lens and high sensor sensitivity, cameras with SkyLight technology are able to capture detailed and clear images even in minimal light, without the need for an additional light source. This makes them ideal for night surveillance and in areas with changing light conditions. SkyLight significantly improves the effectiveness of surveillance by reducing noise and providing natural color reproduction, which is crucial for accurate recognition of objects and people.

Vehicle license plate recognition - ARTR function from BCS

License plate recognition on the BCS-P-TIP74VSR5-ITC-0832 is fully automated and includes both number identification and vehicle image capture. The recorded numbers and photos are stored in the trip database, and the system can track vehicles traveling at speeds of up to 80 km/h. The characters contained on the license plates can be used for various activities, such as automatically opening gates for specific vehicles. The system supports blacklisting and whitelisting, allowing management of up to 20,000 items. Camera images go directly to the ARTR server, where license plate numbers are read after analysis. The camera should be mounted between 8 and 30 meters from the vehicle.

Wide Dynamic Range - That is, high quality in difficult conditions

WDR (Wide Dynamic Range) 120 dB is an advanced technology used in video surveillance cameras such as the BCS-L-TIP74VSR6-ITC-Ai3 to capture clear images in high contrast lighting conditions, where both bright and dark areas can occur simultaneously in the same scene. WDR 120 dB is a technology that combines two or more frames with different exposures into a single image. In practice, the camera captures two images - one with a short exposure time, which captures details in bright areas, and another with a longer exposure time, which captures details in dark areas. The camera's software then combines these images to produce a single, well-balanced frame in which all details are visible.

Benefits of WDR 120dB

• Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as BCS-L-TIP74VSR6-ITC-Ai3 cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

• Detection (407m): The system is able to detect the presence of an object or person at a distance of up to 407 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
• Observation (163m): At distances of up to 163 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
• Recognition (81m): Recognition at distances of up to 81 meters enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
• Identification (41m): At a distance of up to 41 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

Reduce unnecessary noise

3D DNR (3D Digital Noise Reduction) is an advanced noise reduction technology used in video surveillance cameras such as the BCS-L-TIP74VSR6-ITC-Ai3, which improves image quality in difficult lighting conditions, especially at night or in low light. By eliminating noise, the technology produces clearer and more detailed images, which is crucial in situations that require accurate video analysis. 3D DNR works by analyzing consecutive video frames and comparing pixels between them to detect and remove noise from the image. Unlike traditional two-dimensional noise reduction (2D DNR), which only analyzes noise within a single frame, 3D DNR takes into account both information from a single frame and differences between adjacent frames. This additional temporal analysis allows for more effective noise recognition and removal, while preserving image detail.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of an area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.

Efficient storage H.265 encoding

Efficient storage H.265 coding, also known as High Efficiency Video Coding (HEVC), is an advanced video compression technology used in modern surveillance systems.
The main features of H.265 encoding in surveillance DVRs are as follows:

H.265 makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.

More efficient compression reduces the load on the processor, resulting in lower power consumption of surveillance equipment.

Technical specifications:

Camera	BCS-L-TIP74VSR6-ITC-Ai3
Device Name	BCS-L-TIP74VSR6-ITC-Ai3
Product line	BCS Line
Camera type	Tube
Resolution	4 Mpx
Sensor	1/1.8'' CMOS
Scanning system	Progressive Scan
Pixels	2688(H)×1520(V)
RAM	1GB
