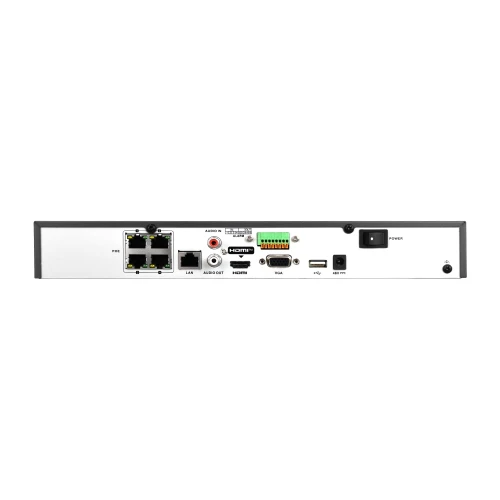

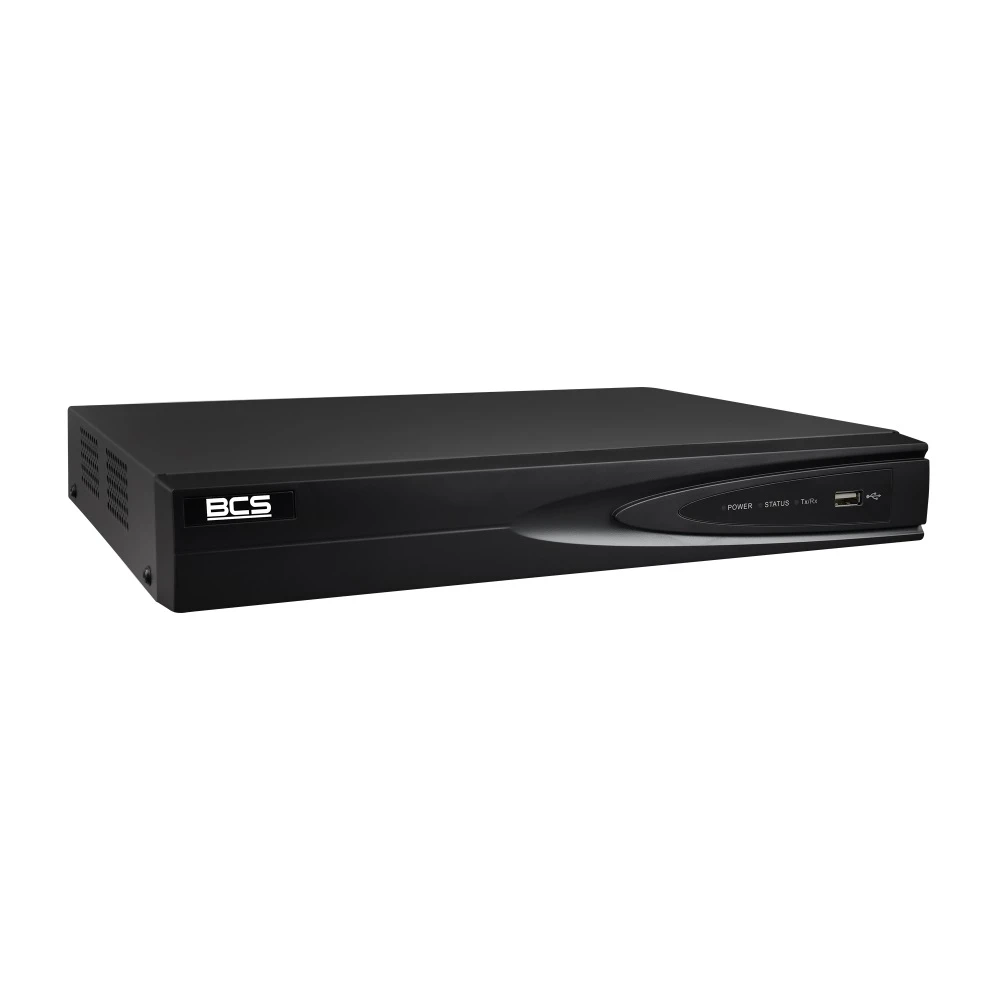

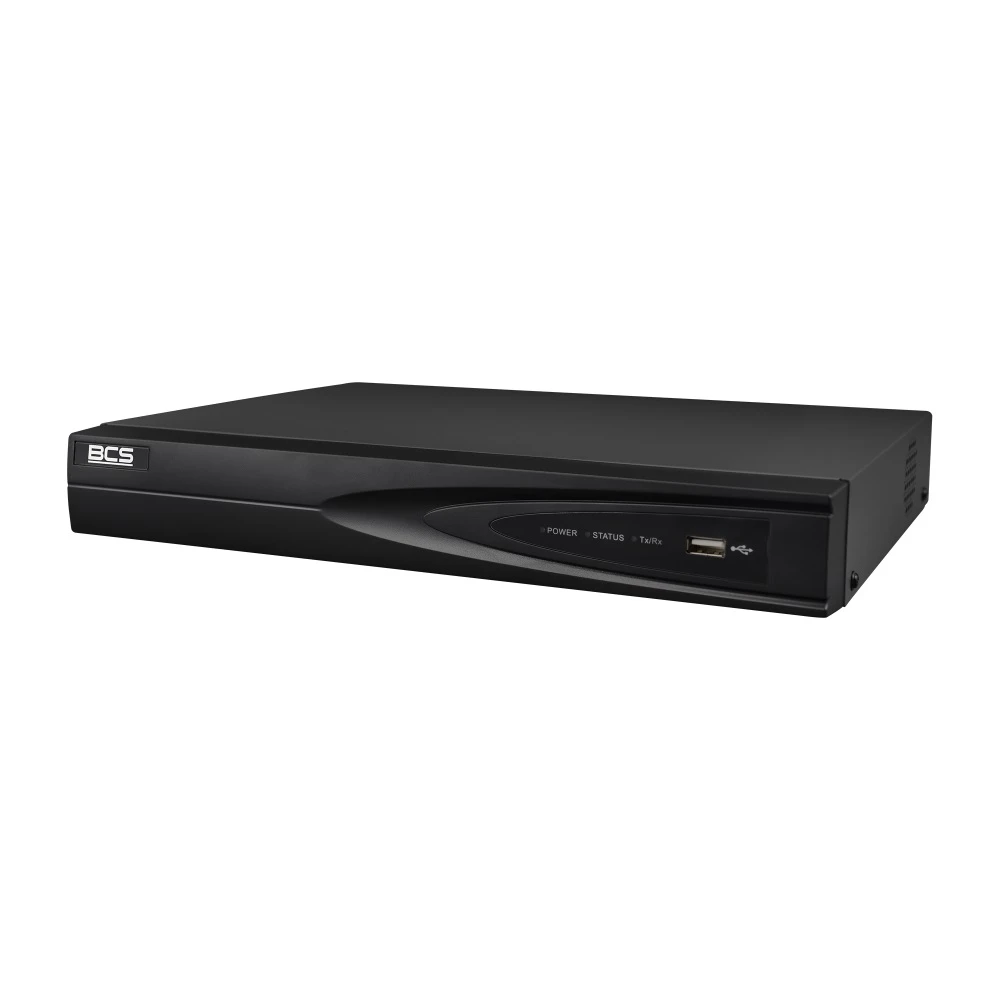

4-channel IP Recorder BCS-V-NVR0401-A-4KE-4P(2)
Photo gallery
-
Manufacturer
-
Product Code
BCS-V-NVR0401-A-4KE-4P(2)
-
Warranty
36 miesięcy
- Technology: IP
- Number of channels: 4
- Built-in POE switch: Yes
Ask about this product show form
Product Description
Main features of the BCS-V-NVR0401-A-4KE-4P(2) DVR:
- Product line: BCS View
- System: IP
- Pentaplex function: live viewing / recording / playback / archiving / remote access
- Channels: 4
- Disks: 1
- Disk capacity: 8 TB (no disk included)
- Max recording resolution: 8 Mpx
- Input bandwidth: 40Mbps
- Output bandwidth: 80Mbps
- Display performance:
- 1×8M(30fps)
- 3×4M(30fps)
- 6×2M(30fps)
- Recording resolution: 8M / 6M / 5M / 4M / 3M / 2M / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
- Video compression: H.265+ / H.265 / H.264+ / H.264
- HDMI output: HDMI 4K
- VGA output: VGA
- HDMI display resolution:
- 4096×2160
- 3840×2160
- 2560×1440
- 1920×1080
- 1600×1200
- 1280×1024
- 1280×721
- VGA display resolution:
- 1920×1080
- 1280×1024
- 1280×721
- Output split: 1/4
- Playback: 1/4
- Archiving: Possibility of ripping material to external media such as USB FLASH, USB HDD
- Users: 32
- Interfaces: 2×USB 2.0
- Audio input: 1
- Audio output: 1
- Audio compression: G.711ulaw / G.711alaw / G.722 / G.726
- Alarm input: 4
- Alarm output: 1
- Support: Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
- Network: RJ-45 10/100Mbps
- Compatibility: ONVIF, support for third-party cameras
- Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
- Standard: IEEE 802.3 af/at
- Switch PoE power: 50W
- PoE channels: 4
- Power supply: 48V DC
- Power consumption (without drives): 10W max
- Operating conditions: -10°C~+55°C, max 90% RH
- Enclosure: 1U
- Dimensions (W×D×H): 320×240×48mm
- Weight (without drives): 1kg
AI functions:
- Intelligent motion detection (person/mechanical vehicle recognition): 1 channel
