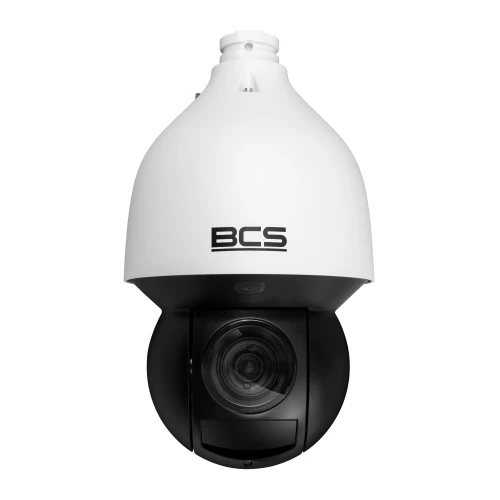

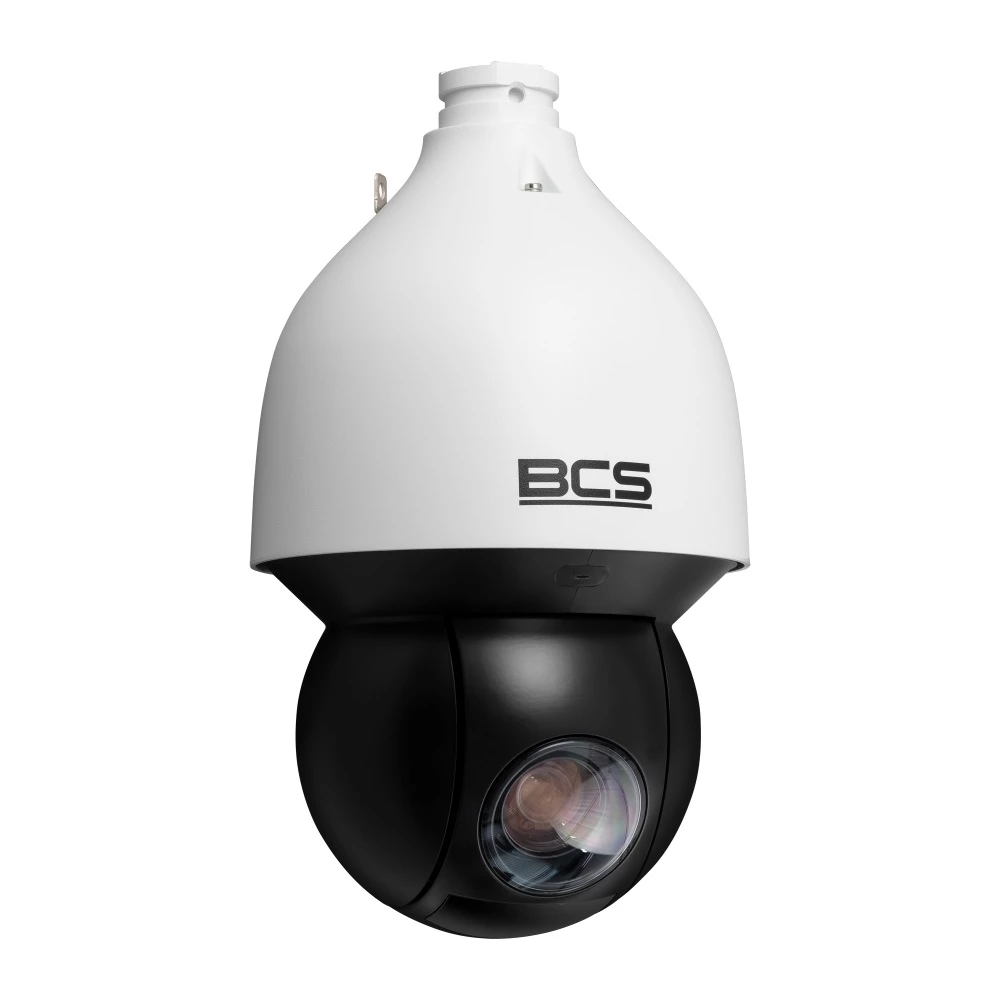

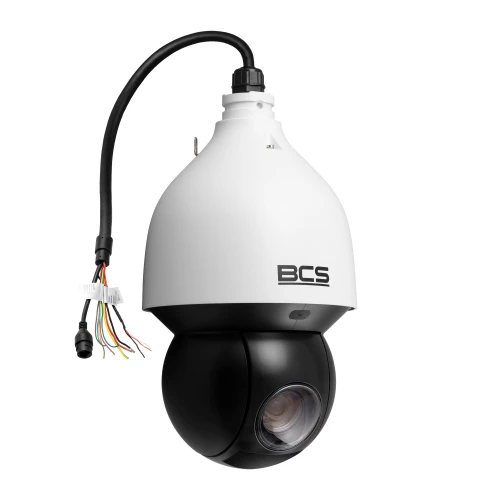

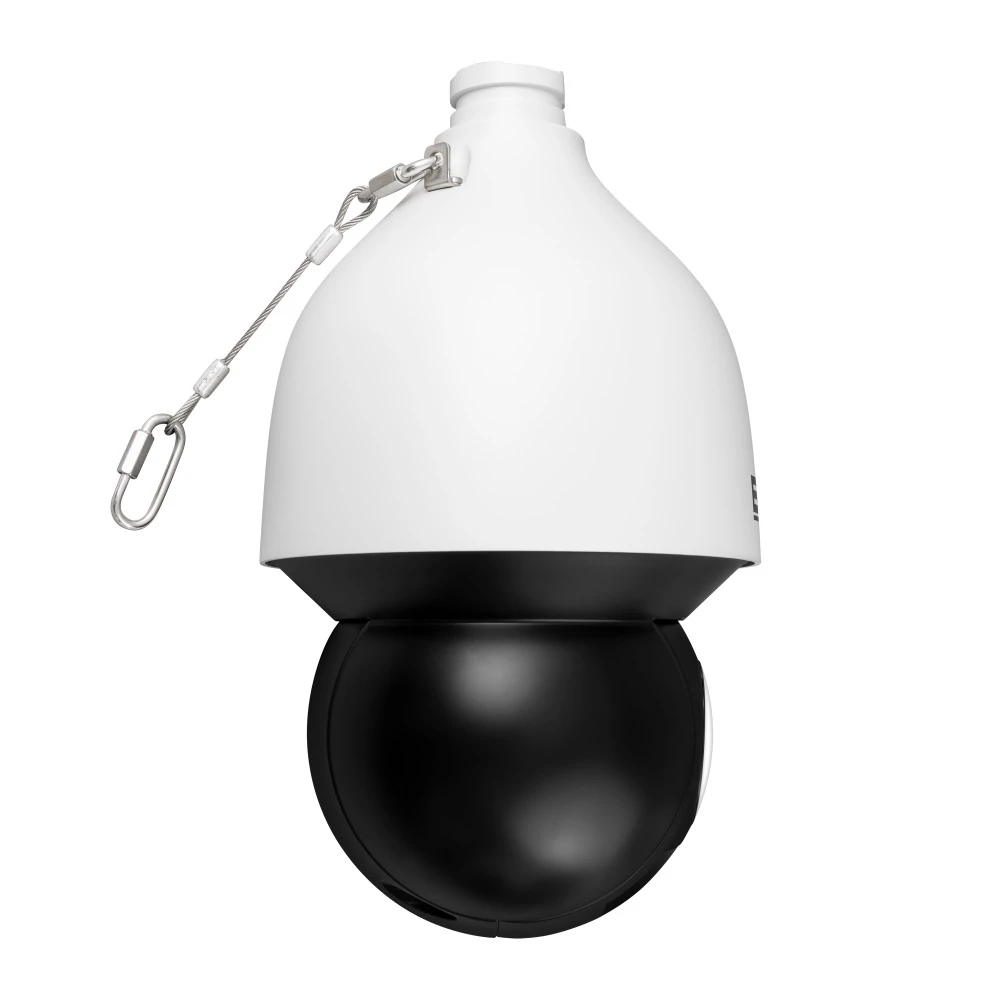

BCS-L-SIP4425SR15-Ai2 PTZ IP Camera, SkyLight, WDR 120dB, IR 150m

Main Features of BCS-L-SIP4425SR15-Ai2 Camera:

1. Product Line: BCS Line
2. Camera Type: PTZ (Pan-Tilt-Zoom)
3. Resolution: 4 Mpx
4. Sensor: 1/1.8'' CMOS with Progressive Scan system
5. Lens: Motozoom, focal length 5.4~135 mm
6. Aperture: F1.6~4.0
7. Zoom:
   • Optical zoom: 25×
   • Digital zoom: 16×
8. Viewing Angle:
   • Horizontal: 61.6°~3.6°
   • Vertical: 35.7°~2°
   • Diagonal: 66.6°~4°
9. DORI:
   • Detect: 1724m
   • Observe: 689m
   • Recognize: 344m
   • Identify: 172m
10. Camera Sensitivity:
    • 0.001 Lux (Color, F1.6)
    • 0.0001 Lux (Black & White, F1.6)
    • 0 Lux (Black & White, IR)
11. WDR: 120 dB
12. Noise Reduction: 2D/3D DNR
13. Image Stabilization: Electronic (EIS)
14. Illuminator: IR LED, range up to 150 m
15. Audio:
    • 1 audio input
    • 1 audio output
    • Compression: G.711A / G.711Mu / G.726 / G.722.1 / G.723 / G.729 / PCM / MPEG2-L4
16. Interfaces:
    • 1× RJ-45 10/100 Mbps
    • MicroSD memory card slot up to 512GB
17. Video Streams:
    • Main: 2560×1440 / 2048×1536 / 1920×1080 / 1280×720 (25/30fps)
    • Second: 704×576 / 704×480 / 640×480 / 352×288 / 352×240 (25/30fps)
    • Third: 1920×1080 / 1280×960 / 1280×720 (25/30fps)
18. Video Compression: H.265, H.265+, H.264+, H.264, MJPEG
19. Power supply: 24VDC / PoE(802.3at), Power consumption max 22W
20. Operating Conditions: -40°C~+70°C, max 95% RH
21. IP Protection Class: IP67
22. Resistance Class: IK10
23. Surge Protection: TVS 6kV
24. Dimensions: Ø190×332 mm
25. Weight: 4.7 kg
26. PAN speed: 0.1°/s~300°/s (400°/s preset)
27. TILT speed: 0.1°/s~140°/s (300°/s preset)
28. PAN range: 0°~360°
29. TILT range: -15°~90° auto-flip
30. Automation Features: 300 presets, 8 tours (32 presets each), 5 tracks, 5 scans, auto tracking
31. AI - Built-in Intelligent Functions:
    • Perimeter Protection: Area intrusion, line crossing, rapid movement, crowd detection, parking detection
    • Object Recognition: Person/vehicle recognition, false alarm reduction
    • Face Detection: Detection, face tracking, recognition of facial attributes and expressions
    • SMD 4.0: Smart Motion Detection

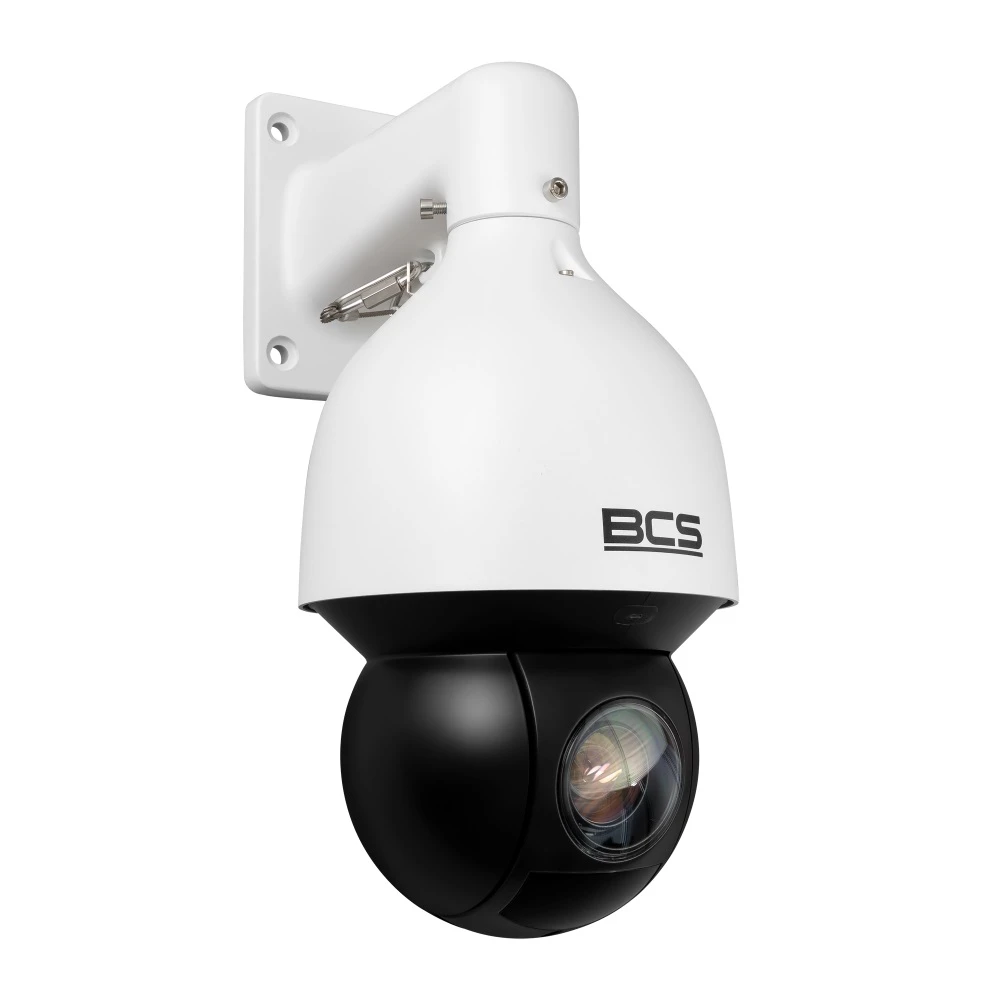

32. Accessories Included: Wall mount, 24VDC power supply

The BCS-L-SIP4425SR15-Ai2 camera is an advanced PTZ device with 4 Mpx resolution that offers a wide range of optical and digital zoom, advanced smart features and excellent image quality. With high weather resistance and automation functions, it is ideal for outdoor applications requiring precision monitoring.
