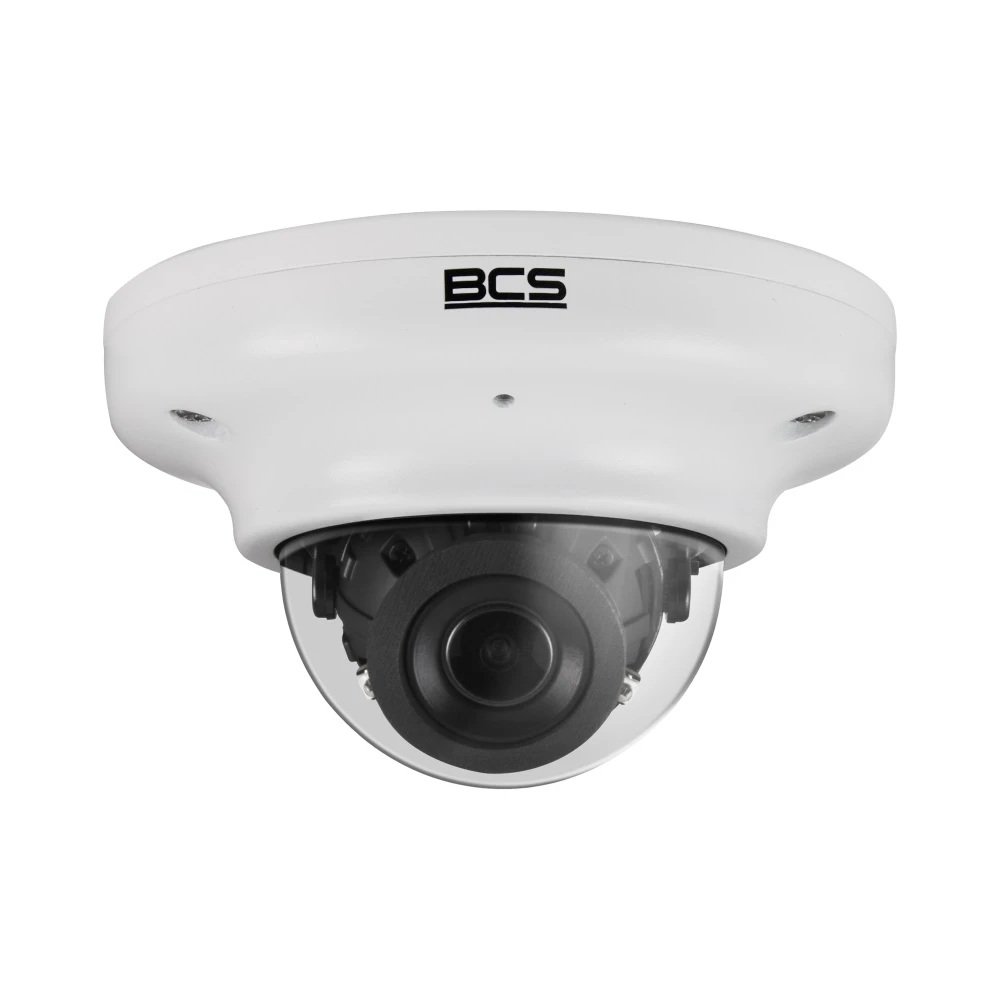

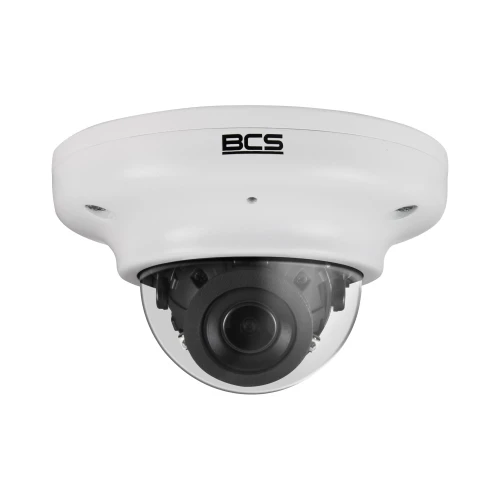

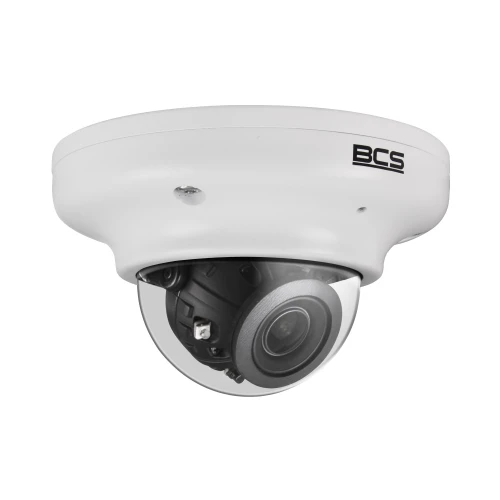

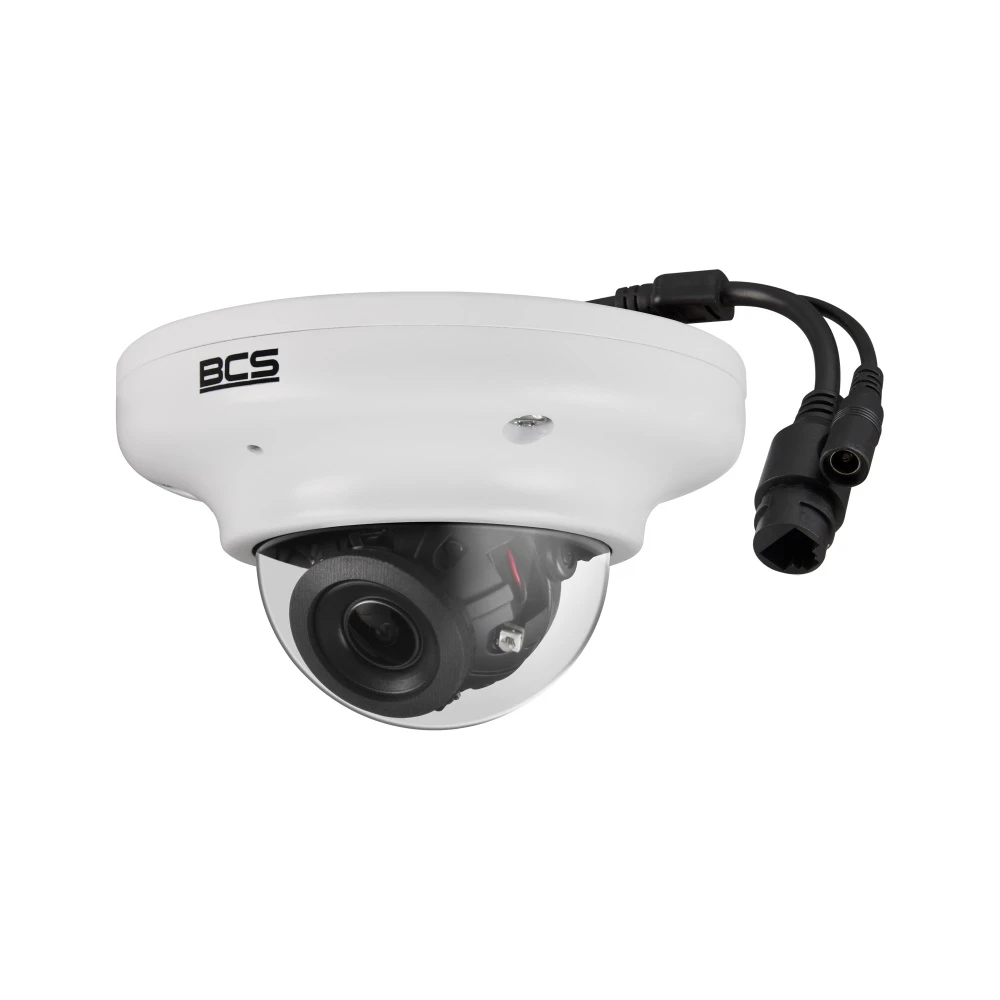

IP Dome Camera 5Mpx BCS-F-DIP15FSR2, SkyLight, WDR 120dB, IR 20m
Photo gallery
-
Manufacturer
-
Product Code
BCS-F-DIP15FSR2
- Technology: IP
- Resolution: 5Mpx
- Enclosure: Dome
- Night visibility: up to 20m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: No
- Color: White
Ask about this product show form
Product Description
Main Features of BCS-F-DIP15FSR2 Camera:
- Product Line: BCS FLEX
- Compatibility: National Defense Authorization Act (NDAA).
- Camera Type: Dome
- Resolution: 5 Mpx
- Sensor: 1/2.8'' CMOS with Progressive Scan system
- Lens: Fixed, 2.8 mm focal length, F1.8 aperture
- Viewing Angle:
- Horizontal: 103°
- Vertical: 78°
- Diagonal: 126°
- Camera Sensitivity:
- 0.13 Lux (F1.8)
- 0 Lux (IR)
- WDR: 120 dB
- Noise Reduction: 3D DNR
- IR illuminator: Range up to 20m
- Shutter: Automatic / Manual 1/15~1/32000s
- Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
- Video Streams:
- Main: 2592×1944(
125fps), 2560×1440(125fps), 2304×1296(125fps), 1920×1080(125fps) - Second: 704×576, 704×480, 640×480, 640×360, 352×288, 352×240 (1~25fps)
- Third: 1280×720, 800×600, 768×432, 704×576, 704×480, 640×480, 640×360, 352×288, 352×240 (1~25fps)
- Main: 2592×1944(
- Bitrate: 100Kbps~10Mbps
- Memory Card Slot: microSD
- Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
- Motion Detection: 4 zones
- Privacy Masks: 16 zones
- Network: RJ-45 10/100 Mbps
- Compatibility: ONVIF
- Protocols: TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2)
- Power supply: 12VDC / PoE(802.3af), power consumption max 7.2W
- Housing Color: White
- IP Class: IP67
- Impact Resistance: IK10
- Operating Conditions: -20°C~+50°C, max 90% RH
- Dimensions: 105×61 mm
- Weight: 0.36 kg
