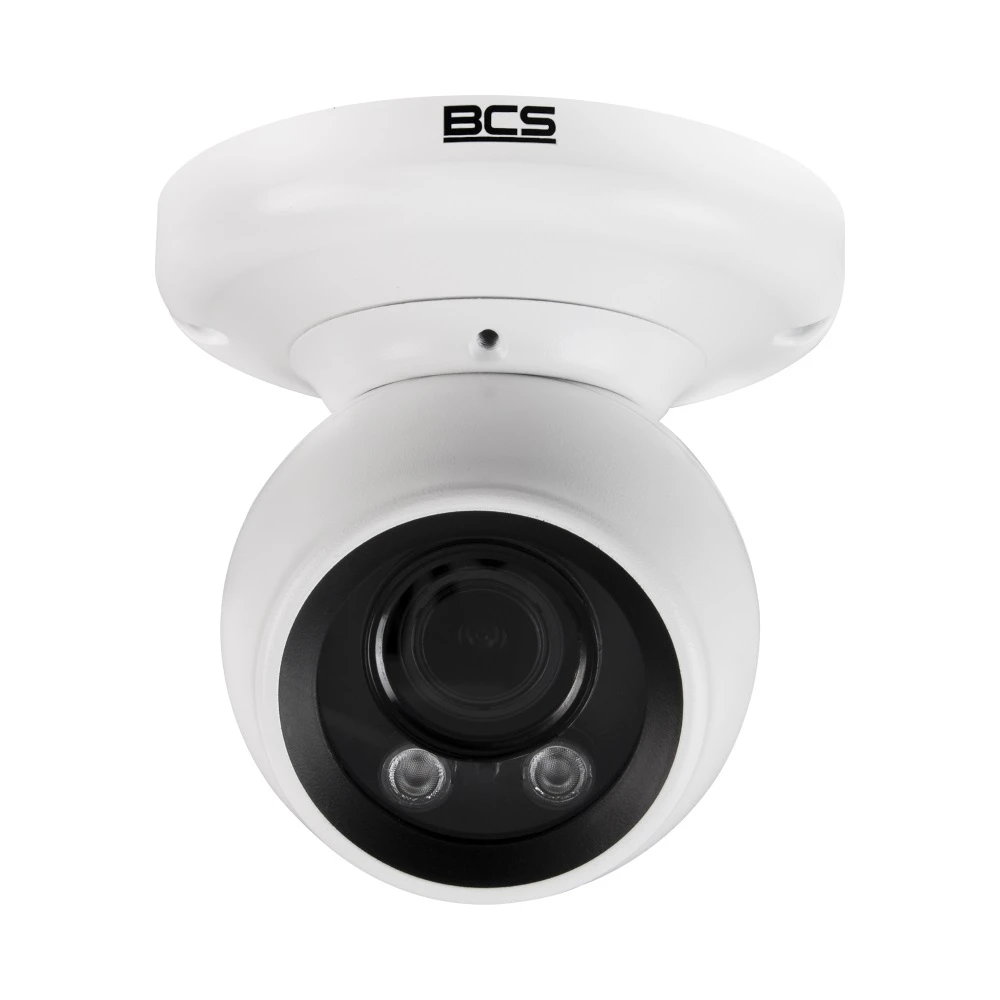

IP Dome Camera 5Mpx BCS-F-EIP45VSR4, SkyLight, WDR 120dB, IR 40m
Photo gallery
-
Manufacturer
-
Product Code
BCS-F-EIP45VSR4
- Technology: IP
- Resolution: 5Mpx
- Enclosure: Dome
- Night visibility: up to 40m
- Connectivity: Wired
- Memory card slot: No
- Audio: No
- Color: White
Ask about this product show form
Product Description
Here are the main features of the BCS-F-EIP45VSR4:
- Product line: BCS FLEX (National Defense Authorization Act - NDAA compliance).
- Camera type: Dome
- Resolution: 5 Mpx
- Sensor: 1/2.8'' CMOS
- Scanning system: Progressive Scan
- Pixels: 2592(H)×1944(V)
- Lens: Motozoom
- Focal length: 2.7~13.5mm
- Aperture: F1.4
- Focus: Auto / manual
- Iris: Auto / P-iris
- Optical Zoom: 5×
- Viewing angle: H: 31°~85° V: 24°~62° D: 39°~109°
- Camera sensitivity: 0.08Lux(F1.4) 0Lux(IR)
- S/N ratio: 50dB
- White balance: Auto / manual (AWB)
- WDR: 120dB
- Background Compensation: WDR (120dB)
- Shutter: Auto / manual 1/15~1/32000s
- Gain Control (AGC): Auto / manual
- Noise Reduction: 3D DNR
- Image rotation: Mirror, Flip
- Number of streams: 3
- Resolutions: 5M(2592×1944) / 4M(2560×1440) / 2M(1920×1080) / others
- Bitrate: 100Kbps~10Mbps
- Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
- Day/night: ICR mechanical infrared filter
- Illuminator type: IR LED
- Illuminator: 40m
- Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
- Motion detection: 4
- Privacy masks: 16
- Network: RJ-45 10/100 Mbps
- Compatibility: ONVIF
- Protocols: TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2)
- Power supply type: 12VDC / PoE(802.3af)
- Power consumption: max 8.5W
- Housing color: White
- IP rating: IP67
- IK10: Yes
- Operating conditions: -20°C~+50°C max 90% RH
- Dimensions: 125×122mm
- Weight: 0.85kg
