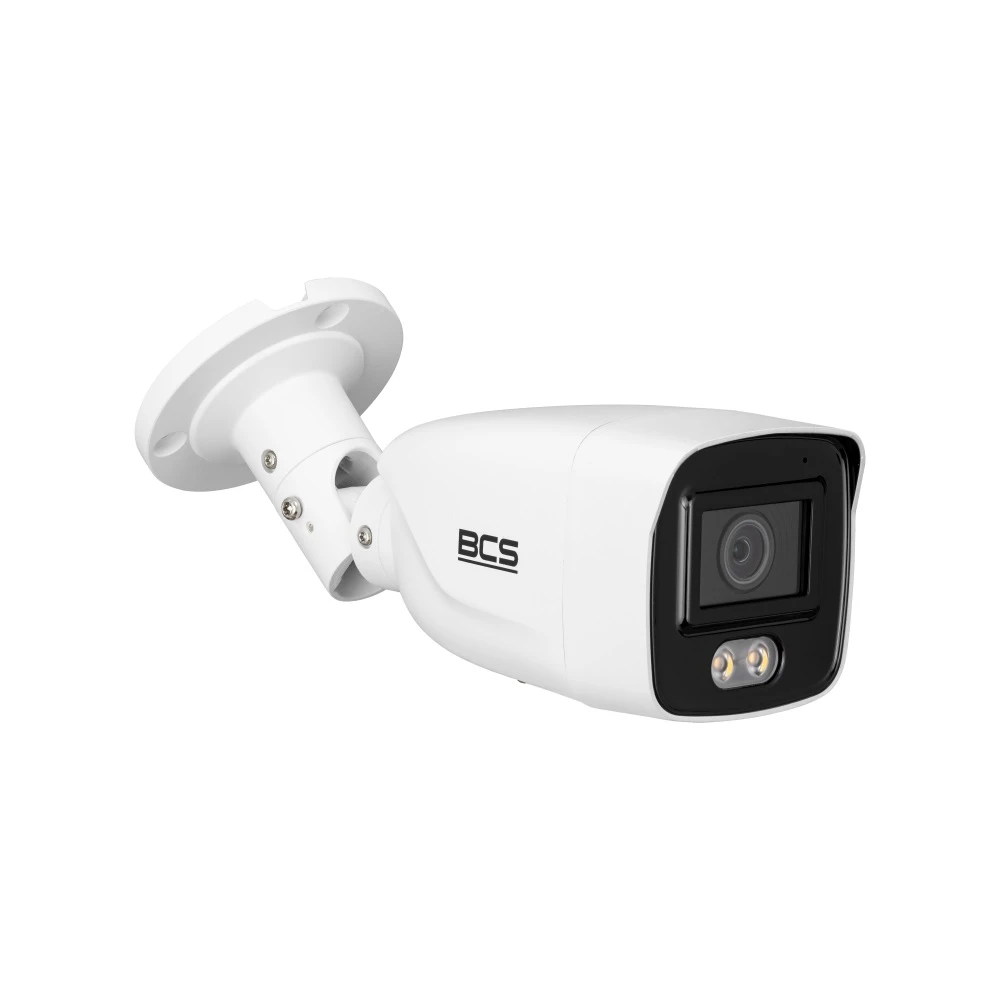

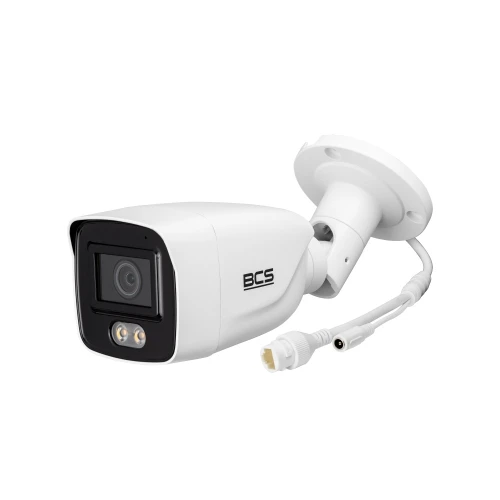

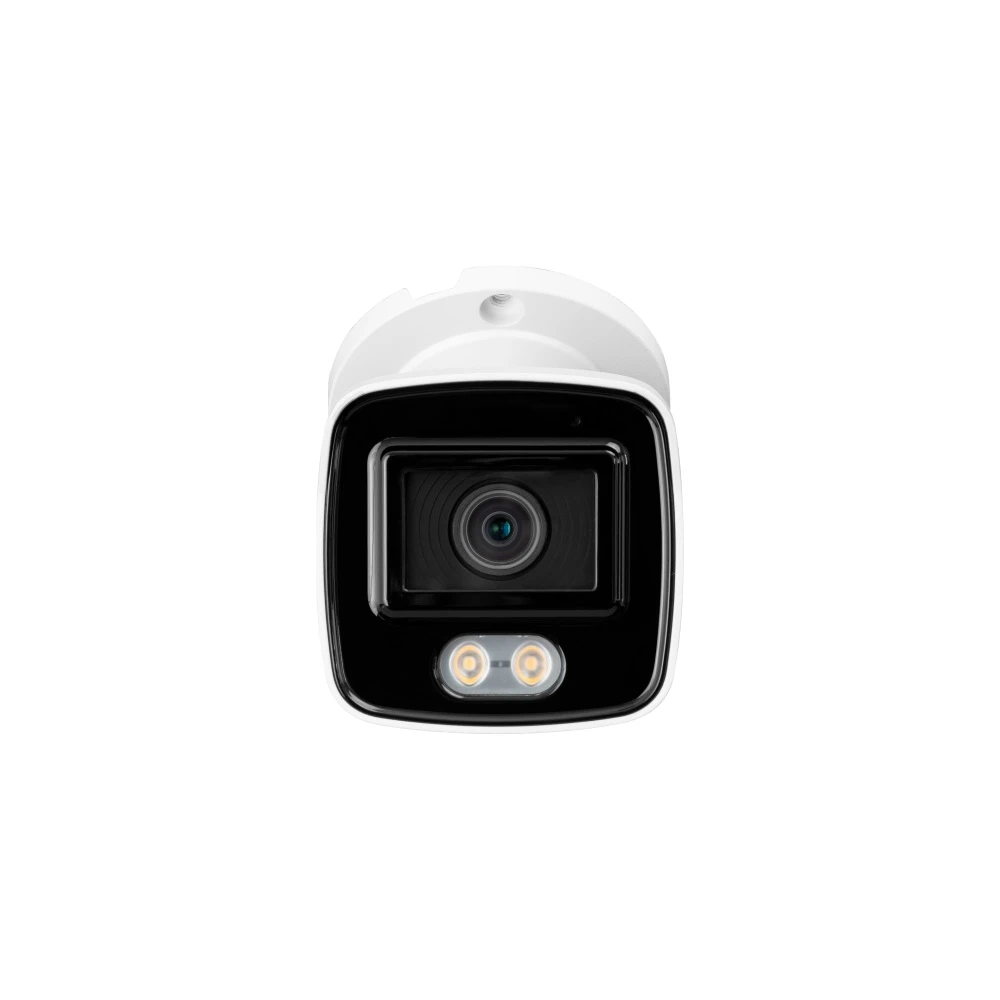

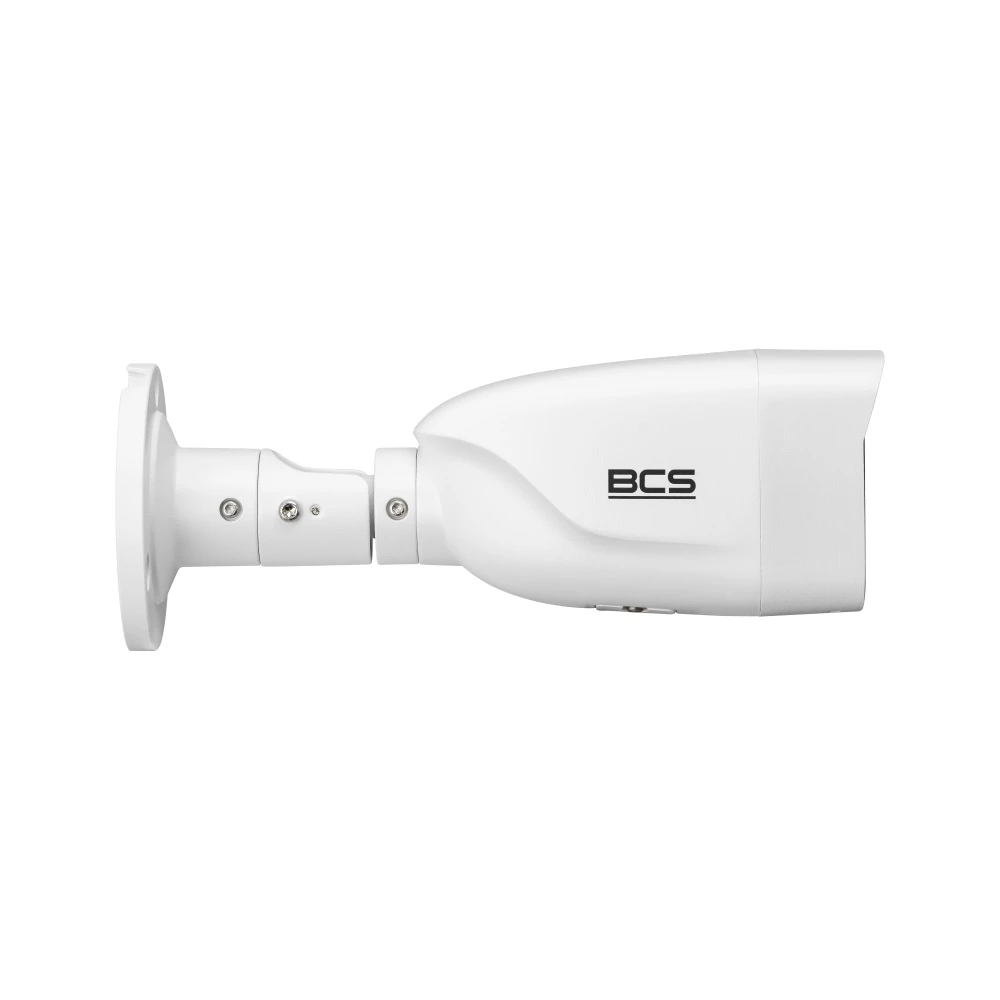

IP Tube Camera 8Mpx BCS-V-TIP28FCL4-Ai2, NightColor, AcuSense, ADC
Photo gallery
-
Manufacturer
-
Product Code
BCS-V-TIP28FCL4-Ai2
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Tube
- Night visibility: up to 40m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Product Description
Here are the main features of the BCS-V-TIP28FCL4-Ai2:
- Product line: BCS View
- Camera type: Tube
- Resolution: 8 Mpx
- Sensor: 1/1.2'' CMOS
- Scanning system: Progressive Scan
- Pixels: 3840(H)×2160(V)
- Lens: Fixed
- Focal length: 2.8 mm
- Aperture: F 1.0
- Focus: Fixed
- Iris: Fixed
- Digital zoom: 16×
- Viewing angle: H: 102° V: 52° D: 124°
- DORI: Detect 96m / Observe 38m / Recognize 19m / Identify 10m.
- Camera sensitivity: 0.0005Lux(F1.0, AGC)
- White Balance (AWB): Auto / Manual
- WDR: 130dB
- Background Compensation: BLC / HLC / WDR(130dB)
- Shutter: Auto / manual 1/3~1/100000s
- Gain Control (AGC): Auto / manual
- Noise Reduction: 3D DNR
- Image rotation: Mirror
- Number of streams: 3
- Resolutions:
- Main stream: 3840×2160@25fps, 3200×1800@30fps, 2688×1520@30fps, 1920×1080@30fps, 1280×720@30fps
- Second stream: 640×480@30fps, 640×360@30fps
- Stream three: 1920×1080@10fps, 1280×720@10fps, 640×480@10fps, 640×360@10fps
- Bitrate: 32Kbps~16Mbps
- Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
- Day/night: ICR
- Illuminator type: White Light
- Illuminator: 40m
- NightColor: Yes
- Microphone: yes
- Active deterrence function: ADC (Optical Alarm)
- Audio compression: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC

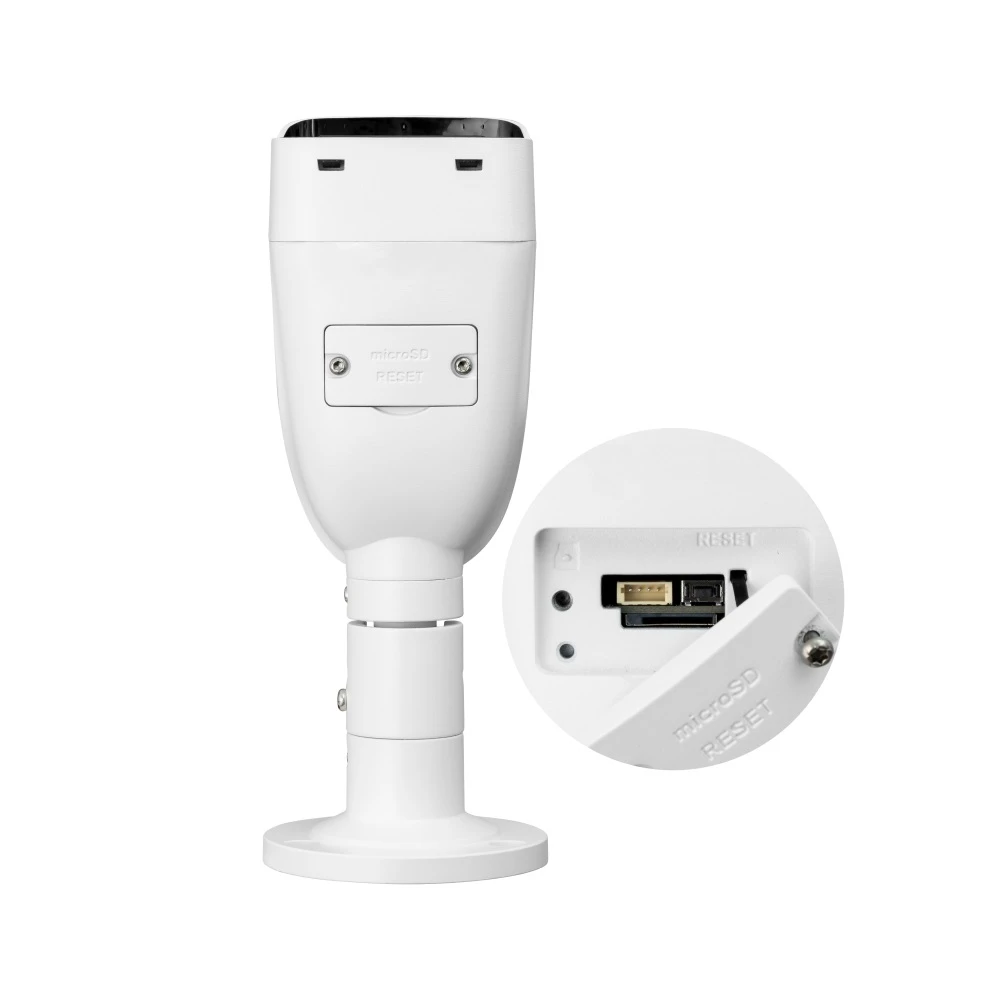

- Memory card slot: microSD up to 512GB
- Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
- Motion detection: yes
- Privacy Masks: 4
- Network: RJ-45 10/100 Mbps
- Compatibility: ONVIF(S/G/T)
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
- Power supply type: 12V DC / PoE (802.3af)
- Power consumption: max 7.5W
- Housing color: White
- IP rating: IP67
- Operating conditions: -30°C~+60°C max 95% RH
- Dimensions: 215.2×78.8×78.6mm
- Weight: 0.7kg
- AI - Built-in intelligent functions:
- Perimeter protection: Intrusion into the area, crossing the line
- Object recognition: Person/mechanical vehicle recognition for area intrusion, line crossing, false alarm reduction
- Face detection: Face detection and tracking, face photo
