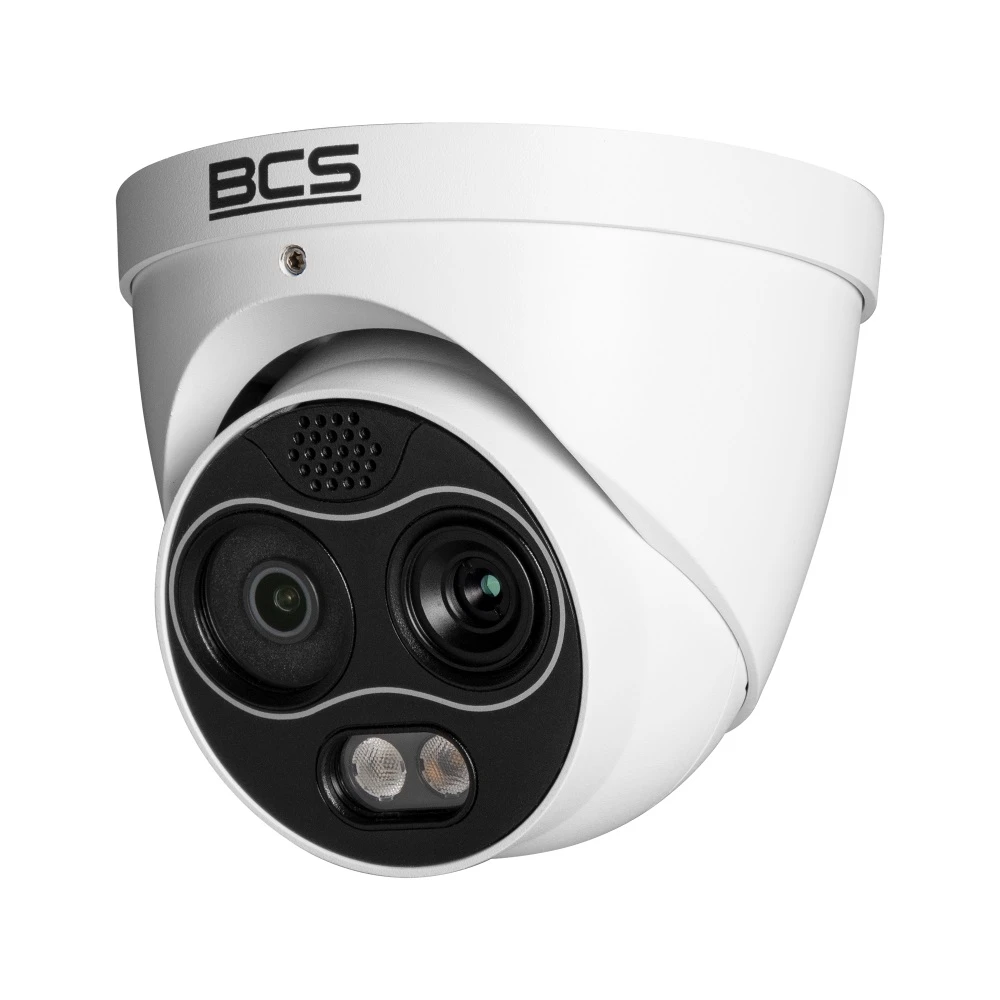

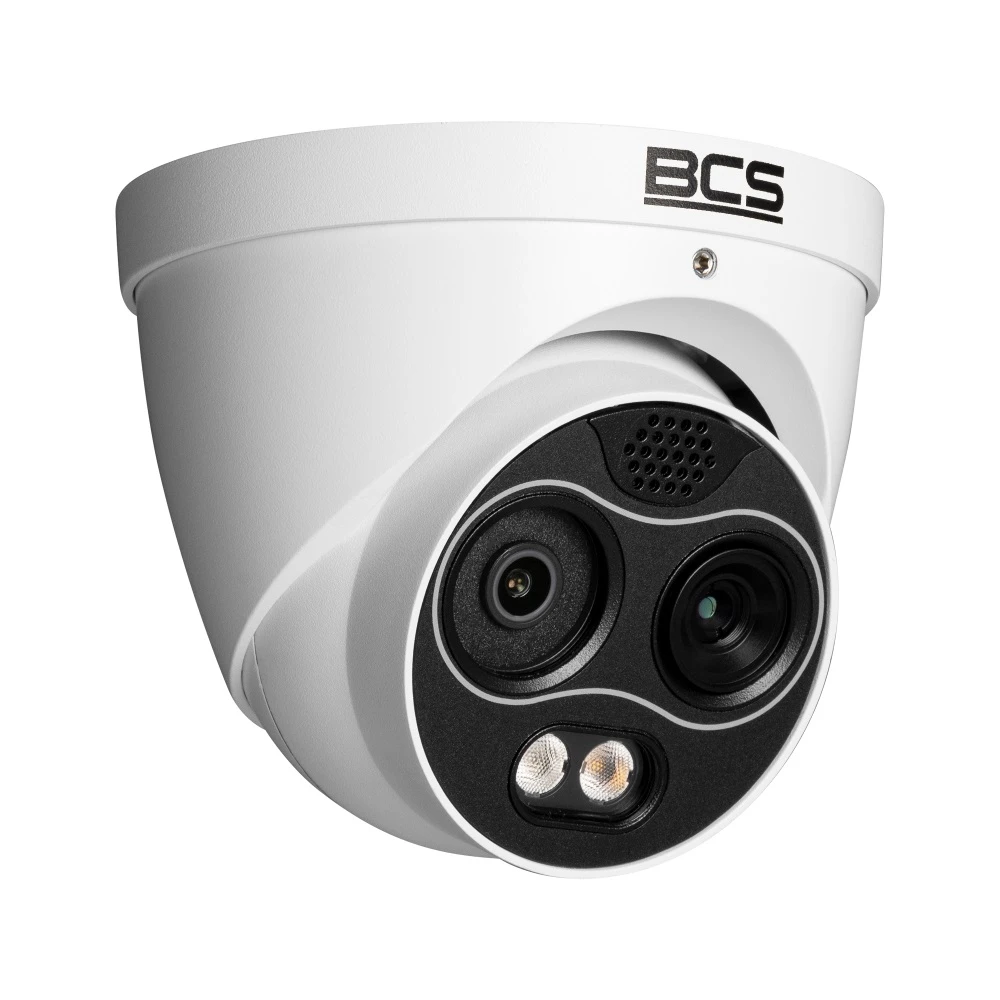

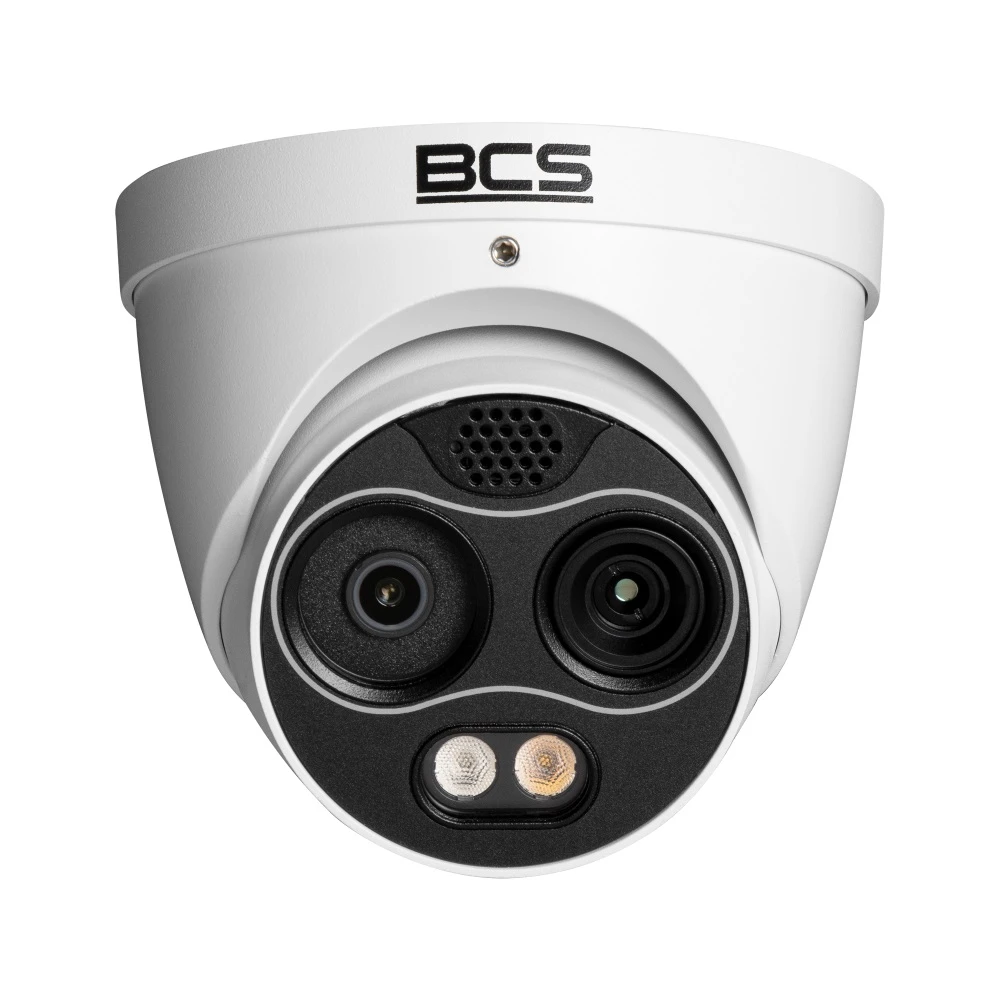

Dome IP Thermal Camera BCS-L-EIP242FR3-TH-Ai(0403), 4Mpx, Smart Features, FusionIR 30m - BCS Line

Main features of the BCS-L-EIP242FR3-TH-Ai(0403) camera:

• Product line: BCS Line
• Camera type: Thermal imaging
• Resolution: 4 Mpx (2336×1752)
• Sensor: 1/2.7'' CMOS
• Focal length: 4 mm, fixed
• Digital zoom: 16×
• Viewing angle: H: 71.2°, V: 52°, D: 92.6°
• Camera sensitivity: 0.05Lux (color), 0Lux (IR)
• S/N ratio: 55dB
• White balance: Auto / manual
• WDR: DWDR
• Background compensation: BLC / HLC / DWDR
• Noise Reduction: 2D/3D DNR
• Image rotation: Flip 90° / 180° / 270°
• Number of streams: 2
• Video resolutions:
  • Main stream: 2336×1752 @ 25/30fps
  • Second stream: 1280×720 @ 25/30fps
• Video compression: H.265 / H.264M / H.264H / H.264B / MJPEG
• Day/night: ICR (mechanical infrared filter)
• Illuminator type: IR LED, range up to 30m
• Speaker: yes

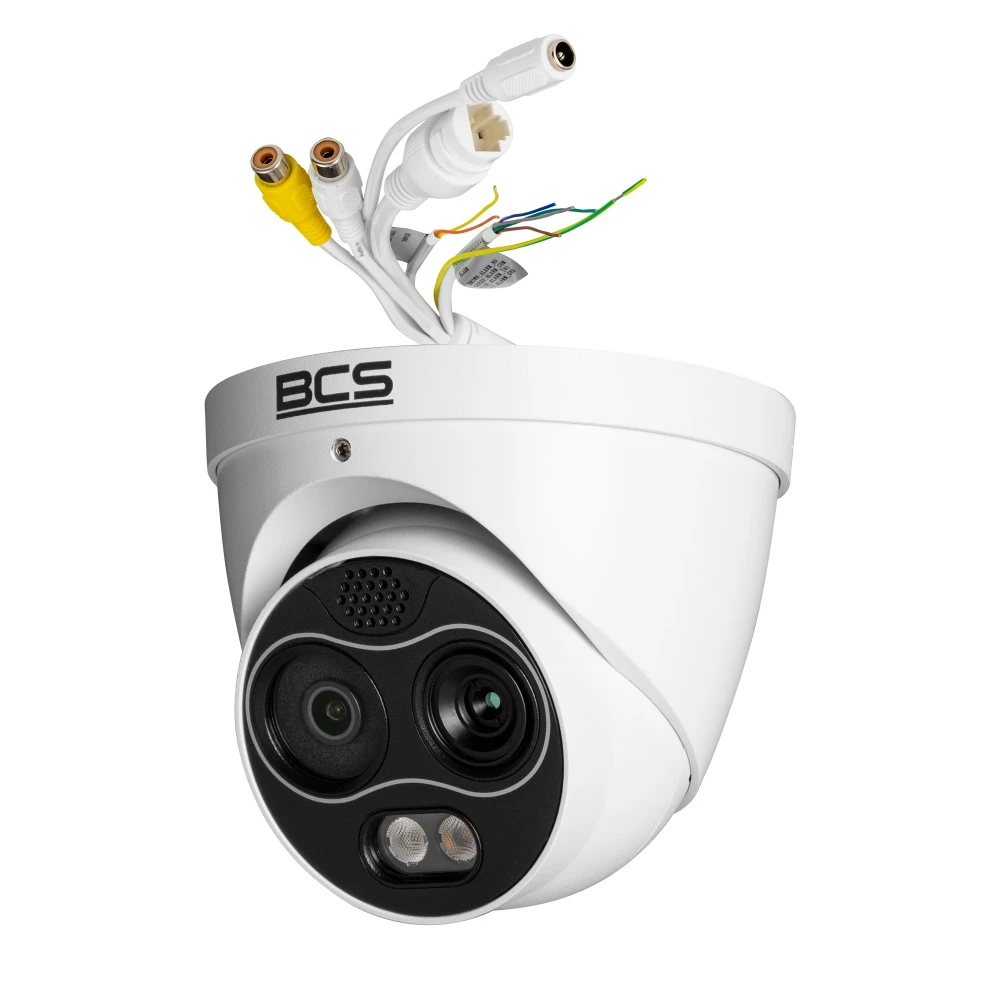

• Audio input/output: 1 / 1, audio compression: G.711a / G.711mu / PCM
• Alarm input/output: 1 / 1
• Memory card support: microSD 256GB
• Additional interfaces: RS485
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
• Networking: RJ-45 10/100 Mbps
• Compatibility: ONVIF
• Protocols: HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
• Power supply: 12V DC / PoE (802.3af), power consumption max 13W
• Housing color: White
• Protection class: IP67
• Operating conditions: -30°C~+60°C, max 95% RH
• Dimensions: Ø122×112 mm
• Weight: 0.85 kg

Thermal imaging functions:

• Transducer: Vox vanadium oxide microbolometer
• Thermal imaging resolution: 256×192
• Thermal imaging viewing angle: H: 50.6°, V: 37.8°
• Detection (person/vehicle):
  • Detection: 146m (person), 449m (vehicle)
  • Recognition: 38m (person), 110m (vehicle)
  • Identification: 19m (person), 56m (vehicle)
• Fire detection and alarm: max 45m
• Fusion function: yes
• Pixel size: 12μm
• Thermal sensitivity: 50mK
• Spectral characteristics: 8~14μm

AI functions:

• Perimeter protection: Yes
• Object recognition: Yes

This camera combines advanced thermal imaging technology with artificial intelligence functions, making it an ideal tool for precision monitoring and detection in challenging lighting and environmental conditions.
