4-channel 5-system recorder BCS-L-XVR0401(7)

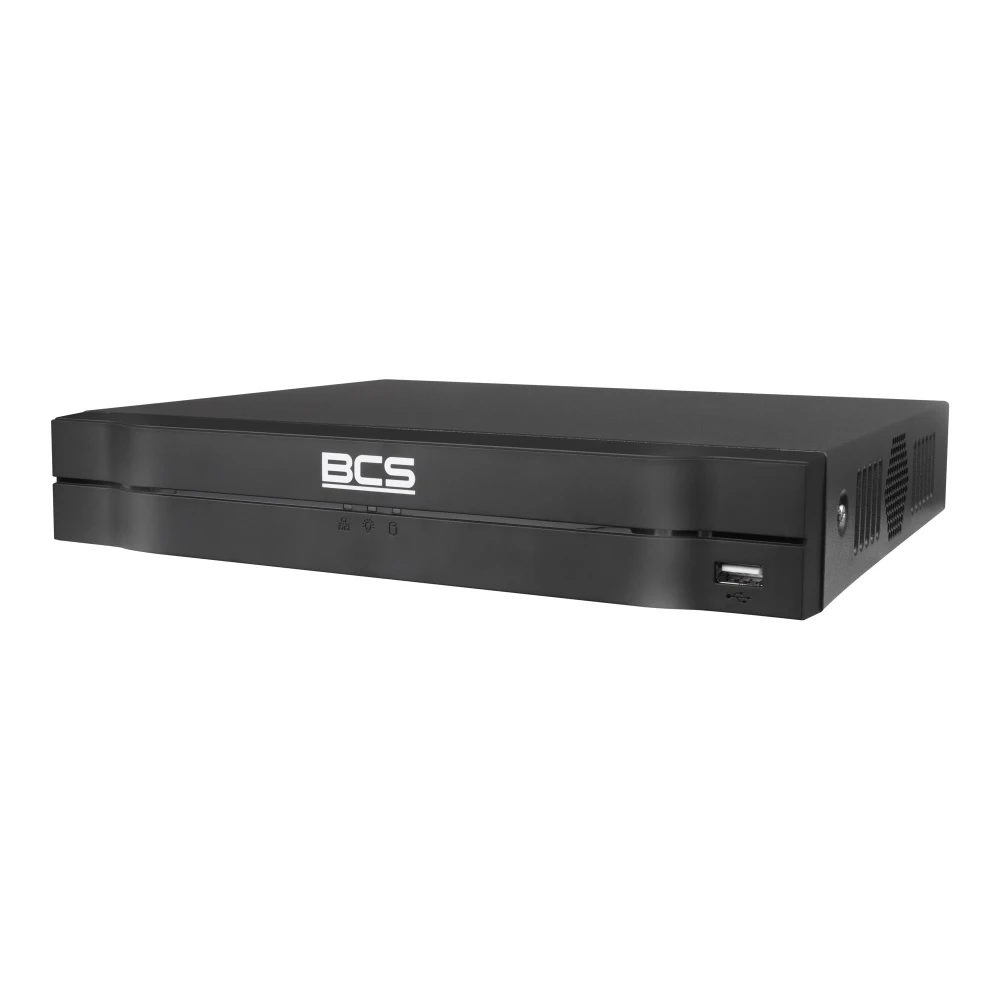

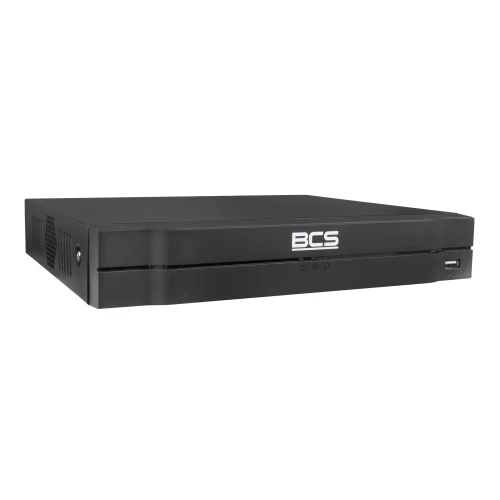

A sleek black 4-channel video recorder with a minimalist design and the BCS logo on the front. The device features a USB port on the right side for easy connectivity.
A sleek black 4-channel video recorder with a minimalist design and a USB port on the front panel. The device features the BCS logo prominently displayed on the top surface.

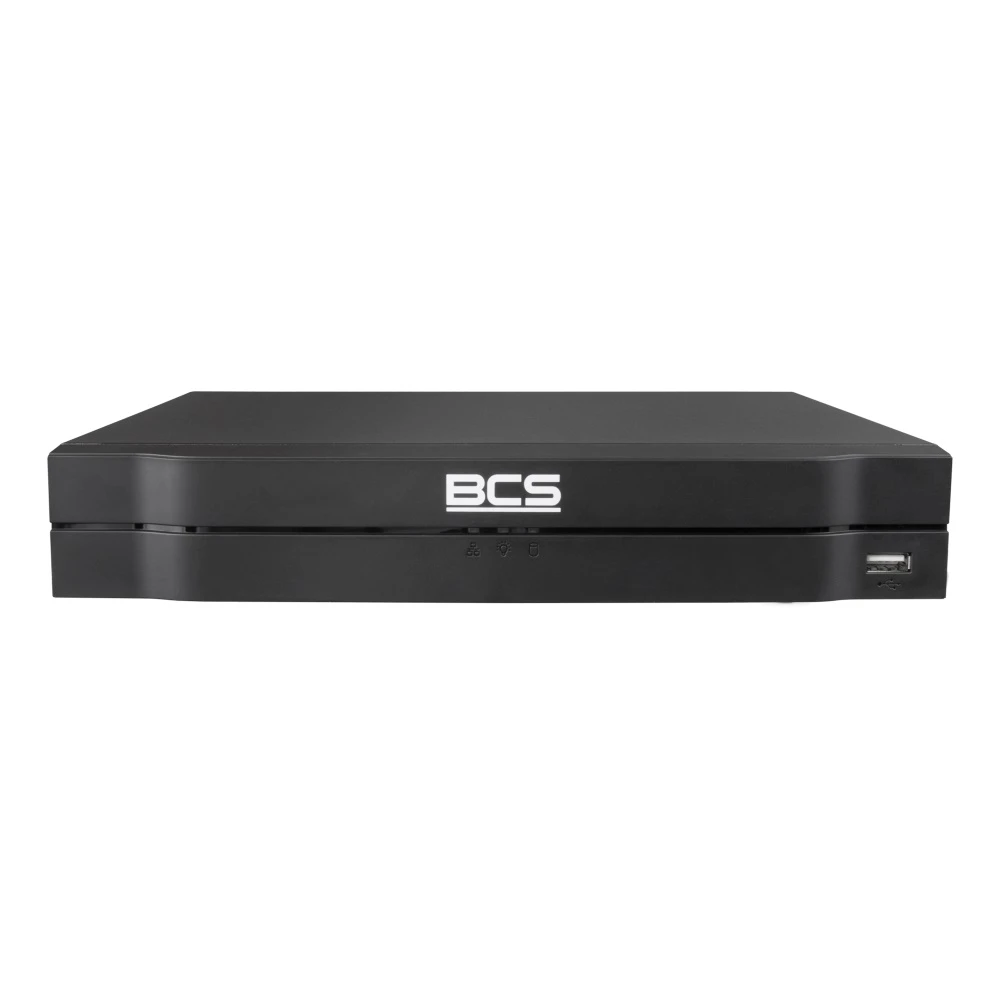

A sleek black 4-channel video recorder with a minimalist design and the BCS logo on the front. The device features a USB port for easy connectivity and a compact form suitable for various security setups.

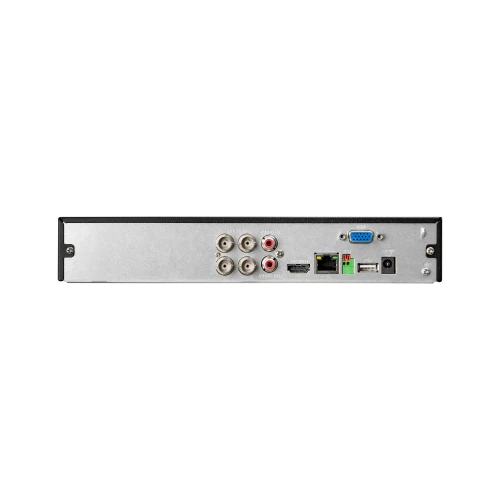

The image shows the back panel of a four-channel digital video recorder featuring multiple input and output ports, including BNC connectors, HDMI, VGA, Ethernet, and USB. The sleek design is complemented by a metallic finish, providing versatile connectivity options for security systems.

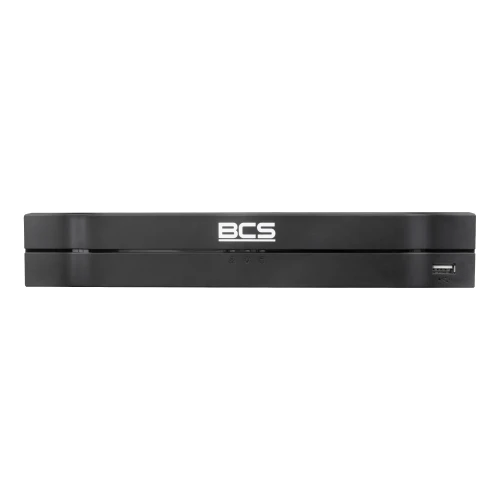

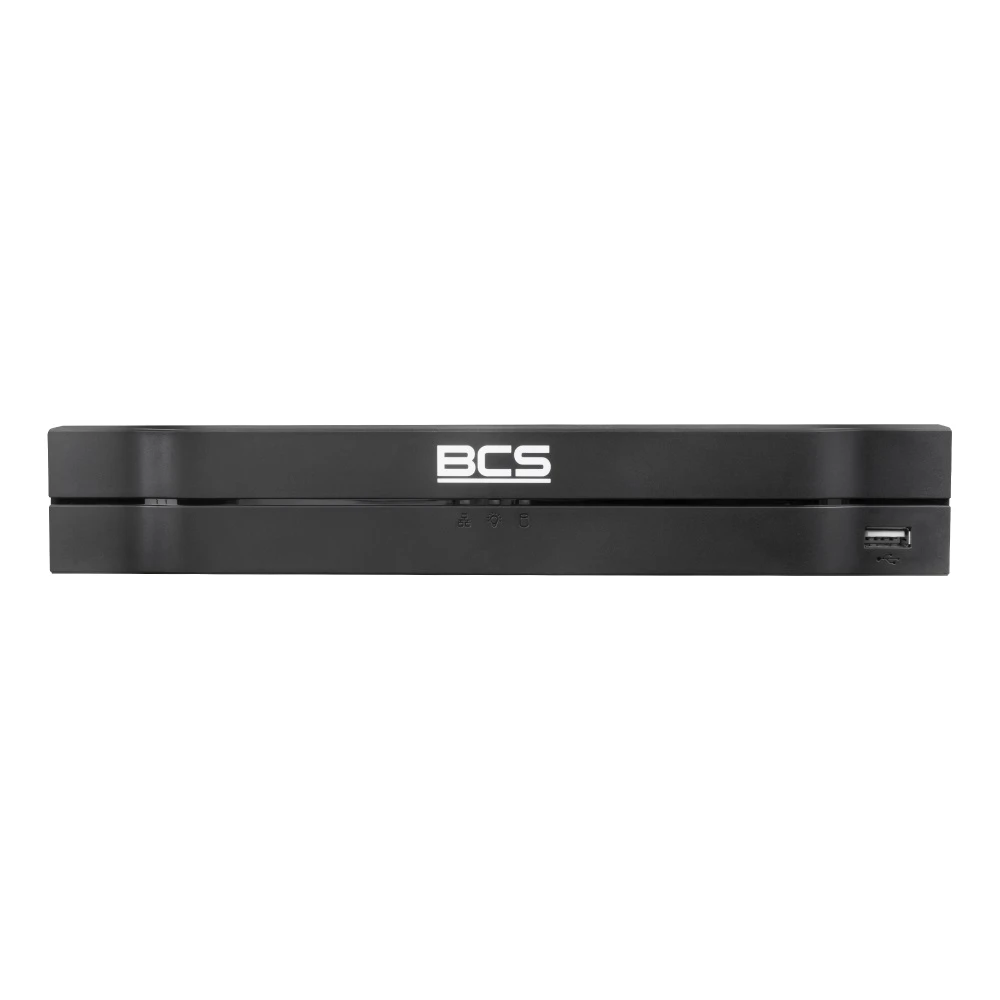

A sleek black 4-channel DVR with a minimalist design, featuring a USB port on the front panel. The device is branded with the BCS logo prominently displayed at the top center.

  • Manufacturer

    BCS Line

  • Product Code

    BCS-L-XVR0401(7)

  • Warranty

    36 miesięcy

  • Technology: AHD/HD-CVI/HD-TVI/IP
  • Number of channels: 4
  • Built-in POE switch: No

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Save -17%
  • Availability: in stock Shipping 24h

Price (Incl. VAT):

97,94 € 117,76 €

Add to Watchlist

Najniższy koszt dostawy: 12,98 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Here are the main features of the BCS-L-XVR0401(7):

  • Product line: BCS Line
  • Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG / IP
  • System: Analog HD + IP
  • Pentaplex function: live viewing / recording / playback / archiving / remote access
  • Channels: 4+2 (4 analog + 2 IP channels)
  • Disks: 1
  • Disk capacity: Maximum 16 TB
  • Maximum recording resolution: 5 Mpx
  • Input bandwidth: 32 Mbps
  • Camera support:
    • HD-CVI: 5M@20fps, 4M@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps
    • AHD: 5M@20fps, 4M@25/30fps, 1080p@25/30fps, 720p@25/30fps
    • HD-TVI: 5M@20fps, 4M@25/30fps, 1080p@25/30fps, 720p@25/30fps
    • Analog (CVBS): PAL/NTSC
    • IP: up to 6Mpx
  • Recording resolutions: 5M / 5M Lite / 4M Lite / 1080P / 1080N / 720P / 960H / D1 / CIF
  • Main stream:
    • 5M (6fps)
    • 5M Lite (12fps)
    • 4M Lite/1080P (15fps)
    • 1080N/720P/960H/D1/CIF (25/30fps)
  • Second stream: D1/CIF (15fps)
  • Bitrate: 32 Kbps~6144 Kbps
  • Video compression: H.265+ / H.265 / H.264+ / H.264 / Ai coding
  • HDMI output: Yes
  • VGA output: Yes
  • HDMI display resolution: 1920×1080 / 1280×1024 / 1280×720
  • VGA display resolution: 1920×1080 / 1280×1024 / 1280×720
  • Output split: 1/4 (1/4/6 IP)
  • Playback: 1/4 channels
  • Archiving: Possibility of ripping footage to external media such as USB FLASH, USB HDD
  • Users: Up to 128 users
  • Interfaces: 2×USB2.0
  • Serial port: RS485
  • Audio input: 1
  • Audio output: 1
  • Audio compression: G.711A / G.711U / PCM
  • Support: Local, Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App (iOS, Android)
  • Motion Detection: 396 zones (22×18)
  • Privacy Masks: 4
  • Network: RJ-45 (10/100 Mbps)
  • Compatibility: ONVIF
  • Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, Alarm Server, P2P, Auto Registration, IP Search
  • Power supply: 12V DC
  • Power consumption (without drives): 5W max.
  • Operating conditions: -10°C~+55°C, max 90% RH
  • Enclosure: Smart
  • Dimensions: 205×211×45mm
  • Weight (without drives): 0.5kg
  • POS: Yes
  • Ai - Built-in smart functions: Yes
  • Ai - Smart functions from DVR:
    • Perimeter protection (person/mechanical vehicle recognition)
    • Intelligent motion detection (person/mechanical vehicle recognition)
    • Face detection, face identification
  • Ai - Perimeter protection: 4 HD analog channels
  • Ai - Face detection: 1 HD analog channel, face attributes (gender, age, glasses, facial expression, mask, beard), max 8 images per second
  • Ai - Face identification: 1 HD analog channel, max 8 images per second, up to 10 face databases, 10,000 images
  • Ai - SMD: 4 channels analog HD
