HDCVI/AHD/CVBS/TVI/IP Digital Recorder BCS-L-XVR0801-4KE(5), Network

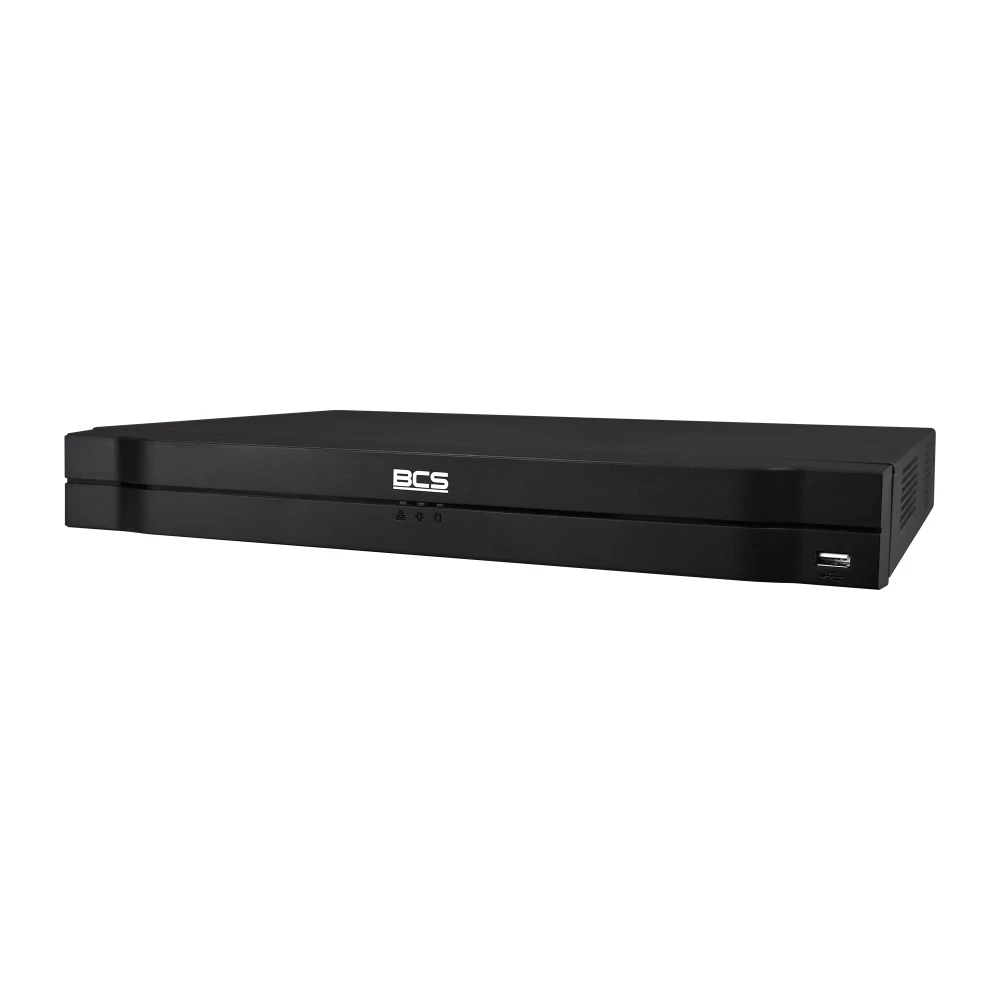

A sleek black digital video recorder with a minimalist design, featuring a USB port on the front panel. The device is branded with the BCS logo and has a compact, rectangular shape suitable for modern security setups.
A sleek black digital video recorder with a minimalist design, featuring a USB port on the front panel. The device is branded with the BCS logo, offering advanced video recording capabilities for security systems.

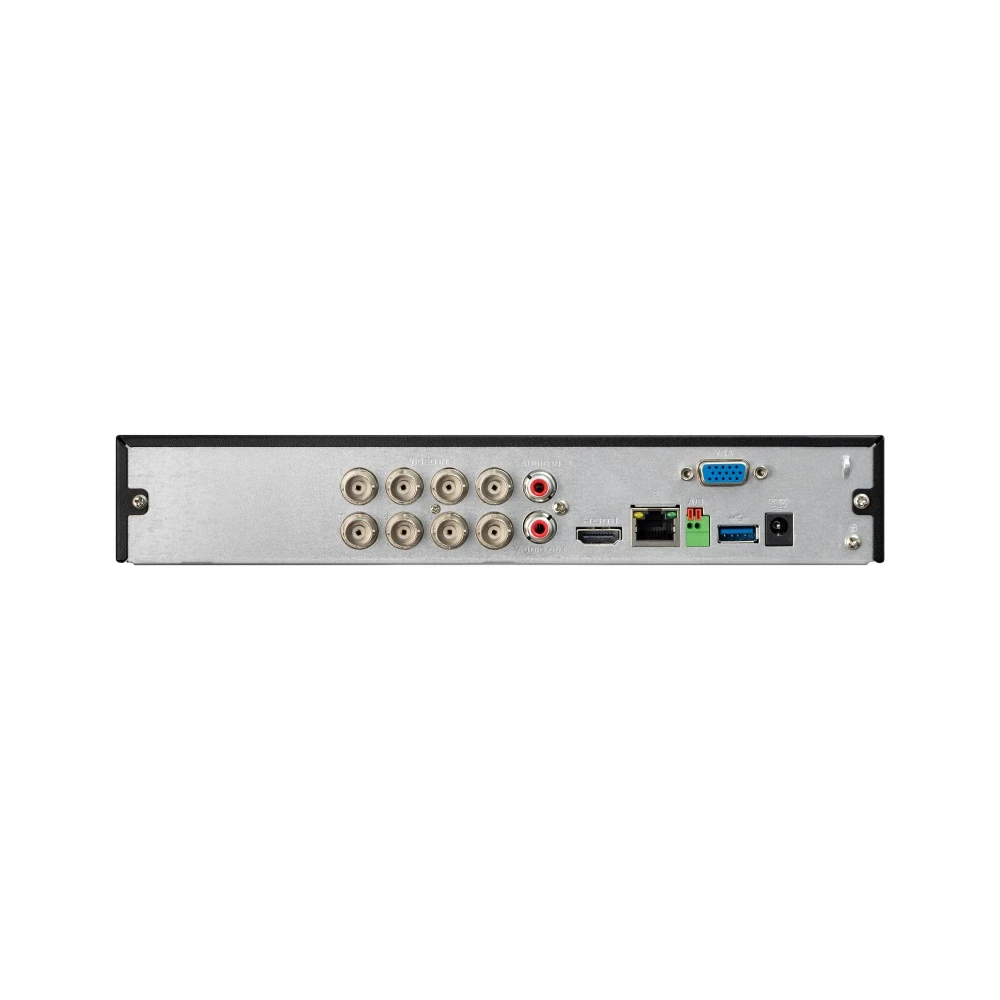

The image shows the back panel of a digital video recorder featuring multiple BNC ports, audio inputs, and various connectivity options including HDMI, VGA, and USB ports. The design is compact and functional, suitable for integrating into a security surveillance system.

  • Manufacturer

    BCS Line

  • Product Code

    BCS-L-XVR0801-4KE(5)

  • Warranty

    36 miesięcy

  • Technology: AHD/HD-CVI/HD-TVI/IP
  • Number of channels: 8
  • Built-in POE switch: No

see description

Ask about this product show form

Do you have questions? Looking for answers? Are you interested?

  • Call
  • 34 341 16 30
  • We advise Mon - Fri 8 00 am to 4 00 pm
  • or send a message using the form below

Copy the code from the picture

weryfikator

Close

  • Save -20%
  • Availability: in stock Shipping 24h

Price (Incl. VAT):

237,77 € 298,64 €

Add to Watchlist

Najniższy koszt dostawy: 20,68 zł

Do you represent a budgetary unit?
Check out the deferred payment option.

CA Raty

Product Description

Here are the main features of the BCS-L-XVR0801-4KE(5):

  • Product line: BCS Line
  • Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG / IP
  • System: Analog HD + IP
  • Pentaplex function: live viewing, recording, playback, archiving, remote access
  • Channels: 8+8 (8 analog + 8 IP)
  • Disks: 1 (max. capacity 16 TB)
  • Maximum recording resolution: 8 Mpx
  • Input/output/recording bandwidth: 128 Mbps
  • Supported HD-CVI cameras: 4K@25/30fps, 6MP@20fps, 5MP@20fps, 5MP@25fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps, 720p@50/60fps
  • Supported AHD cameras: 4K@15fps, 5MP@20fps, 4MP@25/30fps, 3MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
  • Supported HD-TVI cameras: 4K@15fps, 5MP@20fps, 4MP@25/30fps, 3MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
  • Analog cameras supported: CVBS PAL/NTSC
  • IP cameras: Support up to 8 Mpx (8 channels)
  • Recording resolutions: 8M, 6M, 5M, 4K Lite, 4M, 3M, 4M Lite, 1080P, 720P, 960H, D1, CIF
  • Main stream: 8M (7fps), 6M (10fps), 5M (12fps), 4K Lite/4M/3M (15fps), 4M Lite/1080P/720P/960H/D1/CIF (25/30fps)
  • Second stream: 960H (15fps), D1/CIF (25/30fps)
  • Bitrate: 32 Kbps ~ 6144 Kbps
  • Video compression: H.265+, H.265, H.264+, H.264, Ai coding
  • HDMI outputs: HDMI 4K
  • VGA output: VGA
  • HDMI display resolution: 3840×2160, 1920×1080, 1280×1024, 1280×720
  • VGA display resolution: 1920×1080, 1280×1024, 1280×720
  • Output split: 1/4/8/9 (1/4/8/9/16 IP)
  • Playback: 1/4/9
  • Archiving: Possibility to rip footage to external media like USB FLASH, USB HDD
  • Users: 128
  • Interfaces:
    • 1×USB2.0
    • 1×USB3.0
  • Serial port: RS485
  • Audio input/output: 1 input, 1 output
  • Audio compression: G.711A, G.711U, PCM
  • Motion detection: Zones: 396 (22×18)
  • Privacy masks: 4
  • Network: RJ-45 (10/100/1000 Mbps)
  • Compatibility: ONVIF
  • Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
  • Power supply: 12V DC
  • Power consumption (without drives): Max 10 W.
  • Operating conditions: -10°C ~ +55°C, max 90% RH
  • Enclosure: 1U
  • Dimensions: 260×235×47 mm
  • Weight (without drives): 1 kg
  • POE: Yes
  • Ai - Built-in smart functions: Yes
  • Ai - Smart functions from DVR:
    • Perimeter protection (person/vehicle recognition)
    • Intelligent motion detection (person/vehicle recognition)
    • Face detection
    • Face identification
  • Ai - Perimeter protection: 8 HD analog channels
  • Ai - Face detection: 2 channels analog HD, face attributes (gender, age, glasses, expression, mask, facial hair), max 12 images per second
  • Ai - Face identification: 2 channels analog HD, max 8 images per second, up to 10 face databases, 20,000 images
  • Ai - SMD: 8 channels analog HD
