128-channel IP Recorder AcuPick BCS-L-NVR12808XR-A-4K-AI(2) BCS Line

Here are the main features of the BCS-L-NVR12808XR-A-4K-AI(2) DVR:

General Features:

• Product line: BCS Line
• System: IP, industrial processor, Linux operating system
• Pentaplex function: live viewing, recording, playback, archiving, remote access
• Channels: 128
• Disks: 8 (capacity up to 20 TB each)
• RAID type: 0/1/5/6/10, with hot swap function
• Recording modes: Continuous, manual, alarm, motion detection, schedule, Ai
• Max recording resolution: 32 Mpx
• Input bandwidth: 512 Mbps (200 Mbps Ai)
• Output bandwidth: 512 Mbps (200 Mbps Ai)
• Recording bandwidth: 512 Mbps (200 Mbps Ai)
• Recording resolutions: 32M / 24M / 16M / 12M / 8M / 5M / 4M / 2M / 1.3M / 720P / D1 / CIF / QCIF
• Video compression: H.265+, H.265, H.264+, H.264, MJPEG
• Video outputs: 2× HDMI 4K, 2× VGA
• HDMI display resolutions: 3840×2160, 1920×1080, 1280×1024, 1280×720
• VGA display resolutions: 1920×1080, 1280×1024, 1280×720
• Output splits: 1/4/8/9/16/25/36/64
• Playback: 1/4/9/16 channels
• Archiving: Ripping footage to external media like USB FLASH, USB HDD
• User Support: Up to 128 users

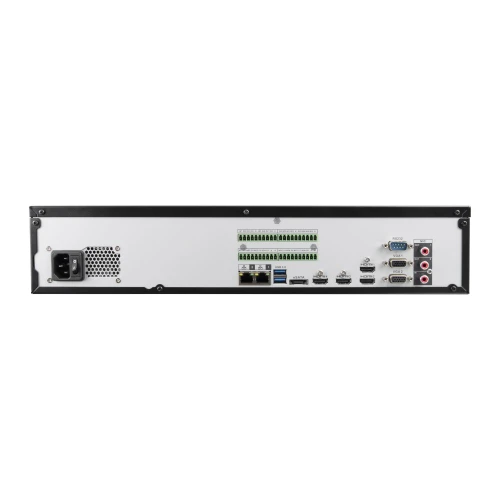

• Interfaces: 2× USB 2.0, 2× USB 3.0, eSATA, RS232, 2× RS485
• Audio: 1 input, 2 outputs, G.711A/U, G.726, PCM compression
• Alarm inputs/outputs: 16/8
• Power supply: 100~240V AC, power consumption up to 13W
• Operating conditions: -10°C~+55°C, humidity max 93%
• Dimensions: 444×476×95 mm
• Weight: 8.8 kg (without disks)

Intelligent functions (AI):

• Face detection: 8 channels from DVR (12 images/s), 32 channels from cameras, face attributes (gender, age, glasses, facial expression, mask, facial hair)
• Face identification: 16 detection channels from camera, identification from DVR (32 images/s), 32 identification channels, up to 20 face databases, up to 200K images, up to 44GB
• Perimeter protection: 24 channels from DVR, 32 channels from cameras (person/motor vehicle recognition)
• Metadata: Person attributes (clothing color, clothing type, headgear, bag, age, gender), vehicle attributes (license plate, plate color, vehicle type, logo, phone, number of people, helmet)
• SMD Plus: 32 channels from DVR and 32 from cameras, crowd detection, people counting, traffic analysis, heat map
• ARTR: 32 channels, black and white list (up to 20,000 items)

This DVR model offers advanced image analysis and support for a large number of cameras and channels, making it ideal for extensive surveillance systems.
