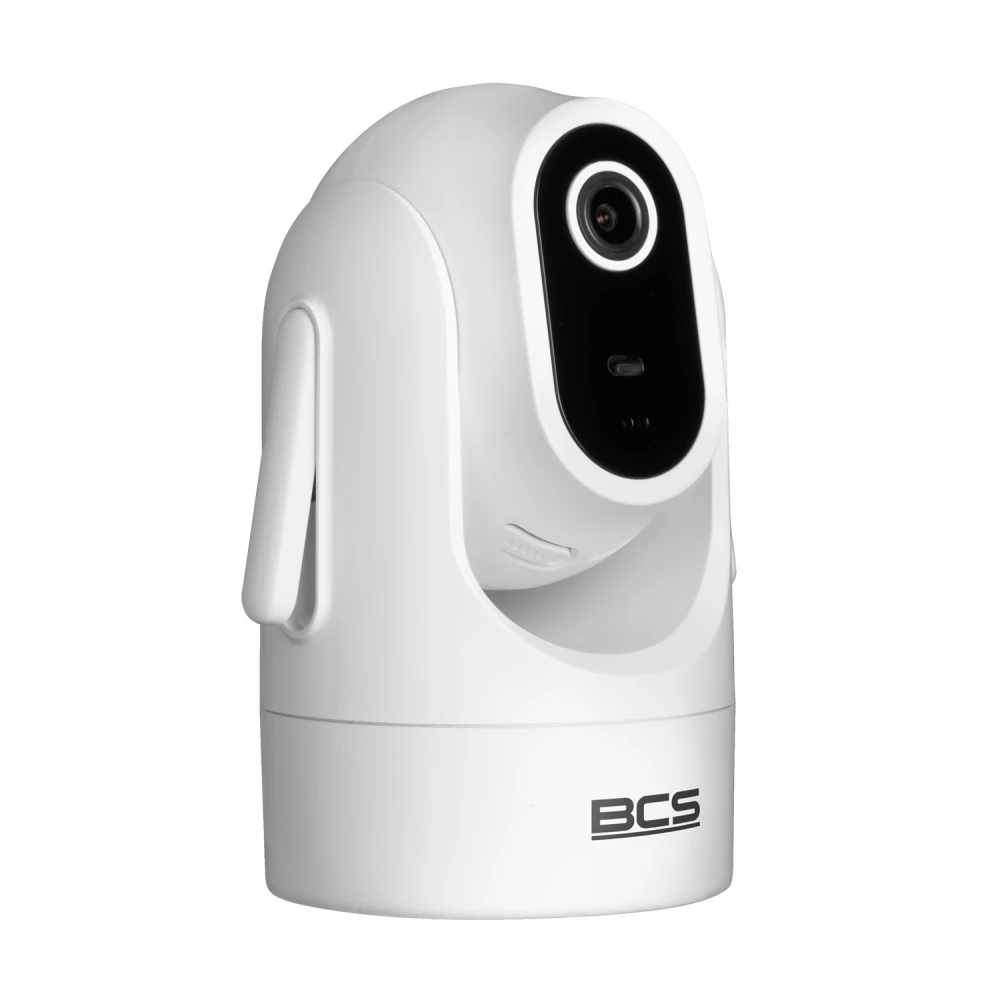

Internal Wi-Fi Rotating Camera 4Mpx BCS-L-PTHOME03, tracking and AI features (human recognition)

Here are the main features of the BCS-L-PTHOME03 camera:

General features:

• Product line: BCS Line
• Camera type: HOME
• Resolution: 4 Mpx (2560 × 1440)
• Sensor: 1/2.8'' CMOS
• Pixels: 2560 (H) × 1440 (V)
• Lens: Fixed
• Focal length: 4 mm
• Aperture: F1.6
• Focus: Fixed
• Iris: Fixed

Viewing Angle:

• H: 80.3°
• V: 43.2°
• D: 94.3°

Image Technology:

• White balance: Auto
• WDR: DWDR
• Shutter: Auto / manual 1/3 ~ 1/100000s
• Image rotation: Flip 180°

Streams and resolutions:

• Number of streams: 2
• Main stream: 2560 × 1440 @125/30fps, 1920 × 1080 @ 125/30fps, 1280 × 960 @125/30fps, 1280 × 720 @ 125/30fps
• Second Stream: (704 × 576) / (704 × 480) @125/30fps, (352 × 288) / (352 × 240) @ 125/30fps
• Bitrate: H.264: 2568192kbps, H.265: 1448192kbps
• Video compression: H.265 / H.265+ / H.264+ / H.264 / MJPEG

Day/Night:

• ICR: Mechanical infrared filter
• Illuminator type: IR LED
• Illuminator range: 15 m

Audio:

• Microphone: Yes
• Speaker: Yes
• Audio compression: PCM / G.711A / G.711Mu / G.726 / MPEG2-Layer2 / G722.1

Additional interfaces:

• Memory card slot: microSD 512 GB
• USB-C: Yes

Support:

• Mobile App: Mobile App (iOS, Android)
• Motion detection: Yes

Networking:

• Network port: RJ-45 10/100 Mbps
• Wi-Fi: IEEE802.11b/g/n 2.4GHz

Power supply:

• Power supply type: 5V DC
• Power consumption: 5W max

Housing:

• Color: White
• Dimensions: Ø95.5 mm × 130.4 mm
• Weight: 0.25 kg
• Operating conditions: -10°C ~ +40°C, max 95% RH

Range of motion:

• PAN: 0° ~ 325°
• TILT: -20° ~ 100°
• Auto tracking: Yes

AI functions:

• Built-in intelligent functions: Human detection, reducing false alarms

Accessories included:

• Power adapter
