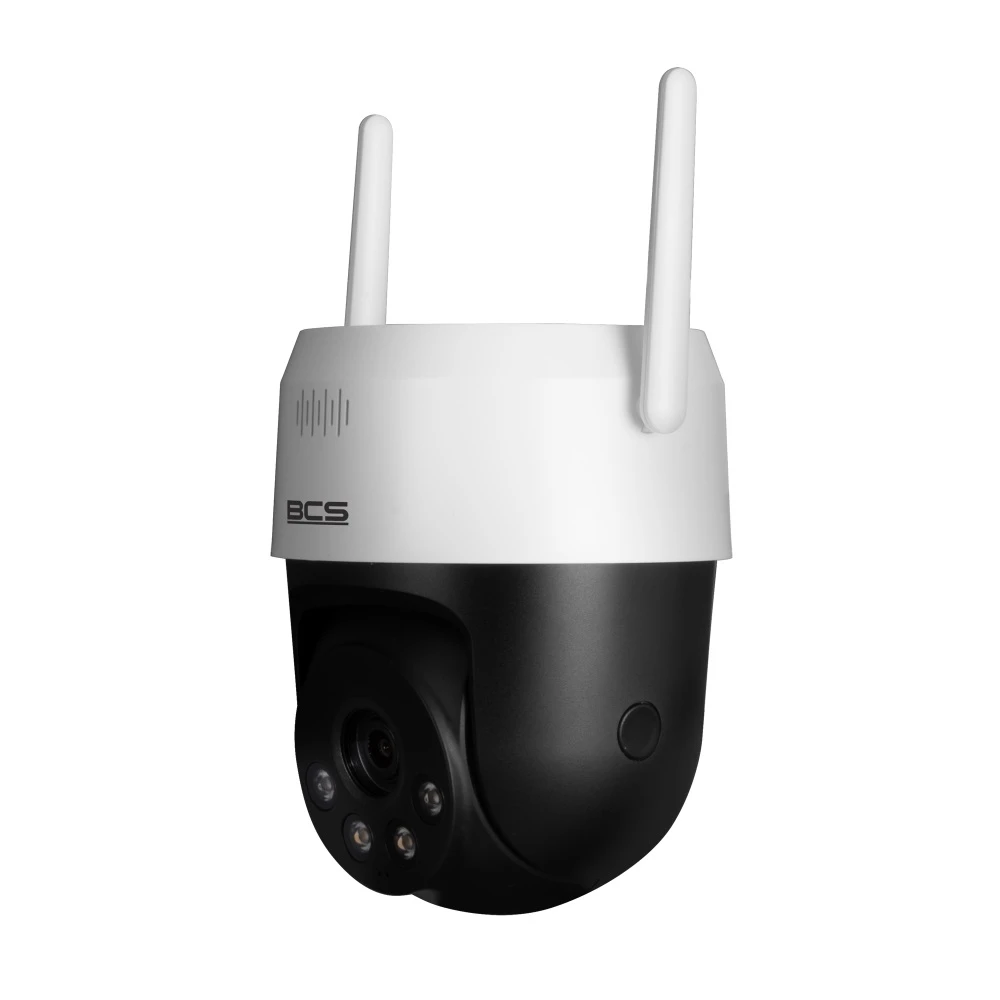

Wi-Fi Rotating Camera 5Mpx BCS-L-PTHOME04, active deterrence and tracking functions

Here are the main features of the BCS-L-PTHOME04 camera:

General features:

• Product line: BCS Line
• Camera type: HOME
• Resolution: 5 Mpx (2560 × 1920)
• Sensor: 1/2.8'' CMOS
• Pixels: 2560 (H) × 1920 (V)
• Lens: Fixed
• Focal length: 4 mm
• Aperture: F1.6
• Focus: Fixed
• Iris: Fixed

Viewing Angle:

• H: 80.4°
• V: 58.1°
• D: 104.8°

Image Technology:

• White balance: Auto
• WDR: DWDR
• Shutter: Auto / manual 1~1/100000s
• Image rotation: Flip 180°

Streams and resolutions:

• Number of streams: 2
• Main stream: 2560 × 1920 @125/30fps, 2560 × 1440 @ 125/30fps, 2304 × 1296 @ 125/30fps,1920 × 1080 @ 125/30fps, 1280 × 720 @ 1~25/30fps
• Second Stream: (704 × 576) / (704 × 480) @ 125/30fps, (640 × 480) @ 125/30fps, (352 × 288) / (352 × 240) @ 1~25/30fps
• Bitrate: H.264: 1048192kbps, H.265: 418192kbps
• Video compression: H.265 / H.265+ / H.264+ / H.264 / MJPEG

Day/Night:

• ICR: Mechanical infrared filter
• Illuminator type: IR LED + White Light
• Illuminator range: 30 m

Audio:

• Microphone: Yes
• Speaker: Yes
• ADC active deterrence function: Optical/sound alarm
• Audio compression: PCM / G.711a / G.711Mu / G.726

Storage:

• FTP: Yes
• Memory card slot: microSD up to 256 GB

Support:

• Mobile App: Mobile App (iOS, Android)
• Motion detection: Yes

Networking:

• Network port: RJ-45 10/100 Mbps
• Wi-Fi: IEEE802.11b/g/n 2.4GHz

Power supply:

• Power supply type: 12V DC 1A
• Protection class: IP66

Housing:

• Color: White
• Dimensions: Ø111 mm × 140.5 mm
• Weight: 1 kg
• Operating conditions: -30°C ~ +55°C, max 95% RH

Range of motion:

• PAN: 0° ~ 345°
• TILT: 0° ~ 80°
• Auto tracking: Yes
• Automation functions: 300 presets

AI functions:

• Built-in intelligent functions: Human and motor vehicle detection to reduce false alarms
• Ai - Perimeter protection: Area intrusion, line crossing
• Ai - SMD: SMD 3.0

Accessories included:

• Power supply

Active deterrence

With built-in audible alarms, light signals and intelligent features, the camera reacts immediately when suspicious activity is detected. When an intruder enters the device's field of view, he or she is alerted by a loud alarm signal or flashing light, effectively deterring him or her from further action.

Automatic day/night mode with hybrid illumination Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the vision mode automatically based on the amount of light reaching the lens. The user can also select other lighting modes: LED (white light only for color images at night), IR (infrared only), or turn off the illuminator completely. The illuminator mode can be easily configured in the camera's menu, which can be accessed via a web browser.

Capture the widest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The BCS-L-PTHOME04 camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The BCS-L-PTHOME04 records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

MicroSD card slot The BCS-L-PTHOME04 camera has a built-in microSD card slot that allows you to locally store video recordings on media with a capacity of up to 256GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design This housing protects the BCS-L-PTHOME04 camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a more complete picture of the situation

The BCS-L-PTHOME04 camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Have continuous access to your cameras BCS is a quick and easy way to operate your property's surveillance system, thanks to it you will be able to: ✅Access video previews and play back recorded footage ✅Save parts of the video to your smartphone memory ✅Configure time frames for motion detection ✅Receive notifications from motion detection or other events ✅Share your devices with other smartphones with the mobile app, such as family members or employees

People detection Motion detection with human silhouette recognition on BCS-L-PTHOME04 cameras is an advanced feature that allows you to increase the precision and efficiency of your surveillance systems. It allows the camera to classify notifications according to the type of silhouette detected.

Technical specifications:
