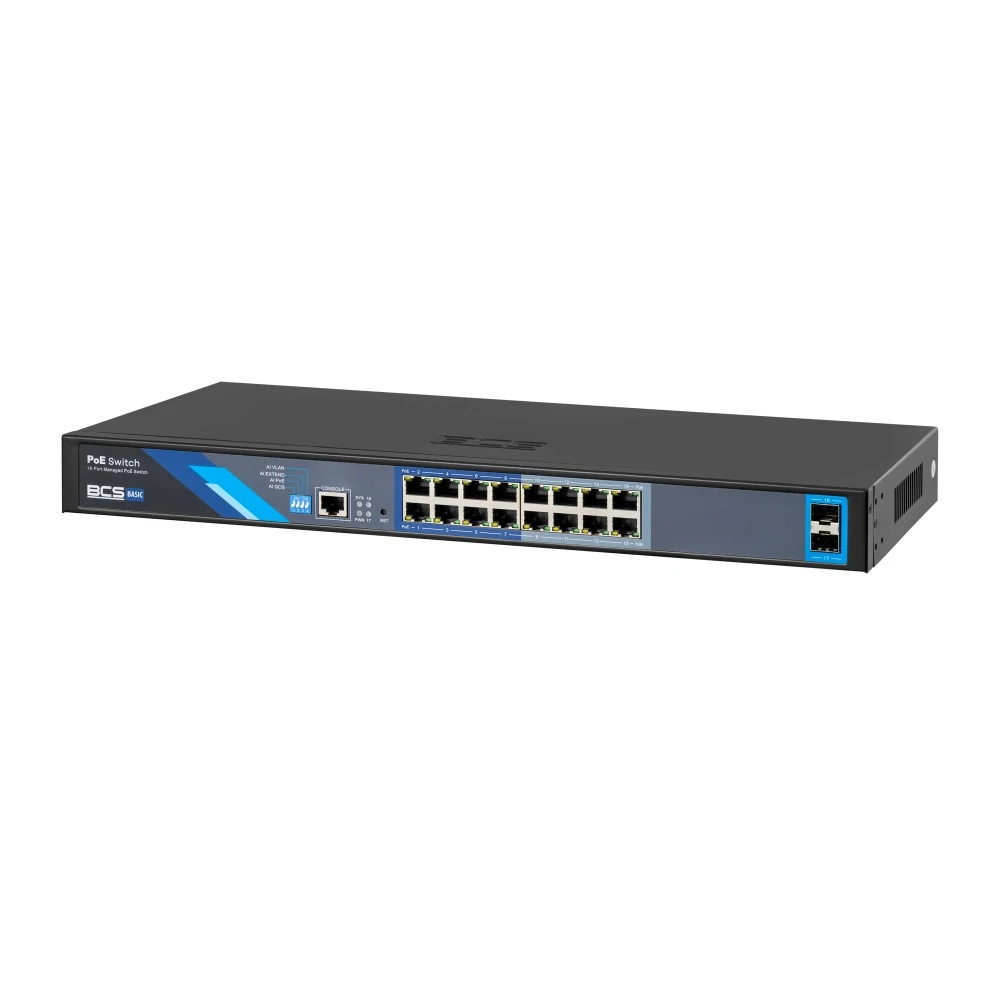

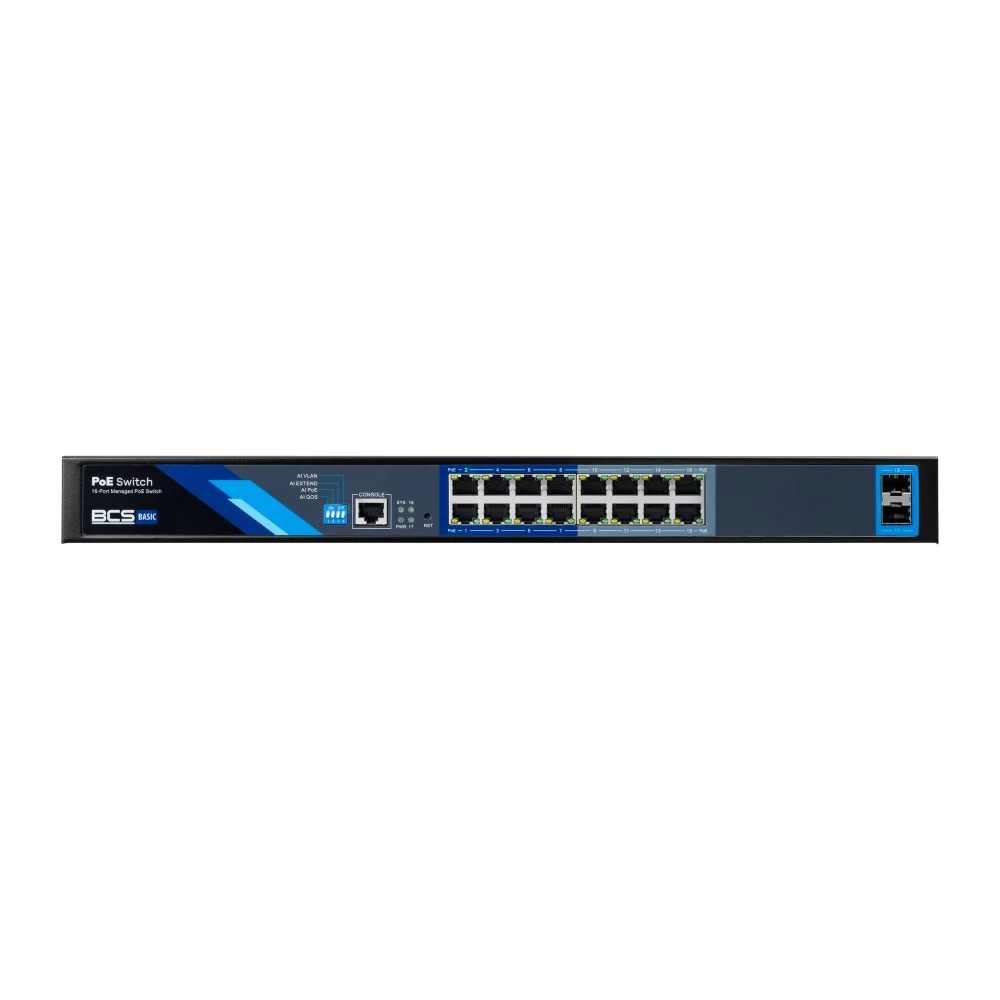

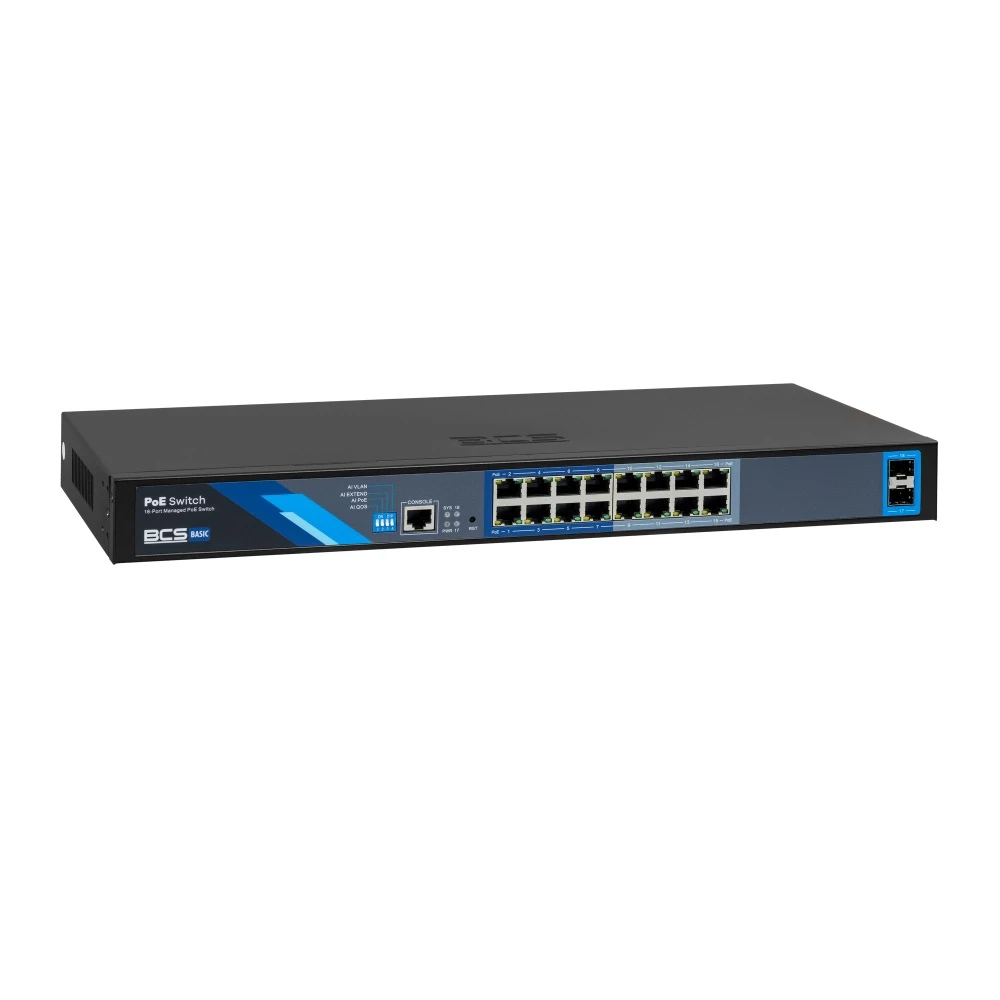

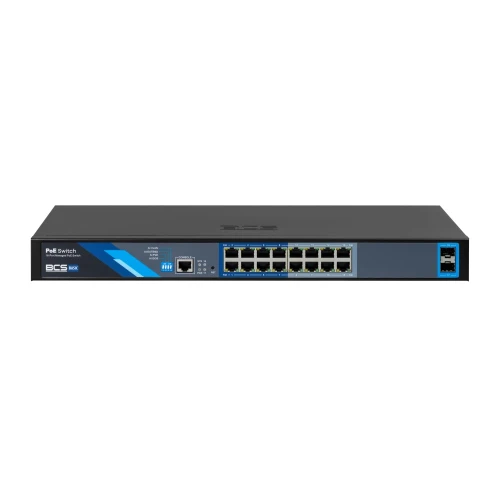

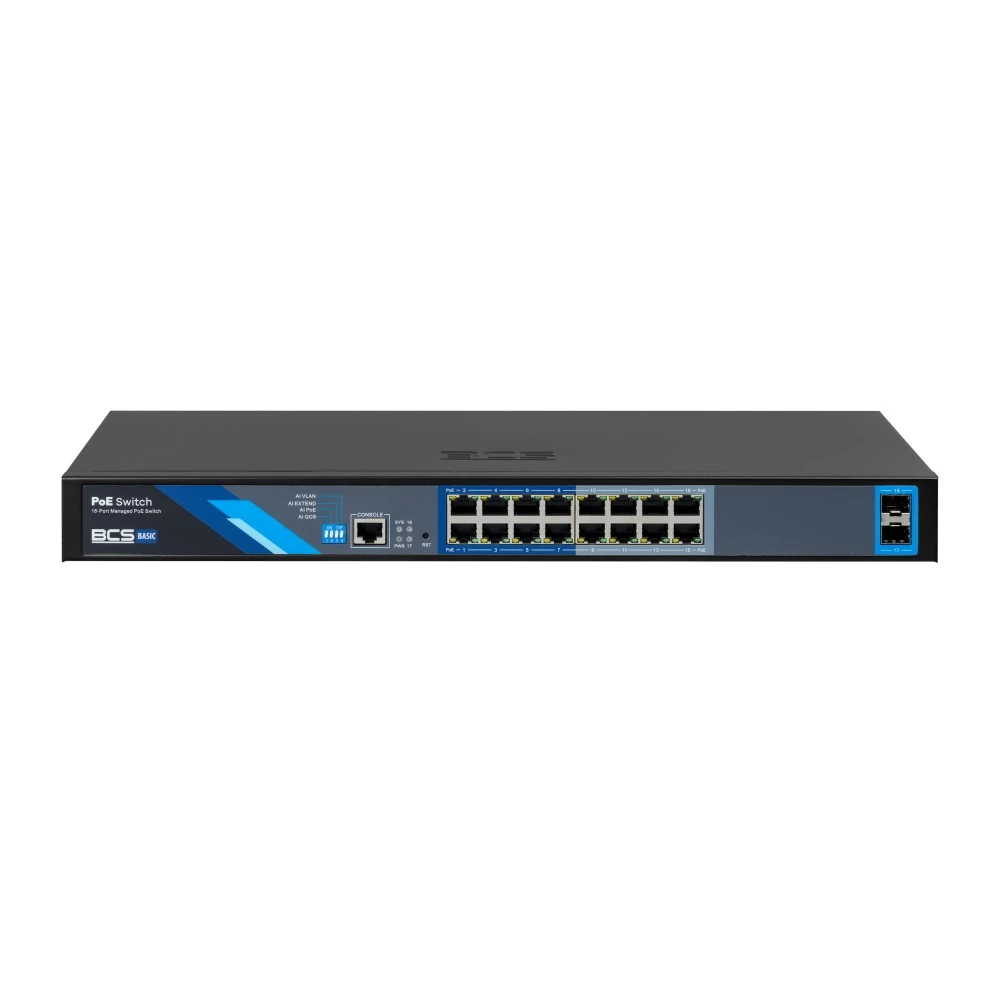

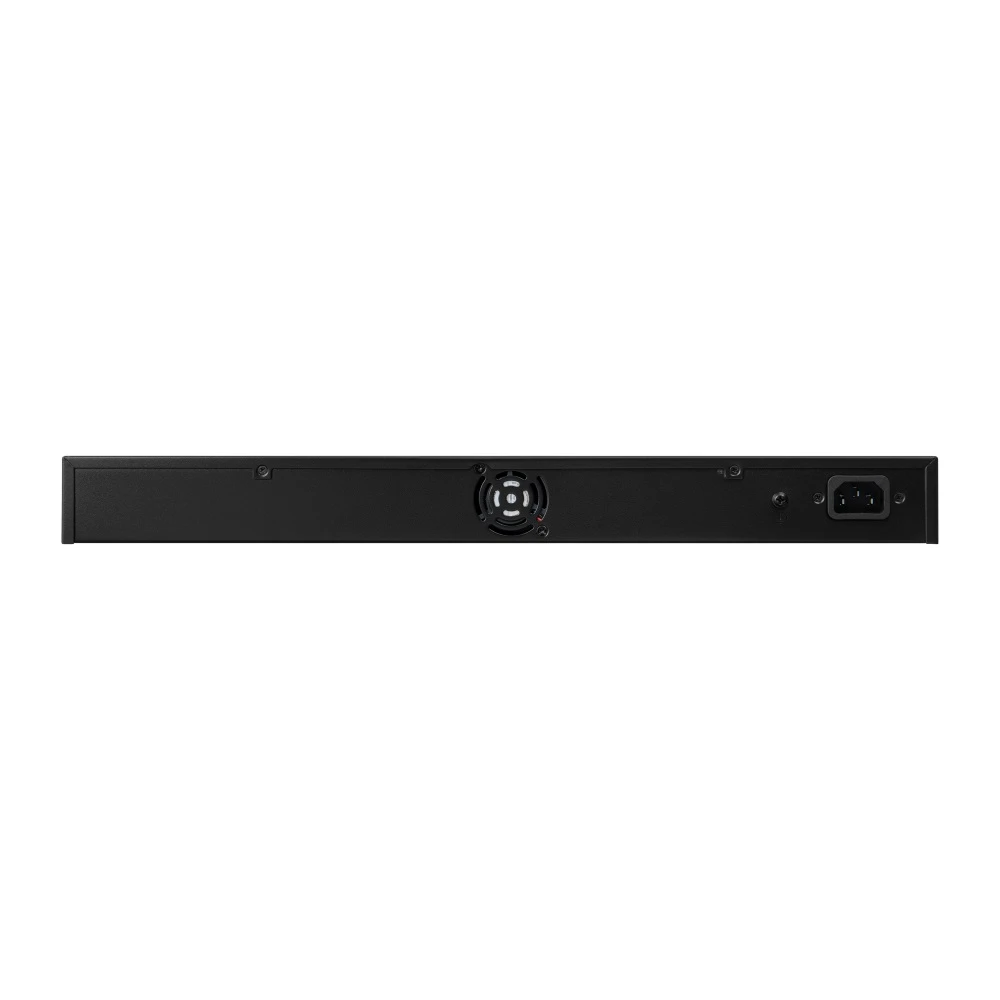

16-port managed PoE switch BCS-B-SP16G-2SFP-M

Here are the main features of the BCS-B-SP16G-2SFP-M device:

• Device name: BCS-B-SP16G-2SFP-M
• Product line: BCS Basic
• PoE ports: 16×RJ45 1Gbps
• Uplink ports: 2×SFP 1Gbps
• Managed switch: Yes
• Management port: 1×RJ45
• Management features:
  • Port configuration
  • Storm control
  • Energy efficiency
  • PoE power management
  • Timing control
  • PoE AI
  • Layer 2 switching
  • MAC management
  • VLAN configuration
  • Link aggregation
  • MSTP
  • Loop protection
  • DHCP snooping
  • IGMP snooping
  • 802.1x
  • QoS
  • ACL
  • SNMP, RMON
  • LLDP
  • NTP synchronization
  • Anti-attack features
  • System management, user access
  • Configuration management
  • Firmware upgrade
  • Diagnostics
• Standard: IEEE 802.3af / 802.3at
• Transfer: 10/100/1000Mbps, half-duplex, full-duplex, auto-negotiation, auto MDI/MDIX
• Packet transfer: 23.8 Mpps
• Throughput: 36 Gbps
• STANDARD mode: 100 m
• VLAN mode: Ports 1-16 are isolated from each other
• EXTEND mode: Ports 1-8 support transmission up to 250 m (10 Mbps on cat5e, cat6 cables)
• QoS mode: Quality of Service - prioritization of video packets
• PoE mode: PoE port monitoring and automatic restart when an unresponsive device is detected
• PoE pin: 1,2(+), 3,6(-)
• LED status:
  • PWR (red, solid): connected power supply
  • LINK/ACT (green): connected device
  • PoE (yellow): PoE-powered device
  • SYS (green flashing): system is working properly
• PoE switch power: 150W, max. 46W per port
• Power supply: 100~240V AC
• Operating conditions: 0°C ~ +40°C, max 90% humidity
• Weight: 2 kg
• Enclosure: 1U
• Dimensions (W×D×H): 440×180×44 mm
