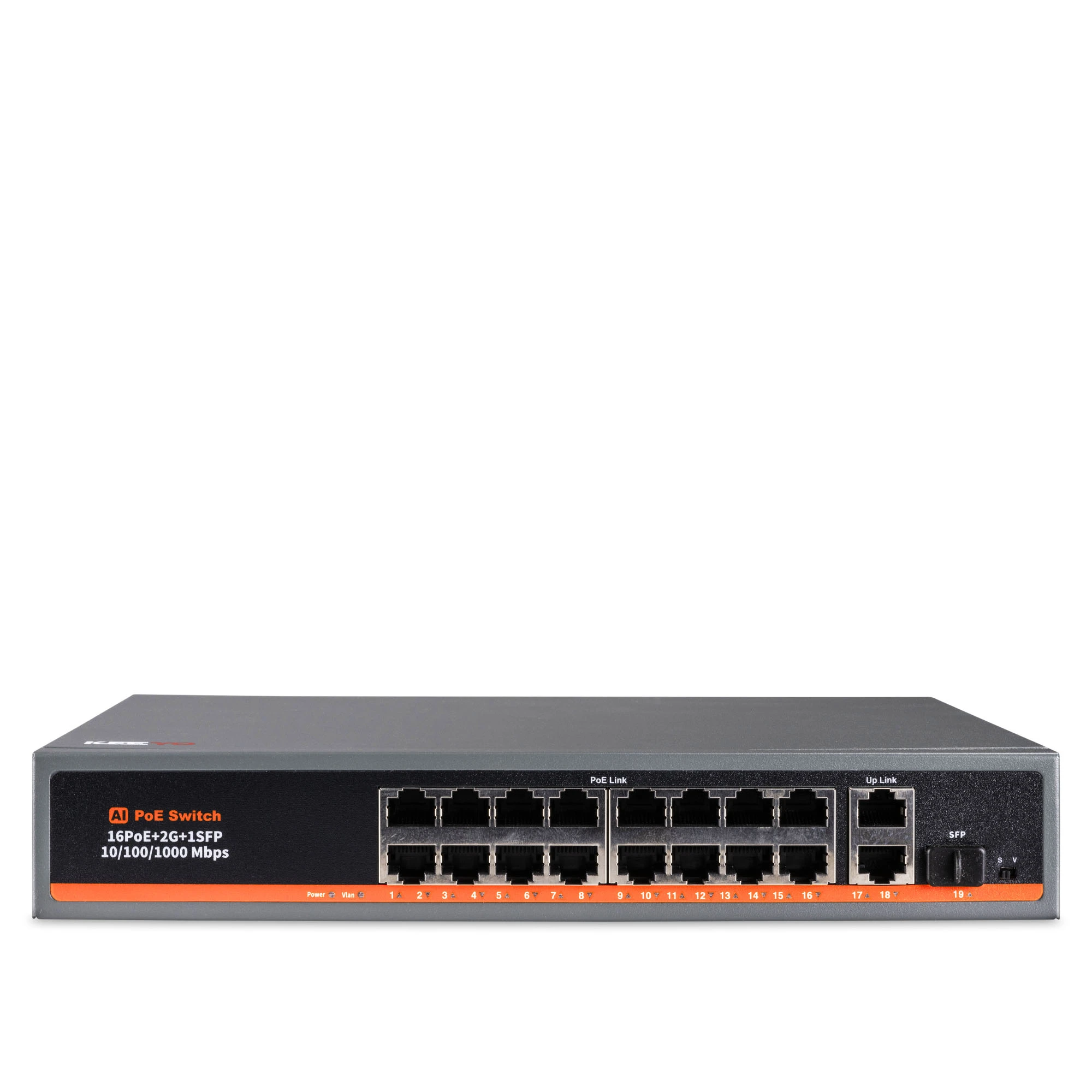

KEEYO LV-V-SP162 PoE Switch 16x PoE 2x Uplink
Photo gallery
Product Description
LV-V-SP162 16-port switch for 16 IP cameras with PoE.
Main features:
- Application: The LV-V-SP162 is an 18-port PoE switch designed to power IP cameras operating under the IEEE 802.3af/at standard. The switch on ports 1 to 16 has the function of automatic detection of PoE-powered devices.
- Number of ports: 18 ports (4xPoE + 2xUPLINK).
- PoE power supply: 16 10/100 Mbps ports - IEEE 802.3af, IEEE 802.3at
- UPLINK ports: 2 10/100 Mbps ports - for connecting DVR / switch / computer
- All ports provide 4 kV surge protection
- Power supply: AC100V~240V
Technical specifications:
| Model | LV-V-SP162 |
|---|---|
| Power | |
| Power supply voltage | Input: 110-240V/AC 50-60Hz |
| Maximum power supply for the device | 120W (52V 2.3A) |
| Network interfaces | |
| Network ports | 16*10/100Mbps POE ports 2*10/100/1000Mbps uplink ports |
| Transmission distance | Extend mode OFF by default, status(14 port): 100m Extension mode ON, state(14 port): 250m WAN1/2 port: 100m |
| Transmission medium | Standard Cat5/5e/6 network cable |
| Network | |
| Network standard | IEEE802.3/10BASE-T Ethernet, IEEE802.3u/100BASE-TX Ethernet, IEEE802.3x Flow Control, IEEE802.3af, IEEE802.3at |
| Forward mode | Store and forward (buffering and transfer) |
| Forward speed | 100Mbps: 14,880 pps, 1000Mbps: 1,488,000 pps |
| Network medium | 10/100BASE-TX: Class 5 and above and unshielded twisted pair |
| MAC address list | 2K |
| Backplane throughput | 10Gbps |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| Power Over Ethernet | |
| PoE power type | End-Span (1/2+,3/6-) |
| PoE power consumption | af, at (adaptive for each port) |
| Port features | Power priority mechanism, fast forwarding, automatic learning and aging of MAC addresses IEEE802.3x Full-duplex and half-duplex mode with flow control |
| Indicators | |
| LED | LINK/ACT.100Mbps; POE status indicator; power indicator; Extender mode indicator |
| Environmental conditions | |
| Operating temperature | -10°C~55°C |
| Storage temperature | -40°C~85°C |
| Humidity | 5%-90%, non-condensing |
| General | |
| Dimensions (L x W x H). | 270*180*44 (mm) |
| Weight | 1.2 kg |
