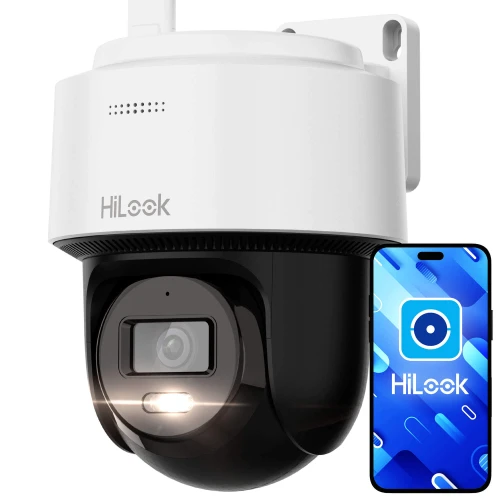

Wi-Fi Camera WIFICAM-PT4 EasyLink HiLook by Hikvision

The WIFICAM-PT4 also comes with useful instructions and mounting accessories to speed up the entire camera mounting process.

✅ 4Mpx ✅ Hybrid Light ✅ Microphone ✅ Silhouette detection ✅ PTZ

WIFICAM-PT4 is a high quality 4Mpx camera that is best suited for small or medium sized properties like home, store or small business. With a 30m IR illuminator, it won't let you down after dark either, and the Hybrid Light system, will additionally allow you to get color images at night, thanks to white light. It can be used both indoors and outdoors.

The camera is designed to work with the WIFIKIT-xx set. It requires connection to NVS DVR for operation.

Features of the WIFICAM-PT4 HiLook by Hikvision camera:

• ✅ High-quality recording with 4 Mpx resolution.
• ✅ Wide 94° diagonal viewing angle
• ✅ Pan-tilt camera with remote control in mobile app

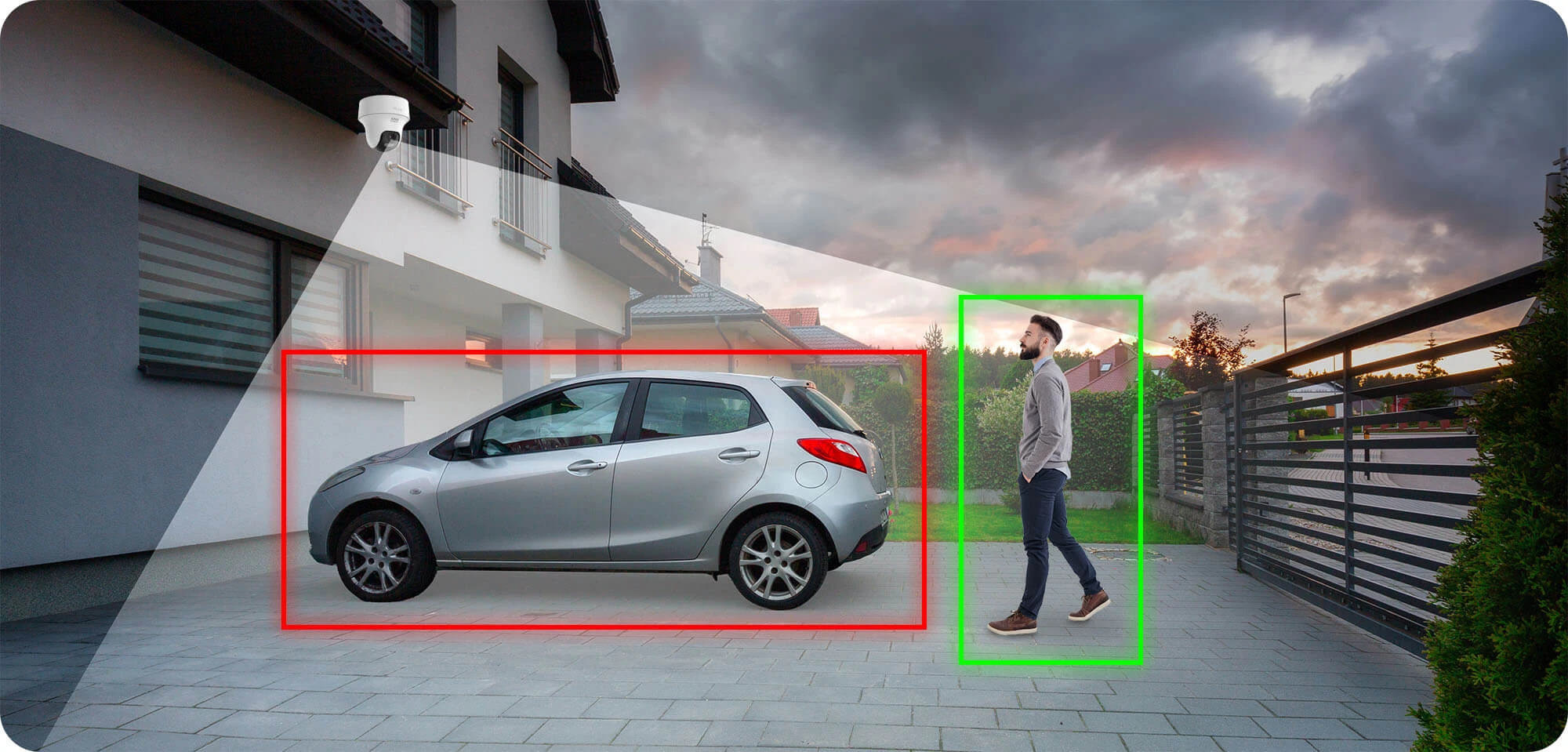

• ✅ Support for human and vehicle detection
• ✅ Hybrid Light with a range of up to 15 meters
• ✅ Built-in speaker and microphone with support for two-way audio communication
• ✅ Video compression: H.265+/H.264+/H.265/H.264
• ✅ Lens: 2.8mm

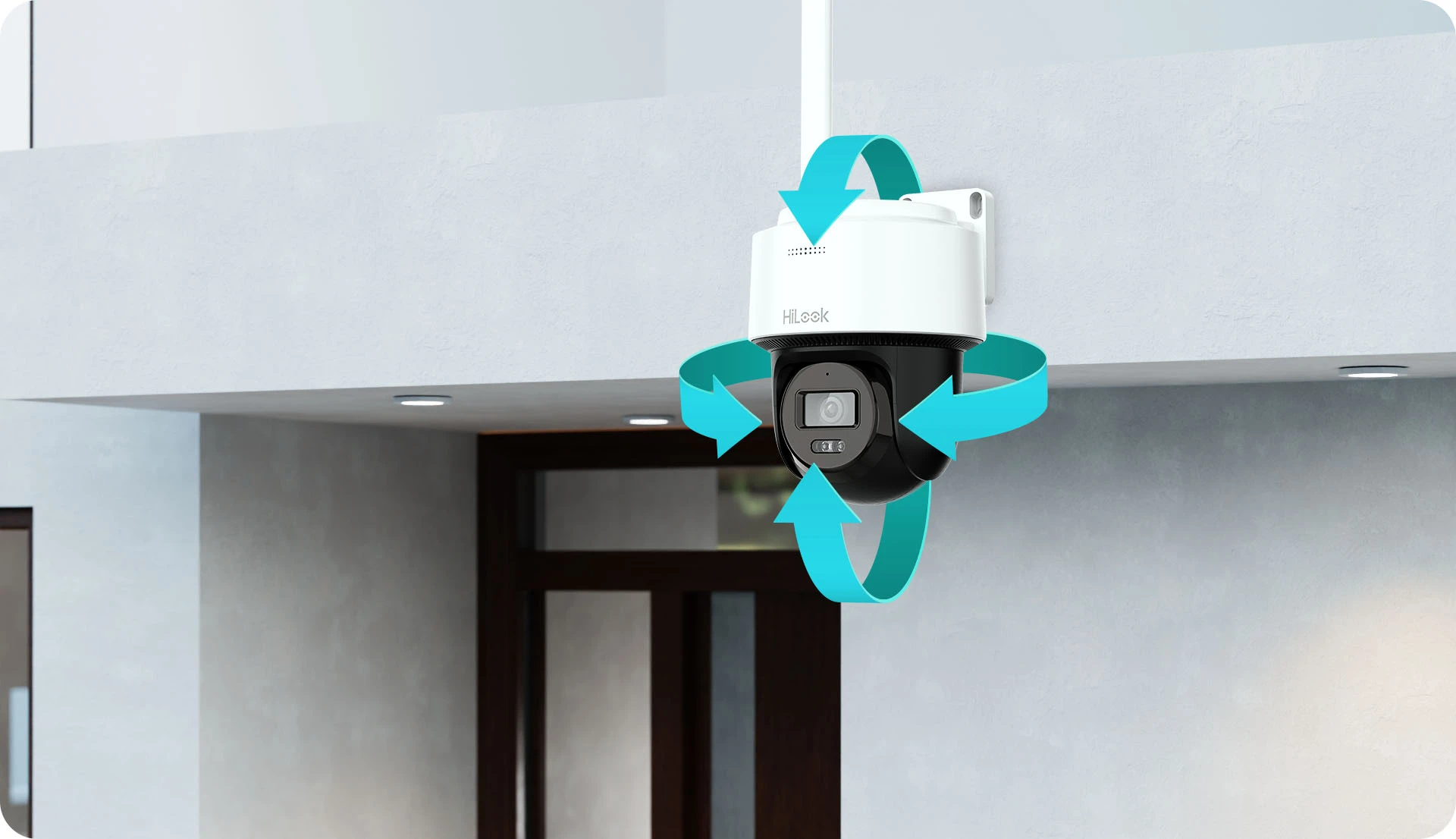

Pan-Tilt-Zoom

A PTZ (Pan-Tilt-Zoom) camera is a type of surveillance camera that allows the operator to remotely control the direction (pan and tilt) and zoom (zoom in and out) of the image. With these functions, the PTZ camera can track moving objects, cover wide areas and adapt to detailed observation needs, making it an ideal tool for dynamic surveillance applications.

Remote access from desktops and smartphones The mobile app is a quick and easy way to operate your property's surveillance system, allowing you to:   ✅Access the video preview and play back the recorded footage ✅Save parts of the video to your smartphone memory ✅Configure time frames for motion detection ✅Receive notifications from motion detection or other events ✅Share your devices with other smartphones with the mobile app, such as family members or employees

Technical specifications:

Camera	WIFICAM-T4
Camera
Image sensor	1/2.7" CMOS with progressive scan
Max. resolution	2560 × 1440
Min. illumination	Color: 0.01 lux at (F2.0, AGC ON), B/W: 0.005 lux at (F2.0, AGC ON), 0 lux with infrared lens
Lens
Focal Length	2.8mm
FOV	Horizontal field of view 79°, vertical field of view 40°, diagonal field of view 94°
Aperture	F1.6
Supplemental illumination
Supplementary light type	Infrared, white light
Range of supplementary light	IR distance: up to 20m, white light distance: up to 15m
IR wavelength	850 nm
PTZ
Range of motion (pan)	0° to 350°
Range of motion (tilt)	0° to 75°
Speed of rotation	Up to 20°/s
Tilt speed	Up to 10°/sec
Video
Main stream	50 Hz：20 fps（2560 × 1440，1920 × 1080，1280 × 720) 60 Hz：20 fps（2560 × 1440，1920 × 1080，1280 × 720）
Sub-stream	50 Hz：20 fps（768 × 432） 60 Hz：20 fps（768 × 432）
Video compression	H.265, H.264, MJPEG
Video bit rate	32 Kbps to 8 Mbps
H.264 type	Basic profile/main profile/high profile
Type H.265	Main profile
Audio
Audio compression	G.711ulaw/AAC-LC
Audio bit rate	AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps; G.711ulaw: 64 Kbps.
Audio sampling frequency	8 kHz/16 kHz
Ambient noise filtering	Yes
Networking
Protocols	IPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, Hik-Connect
Wi-Fi
Wi-Fi protocols	IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
Frequency range	2.4 GHz to 2.4835 GHz
Channel bandwidth	20/40 MHz
Wireless range	Up to 80 m (performance depends on actual environment)
User/Host	Up to 32 users. 3 levels: Administrator, Operator and User
Security	Password protection, complex password, watermark, basic and shortcut authentication for HTTP, WSSE and shortcut authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Image settings	Saturation, brightness, contrast and sharpness adjustable by client software or web browser
Wide dynamic range (WDR)	Digital WDR
Image enhancement	BLC, HLC, 3D DNR
Privacy mask	4 programmable rectangular privacy masks
Interfaces
Ethernet interface	1 self-adaptive RJ45 10M/100M Ethernet port
Built-in microphone	1 built-in microphone
Built-in storage	no
Built-in speaker	1 built-in speaker
Event
Basic event	Motion detection (support for alarm triggering by specific types of targets (people and vehicles)), video tamper alarm, exception
Linking	Monitoring center notification, emailing, recording trigger （-F）, capture trigger, audio warning
General
Power supply	12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, power adapter included
Dimensions	Ø124 mm × 119 mm (Ø4.89" × 4.68")
Weight	Weight: approximately 290 g (0.6 lbs) Weight with packaging: approximately 390 g (0.8 lbs)
Material	Plastic
Operating conditions	-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General functions	Heartbeat, anti-banding, mirror, password protection, password reset via email
