16x IPCAM-B4-50IR IR 50m 4MP Surveillance Kit HiLook by Hikvision

Our kits are carefully selected devices that guarantee full compatibility and efficiency. You will find all the necessary components and accessories that will allow you to immediately start installing and configuring your equipment.

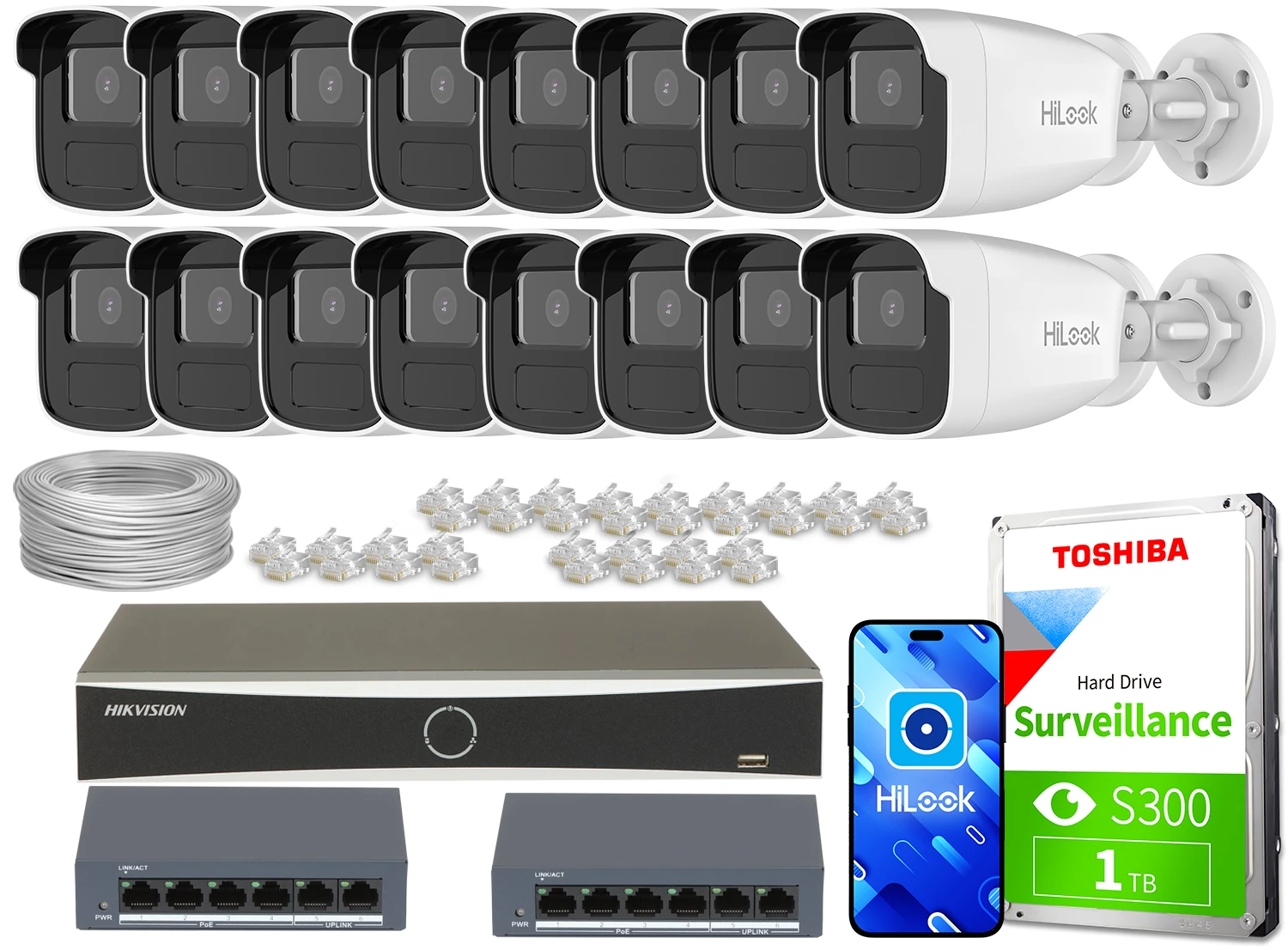

The kit includes:

• DS-7616NXI-K1(D) DVR ( 1pc ).
• HiLook IPCAM-B4-50IR camera ( 16pcs ).
• 8 port PoE switch ( 2pcs ).
• Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
• UTP cable ( 80m )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of signal and power connectors

Main features:

• Branded by Hikvision - Leader in the market of video surveillance systems
• A complete monitor kit with 16 cameras, DVR and all necessary accessories.
• High image quality 2560 × 1440 pixels (4Mpx)
• Viewing angle of cameras: 98° horizontally, 114° diagonally
• Outdoor/indoor mountable camera
• Enhanced recording performance with H.265+ codec
• Infrared light range up to 50m
• Cameras meeting IP67 waterproof rating
• 120dB hardware WDR
• 1TB hard drive dedicated for video surveillance systems
• Possibility of remote monitoring via web browser, PC application and mobile device application.
• P2P (cloud) support - a feature that allows remote access without port forwarding and public IP address

Remote access from phone and desktop computer Hikvision systems allow you to configure, control and view using Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access video preview and play back the recorded footage Save fragments of the video to your smartphone memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees Hik-Connect - Free app for iOS and Android smartphones iVMS-4200 - Free desktop app

P2P function

In surveillance cameras is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) function in surveillance cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

Main features of DS-7616NXI-K1(D) DVR:

• Supports 16 IP cameras
• Maximum supported resolution of 12Mpx (4000x3000)
• Efficient H.265+ video encoding
• Maximum HDD capacity - 10TB
• Network interface 1x Ethernet 10/100/1000Mbps
• AI functions: perimeter protection (1 channel), Face detection and analysis (1 channel), Motion detection 2.0 (16 channels)
• AcuSense technology - Object classification and alarm filtering
• ONVIF, RTSP, P2P
• Remote access applications: iVMS4200 and Hik-Central (Desktop), Hik-Connect and Hik-ProConnect (mobile devices)

For whom will this surveillance kit be suitable?

This is a modern solution with a wide range of applications. Reach for this universal set if you are interested, for example, in monitoring rooms, grounds or objects both indoors and outdoors. It will prove useful wherever you can run a cable installation.

With its help it is possible, among other things:

• monitoring of a store,
• monitoring of a wholesale and warehouse, as well as a production hall,
• monitoring of a school, monitoring of a kindergarten or other educational institutions,
• monitoring of a backyard, sports field or playground,
• monitoring of a private home,
• monitoring of a bar and restaurant,
• monitoring of a parking lot.

Choose this set if you need a professional monitoring system that will not let you down.
