2x TVICAM-B2M-20DL Monitoring Kit, SSD-DVR-2MP Full HD HiLook by Hikvision
Photo gallery
-
Manufacturer
-
Product Code
ZM34338
-
Warranty
24 miesiące
- Technology: AHD/HD-CVI/HD-TVI
- Resolution: 2Mpx
- Enclosure: Tube
- Night visibility: up to 20m
- Number of cameras: 2
- Connectivity: Wired
- Color: White
Ask about this product show form
Product Description

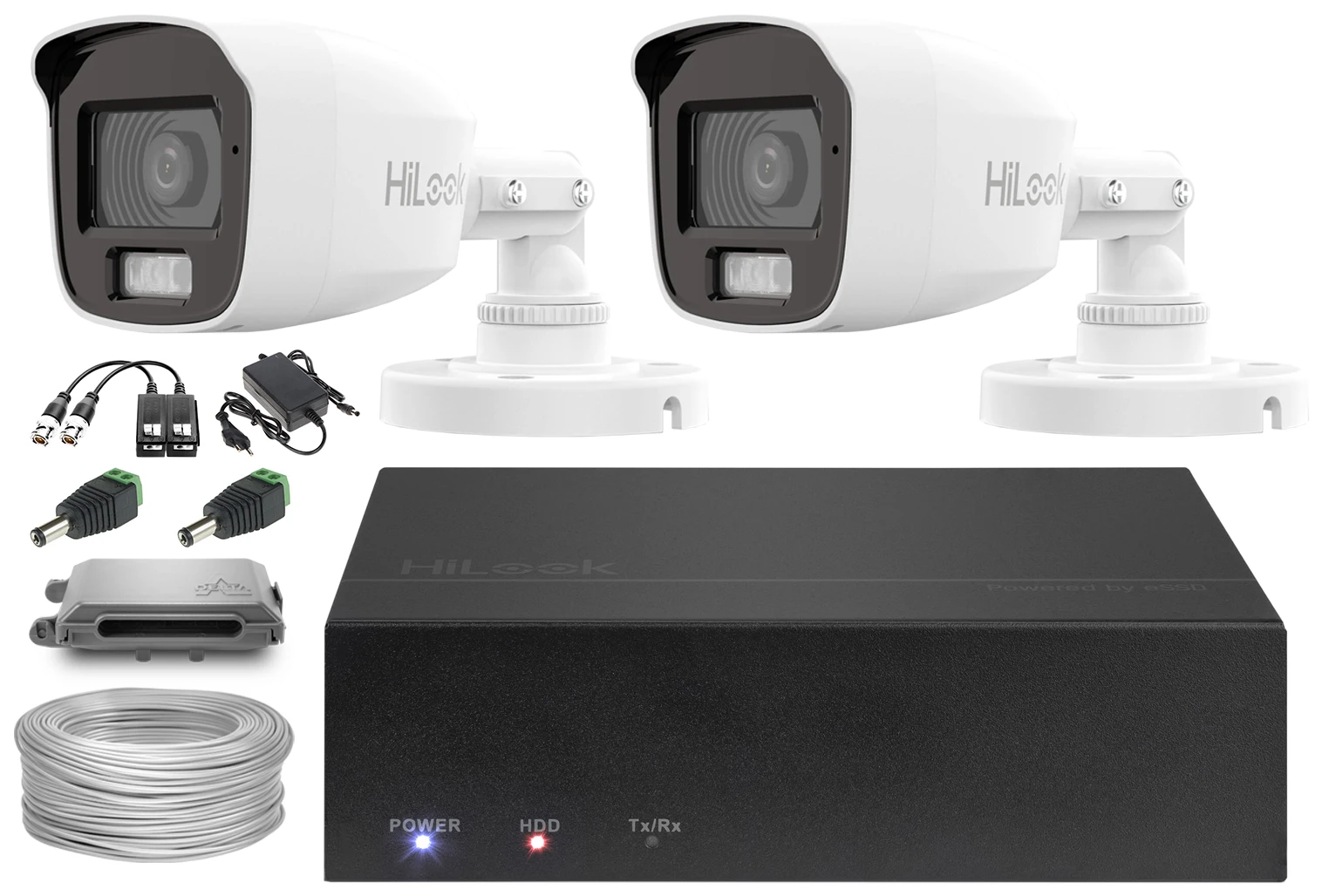

Kit contents:
- 2x 4in1 camera TVICAM-B2M-20DL
- 1x 5in1 4 channel DVR SSD-DVR-2MP
- 2x Converters for HD video signal transmission 2 pcs on LV-TR2K cable
- 1x Power supply 12V/2A/5.5
- 1x LZ-1 power connector
- UTP cat.5e cable ( 10m )
- 2x Twisted-pair power plugs
HiLook by Hikvision products are devices that focus on ease of use, literally anyone can handle their installation and configuration thanks to the included instructions.
Features of the TVICAM-B2M-20DL camera:
- Requires an XVR-type DVR with a hard drive to record video
- Compatible with any DVR that supports 2Mpx resolution
- High image resolution of 1920x1080 pixels
- Fixed focal length lens
- Automatic switching from day to night mode
- BNC connectors (converter can be used for twisted-pair operation)
- 12V power supply
Main features of SSD-DVR-2MP:
High-quality imageThe light-sensitive sensor in the TVICAM-B2M-20DL camera and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 2Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
|
 |
Motion detectionTVICAM-B2M-20DL has a built-in algorithm for detecting motion in the image. In addition, it allows you to send notifications to your phone or computer. In addition, you can freely set the area you are interested in, so that, for example: you can receive notifications only about motion from the entrance gate. In addition to recording 24/7, the cameras can also record only fragments when motion is detected, which will translate into lower hard disk consumption. |
 |
IP66 weatherproof design
This housing protects the TVICAM-B2M-20DL from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty areas. Cameras with IP66 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage. |
 |
Wide dynamic range - That is, high quality in difficult conditions
The WDR (Wide Dynamic Range) function of the TVICAM-B2M-20DL is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:
- Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
- Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
- Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
- Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.
Automatic day/night modeAdapted to work in all lighting conditions, TVICAM-B2M-20DL with visibility up to 20m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens. |
 |
LED illumination and color image after dark - Smart Dual Light
The TVICAM-B2M-20DL's hybrid light function combines infrared (IR) LED illumination for nighttime applications and white LED light that can be activated in response to motion detection or remotely by the operator. This technology not only provides high image quality in total darkness through IR, but also the ability to deter intruders by automatically or manually turning on the visible white light, enhancing security and surveillance effectiveness.
Technical specifications of TVICAM-B2M:
| Camera | |
| Image sensor | 2 MP CMOS |
| Max resolution | 1920 (S) × 1080 (W) |
| Minimum illumination | 0.02 lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter time | PAL: 1/25 s to 1/50,000 s, NTSC: 1/30 s to 1/50,000 s |
| Day/Night | ICR |
| Angle adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Signal system | PAL/NTSC |
| Lens | |
| Lens type | 2.8mm and 3.6mm fixed focal length |
| Focal length and FOV | 2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113° |
| Lens mount | M12 |
| Illumination | |
| Type of supplementary light | White light, Infrared |
| Range of supplementary light | Infrared: Up to 20 m, White light: Up to 20 m |
| Image | |
| Image parameter switch | STD/HIGH-SAT/HIGHLIGHT |
| Image settings | Brightness, sharpness, Smart IR |
| Frame rate | TVI: 1080p @ 30 fps, 1080p @ 25 fps |
| AHD: 1080p @ 30 fps, 1080p @ 25 fps | |
| CVI: 1080p @ 30 fps, 1080p @ 25 fps | |
| CVBS: PAL/NTSC | |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image enhancement | DWDR/BLC/HLC/Global |
| White balance | Auto/Manual |
| AGC | Yes |
| Interface | |
| Video output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimensions | Ø70 mm × 153.4 mm (Ø2.76" × 6.04") |
| Weight | Max. 275 g (0.61 lb.) |
| Operating conditions | -40 °C to 60 °C, humidity: 90% or less (non-condensing) |
| Communication | Hik-Connect, HiLookVision |
| Language | Polish |
| Power supply | 12 VDC ± 25%, Max. 2.9 W |
| *It is recommended to use one power supply to power one camera. | |
| Protection | IP66 |
SSD-DVR-2MP Technical Specifications:
| Number of supported cameras: | 1 |
| Video compression: | H.265 Pro/H.265 |
| Maximum supported resolution: | 2.00 Mpx |
| Model: | SSD-DVR-2MP |
| Manufacturer: | Hikvision |
| Technology: | AHD |
| D-Sub/VGA connector: | 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| HDMI connector: | 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
