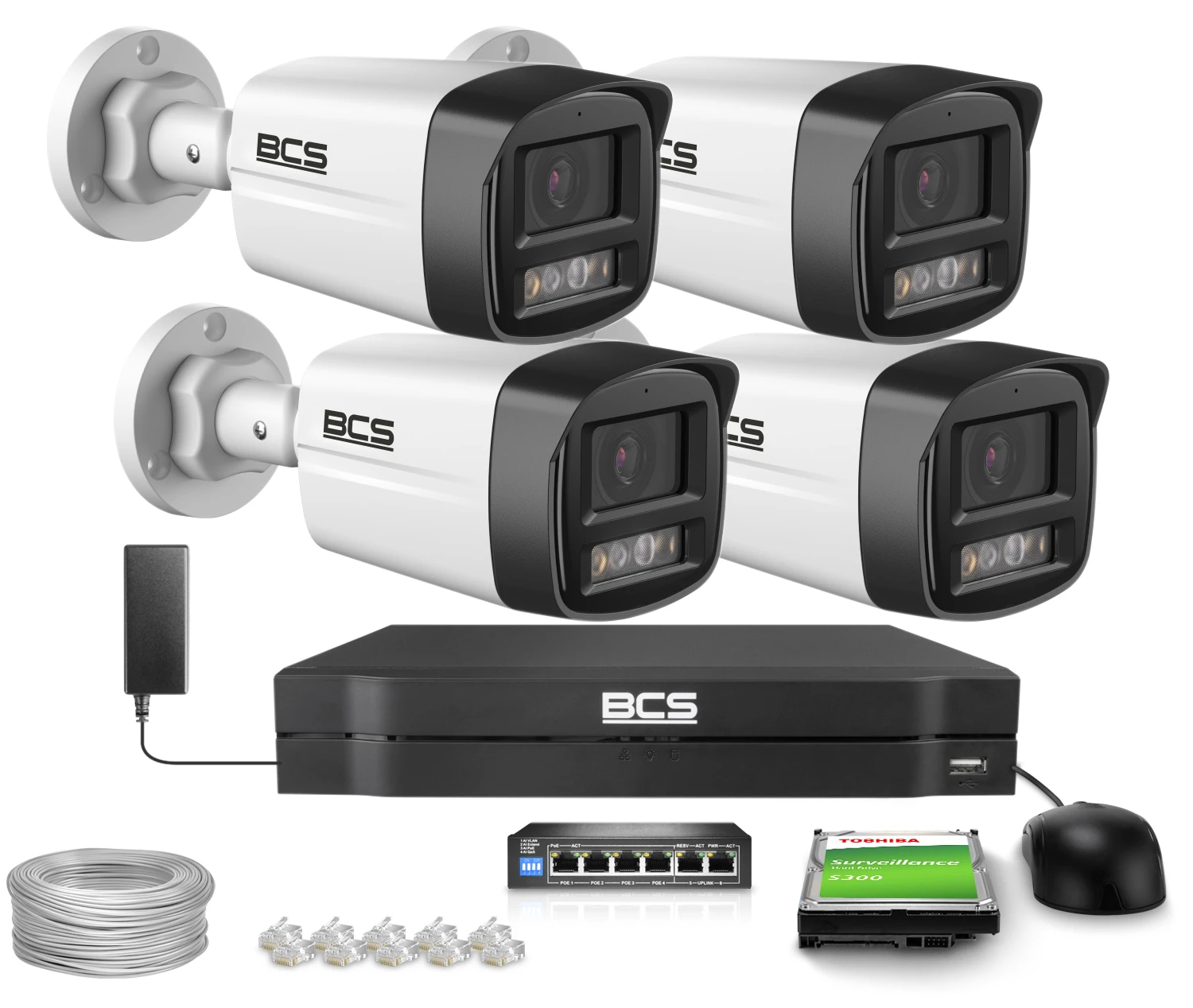

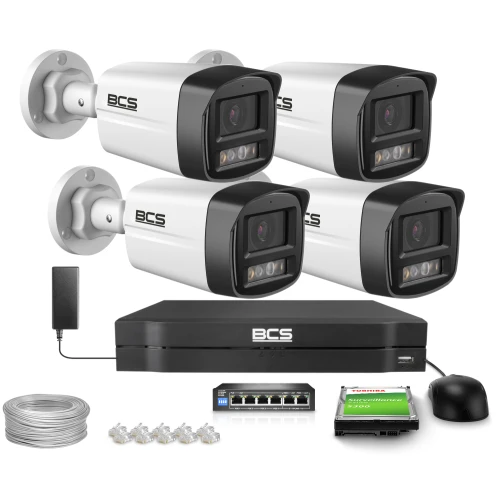

Zestaw do monitoringu IP 4x BCS-L-TIP14FSR3L3, 4Mpx, SkyLight, WDR 120dB

Here are the main features of the BCS-L-TIP14FSR3L3 camera:

General features:

• Product line: BCS Line
• Camera type: Tube
• Resolution: 4 Mpx (2560 × 1440)
• Sensor: 1/2.9'' CMOS
• Scanning system: Progressive Scan
• Pixels: 2560 (H) × 1440 (V)
• RAM: 128 MB
• ROM: 128 MB

Lens:

• Focal length: 2.8 mm (fixed)
• Aperture: F1.6
• Focus: Fixed
• Iris: Fixed
• Digital zoom: 16×

Viewing angle:

• H: 94°
• V: 52°
• D: 111°

DORID:

• Detection range: 64 m
• Observation: 26 m
• Recognition: 13 m
• Identification: 6 m

Camera sensitivity:

• Color: 0.006 Lux (F1.6, 30IRE)
• B/W: 0.0006 Lux (F1.6, 30IRE), 0 Lux (IR)

Image technology:

• WDR: 120 dB
• Background compensation: BLC / HLC / WDR (120 dB)
• Shutter: Auto / manual (1/3 ~ 1/100000s)
• Gain Control (AGC): Auto / manual
• Noise Reduction: 3D DNR
• RoI: Region of Interest

Image Rotation:

• Functions: Mirror, Flip 0°/180°

Resolutions and Streams:

• Main stream: 2560 × 1440 (1~25/30fps)
• Second stream: 704 × 576 (125fps), 704 × 480 (130fps)

Bitrate:

• H.264: 32 kbps ~ 4096 kbps
• H.265: 12 kbps ~ 4096 kbps

Video compression:

• Compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG

Day/Night:

• ICR: Mechanical infrared filter
• Illuminator type: IR LED + White Light
• Illuminator range: 30 m

Audio:

• Microphone: Yes
• Audio compression: G.711A / G.711Mu / G.726 / PCM

Storage:

• Storage: FTP

Network and Power:

• Network: RJ-45 10/100 Mbps
• Compatibility: ONVIF (S/T)
• Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
• Power supply: 12V DC / PoE (802.3af)
• Power consumption: max 7.7 W

Housing and protection:

• Housing color: White
• Protection class: IP67
• Operating conditions: -40°C ~ +60°C, max 95% RH
• Dimensions: 197.9 × 80.2 × 76.2 mm
• Weight: 0.31 kg
