12x IPCAM-B2-P DS-7616NXI-K2/16P(D) Full HD Monitoring Kit, PoE, IR 20m, HiLook Hikvision

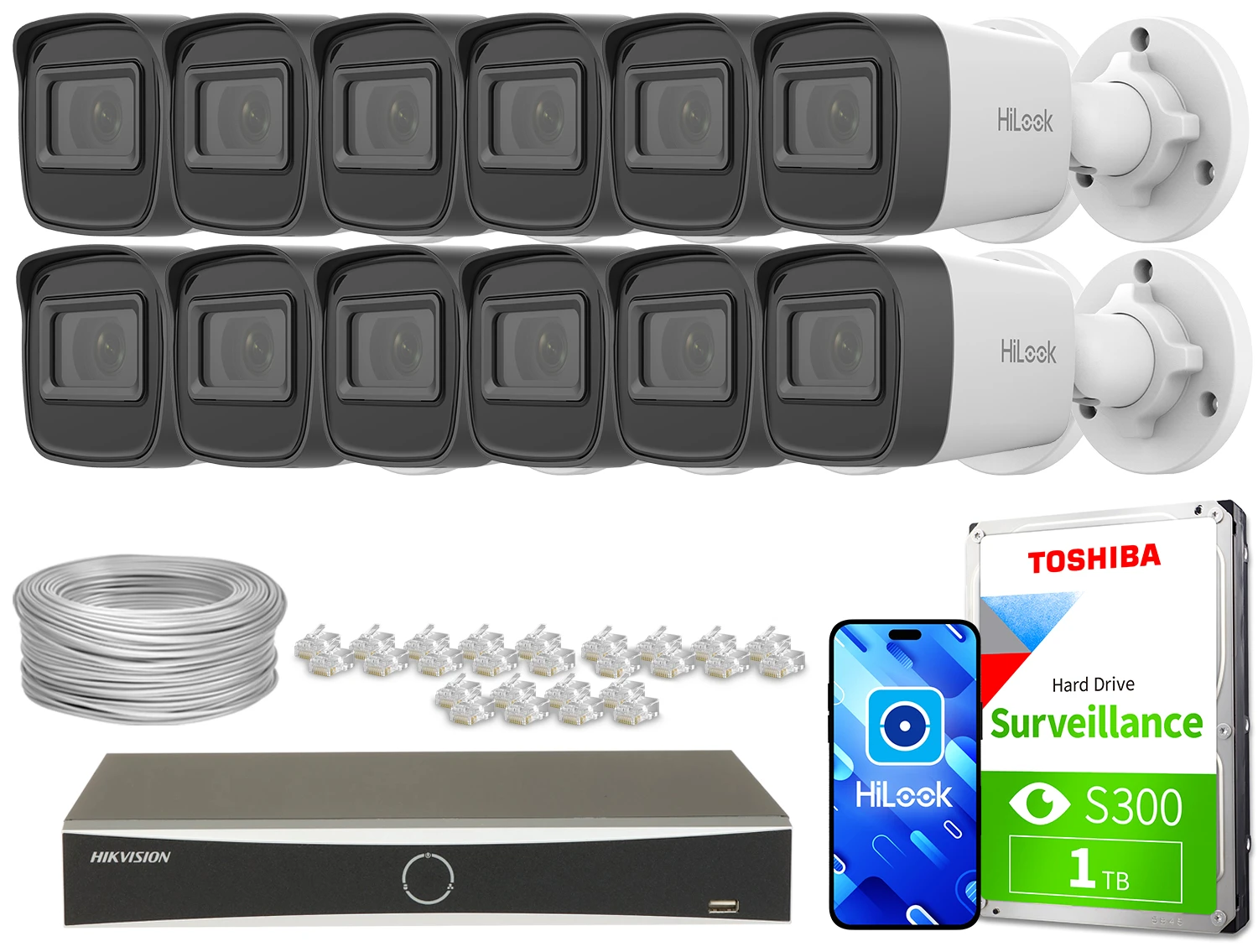

The image shows a comprehensive surveillance system package including twelve HiLook IP cameras, a Hikvision network video recorder, a Toshiba surveillance hard drive, and necessary cables and connectors. This setup is designed for extensive security monitoring, offering high-quality video capture and reliable storage solutions.

The image shows a HiLook security camera with a sleek black and white design, mounted on a white bracket. Next to the camera, a smartphone displays a surveillance app interface, indicating remote monitoring capabilities.

Manufacturer
Product Code

ZM34312
Warranty

24 miesiące

Technology: IP
Resolution: 2Mpx
Enclosure: Tube
Number of cameras: 12
Connectivity: Wired
Color: White

see description

Ask about this product show form

Save -20%

Availability: in stock Shipping 24h

Price (Incl. VAT):

725,71 € 909,26 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Kit contents:

12x 2Mpx tube camera - HiLook by Hikvision IPCAM-B2-P
1x Network DVR DS-7616NXI-K2/16P(D)
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
60 meters of UTP cat.5e cable
Set of signal connectors
Sticker "ATTENTION MONITORED OBJECT".

Main features of the set:

1/2.9" 2MP CMOS sensor with progressive scanning
Resolution of 1920 × 1080 at 30 fps
2.8mm fixed focal length lens
Viewing angle: 112° (diagonal)
H.265+, H.265, H.264+, H.264 compression
Dual stream
DWDR (wide dynamic range)
3D digital noise reduction (DNR)
Infrared range up to 20m
Power supply 12v or PoE (802.3af, class 3)
IP67 protection class

Remote access from your phone and desktop computer

IPCAM-B2-P allows you to configure, control and view using Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:

Access video preview and play back the recorded footage
Save portions of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

Hik-Connect - Free app for iOS and Android smartphones
iVMS-4200 - Free desktop app

IPCAM-B2-P camera features:

1/2.9" 2MP CMOS sensor with progressive scanning
Resolution of 1920 × 1080 at 30 fps
2.8mm fixed focal length lens
Viewing angle: 112° (diagonal)
H.265+, H.265, H.264+, H.264 compression
Dual stream
DWDR (wide dynamic range)
3D digital noise reduction (DNR)
Infrared range up to 20m
Power supply 12v or PoE (802.3af, class 3)
IP67 protection class

Main features of DS-7616NXI-K2/16P(D) DVR:

Support for 16 IP cameras
Maximum supported resolution of 12Mpx (4000x3000)
Efficient H.265+ video encoding
Maximum HDD capacity - 10TB
Network interface 1x Ethernet 10/100/1000Mbps
AI functions: perimeter protection (1 channel), Face detection and analysis (1 channel), Motion detection 2.0 (4 channels)
AcuSense technology - Object classification and alarm filtering
ONVIF, RTSP, P2P
Remote access applications: iVMS4200 and Hik-Central (Desktop PC), Hik-Connect and Hik-ProConnect (mobile devices)

P2P function

The IPCAM-B2-P is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Power Over Ethernet (PoE)

Power over Ethernet (PoE) in surveillance cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Wide dynamic range: DWDR

The use of extended dynamic range DWDR takes care of the quality of the recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.

Enhanced performance and optimal recording

The H.265 codec, also known as High Efficiency Video Coding (HEVC), offers a significant reduction in required bandwidth and storage space compared to the older H.264 codec, by better compressing video data without sacrificing image quality. This allows longer recordings to be stored on the same storage media and enables smoother video streaming on bandwidth-constrained networks. In addition, H.265 supports higher video resolution, resulting in more detailed and clearer images in surveillance systems, making surveillance and security more effective.

Automatic day/night mode

Adapted to work in all lighting conditions with visibility up to 20m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

IP67 weatherproof design

This housing protects the IPCAM-B2-P from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

D.O.R.I.

The DORI (Detection, Observation, Recognition, Identification) parameter is used to determine the ability of video systems, such as IPCAM-B2-P cameras, to detect, observe, recognize and identify objects or people at specific distances. The values given for each of these four elements determine the effective range at which the system can perform each of these activities:

Detection (48m): The system is able to detect the presence of an object or person at a distance of up to 48 meters. This means that at this distance you can tell that something is within the camera's range of view, but you can't necessarily determine what it is.
Observation (19m): At distances of up to 19 meters, the system can not only detect an object, but also provide enough detail for the observer to get an idea of the general shape and perhaps some of the characteristics of the object, but without exact recognition.
Recognition (9m): Recognition at a distance of up to 9 meters enables the system to provide enough detail for the observer to determine the type of object, for example, to distinguish whether it is a person, a car or another object.
Identification (4m): At a distance of up to 4 meters, the system is able to provide a highly detailed image to identify specific features of an object or person, such as a face, vehicle license plate, etc., enabling accurate identification.

The Toshiba S300 Surveillance 1TBhard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Key Features:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

Technical specifications of the IPCAM-B2-P

Camera	IPCAM-B2-P
Camera module
Image sensor	1/2.9" Progressive Scan CMOS
Max. resolution	1920 x 1080
Min. illumination	Color: 0.01 Lux (F2.2, AGC ON), B/W: 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Day/night mode	IR filter
Angle adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Lens type	Fixed focal length, 2.8mm
Focal length and FOV	2.8mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112°.
Lens mount	M12
Aperture type	Fixed
Aperture	F2.2
DORI
DORI	2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m
Illuminator
Auxiliary light type	IR
Range of auxiliary light	Up to 20 m
Intelligent auxiliary light	Yes
IR wavelength	850 nm
Video
Main stream	50 Hz: 25 fps (1920 x 1080, 1280 x 720) 60 Hz: 30 fps (1920 x 1080, 1280 x 720)
Sub-stream	50 Hz: 25 fps (640 x 480, 640 x 360) 60 Hz: 30 fps (640 x 480, 640 x 360)
Video compression	Main stream: H.265+/H.265/H.264+/H.264, Podstrumień: H.265/H.264
Video bit rate	32 Kbps to 8 Mbps
H.264 type	Base Profile, Main Profile, High Profile
Type H.265	Main Profile
Bit rate control	CBR, VBR
Network
Security	Password protection, complex password, watermark, basic and complex authentication for HTTP, security inspection log, host authentication (MAC address)
Simultaneous live viewing	Up to 6 channels
API	ISAPI, SDK
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
User/Host	Up to 32 users
Client	Hik-Connect, iVMS-4200
Web browser	Plug-in required for live viewing: IE 10, IE 11, Local support: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide dynamic range (WDR)	Digital WDR
SNR (Signal to Noise Ratio)	≥ 52 dB
Day/Night switch	Day, Night, Auto, Schedule
Image enhancement	BLC, HLC, 3D DNR
Image settings	Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by software client or web browser
Interface
Ethernet interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Events
Basic event	Motion detection, exceptions
Connection	Monitoring center notification
General
Power supply	12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material	Plastic
Dimensions	138.8 mm × 60.9 mm × 57.9 mm
Packaging dimensions	163 mm × 75 mm × 75 mm
Weight	Approximately 175g
Weight with packaging	Approximately 250g
Storage conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and operating conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	Polish
General functions	Heart rate pulse, noise protection, mirror, password protection, password reset via email
Approvals
EMC (Electromagnetic Compatibility)	CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013

Technical specifications DS-7616NXI-K2/16P(D)

DVR	DS-7616NXI-K2/16P(D)
Standard:	TCP/IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	16 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pcs. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	H.265+ / H.265 / H.264 / H.264+
Supported hard drives:	1 x 10 TB SATA
Recording modes:	Manual, motion detection, schedule
Network protocols:	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down recording Advanced search (every second) Synchronous playback of all channels, Smart Search function Simultaneous playback of recordings from up to 4 cameras
Bitrate (bitrate):	max. 160 Mbps
Network functions:	Live video preview, Playback of recordings, Archiving of recordings Max. 128 online users - iVMS-4200 application
ONVIF:	Yes
Cell phone access:	Port: 8000 or access via cloud (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app
Default IP address:	192.168.1.64
Default admin login / password:	admin / - Administrator password should be set on first startup
Web access ports:	80, 8000
Access ports via PC application:	8000
Access ports via mobile application:	8000
RTSP URLS:	rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału01/ - Main stream rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału02/ - Secondary stream
Alarm inputs / outputs:	4 / 1
PTZ head control:	Yes
Motion detection:	Yes
Intelligent Video Analysis:	Yes
Selected features:	Intelligent motion detection (distinguishing between people and vehicles) False alarm filtering based on person and vehicle recognition Face detection Face comparison with database images Support for up to 16 face databases, with a total of 20,000 face images Intelligent search for a person based on a face image AcuSense series NVRs
USB:	2 pcs. USB 2.0
Mouse operation:	Yes
IR remote control included:	No
Power supply:	100 V ... 240 V AC, 50 / 60 Hz
Weight:	2.59 kg
Dimensions:	385 x 322 x 52 mm
Supported languages:	Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, French, German, Greek, Hungarian, Italian, Dutch, Latvian, Lithuanian, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian
Manufacturer/Brand:	Hikvision
PoE switch:	Built-in 16-port PoE switch, 25.5 W / Channel - PoE (802.3af/at) max. 200 W (total)
SAP Code:	303616123
