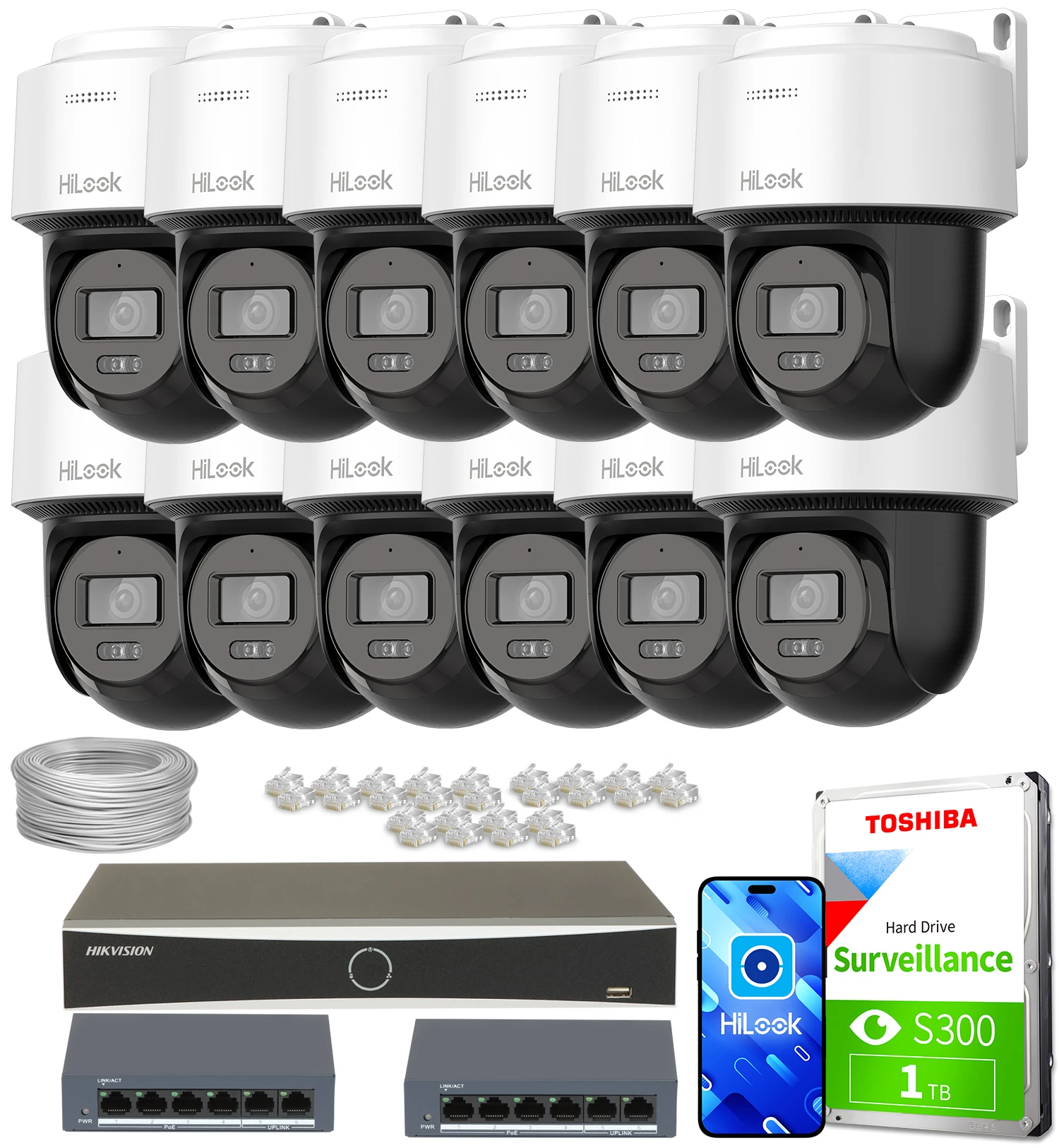

Monitoring Kit 12x PTZ-N4MP-P 4MP, IR30 HiLook by Hikvision

Our kits are carefully selected devices that guarantee full compatibility and efficiency. You will find all the necessary components and accessories that will allow you to immediately start installing and configuring your equipment.

The kit includes:

• DS-7616NXI-K1(D) DVR ( 1pc ).
• PTZ-N4MP-P camera ( 12pcs ).
• 2x port PoE switch
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
• UTP cat.5e cable ( 60m )
• Sticker "Attention Object Monitored" ( 1pc ).
• Set of connectors

Main features:

• High-quality imaging with 4 MP resolution
• Clear images under strong backlight with DWDR technology
• Automatic tracking of detected objects (Autotracking-Lite)
• 3D DNR technology delivers clear and sharp images
• Hik-Connect cloud service and app for remote device management and viewing
• Built-in microphone and speaker for two-way audio communication
• Built-in memory card slot, supporting microSD/SDHC/SDXC cards up to 512 GB
• Water and dust resistant according to IP66 standard

High-quality image A light-sensitive sensor and a high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The PTZ-N4MP-P records at 4Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

MicroSD card slot The PTZ-N4MP-P camcorder has a built-in microSD card slot that allows local storage of video recordings on media up to 512GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergency situations, network problems, or when long-term archiving of recordings directly on the device is required.

Automatic day/night mode The camera automatically switches to night and day mode during the day when the amount of light in the environment changes. For example, when the sun goes down. The infrared range is 30 meters.

Power Over Ethernet (PoE)

The PTZ-N4MP-P 's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Omnidirectional monitoring without blind spots

A PTZ (Pan-Tilt-Zoom) camera is a type of surveillance camera that allows the operator to remotely control direction (pan and tilt) and optical zoom (zoom in and out). With these functions, the PTZ-N4MP-P camera can track moving objects, cover wide areas and adapt to detailed observation needs, making it an ideal tool for dynamic surveillance applications.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.



Remote access from your phone and desktop computer Hikvision systems allow you to configure, control and view in PTZ-N4MP-P cameras using applications that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to: Access video preview and play back recorded footage Save parts of the video to your smartphone's memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees

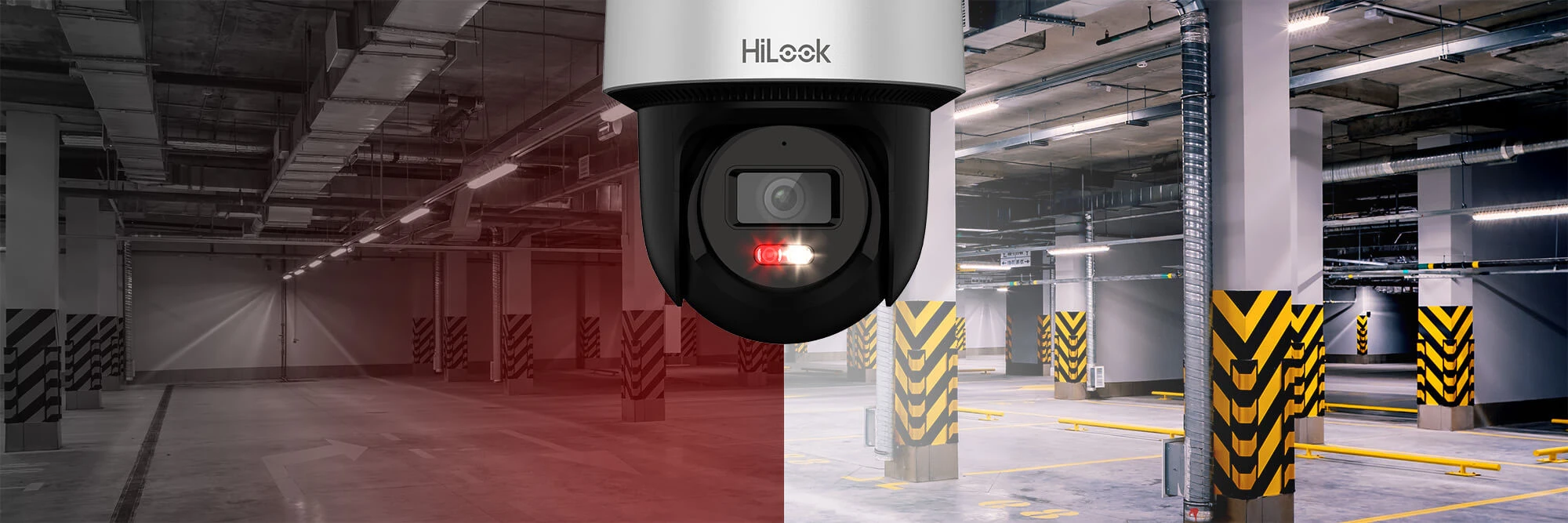

Color image in total darkness

Hybrid illumination in surveillance cameras combines the advantages of LED and infrared illumination for effective monitoring both during the day and at night. With this technology, cameras can capture clear images at low light levels without visible light sources, minimizing the risk of detection by intruders. In addition, hybrid illumination enables color recognition, which is crucial for identifying details such as the color of a car or an intruder's clothes, increasing the efficiency and reliability of the surveillance system.

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

PTZ-N4MP-P camera features:

• High-quality imaging with 4 MP resolution
• Clear images under strong backlighting thanks to DWDR technology
• Automatic tracking of detected objects (Autotracking-Lite)
• 3D DNR technology delivers clear and sharp images
• Hik-Connect cloud service and app for remote device management and viewing
• Built-in microphone and speaker for two-way audio communication
• Built-in memory card slot, supporting microSD/SDHC/SDXC cards up to 512 GB
• Water and dust resistant according to IP66 standard

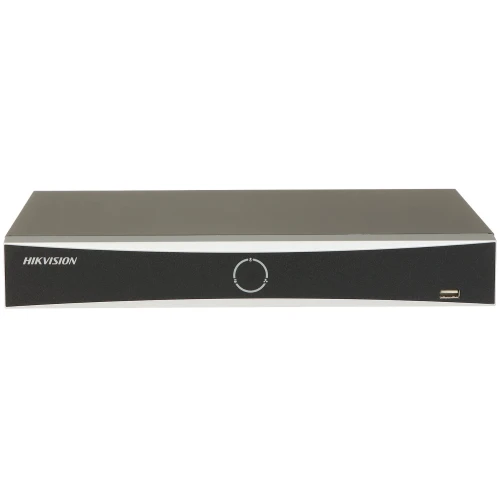

Main features of DS-7616NXI-K1(D) DVR:

• Supports 16 IP cameras
• Maximum supported resolution of 12Mpx (4000x3000)
• Efficient H.265+ video encoding
• Maximum HDD capacity - 10TB
• Network interface 1x Ethernet 10/100/1000Mbps
• AI functions: perimeter protection (1 channel), Face detection and analysis (1 channel), Motion detection 2.0 (16 channels)
• AcuSense technology - Object classification and alarm filtering
• ONVIF, RTSP, P2P
• Remote access applications: iVMS4200 and Hik-Central (Desktop computer), Hik-Connect and Hik-ProConnect (mobile devices)



Key features:

Capacity: 1TB
Drive type: HDD (hard drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Speed: 5700 RPM
Cache: 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write loads.

P TZ-N4MP-PTechnical Specifications

Camera	PTZ-N4MP-P
Camera
Image sensor	1/3" Progressive Scan CMOS
Maximum resolution	2560 x 1440
Minimum illumination	Color: 0.01 Lux @(F1.6, AGC ON), B/W: 0 Lux with light
Lens
Focal length	2.8 mm
Field of view (FOV)	2.8 mm, horizontal FOV 104.9°, vertical FOV 58.3°, diagonal FOV 123.3°.
Aperture	F1.6
Illuminator
Auxiliary light type	IR & White Light
Auxiliary light range	White light range: up to 30m IR range: up to 30m
Intelligent auxiliary light	Yes
IR wavelength	850 nm
PTZ
Range of Motion (Rotation)	0° to 345°
Range of motion (Tilt)	0° to 80°
Speed of rotation	Rotation speed: configurable from 4° to 25°/sec.
Tilt speed	Tilt speed: configurable from 4° to 20°/sec.
Video
Video compression	H.265, H.264, MJPEG
H.264 type	Baseline Profile, Main Profile, High Profile
Type H.265	Main Profile
Main Stream	50 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60 Hz: 20 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-stream	50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360) 60 Hz: 24 fps (1280 x 720, 640 x 480, 640 x 360)
Video bit rate	32 Kbps to 8 Mbps
Audio
Audio compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
Audio bit rate	16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
Audio sampling frequency	8 kHz/16 kHz
Ambient noise reduction	Yes
Networking
Protocols	IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API	ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Image settings	Saturation, brightness, contrast and sharpness adjustable by client software or browser
Wide dynamic range (WDR)	Digital WDR
Image enhancements	BLC, HLC, 3D DNR
Interface
Ethernet interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in memory	Built-in memory card slot, support for microSD/SDHC/SDXC cards up to 512 GB
Built-in microphone	1 built-in microphone
Built-in speaker	1 built-in speaker
Reset	Yes
Events
Basic event	Motion detection (supports triggering alarm by specific type of target (human)), video tampering alarm, exception
Alarm	FTP/memory card upload, monitoring center notification, emailing, capture trigger, audio warning, automatic tracking
General
Operating conditions	-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General functions	Mirroring, password protection, watermarking
Power supply	12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE	IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W
Dimensions	Camera dimensions: 163.9 mm x 185.8 mm x 131.9 mm (6.45" x 7.31" x 5.19")
Weight	Camera weight: 600 g (1.32 lb.)
Approvals
EMC	CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
Protection	IP66

Technical specifications DS-7616NXI-K1(D)

DVR	DS-7616NXI-K1(D)
Standard:	IP
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	16 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pcs. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	H.265+ / H.265 / H.264 / H.264+
Supported hard drives:	1 x 10 TB SATA
Recording modes:	Manual, motion detection, schedule
Network protocols:	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down recording Advanced search (every second) Synchronous playback of all channels, Smart Search function Simultaneous playback of recordings from up to 16 cameras
Network interface:	1 x RJ-45 10/100/1000 Base-TX
Network functions:	Live video viewing, Playback of recordings, Archiving of recordings Max. 128 online users - iVMS-4200 application
ONVIF:	Yes
Cell phone access:	Port: 8000 or access via cloud (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app
Default IP address:	192.168.1.64
Default admin login / password:	admin / - Administrator password should be set on first startup
Web access ports:	80, 8000
Access ports via PC application:	8000
Access ports via mobile application:	8000
RTSP URLS:	rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału01/ - Main stream rtsp://użytkownik:hasło@192.168.1.64:554/Streaming/Channels/nrkanału02/ - Secondary stream
Alarm inputs/outputs:	No
PTZ head control:	Yes
Motion detection:	Yes
Intelligent Video Analysis:	Yes
Selected features:	Intelligent motion detection (distinguishing between people and vehicles) False alarm filtering based on person and vehicle recognition Face detection Face comparison with database images Support for up to 16 face databases, with a total of 20,000 face images Intelligent search for a person based on a face image AcuSense series NVRs
USB:	2 pcs. USB 2.0
Mouse operation:	Yes
IR remote control included:	No
Power supply:	12 V DC / 1.5 A (power adapter included)
Weight:	1.12 kg
Dimensions:	320 x 240 x 48 mm
Supported languages:	Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, French, German, Greek, Hungarian, Italian, Dutch, Lithuanian, Latvian, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian
Manufacturer/Brand:	Hikvision
SAP Code:	303616141
