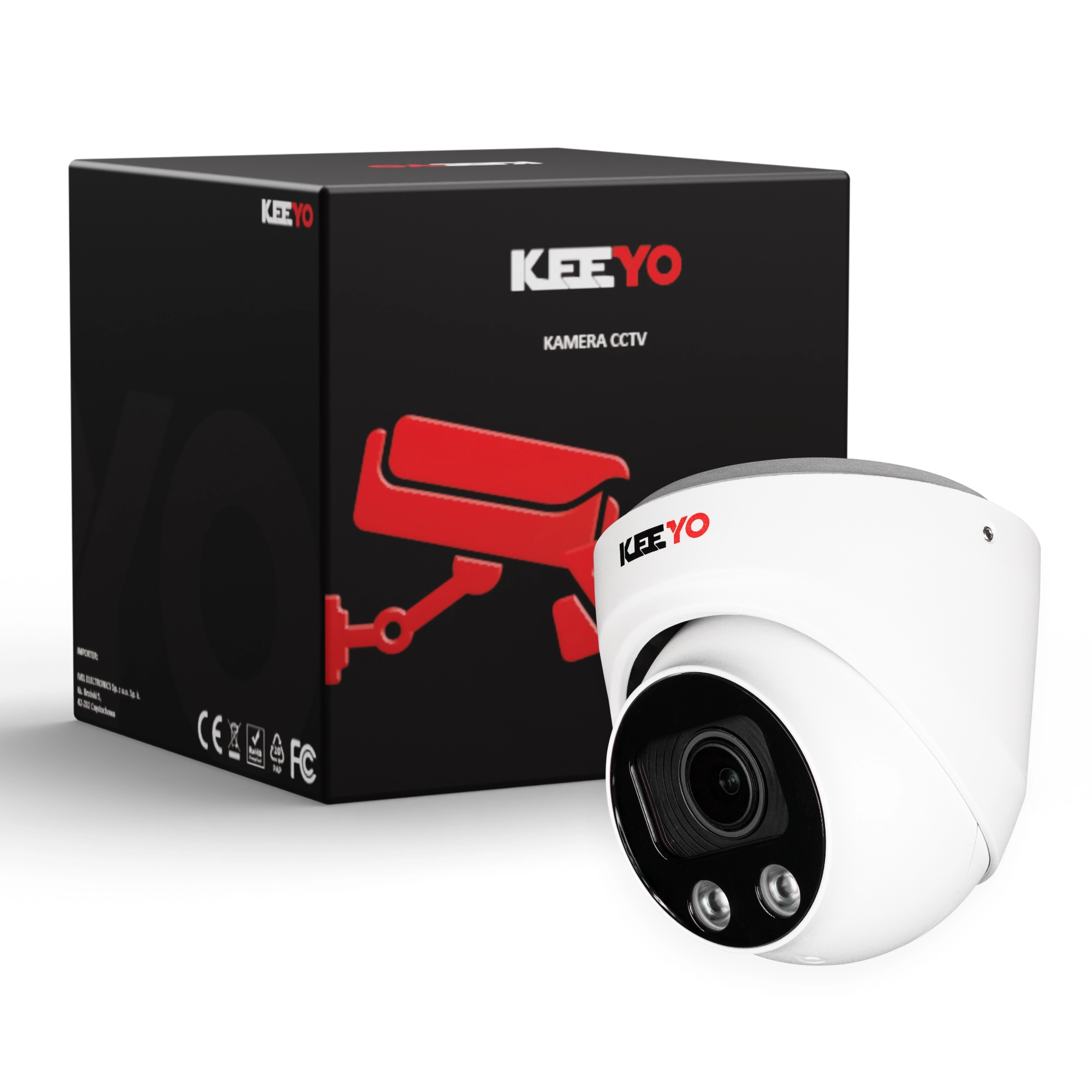

KEEYO LV-V-IP8M3AF-DL 8Mpx Dome IP Camera, motorized zoom
Photo gallery
-
Manufacturer
-
Product Code
LV-V-IP8M3AF-DL
-
Warranty
24 miesiące
- Technology: IP
- Resolution: 8Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Connectivity: Wired
- Memory card slot: Yes
- Audio: Yes
- Color: White
Ask about this product show form
Files attached to the product show files
Related products
Product Description
LV-V-IP8M3AF-DL is a camera created for good quality surveillance. It is a network camera, which means that the video signal is transported digitally, so it is of much better quality than in analog cameras. In addition, it is equipped with WDR140dB, this allows the image to retain detail in dark and brightened areas. It has two infrared LEDs, which are more than enough to illuminate most properties. In addition, it can be used as an independent surveillance device thanks to support for memory cards with a maximum capacity of 1TB.
Features of the LV-V-IP8M3AF-DL camera
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees
The LV-V-IP8M3AF-DL's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.
The LV-V-IP8M3AF-DL's human and car silhouette detection function offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and efficiency of surveillance systems.
With such detection, the camera has the ability to perform additional detection tasks. The LV-V-IP8M3AF-DL additionally detects:
The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records in 4K resolution ensuring that even the smallest detail is captured in the footage.
Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
The use of Wide Dynamic Range (WDR) takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture the details of a contrasting image.
The ROI (Region of Interest) function of the LV-V-IP8M3AF-DL allows you to select and prioritize a specific area in the camera's field of view, providing higher image quality in this area while reducing the quality in other parts. This makes more efficient use of camera resources and bandwidth, focusing on key areas such as entrances or checkouts.
With an IP67 rating, the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.
Features of the LV-V-IP8M3AF-DL camera
- Focal length 2.7mm - 13.5mm - Variable focal length with motozoom lens.
- Sony sensor - High-quality optical components for crystal clear video capture.
- 4K resolution matrix - Video footage is recorded at a high resolution of 3864x2192.
- Night illumination with 30-meter range - Two high-power IR LEDs that work together with white LEDs.
- Mobile app - Free app for mobile devices. The Bitvision app is available on the Google Play Store and Apple App Store.
- Enhanced 140dB dynamic range - Even on the sunniest day, video won't lose detail in harsh light or in heavily shadowed frame patches.
- PoE power - A twisted-pair UTP cable connected to the power supply is all you need to run the camera.
- 12V power supply - In addition to PoE, the camera can also be powered by an optional 12V power supply.
- ROI function - The camera compresses the image to allow instant recording. This has a slight impact on its quality. With the ROI function, you can designate an area of the frame you are interested in, which the camera will keep in the best possible quality, while reducing it where it is not so necessary.
- AI features
- intruder detection
- line crossing
- wandering
- detection of gatherings
- detection of vehicles
- trespassing
- Two ways to save data - Save recordings on the DVR or to a memory card. The camera supports cards with capacities of up to 1TB.
- Wide viewing angle - The diagonal field of view is 128°.
- Corridor mode - Allows you to use panoramic cameras to monitor narrow and long areas, such as corridors, alleys or passageways.
- Weatherproof - The camera is IP67-rated, which means it can operate in the harshest conditions.
- Snow reduction - In harsh conditions, digital cameras tend to generate noise. The IP5M25TF-II reduces this noise, leaving the image smooth and detailed.
- Privacy Masks - There may be objects or other properties in the frame that you can exclude from monitoring with privacy masks. Draw a black rectangle in the frame to obscure a portion of the image.
- HLC function - That is, compensation of the image when the light falls straight into the lens. This allows the camera to see the whole scene even under the sun.
- WEB interface supporting popular browsers - You will log in to the camera in well-known browsers like Google Chrome, Mozilla Firefox and Safari.
- ONVIF support - The camera is remarkably versatile. With ONVIF support, it interoperates with devices from many other brands.
Remote access from desktops and smartphones
Bitvision is a simple and fast way to operate your property monitoring system, with it you will be able to:
✅Save video snippets to your smartphone's memory
✅Configure time frames for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees
Power Over Ethernet (PoE)
The LV-V-IP8M3AF-DL's Power over Ethernet (PoE) function is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.
Support for popular browsers
The WEB server in KEEYO cameras is supported by popular browsers like Google Chrome, Mozilla Firefox or even Safari.
Accurate notifications without false alarms
The LV-V-IP8M3AF-DL's human and car silhouette detection function offers significant advantages, such as increased efficiency and accuracy in monitoring. It allows automatic recognition and tracking of specific objects, which minimizes false alarms and facilitates rapid response to real threats or suspicious events, improving the overall security and efficiency of surveillance systems.
With such detection, the camera has the ability to perform additional detection tasks. The LV-V-IP8M3AF-DL additionally detects:
- Line crossing
- Wandering
- Assembly
- Intrusion into the area
High-quality image
The latest technologies used in the camera's sensor and sensor, combined with advanced optics, deliver high quality images with excellent sharpness compared to lower resolution cameras. The device records in 4K resolution ensuring that even the smallest detail is captured in the footage.
Automatic Day/Night mode
Adapted to work in all lighting conditions with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Wide dynamic range: WDR 140dB
The use of Wide Dynamic Range (WDR) takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture the details of a contrasting image.
The ROI (Region of Interest) function of the LV-V-IP8M3AF-DL allows you to select and prioritize a specific area in the camera's field of view, providing higher image quality in this area while reducing the quality in other parts. This makes more efficient use of camera resources and bandwidth, focusing on key areas such as entrances or checkouts.
Weatherproof
With an IP67 rating, the camera can be placed anywhere. Even during the harshest weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.
Technical specifications:
| Model | LV-V-IP8M3AF-DL |
|---|---|
| Camera | |
| Image sensor | 1/2.8" Sony Starvis CMOS sensor with back illumination |
| Resolution | 8 MP |
| Effective pixels | 3864(H)×2192(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI/MPEG |
| Audio compression | G.711A/U, AAC |
| TV system | PAL/NTSC |
| Electronic shutter speed | Auto: 1/3-1/100000 |
| Minimum illumination | Color: 0.01 Lux @ F1.6, AGC on; B/W: 0 Lux with IR |
| S/N Ratio | - |
| Scanning system | Progressive |
| Video output | Network |
| Reset button | Optional |
| Lens | |
| Focal length and viewing angle | 2.7-13.5mm, motorized zoom, horizontal FOV 103°-29°, vertical FOV 54°-16°, diagonal FOV 124°-33° |
| Lens type | Auto |
| Focus control | Auto |
| Aperture | F1.6 - F3.3 |
| Pixels | 8 MP |
| Night vision | |
| Backlighting | 38µ x 2PCS(Warm light LED 4000K),38µ x 2PCS IR LED |
| Range of assistive lighting | IR: 30m White light: 30m |
| Assistive lighting status | Auto |
| Power supply of assistive lighting | Smart, Manual & Timed mode |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | None |
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, SNMP, QoS, 802.1x |
| ONVIF | Supports ONVIF 19.12 (Profiles S/T/G) |
| P2P | Yes |
| PoE | Internal, IEEE 802.3af support |
| Video delay | 0.35s (within 10m) |
| Main stream 1 | 3840*2160@30fps 3072*2048@30fps |
| Main stream 2 | 2592*1536@30fps 2560*1440@30fps |
| Main stream 3 | 1920*1080@30fps 1280*720@25fps |
| Sub stream 1 | 1280*720@30fps 720*480@30fps |
| Sub stream 2 | 352*288@30fps |
| Sub stream 3 | Not applicable |
| Third stream | 1280*720@30fps 720*480@30fps 352*288@30fps |
| Browser | IE IE8-11, Google Chrome, Firefox, Mac Safari |
| Smartphone | iPhone, Android |
| AI functions | |
| Intelligent Analysis | Intrusion detection (based on human and vehicle detection), line crossing detection (based on human and vehicle detection), presence detection (based on human detection), gathering detection (based on human detection), motion detection based on human detection, entering the area (based on human and vehicle detection), leaving the area (based on human and vehicle detection). |
| Camera functions | |
| Day/Night | Color / B/W (IR-CUT) |
| Image configuration | Saturation / Brightness / Sharpness, Mirror reflection, 3D NR, White balance, Anti-flicker, Image enhancement, HLC, Distortion |
| Corridor pattern | Supports |
| Area of interest (ROI) | Supports |
| BLC | Supports |
| WDR | 140dB |
| Motion detection | Supports (only supports motion detection based on human movement) |
| Privacy masking | 3 rectangular zones |
| Recording mode | NVR/CMS/Web |
| Language | Simplified Chinese, Traditional Chinese, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian |
| Interface | |
| Audio | Built-in microphone |
| SD card slot | Support for 1TB microSD cards |
| General | |
| Housing | Metal, IP67 |
| Anti-theft handle | Yes |
| IR filter | YES |
| Working temperature | -20°C ~ +60°C, RH95% Max |
| Storage temperature | -20°C ~ +60°C, RH95% Max |
| Power supply | DC12V 1.0A, 700mA |
| Dimensions | ∅115 × 113mm |
| Weight | 800g |
