HiLook Hikvision Monitoring Kit 8x IPCAM-B6-30DL/A 6MP Smart Hybrid-Light 30m

Kit contents:

• 8x 6Mpx dome camera - HiLook by Hikvision IPCAM-B6-30DL/A.
• 1x NVR-8CH-5MP network video recorder
• 1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
• 1x PoE Switch DS-XS0110-P 8-port Hikvision
• 40 meters of UTP cat.5e cable
• Set of signal connectors
• Sticker "ATTENTION MONITORED OBJECT".

Main features of the set:

• Efficient H.265+ compression technology
• High-quality 6Mpx image resolution
• Support for human and vehicle detection
• Smart Dual-Light: Intelligent illumination with white and infrared light
• Built-in microphone
• Water and dust resistant (IP66)
• DVR with built-in 8-port PoE switch
• H.265+ codec to optimize hard disk usage
• IP67-rated cameras, ideal for outdoor installation
• Free Hik-Connect app for surveillance management

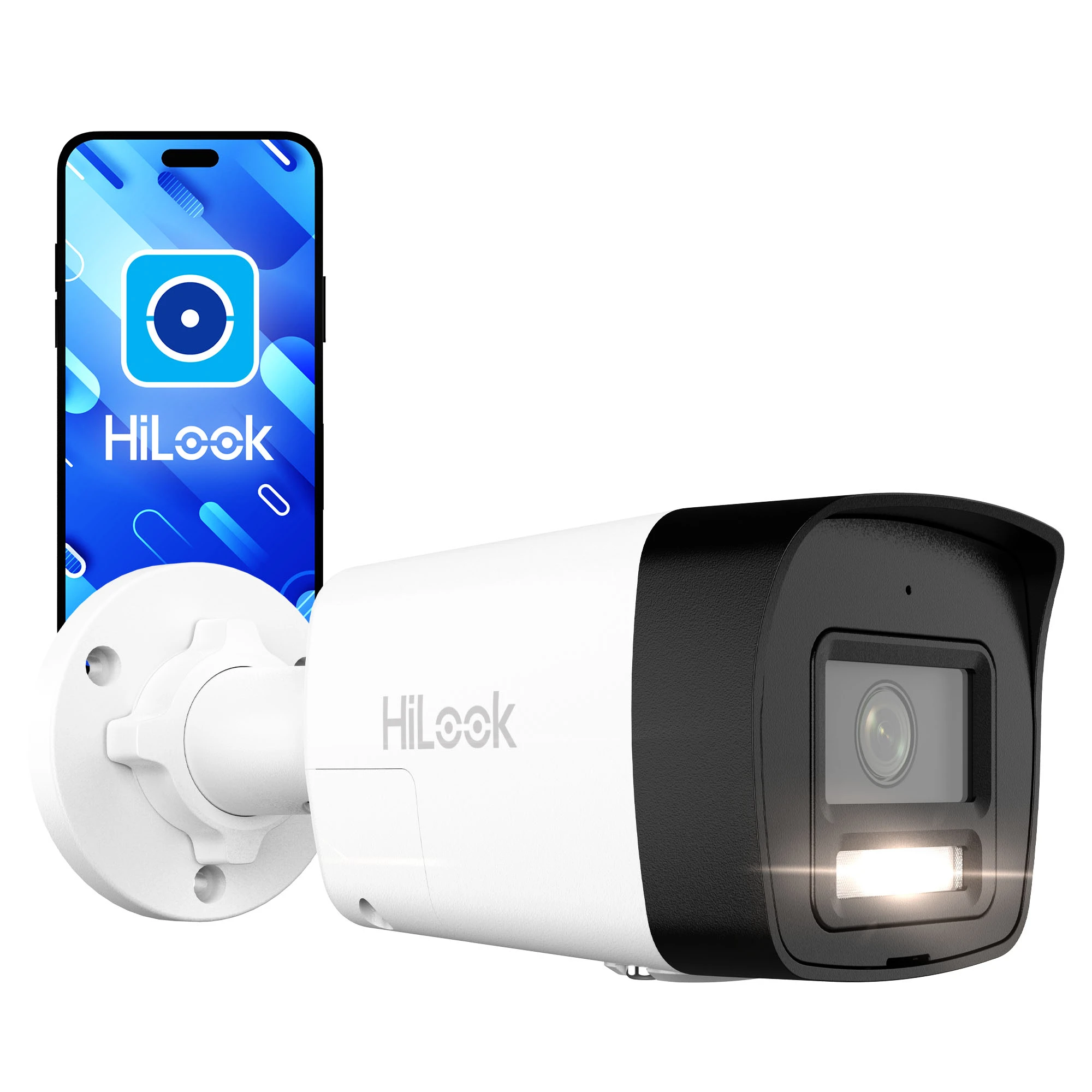

Remote access from phone and desktop computer The IPCAM-B6-30DL/A allows you to configure, control and view using Hik-Connect and iVMS-4200 applications, which will provide you with continuous monitoring access from anywhere on earth with internet access. The above programs allow you to: Access video preview and play back the recorded footage Save fragments of the video to your smartphone memory Configure time frames for motion detection Receive notifications from motion detection or other events Share your device with other smartphones with the mobile app, such as family members or employees Hik-Connect - Free app for iOS and Android smartphones iVMS-4200 - Free desktop app

IPCAM-B6-30DL/A is a technology that allows direct communication between a camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
• Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Active deterrence

With built-in audible alarms, light signals and intelligent features, the camera reacts immediately when suspicious activity is detected. When an intruder enters the device's field of view, he or she is alerted by a loud alarm signal or flashing light, effectively deterring him or her from further action.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) function of IPCAM-B6-30DL/A cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in locations where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Top image quality and high detail saturation

The IPCAM-B6-30DL 's high 6Mpx resolution provides exceptional image clarity, enabling identification of fine details and features, which is crucial for evidence analysis. It allows for greater coverage without sacrificing quality, reducing the number of cameras needed to monitor large areas. In addition, the improved image quality facilitates facial recognition and vehicle identification, which increases the effectiveness of prevention and investigation efforts.

Detection of people and vehicles

Motion detection with silhouette recognition of people and vehicles in surveillance cameras is an advanced feature that allows monitoring systems to be more precise and effective. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

NVR-8CH-5MP main features:



• Up to 8 IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1 channel @8 MP/3 channels @4 MP/6 channels @1080p decoding capability
• Incoming throughput up to 40 Mbp
• H.265+ compression effectively reduces storage space by up to 75%
• Simultaneous HDMI and VGA outputs
• HDMI video output with up to 4K resolution
• Motion detection 2.0 on 1 channel
• Support for multiple VCA (Video Content Analytics) events
• Configurable special smart camera functions such as VCA detection (motion, line crossing, intrusion, etc.)
• 1 10/100 Mbps self-adjusting Ethernet interface
• HiLookVision for easy network management

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features:

• Capacity: 1TB
• Drive type: HDD (hard disk drive)
• Format: 3.5 inches
• Interface: SATA III (6 Gb/s)
• Rotational speed: 5700 RPM
• Cache memory (Cache): 64 MB
• Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
• Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.

Technical specifications:

Camera	IPCAM-B6-30DL/A
Camera
Image sensor	1/2.4" CMOS with progressive scanning
Max resolution	3200 x 1800
Minimum illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Day and Night	IR cut filter
Angle adjustment	Pan: 0° to 360°, Tilt: 0° to 90°, Tilt: 0° to 360°
Lens
Lens type	Fixed focal length 2.8mm
Focal length and field of view	2.8mm, horizontal field of view 105°, vertical field of view 55°, diagonal 127°
Lens mount	M12
Aperture type	Fixed
Aperture	F1.6
DORI
DORI	2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
Illumination
Auxiliary light type	IR, White light
Range of auxiliary light	Up to 30m
Intelligent backlighting	Yes
IR wavelength	850nm
Video
Main stream	50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Sub-stream	50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video compression	Main stream: H.265+/H.265/H.264+/H.264, Podstrumień: H.265/H.264/MJPEG
Video bit rate	32 Kbps to 16 Mbps
H.264 type	Baseline Profile, Main Profile, High Profile
Type H.265	Main Profile
Bit rate control	CBR, VBR
Scalable video compression	H.264 and H.265 encoding
Region of interest (ROI)	1 fixed area for the main stream
Audio
Audio type	Mono
Ambient noise filtering	Yes
Sampling frequency	8 kHz/16 kHz
Audio compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio bit rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Networking
Security	Password protection, complex password, watermark, basic and complex authentication for HTTP, WSSE and complex authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous live viewing	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host	Up to 32 users
User levels	Administrator, operator, user
Client	Hik-Connect, iVMS-4200
Web browser	Plug-in required for live viewing: IE 10, IE 11, local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Day/Night switch	Day, Night, Auto, Schedule
Image enhancement	BLC, HLC, 3D DNR
Image settings	Pan mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
Privacy mask	4 programmable polygon masks
Interface
Ethernet interface	1 RJ45 10 M/100 M port with self-adaptation
MicroSD card slot	Yes (Supports cards with a maximum capacity of 512GB)
Built-in microphone	Yes
Built-in speaker	Yes, 95dB
Reset button	Yes
Events
Basic events	Motion detection (support for alarm triggering by certain types of targets - people and vehicles), tamper alarm, exception
Connection	FTP upload, email sending, monitoring center notification, capture
General
Power supply	12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material	Metal and plastic
Dimensions	179 mm x 67.4 mm x 69.1 mm
Packaging dimensions	216 mm x 121 mm x 118 mm
Weight	Approximately 280 g (0.6 lb.)
Weight with packaging	Approximately 475 g (1.1 lb.)
Storage conditions	-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Commissioning and operating conditions	-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Language	Polish
General functions	Heartbeat, anti-banding, mirror, password protection, password reset via email
Approvals
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No. 1907/2006

DVR	NVR-8CH-5MP
Motion Detection 2.0
People/Vehicle Analysis	4-channel
Video and Audio
IP Video Input	8-channels
Input bandwidth	40 Mbps
Outgoing bandwidth	80 Mbps
HDMI Output	1-channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output	1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode	HDMI/VGA simultaneous output
Audio Output	1-channel, RCA (Linear, 1 KΩ)
Two-way Audio	1-channel, RCA (2.0 Vp-p, 1kΩ)
Decoding
Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	8-channel
Decoding capability	1-channel@8 MP (30 fps)/3-channel@4 MP (30 fps)/6-channel@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection	32
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface	1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
PoE
Interface	8-channel, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 75 W
Standard	IEEE 802.3 af/at
Auxiliary interface
SATA interface	1 SATA interface
Capacity	Maximum 8 TB capacity per drive
USB interface	2 × USB 2.0
Alarm input/output	N/A
General
Power supply	48 VDC, 1.88 A
Consumption	≤ 10 W (without HDD and PoE)
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F)
Operating humidity	10% to 90%
Dimensions (S × G × W)	265 × 225 × 48 mm
Weight	≤ 1 kg (without HDD, 2.2 lb.)
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014
CE	EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
