Hikvision Smart Hybrid Light 4K IP Camera DS-2CD1383G2-LIUF

The DS-2CD1383G2-LIUF camera also comes with useful instructions and mounting accessories to speed up the entire camera installation process.

Kit contents:

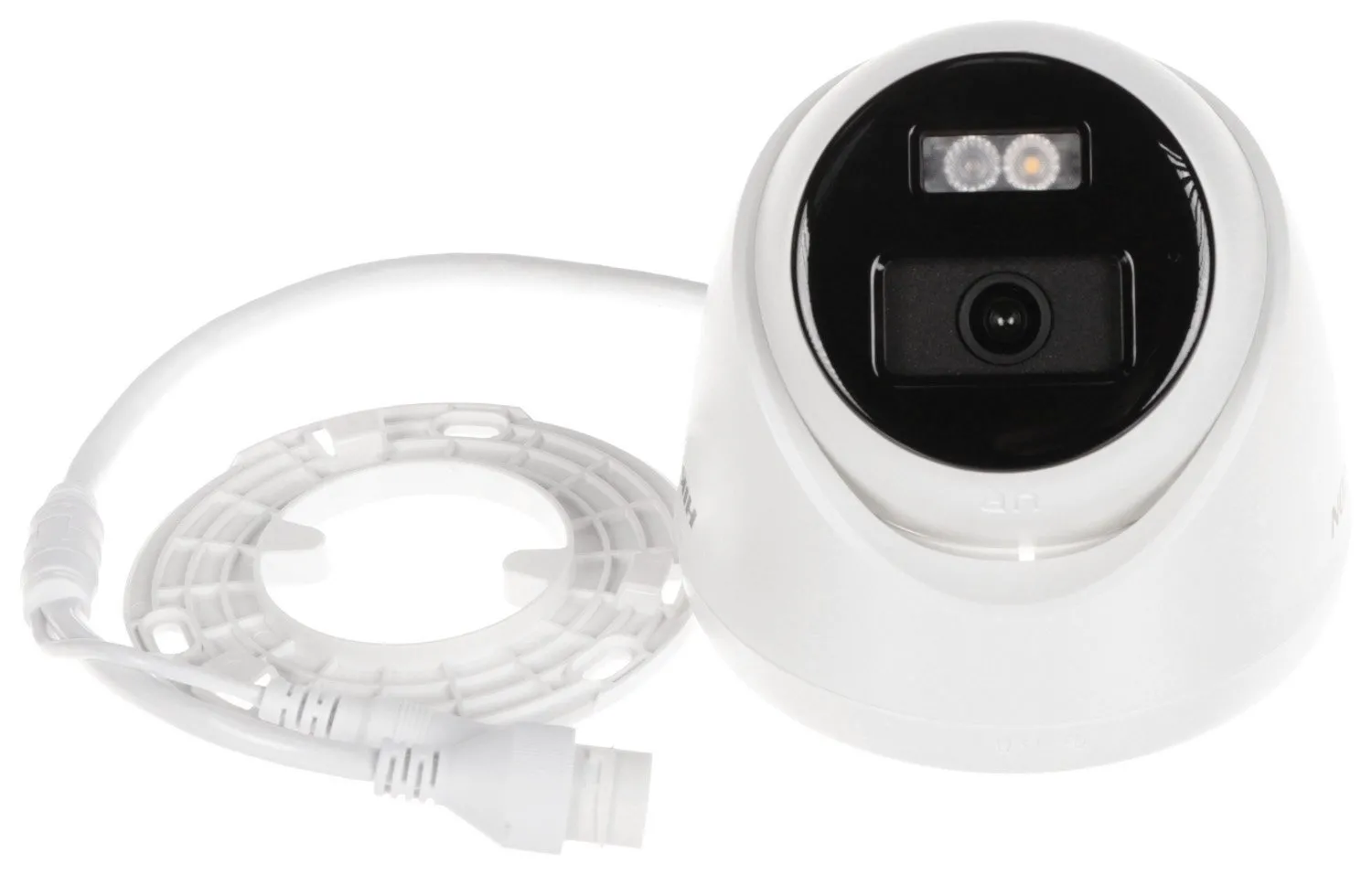

• 1x 8 Mpx dome camera - DS-2CD1383G2-LIUF

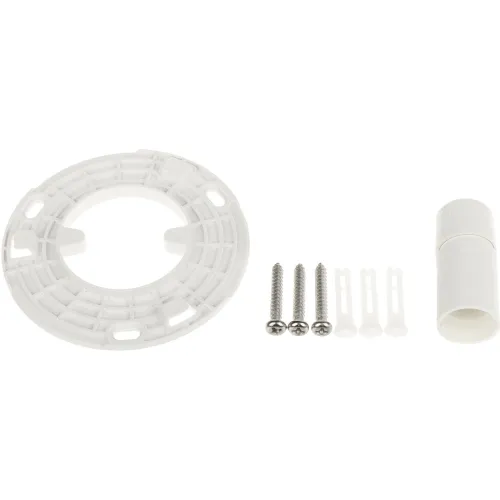

• Template - A small-sized template with mounting holes for the camera
• Screws and mounting studs - Everything you need to mount the camera
• Sealing kit - A set of accessories to protect the camera connectors from moisture

Hikvision products are devices that focus on ease of use, literally anyone can handle their installation and configuration with the included instructions.

Main product features:

• Standard: IP camera
• Resolution: 4K UHD (3840 x 2160) and lower options (6Mpx, 4Mpx, 1080p, 720p)
• Sensor: 1/2.7" Progressive Scan CMOS
• Lens: 2.8mm, viewing angle 113
• Illuminators: white light (LED) - range up to 30m, infrared (IR) - range up to 30m
• Memory card slot: Micro SD support up to 512 GB
• Video compression: H.265+, H.265, H.264+, H.264, MJPEG
• Built-in microphone
• Transmission speed: 12.5 fps @ 8.3 Mpx
• Interface: RJ-45 (10/100 Base-T)
• ONVIF support: yes
• Intelligent motion detection (people and vehicle recognition)
• Video tamper detection
• Smart Hybrid Light - automatic IR/LED switching
• WDR 120 dB - wide dynamic range
• 3D-DNR - digital noise reduction
• ROI - enhancement of selected parts of the image
• BLC/HLC - background and spot light compensation
• Changeable resolution, quality and bandwidth
• Image rotation, mirroring, contour sharpening
• Configurable privacy zones
• Hik-Connect app (Android/iOS)
• Housing: dome-shaped (metal + plastic), white color
• Resistance: IP67 - dust and water resistant

Smart Hybrid Light - customize the illumination of the scene. Smart Hybrid Illuminator is a lighting mode on the DS-2CD1383G2-LIUF camera that activates white light only when a person or vehicle is detected in the detection zone. When the subject leaves the monitored area, the LED illuminator automatically switches to infrared (IR) after one minute. The user can also select other illumination modes: LED (white light only for color images at night), IR (infrared only), or turn off the illuminator completely. The illuminator mode can be easily configured in the camera's menu, which can be accessed via a web browser.

Automatic day/night mode Adapted to work in all lighting conditions DS-2CD1383G2-LIUF with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

Capture the widest possible area

The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. With a 108° horizontal, 59° vertical and 127° diagonal viewing angle, the DS-2CD1383G2-LIUF camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas requiring wide surveillance, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.

High-quality image The light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The DS-2CD1383G2-LIUF records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage. A: 1280x720p ( 1Mpx ) B: 1920x1080p ( 2Mpx ) C: 2048x1536p ( 3Mpx ) D: 2560x1440p ( 4Mpx ) E: 2560x1960p ( 5Mpx ) F: 3840x2160p ( 8Mpx )

MicroSD card slot The DS-2CD1383G2-LIUF camera has a built-in microSD card slot that allows local storage of video recordings on media up to 512GB. This solution allows you to store a large amount of footage without the need for external recording devices, which is ideal in case of emergencies, network problems or when long-term archiving of recordings directly on the device is required.

IP67 weatherproof design This housing protects the DS-2CD1383G2-LIUF camera from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Microphone - a fuller picture of the situation

The DS-2CD1383G2-LIUF camera is equipped with a built-in microphone, which allows it to record ambient sound and transmit it simultaneously with the image. This allows not only visual monitoring, but also auditory monitoring, providing a more complete picture of the situation. This feature is particularly useful in areas requiring detailed surveillance, such as building entrances, stores or offices, where audio can provide additional information about events and improve the effectiveness of surveillance.

Have continuous access to your cameras The Hik-Connect mobile app was created to allow end users to conveniently manage security devices, such as cameras and DVRs, using smartphones or tablets. Its main advantage is the ability to remotely access live view, recordings and many additional features. The process of adding devices is simple and intuitive - it can be done through a web browser or by scanning QR codes. In addition to the Hik-Connect app, you can also use other apps, listed at the bottom: Hik-ProConnect is a comprehensive cloud-based solution designed for Hikvision installers and system integrators. This tool allows you to effectively manage the services you provide to your customers and grow your business in a subscription model. (paid application) The iVMS-4200 software is designed for easy and comprehensive configuration and management of Hikvision devices such as switches, DVRs and NVRs, IP cameras, alarm systems, access control and storage devices. (Free application) The SADP (Search Active Devices Protocol) application provides a user-friendly and installation-free software tool for online device search. It searches for active online devices in your subnet and displays information about those devices. (Free application) HikCentral Professional is security integration software designed to manage a variety of security challenges on a single, intuitive platform. It enables both the management of individual systems, such as video surveillance, access control, and alarm systems, and the linking of multiple systems within an integrated architecture. (paid application)

People and vehicle detection Motion detection with silhouette recognition of people and vehicles in DS-2CD1383G2-LIUF cameras is an advanced feature that allows to increase the precision and efficiency of monitoring systems. It allows the camera to classify notifications according to the type of silhouette detected. At the same time providing more detailed information, but also completely filtering out irrelevant ones such as: Moving trees and bushes.

Wide Dynamic Range - That is, high quality in difficult conditions

• Improved image quality: With clear details in both dark and bright parts of the image, WDR 120 dB technology eliminates the problem of so-called "burn-in" and "underexposure."
• Increased monitoring efficiency: Facilitates recognition of faces, license plates and other important elements, which is crucial for security analysis.
• Reduced need for backlighting: Less need for additional lighting, which can lead to energy savings and cost reductions.

How does ROI work?

The ROI function allows you to define one or more areas in the field of view of the DS-2CD1383G2-LIUF camera that are particularly important to monitor, such as entrances, cash registers, or high-traffic areas. In these designated regions, the camera can capture images at a higher resolution and bitrate, providing more detail. The rest of the frame, less important to the user, can be recorded at a lower resolution, saving bandwidth and disk space.

Hide what shouldn't be visible

Privacy masks are a feature that allows you to tailor the operation of the surveillance system to the specific spatial conditions and security needs of the area. Using privacy masks, you can freely designate areas in the frame that will not be covered by video surveillance, providing greater privacy protection.



Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

• Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
• Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Technical specifications:
