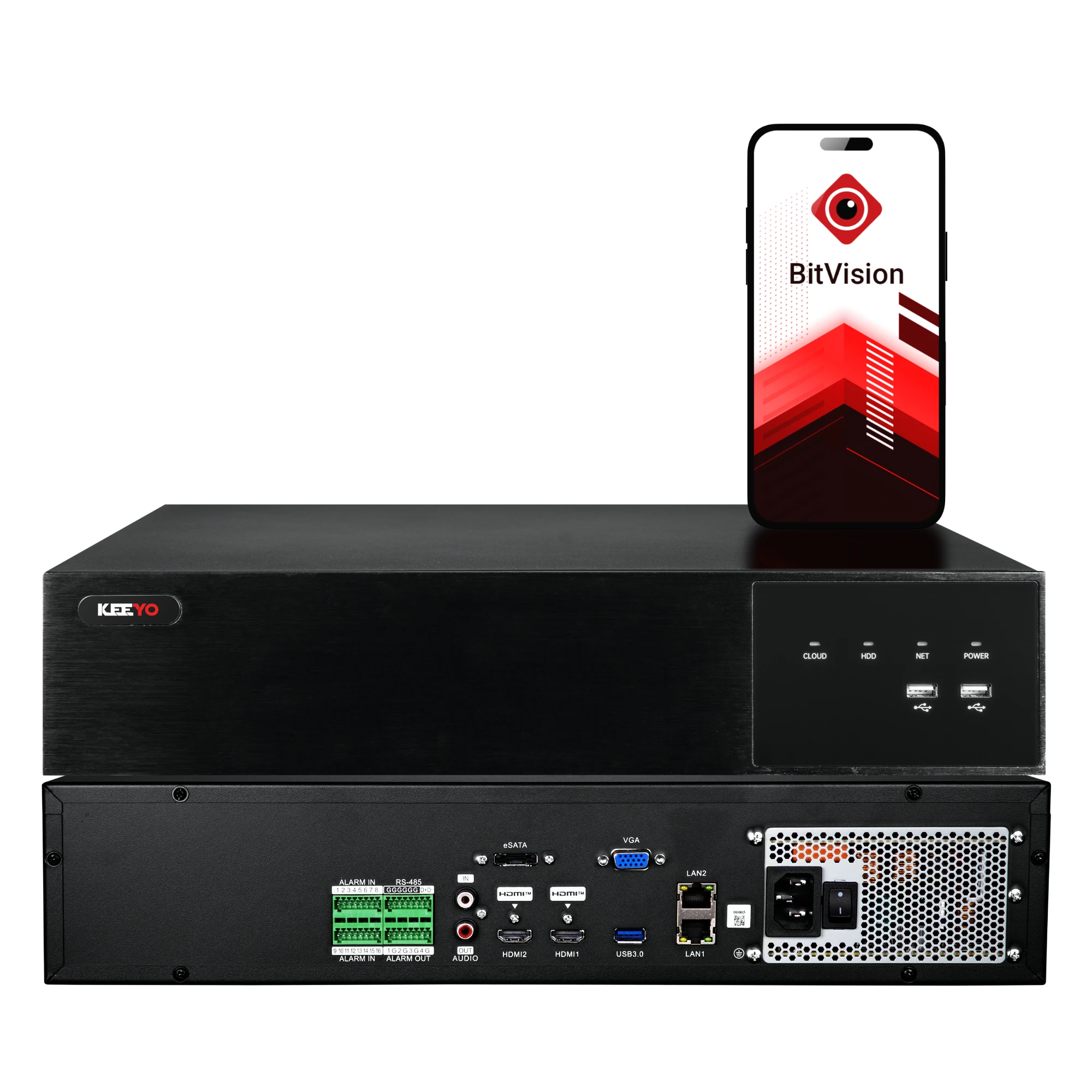

KEEYO LV-V-NVR-64CH-K8 Network Recorder 64 Channel 8x SATA
Photo gallery
-
Manufacturer
-
Product Code
LV-V-NVR-64CH-K8
-
Warranty
24 miesiące
- Technology: IP
- Number of channels: 64
- Built-in POE switch: No
Ask about this product show form
Product Description
Package contents:
- 1x LV-V-NVR-64CH-K8 DVR
- 1x User manual
- 1x Wired mouse
- 1x Power adapter
Main features of the LV-V-NVR-64CH-K8 DVR:
- Support for IP cameras from other manufacturers
- Up to 64 IP cameras can be connected
- H.265+ video compression
- Live viewing, recording and playback of footage from cameras up to 12 Mpx
- 8x SATA interface for recording and backup
- 1 10/100/1000Mbps network card with automatic speed selection
- Simultaneous HDMI/VGA output
- In-app support via mobile devices with systems: Android, iOS
- Web browser support: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
- Modern casing
- Built-in web server, support via CMS or mobile client
- ONVIF support
Remote access from desktops and smartphones
Bitvision is a simple and fast way to operate your property monitoring system, thanks to it you will be able to:
✅Access video previews and playback stored footage
✅Save snippets of video to your smartphone's memory
✅Configure timeframes for motion detection
✅Receive notifications from motion detection or other events
✅Share your devices with other smartphones with the mobile app, such as family members or employees
Power Over Ethernet (PoE)
PoE is a technology that allows both data and power to be transmitted over a single Ethernet cable. It is widely used in various network devices, including surveillance DVRs such as the KEEYO LV-V-NVR-64CH-K8 (NVR - Network Video Recorder) and IP cameras. Power over Ethernet is an effective solution for surveillance systems that simplifies installation, management and increases the flexibility of security systems. With PoE, it is possible to create more advanced and reliable surveillance systems while reducing installation and maintenance costs.
Support for popular browsers
The KEEYO LV-V-NVR-64CH-K8 DVR supports popular web browsers such as Chrome, Mozilla Firefox and Safari. This allows users to enjoy convenient and hassle-free access to the surveillance system from different platforms and devices, providing full flexibility and convenience.
H.265 encoding, also known as High Efficiency Video Coding (HEVC), works by compressing video data more efficiently than its predecessor H.264, allowing for smaller file sizes while maintaining high image quality. H.265 achieves this through advanced techniques such as adaptive splitting of video into blocks of different sizes, more complex motion prediction algorithms and improved entropy models. As a result, surveillance DVRs can store longer recordings on the same storage medium and transmit higher resolution video streams while using less network bandwidth.
Technical specifications:
| Model | LV-V-NVR64CH-K8 |
|---|---|
| System | |
| Main processor | Quad Cortex A53 |
| Operating system | Embedded LINUX |
| Video | |
| Input | 64 kanały (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF) |
| Output | 2×HD, 1×VGA |
| Audio | |
| Input | 1 RCA port, support 64 IPC audio channels |
| Output | 1 RCA port (line, 1kΩ), HD output |
| Audio bit rate | 64kbps |
| Audio compression standard | G711U, G711A, AAC |
| Intercom | supported (two-way) |
| Alarm | |
| Sensor input | 16 channels |
| Output | 4 channels |
| Motion detection | 64 channels, MD zones: 396 (22 × 18) |
| Alarm events | Recording, email, FTP, screenshot, beep and screen notifications, alarm output |
| Display | |
| HD1 output | 4K (3840×2160), 2K (2560×1440), 1920×1080, 1280×1024, 1280×720, 1024×768 |
| HD2 output | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| VGA | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Screen division | HDMI1/VGA: 1/4/6/8/9/13/16/17/25/36/64 HDMI2: 1/4/6/8/9/10/13/16 |
| Digital zoom | Yes |
| OSD | Camera name, time, recording, motion detection, event alert |
| Recording | |
| Video compression | H265/H264/H265+/H264+ |
| Resolution | 12MP (4000×3000), 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944) 4MP (2688×1520/2560×1440), 3MP (2048×1536), 1080P (1920×1080) 1280×1024, 960P (1280×960), 720P (1280×720) 960H (960×480), D1 (720×576/720×480) |
| Recording speed | PAL: 12MP@64CH×25fps, 8MP@64CH×25fps, 5MP@64CH×25fps, 4MP@64CH×25fps, 3MP@64CH×25fps, 1080P@64CH×25fps, 960P@64CH×25fps, 720P@64CH×25fps, D1@64CH×25fps NTSC: 12MP@64CH×30fps, 8MP@64CH×30fps, 5MP@64CH×30fps, 4MP@64CH×30fps, 3MP@64CH×30fps, 1080P@64CH×30fps, 960P@64CH×30fps, 720P@64CH×30fps, D1@64CH×30fps |
| Recording modes | Manual, Schedule, Motion detection, Alarm, Intelligent event |
| Playback and Backup | |
| Local synchronous playback | 2CH 12MP@30fps 4CH 8MP@30fps 6CH 5MP@30fps 8CH 4MP@30fps 16CH 1080P@30fps 16CH 960P@30fps 16CH 720P@30fps 16CH D1@30fps |
| Decoding capability | 1080P (1920×1080) @ 480fps |
| Remote synchronous playback | Yes |
| Search mode | All, Schedule, Motion detection, Alarm, Tag search, Smart event, Photos, Log |
| Playback functions | Playback, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clippings, audio |
| Backup modes | USB device / Network |
| Network | |
| Interface | 2×RJ45 10M/100/1000M Adaptive Ethernet interface |
| Incoming bandwidth | 640Mbps |
| Outgoing throughput | 512Mbps |
| Network functions | IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPOE |
| ONVIF | S profile, T profile |
| Web browser | Edge, IE8-11, Google Chrome, Firefox, Safari |
| CMS software | Windows 7/8/10/11, macOS support |
| Cloud support | YES |
| Smartphone | iPhone, Android |
| POE | none |
| Wi-Fi | no |
| Storage | |
| Interface type | 8× SATA (3.5" SATA) |
| Capacity | Up to 10 TB per hard drive |
| eSATA | 1 eSATA port |
| General | |
| Languages | Polish |
| USB interface | 2× USB 2.0, rear panel: 1× USB 3.0 |
| RS485 | 1 port |
| Power consumption | 100-240V AC, 50/60Hz, ≤20W (without hard disk and POE) |
| Operating environment | -10℃ ~ 50℃, 10% ~ 90% humidity |
| Dimensions (S×G×W) | 440mm × 428mm × 90mm |
| Net weight | 7.32kg (without hard drive) |
| Gross weight | 8.84kg (without hard drive) |
