4-in-1 Monitoring Kit KEEYO 4x LV-E-AL8M25TF-B 8MP, IR 25m
Photo gallery
-
Manufacturer
-
Product Code
ZM34646
-
Warranty
24 miesiące
- Technology: AHD/HD-CVI/HD-TVI
- Resolution: 8Mpx
- Enclosure: Tube
- Night visibility: up to 25m
- Number of cameras: 4
- Connectivity: Wired
- Color: White
Ask about this product show form
Related products
Product Description

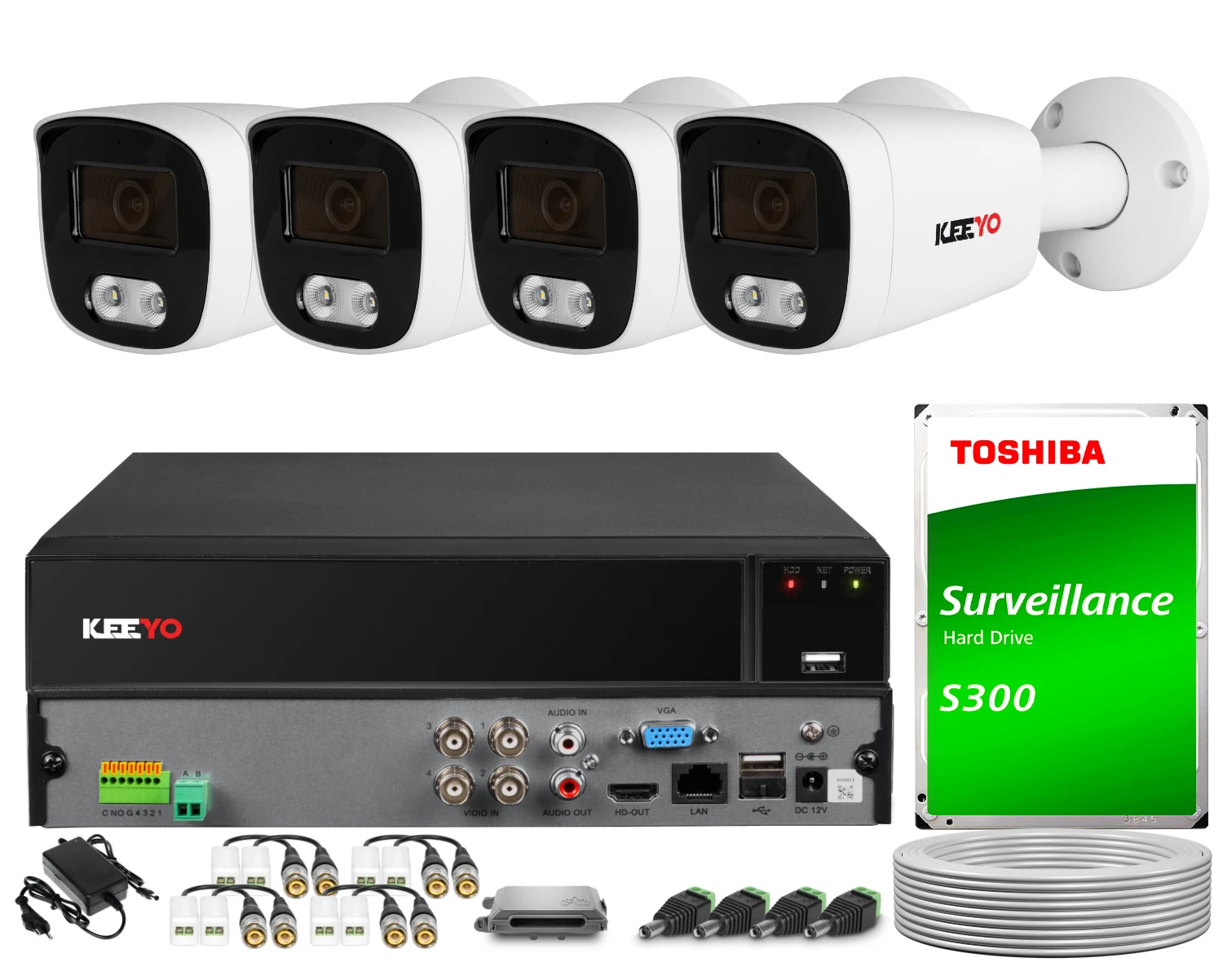

KIT CONTENTS:
- 8Mpx camera KEEYO LV-E-AL8M25TF-B (4pcs).
- KEEYO LV-V-XVR-4CH DVR (1pc).
- TOSHIBA S300 surveillance hard drive ( 1pc ).
- UTP cable (20m.).
- Set of converters ( 4pcs ) and DC plugs ( 4pcs ).
- Power splitter ( 1pcs. )
- Power supply for cameras ( 1pcs. )
- "ATTENTION MONITORED OBJECT" sticker ( 1pcs).
Features of LV-E-AL8M25TF-B camera
- Focal length of 2.8mm - Optical property of the lens that guarantees a wide angle of view.
- 4K resolution matrix - Video footage is recorded at a high resolution of 3840 x 2160.
- Night illumination with a range of 25 meters - Two high-power IR LEDs to accurately illuminate the space of your property.
- Enhanced dynamic range - Even on the sunniest day, video will not lose detail in harsh light or in heavily shadowed patios of the frame.
- 12V power supply
- Wide viewing angle - The diagonal field of view is 110°.
- Weatherproof - The camera is IP67-rated, which means it can work in the harshest conditions.
Main features of KEEYO LV-V-XVR-4CH DVR:
- Support for AHD/TVI 3.0/CVI/CVBS cameras from other manufacturers
- Possibility to connect up to 4 analog cameras
- H.265+ video compression
- Human silhouette detection
- Live viewing, recording and playback of footage from cameras up to 8Mpx
- 1 SATA interface for recording and backup
- 1 10/100Mbps network card with automatic speed selection
- Simultaneous HDMI/VGA output
- In-app support via mobile devices with systems: Android, iOS
- Support for web browsers: Chrome, Firefox, Safari, Microsoft Edge, Internet Explorer 8-11
- Modern housing
- Built-in web server, support via CMS or mobile client
Main features of Toshiba S300 hard drive
- Capacity: 1TB
- Drive type: HDD (hard disk drive)
- Format: 3.5 inches
- Interface: SATA III (6 Gb/s)
- Rotational speed: 5700 RPM
- Cache memory (Cache): 64 MB
- Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
- Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
- Performance: The drive provides stability and reliability in situations that require high data read/write loads.
Capture the largest possible area
The 2.8mm lens provides a wide field of view, ideal for monitoring large areas. The LV-E-AL8M25TF-B camera can capture a wide scene with minimal blind spots. This configuration is particularly useful in areas that require extensive monitoring, such as parking lots, warehouses or public spaces, where it is important to capture as much of the environment as possible without the need for multiple cameras.
High-quality imageThe light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The LV-E-AL8M25TF-B records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
|  |
Automatic Day/Night mode
Adapted to work in all lighting conditions with visibility up to 25m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.
Wide Dynamic Range: DWDR
The use of extended dynamic range DWDR takes care of the quality of recordings by detecting and making lighting corrections in areas of overexposure and lack of light. Thanks to this solution, the device is able to capture details of contrasting images.
Resistant to weather conditions
The IP67 waterproof rating means that the camera can be placed anywhere. Even during the harshest atmospheric conditions, the device guarantees trouble-free operation thanks to the high-quality materials of the device's housing.
Technical specifications of the camera:
| Model | LV-E-AL8M25TF-B |
|---|---|
| Camera | |
| Image sensor | 1/2.5" CMOS sensor |
| Image resolution | 8M: 3840*2160, 5M: 2592*1944, 4M: 2560*1440, 2M: 1920*1080 |
| TV system | PAL/NTSC |
| Electronic shutter | Automatic |
| Minimum illumination | Color: 0.03 lux@F2.0, AGC on; B/W: 0 lux with IR |
| Scanning system | Progressive scanning |
| Lens | |
| Focal length | 2.8mm |
| Focus control | Fixed |
| Type of lens | Fixed focal length |
| Night vision | |
| IR filter | Yes |
| Infrared LEDs | 42µ x 2 pcs |
| Infrared range | 25m |
| IR status | Automatic AGC control |
| Camera functions | |
| Day/Night | Yes |
| OSD menu | Yes |
| WDR | DWDR |
| UTC | Yes |
| Noise reduction | DNR |
| Audio | YES (TVI only) |
| White balance | AUTOMATIC / MANUAL |
| Gain control | AUTOMATIC |
| General | |
| Housing | Metal, IP67 |
| Bracket | Yes |
| Operating temperature | -10℃ ~ +60℃, maximum humidity 95%. |
| Storage temperature | -20℃ ~ +60℃, maximum humidity 95% |
| Power source | DC12V±10%, 500mA |
| Dimensions | 169(W) x 67.5(H) x 70(D) mm |
| Weight | 500g |
Technical specifications of the recorder:
| Model | LV-V-XVR-4CH |
|---|---|
| System | |
| Main processor | MC6630 |
| Operating system | Embedded LINUX |
| Video | |
| Input | Analog: 4*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 1080P/720P@30fps; Analog: 960H) Analog + Network: 2Analog (5MP) + 4Network (max. 5MP) Network: 9*5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤48M) |
| Input | 4CH BNC |
| Signal type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
| Output | 1HD, 1 VGA |
| Audio | |
| Input | 4CH BNC |
| Two-way audio | NONE |
| Output | 1 RCA channel |
| Alarm | |
| Sensor input | NONE |
| Output | NONE |
| Motion detection | 4 channels (max. 9 channels in pure network mode) |
| Trigger events | Recording, E-mail, On-screen indication, Buzzer, Push notifications (motion detection) |
| Email alert | Send video to designated email |
| AI function | |
| People detection | YES |
| Display | |
| VGA | Resolution: 1920 × 1080P, 1280 × 1024, 1280 × 720, 1024 × 768 |
| HD output | Resolution: 1920 × 1080P, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Screen division | 1/4/8/9 |
| Privacy masking | 3 rectangular zones (each camera) |
| OSD | Camera title, Time, Video loss, Motion detection, Recording |
| Recording | |
| Video compression | H.265/H.264 |
| Audio compression | G.711U/G.711A |
| Resolution | 5MP_Lite (1280×1952), 4MP_Lite (1280×1440), 1080N (960×1080), 720P (1280×720), 960H (960×480) |
| Video quality | Lowest/Low/Medium/Good/Better/Best |
| Recording speed | Analog: PAL: 5MP_Lite (1296×1944@12fps), 4MP_Lite (1280×1440@15fps), 1080N (960x1080@25fps), 720P (1280×720@25fps), 960H (960x480@25fps) NTSC: 5MP_Lite (1296×1944@12fps), 4MP_Lite (1280×1440@15fps), 1080N (960x1080@25fps), 720P (1280×720@30fps), 960H (960x480@30fps) IP (H.265): PAL: 5MP@8×25fps, 4MP@9×25fps, 3MP@9×25fps, 1080P@9×25fps, 960P@9×25fps, 720P@9×25fps, D1@9×25fps NTSC: 5MP@8×30fps, 4MP@9×30fps, 3MP@9×30fps, 1080P@9×30fps, 960P@9×30fps, 720P@9×30fps, D1@9×30fps |
| Recording mode | Manual/Timer/Motion Detection/Intelligent |
| Playback and Backup | |
| Decoding capabilities | 2*1080P@30fps |
| Synchronous playback | Pure analog: 3CH 5MP_LITE@12fps, 3CH 4MP_LITE@15fps, 4CH 1080N@25fps, 4CH 720P@30fps Mixed mode: 1CH 5MP@30fps, 2CH 5M_LITE@12fps, 2CH 1080p@25fps Pure Network: 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 1080P@30fps, 4CH 720P@30fps |
| Remote playback | 4 channels / 1 channel |
| Search mode | All, Channel, Manual, Time, Date, Motion detection, People detection, Label |
| Playback functions | Play; Pause; Stop; Fast playback; Slow playback; Rewind; Next file; Previous file; Next camera; Previous camera; Full screen; Backup selection; Digital zoom |
| Smartphone playback | 4 channels |
| Backup mode | USB device (with FAT 32 format)/Network/FTP |
| Network | |
| Interface | 1 RJ-45 10M/100M self-adaptive Ethernet interface |
| Network functions | TCP/IP, HTTP, HTTPS, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, NTP, UPnP DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET |
| Web browser | Edge, IE8-11, Google Chrome, Firefox, Safari |
| CMS software | Support for Windows 7/ Windows 8/ Windows 10/ Windows 11/ MAC OS |
| Additional stream | CIF/D1 (1-30fps) |
| Smartphone | iPhone, Android |
| Hard drive | |
| Interface type | 1 SATA interface |
| Capacity | 1 SATA drive (2.5"/3.5" SATA, up to 8TB) |
| General | |
| Language | Simplified Chinese, Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkish, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese, Ukrainian |
| UTC control | YES |
| USB interface | 2 USB 2.0 interfaces |
| Power consumption | DC 12V/1.5A ≤ 7W (without HDD) |
| Operating environment | -10~55℃/10~90% |
| Dimensions | (S×G×W): 260* 23*43 (mm) |
| Weight | 0.86 kg (without HDD) |
