Dahua IP Monitoring Kit 4x IPC-HDW1439V-A-IL-0280B Black 3.7Mpx

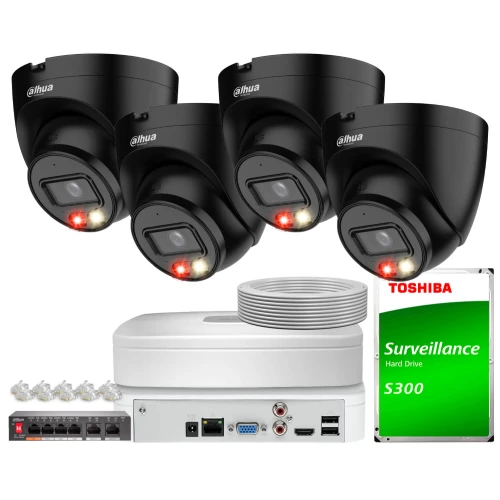

The image shows a Dahua IP surveillance system, featuring four black dome cameras and a Toshiba S300 surveillance hard drive. Included are a network video recorder, Ethernet cables, and a power supply unit for comprehensive security monitoring.

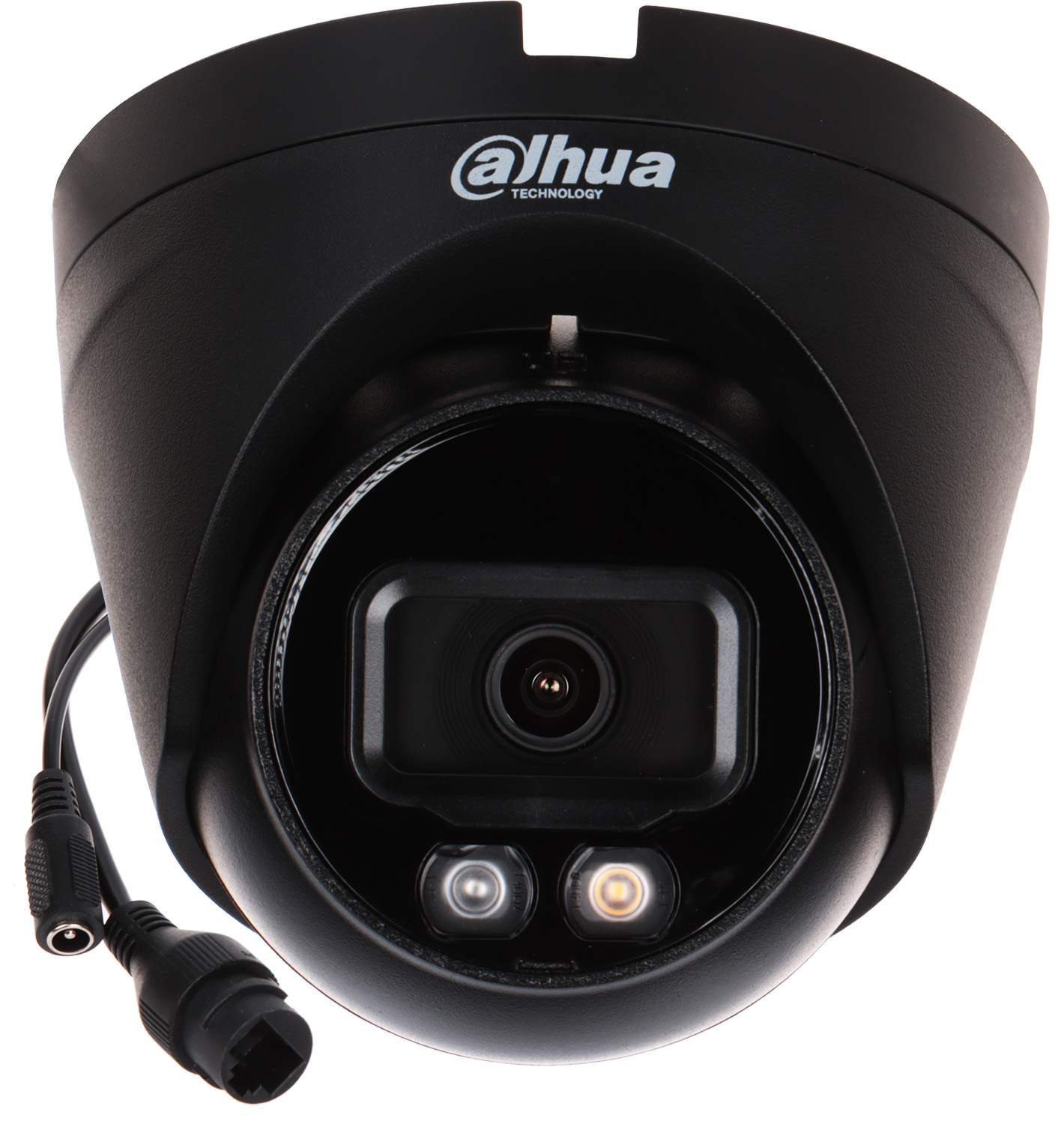

A black dome security camera with dual LED lights and a central lens, designed for outdoor surveillance. The camera features a durable casing and a cable for connectivity, suitable for various monitoring needs.

A sleek, white surveillance network video recorder with a minimalist design and subtle branding on the top surface. The device features ventilation on the side for efficient cooling and discreet LED indicators on the front.

The image features a Toshiba Surveillance S300 hard drive, designed for high-performance data storage, alongside a coiled gray cable and a set of connectors. This combination is ideal for setting up a reliable surveillance system.

Manufacturer
Dahua
Product Code

ZM34668
Warranty

24 miesiące

Technology: IP
Resolution: 4Mpx
Enclosure: Dome
Number of cameras: 4
Connectivity: Wired
Color: Czarny

see description

Ask about this product show form

Availability: in stock Shipping 24h

Price (Incl. VAT):

759,66 €

Add to Watchlist

Do you represent a budgetary unit?
Check out the deferred payment option.

Product Description

Set contents:

4x 4Mpx dome camera - IPC-HDW1439V-A-IL-0280B Black Dahua
1x Network Video Recorder - NVR2104-4KS3
1x 4 port PoE switch
1x Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions
UTP cat.5e cable ( 20m )
Set of RJ45 plugs
Sticker "ATTENTION MONITORED OBJECT".

Main features of the set:

Matrix and resolution: 4 Mpx, 1/2.9" Progressive Scan CMOS
Lens and viewing angle: 2.8mm lens; 94° viewing angle.
Illumination range: Range of white light (LED) and IR illuminator up to 30m.
Compression methods: Support for H.265+, H.265, H.264+, H.264, MJPEG.
Audio: Built-in microphone, network audio transmission, audio detection, AAC compliance.
Network interface and access: 10/100 Base-T (RJ-45) port, access via cloud (P2P), ONVIF.
Advanced features: WDR, 3D-DNR, ROI, BLC/HLC, motion detection, human detection, privacy zones.
Housing and durability: Metal-plastic dome-type housing, IP67 rating.
Power: Supports PoE (802.3af) and 12 V DC power supply.
Operating temperature range: -40°C to 60°C, weatherproof.

Remote access from your phone and desktop computer

IPC-HDW1439V-A-IL-0280B Black allows you to configure, control and view using applications that will provide you with constant access to monitoring from anywhere on earth with internet access. The above programs allow you to:

Access video preview and play back the recorded footage
Save portions of the video to your smartphone's memory
Configure time frames for motion detection
Receive notifications from motion detection or other events
Share your device with other smartphones with the mobile app, such as family members or employees

P2P function

In IPC-HDW1439V-A-IL-0280B Black is a technology that allows direct communication between the camera and an end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

Direct Connection: P2P allows a direct connection between the camera and the user's device. This means that video data can be transmitted directly, without having to go through an intermediary server.
Ease of Setup: One of the main advantages of P2P is the ease of setup. Users often only need to scan a QR code or enter a camera ID to establish a connection.
Remote Access: The user can access the camera's video from anywhere in the world, provided both the camera and the end device have Internet access.

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) feature of IPC-HDW1439V-A-IL-0280B Black cameras is a technology that allows data and electrical power to be transmitted to a network device via a single Ethernet cable. With this solution, cameras can be installed in places where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, surveillance systems using PoE are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of surveillance systems.

Wide Dynamic Range - That is, high quality in difficult conditions

The WDR (Wide Dynamic Range) feature of IPC-HDW1439V-A-IL-0280B Black cameras is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern surveillance systems. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ coding in surveillance DVRs are:

Higher Compression Efficiency: H.265+ makes it possible to significantly reduce the size of video files while maintaining the same image quality. This saves disk space and increases the storage time of recordings.
Energy Savings: More efficient compression reduces the CPU load, resulting in lower power consumption of surveillance equipment.

Automatic day/night mode

Adapted to work in all lighting conditions IPC-HDW1439V-A-IL-0280B Black with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens.

IP67 weatherproof design

This housing protects the IPC-HDW1439V-A-IL-0280B Black from external elements such as dust, dirt and moisture, which is especially important in industrial environments or dusty locations. Cameras with IP67 housings can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage.

Main features :

Matrix and resolution: 4 Mpx, 1/2.9" Progressive Scan CMOS
Lens and viewing angle: 2.8mm lens; 94° viewing angle.
Illumination range: Range of white light (LED) and IR illuminator up to 30m.
Compression methods: Support for H.265+, H.265, H.264+, H.264, MJPEG.
Audio: Built-in microphone, network audio transmission, audio detection, AAC compliance.
Network interface and access: 10/100 Base-T (RJ-45) port, access via cloud (P2P), ONVIF.
Advanced features: WDR, 3D-DNR, ROI, BLC/HLC, motion detection, human detection, privacy zones.
Housing and durability: Metal-plastic dome-type housing, IP67 rating.
Power: Supports PoE (802.3af) and 12 V DC power supply.
Operating temperature range: -40°C to 60°C, weatherproof.

Main features of the DVR:

Video inputs: 4 IP channels
Video outputs: 1x VGA, 1x HDMI (4K UHD)
Maximum recording resolution: 12 Mpx / 8 Mpx (with AI features)
Maximum bitrate: 80 Mbps (input), 80 Mbps (recording), 60 Mbps (output)
Compression formats: H.265+, H.265, H.264+, H.264, MJPEG
Audio input/output: 1x RCA (input), 1x RCA (output)
Network interface: Ethernet RJ45 10/100 Mbps
Disk support: 1x SATA HDD (up to 20 TB)
AI functions: object classification (human/vehicle) on 4 channels
SMD+: classification with false alarm filtering
Audio recording: from up to 4 IP cameras
Window splitting in local mode: 1 or 4
Arming and disarming: one click
Supported protocols: ONVIF, CGI, SDK, P2P

The Toshiba S300 Surveillance 1TB hard drive is designed for video surveillance systems. Its performance and features are optimized for continuous 24/7 operation, making it suitable for CCTV surveillance applications.

Main features:

Capacity: 1TB
Drive type: HDD (hard disk drive)
Format: 3.5 inches
Interface: (6 Gb/s)
Rotational speed: 5700 RPM
Cache memory (Cache): 64 MB
Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
Performance: The drive provides stability and reliability in situations requiring heavy read/write loads.

Additional accessories:

IPC-HDW1439V-A-IL-0280B Technical Specifications.

Camera	IPC-HDW1439V-A-IL-0280B Black
Standard	TCP/IP
Sensor	1/2.9 " Progressive Scan CMOS
Sensor size	4 Mpx
Resolution	2560 x 1440 - 3.7 Mpx
Lens	2.8 mm
Viewing angle	94 °
LED range	30m
IR range	30m
Image compression method	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Transmission speed of main stream	25 fps @ 3.7 Mpx
Memory card slot	-
Audio	Built-in microphone Network audio streaming Compatibility with AAC standard Audio detection
Network interface	10/100 Base-T (RJ-45)
Default admin login/password	Administrator password should be set at the first startup
Selected features	WDR - 120 dB - Wide Dynamic Range of illumination 3D-DNR - Digital Noise Reduction in video ROI - enhancement of selected parts of the image BLC/HLC - background light / strong light compensation Changeable resolution, quality and bandwidth Image rotation and mirroring Motion detection - up to 4 configurable zones Privacy zones - up to 4 Intelligent image analysis : Human detection
Housing	Dome - Metal + Plastic
Color	Black
Protection class	IP67
Vandal resistant	-
Power supply	PoE (802.3af) 12 V DC / 380 mA
Power consumption	≤ 5.7 W @ PoE ≤ 4.6 W @ 12 V DC
Operating temperature	-40 °C ... 60 °C
Weight	0.33 kg
Dimensions	Ø 110 x 101 mm
Supported languages	English, Spanish, Russian
Warranty	3 years

Technical specifications NVR2104-4KS3

DVR	NVR2104-4KS3
Supported resolutions:	max. 12 Mpx - 4000 x 3000 px
Video outputs:	1 pcs. HDMI 4K 1 pcs. VGA
Audio support:	4 Channels - Audio from cameras Two-way audio support
Audio inputs:	1 pc. CINCH
Audio outputs:	1 pcs. CINCH
Video compression method:	Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Bitrate:	max. 80 Mbps
Supported hard drives:	1 x 20 TB SATA
Recording modes:	Manual, motion detection, schedule
Archiving to external media:	Archiving to USB drive (flash drive, external drive)
Search and playback of recordings:	Search for recordings by time and event type. Playback: forward, reverse, speed up, slow down the recording Advanced search (every second) Smart Playback function Simultaneous playback of recordings from up to 4 cameras
Network interface:	1 x RJ-45 10/100 Base-TX
Network functions:	Full network support, Remote copy of recordings, Built-in web server
Network protocols:	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Register
ONVIF:	22.12
Default IP address:	192.168.1.108
Default admin login / password:	admin / - Administrator password should be set on first startup
Access from cell phone:	Port: 37777 or access via cloud (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app See the video on how to set up P2P on Dahua DVRs and how to enable the mobile app
Web access ports:	80, 37777
Access ports via PC app:	37777
Access ports via mobile app:	37777
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
USB:	2 pcs. USB 2.0
Serial ports:	No
Alarm inputs / outputs:	No
PTZ head control:	IP Speed Dome cameras.
Motion detection:	Yes
Intelligent Image Analysis:	Yes
Selected features:	SMD PLUS - search for object classified as: person, motor vehicle Filtering of false alarms based on recognition of people and vehicles Video tampering Functions implemented when the DVR cooperates with cameras supporting these functions : Advanced perimeter protection functions: intrusion, line crossing with separate rules for vehicles and pedestrians
Mouse operation:	Yes
IR remote control included:	No
PoE switch:	No
Power supply:	12 V DC / 1.5 A (power adapter included)
Power consumption:	max. 10 W (without HDD)
Operating temperature:	-10 °C ... 55 °C
Weight:	0.41 kg
Dimensions:	206 x 205 x 46 mm
Supported languages:	Polish, English
Manufacturer / Brand:	Dahua

Szczegóły dotyczące zgodności produktu z przepisami: Osoba odpowiedzialna za produkt

Odpowiedzialność za produkt

What is the Dahua company?

Dahua is a global company whose products power the field of electronics industry. Dahua is a well-known manufacturer of such devices and accessories as network cameras, NVR cameras, HDCVI and HDCVI HCVRs, intercoms, alarms, motion detectors and access system components.

Why buy Dahua Tehonology products?

Dahua products are first and foremost excellent value for money - the brand offers its customers high-quality products at a satisfactory price in both IP and HDCVI video technology. Dahua devices are primarily characterized by price-quality ratio.

Dahua Technology devices are also simple and uncomplicated to use, while at the same time advanced in terms of the functionality of the device software. They include many options for configuring free remote access to a given system, making Dahua products both multifunctional and functional.

Structure of Dahua Technology

Dahua Technology is a company that was established in 2001. Its headquarters are located in China, in Hangzhou. Today, it has a number of subsidiaries around the world, and Dahua has more than 16,000 employees in 200 offices and 54 overseas subsidiaries covering Asia, America, Europe, the Middle East, Oceania, Africa, Africa and more. Dahua provides unparalleled quality, reliability and stability in the services and products it delivers. About 50% of them are constantly working on development and research. The company's products are available in more than 180 countries around the world. Solutions with the brand's logo are widely used in key areas such as public safety, traffic, energy, banking and finance, retail and many others.

Dahua Technology has a track record of large-scale international projects, including the Rio Olympics, the Hangzhou G20 summit, Recife Subway in Brazil and the China International Import Expo. The company's position can be evidenced by being ranked second in the global CCTV and video surveillance equipment market in 2014 (according to an IHS report).

Dahua Technology products

Dahua Technology manufactures and distributes state-of-the-art video surveillance systems along with the necessary accessories.

One of Dahua's core products are surveillance cameras. The modern monitoring systems manufactured by Dahua are perfect for installation both in apartments and private homes, as well as in larger facilities - such as stores, hotels and halls. Mounted in the right places, Dahua cameras effectively protect property from burglary and theft. All Dahua devices in this area are equipped, among other things, with an infrared illuminator, which allows day and night image recording.

Dahua DVRs work fully compatible with the brand's cameras and are primarily used to play back high-resolution images from the connected camera. These more technologically advanced devices can be connected simultaneously to several or even a dozen cameras.

The Dahua video intercom, on the other hand, is a very functional device, allowing easy verification of the identity of any visitor even before letting them into the house.

Ivel.pl has been one of the distributors of Dahua Technology products in Poland for years. So we warmly invite both companies and installation companies, as well as corporate clients to cooperate with us. We offer full support in the process of solution selection, sales and service.
