4-in-1 Monitoring Kit HiLook by Hikvision 4x TVICAM-T8M-20DL 8MP Smart Hybrid-Light 30m
Photo gallery
-
Manufacturer
-
Product Code
ZM34695
-
Warranty
24 miesiące
- Technology: AHD/HD-CVI/HD-TVI
- Resolution: 8Mpx
- Enclosure: Dome
- Night visibility: up to 30m
- Number of cameras: 4
- Connectivity: Wired
- Memory card slot: No
- Audio: No
- Color: White
Ask about this product show form
Product Description

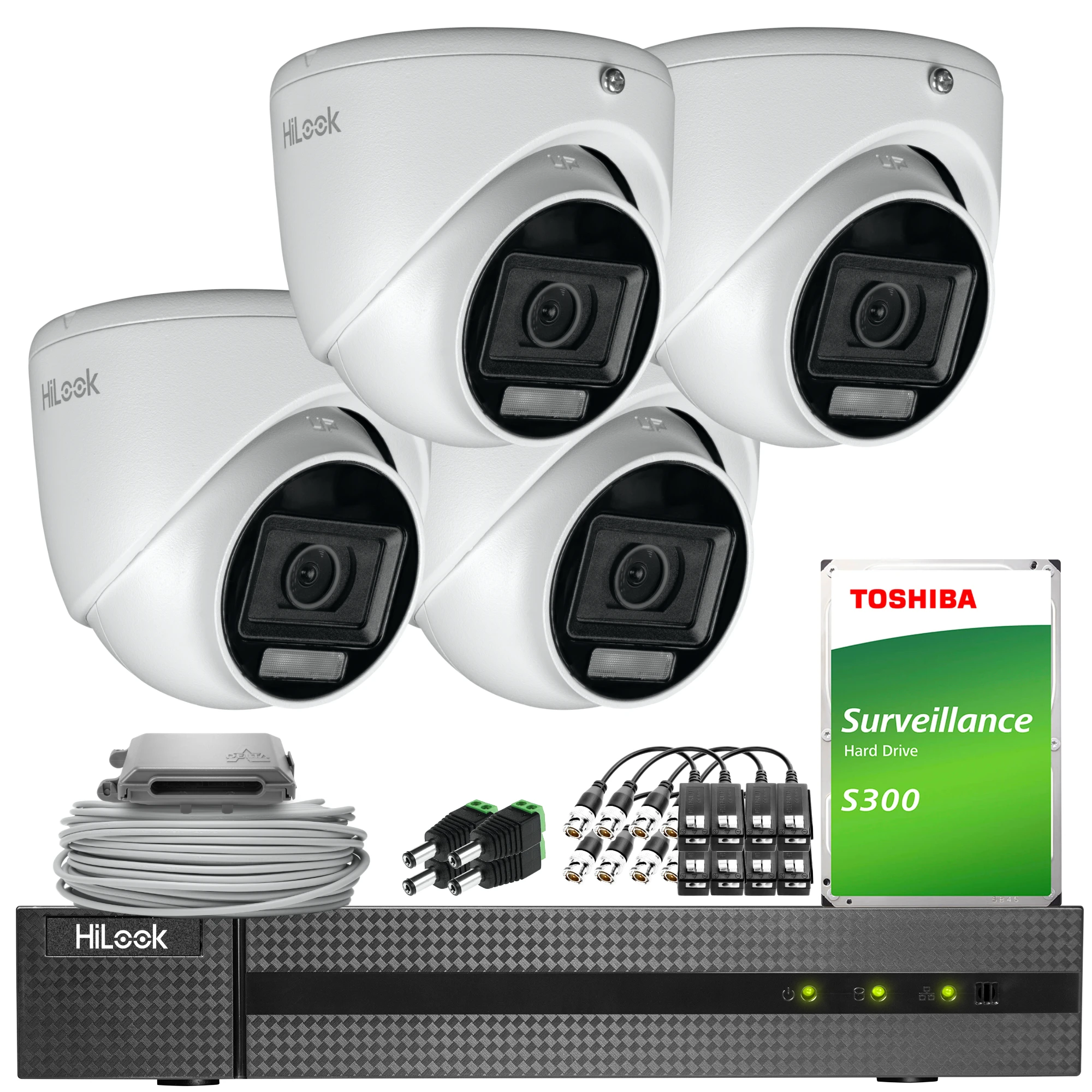

Set includes:
- HiLook by Hikvision DVR-4CH-5MP ( 1pc ).
- HiLook by Hikvision TVICAM-T8M-20DL camera ( 4pcs ).
- Toshiba S300 1TB hard drive from Surveillance series, dedicated to CCTV solutions ( 1pc ).
- UTP cable (20m.)
- Set of converters ( 4pcs ) and DC plugs ( 4pcs ).
- Power splitter ( 1pcs. )
- Power supply for cameras ( 1pc )
- "Attention Object Monitored" sticker ( 1pcs ).
Features of TVICAM-T8M-20DL:
- High-quality imaging with 8 Mpx, 3840 x 2160 resolution.
- 2.8mm fixed focus lens
- Infrared range up to 30 meters
- White light range - 20 meters
- Support for four analog TVI/AHD/CVI/CVBS systems
- IP66 water and dust resistance
Main features of DVR-4CH-5MP:
- Human and vehicle target classification based on deep learning in motion detection 2.0
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Capable of connecting up to 6 network cameras (up to 8 MP)
- Capable of encoding up to 8 MP @8 fps
Main features of Toshiba S300 hard drive:
- Capacity: 1TB
- Drive type: HDD (hard disk drive)
- Format: 3.5 inches
- Interface: SATA III (6 Gb/s)
- Rotational speed: 5700 RPM
- Cache memory (Cache): 64 MB
- Continuous 24/7 operation: The drive is designed for continuous operation, which is important in surveillance systems where video recording takes place continuously.
- Support for up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
- Performance: The drive provides stability and reliability in situations requiring heavy read/write workloads.
High-quality imageThe TVICAM-T8M-20DL camera's light-sensitive sensor and high-quality sensor combined with advanced optics deliver high-quality images with excellent sharpness. The device records at 8Mpx resolution, giving it a significant advantage over typical FullHD models. It guarantees that even the smallest detail will be captured on the footage.
|  |
Automatic day/night modeAdapted to work in all lighting conditions, the TVICAM-T8M-20DL with visibility up to 30m even in total darkness. In addition, the Day/Night sensor switches the video mode automatically based on the amount of light reaching the lens. The LED range is 20 meters. |  |
IP66 weatherproof designThis housing protects the TVICAM-T8M-20DL from external factors such as dust, dirt and moisture, which is especially important in industrial environments or dusty areas. Cameras with IP66 housing can be installed in a variety of locations, from industrial to marine, without worrying about environmental damage. |  |
Wide dynamic range - That is, high quality in difficult conditions
The WDR (Wide Dynamic Range) function of the TVICAM-T8M-20DL is a technology that improves image quality in difficult lighting conditions, especially when there are very bright and very dark areas in the camera's field of view at the same time. Key aspects of the WDR function are:
- Exposure balancing: WDR helps produce clear images in situations where there is strong backlighting or underexposure, such as when filming from inside a building overlooking a brightly lit exterior.
- Preservation of detail: With WDR, cameras can better capture details in the dark and bright parts of the image. This allows clear recognition of faces, vehicle license plate numbers and other important elements that might not be visible under standard conditions.
- Image processing technology: WDR achieves its effects by quickly switching between different exposure levels or by combining several images taken with different exposure settings to create a single, balanced image.
- Usefulness in security monitoring: This feature is particularly important in security monitoring systems, where it is important to get clear images in a wide variety of lighting conditions, both indoors and outdoors.
LED illumination and color images after dark
The TVICAM-T8M-20DL camera's white light illumination function is used to improve image quality in low-light conditions. Here are some key aspects of this technology:
- Improving nighttime visibility: When natural light levels are low, white light illumination produces a colorful and clear image that is typically of better quality than images obtained using infrared (IR).
- Preventive effect: Bright light can act as a deterrent to potential intruders or criminals, as it signals that the area is being monitored and well lit.
TVICAM-T8M-20DL Technical Specifications:
| TVI-T8M-20DL | |
|---|---|
| Category | Camera |
| Sensor | 4K CMOS |
| Signal standard | PAL/NTSC |
| Resolution max. | 3840 x 2160 |
| Sensitivity | 0.01 Lux (F1.2, AGC ON), 0 Lux at IR |
| Shutter opening time | PAL: 1/25s-1/50000s NTSC: 1/30s-1/50000s |
| Lens | 2.8mm |
| Recording angle | H: 108° V: 59° |
| IR illuminator | Yes, range up to 30m |
| White light illuminator | Yes, range up to 20m |
| Infrared filter | Mechanical ICR |
| Head adjustment range | Panorama: 0° to 360° Rotation: 0° to 75° Tilt: 0° to 360° |
| Recording speed | TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL, NTSC |
| Image functions | |
| AWB | Auto, Manual |
| Day/night mode | Auto / color / black and white |
| BLC | Yes |
| HLC | Yes |
| Wide Dynamic Range | Yes, digital DWDR |
| Image adjustment functions | Exposure, Sharpness, DNR, Flip, Smart IR |
| Video interface | |
| Video output | 1x HD Analog (BNC) |
| Video operation mode | TVI/AHD/CVI/CVBS (automatic adjustment) |
| General | |
| Protection class | IP66 |
| Power supply | 12 VDC |
| Power consumption | ≤4.6W |
| Operating temp. | -40 °C to 60 °C |
| Permissible humidity | ≤90% |
| Housing material | metal + plastic |
| Dimensions | 80 mm × Ø85.1 mm |
| Weight | 310 g |
DVR-4CH-5MP Technical Specifications:
| Motion Detection Based on Deep Learning 2.0 | Enabled by default for all analog channels; can recognize people and vehicles, which greatly reduces false alarms caused by objects such as leaves and lights; supports quick search by object type or event; |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | |
| Main Stream: | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps only available for channel 1. |
| Sub-stream: | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video bit rate | 32 Kbps to 10 Mbps |
| Support for Dual Stream | |
| Stream Type | Video, Video and Audio |
| Audio Compression | G.711u |
| Audio bit rate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 2-channels (up to 6 channels) |
| Extended IP mode on: | 4-channels (up to 8-channels), each up to 4 Mbps |
| Maximum Resolution | Up to 8 MP |
| Support for H.265+/H.265/H.264+/H.264 IP Cameras | |
| Analog Video Input | 4-channel BNC interface (1.0 Vp-p, 75 Ω), supports coaxitron connection |
| HDTVI input | 8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD input | 5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI input | 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDMI output | 1-channel, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output | 1-channel, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio input | 1-channel, RCA (2.0 Vp-p, 1 KΩ) 4-channel via coaxial cable |
| Audio output | 1-channel, RCA (Linear, 1 KΩ) |
| Two-way Audio | 1-channel, RCA (2.0 Vp-p, |
